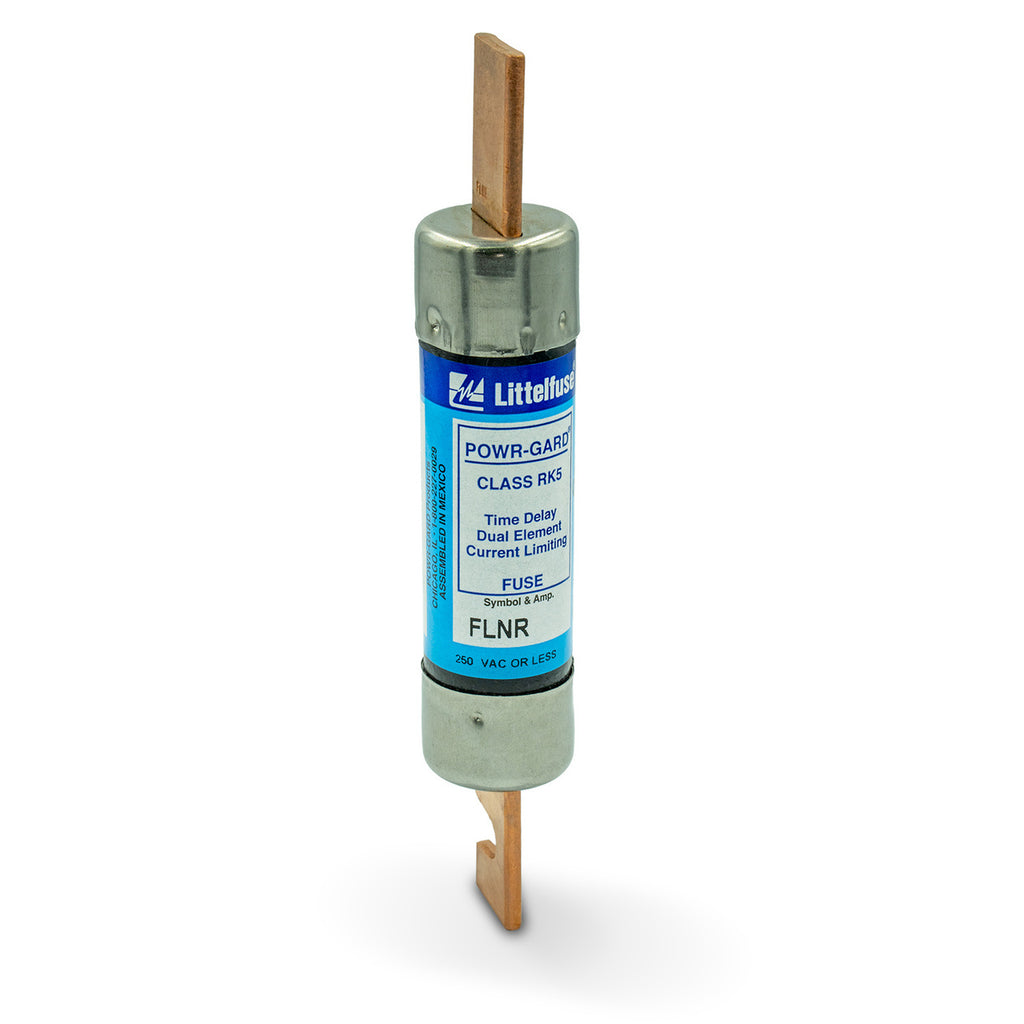

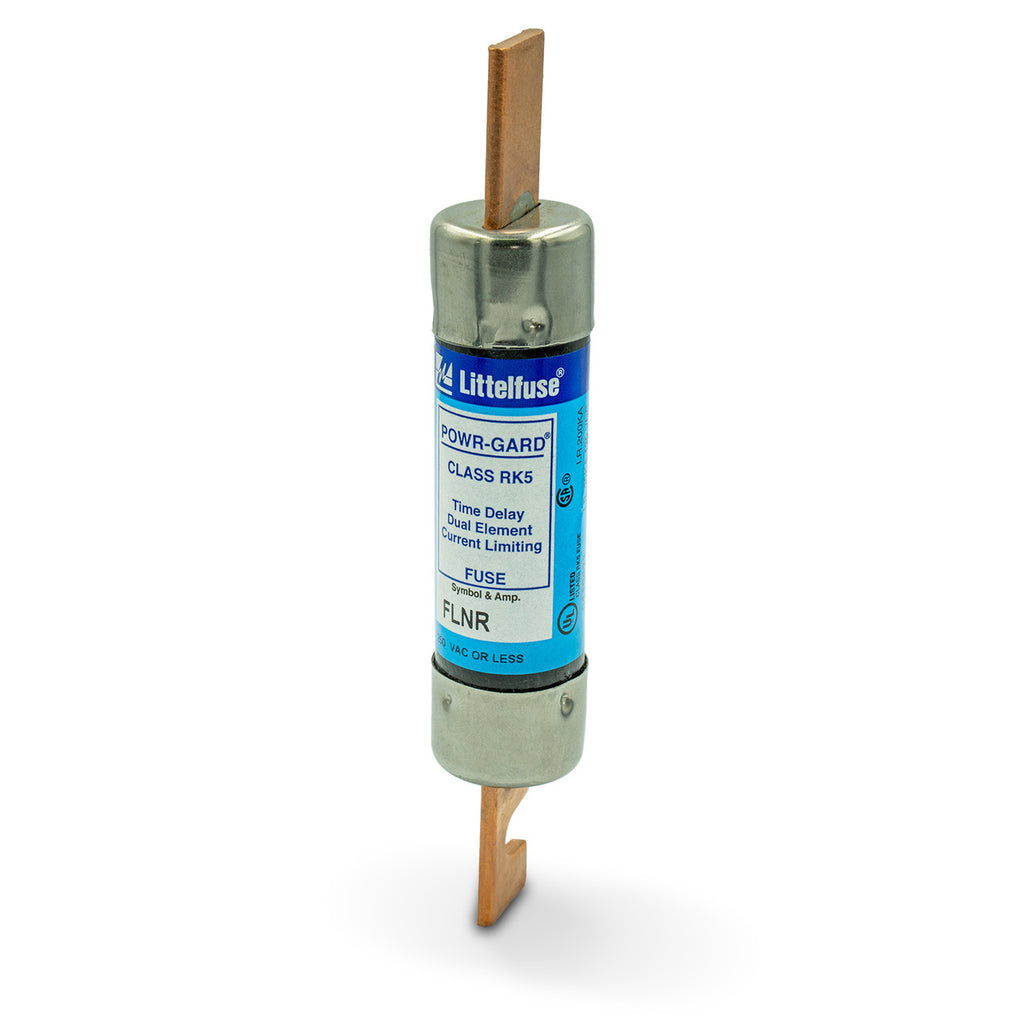

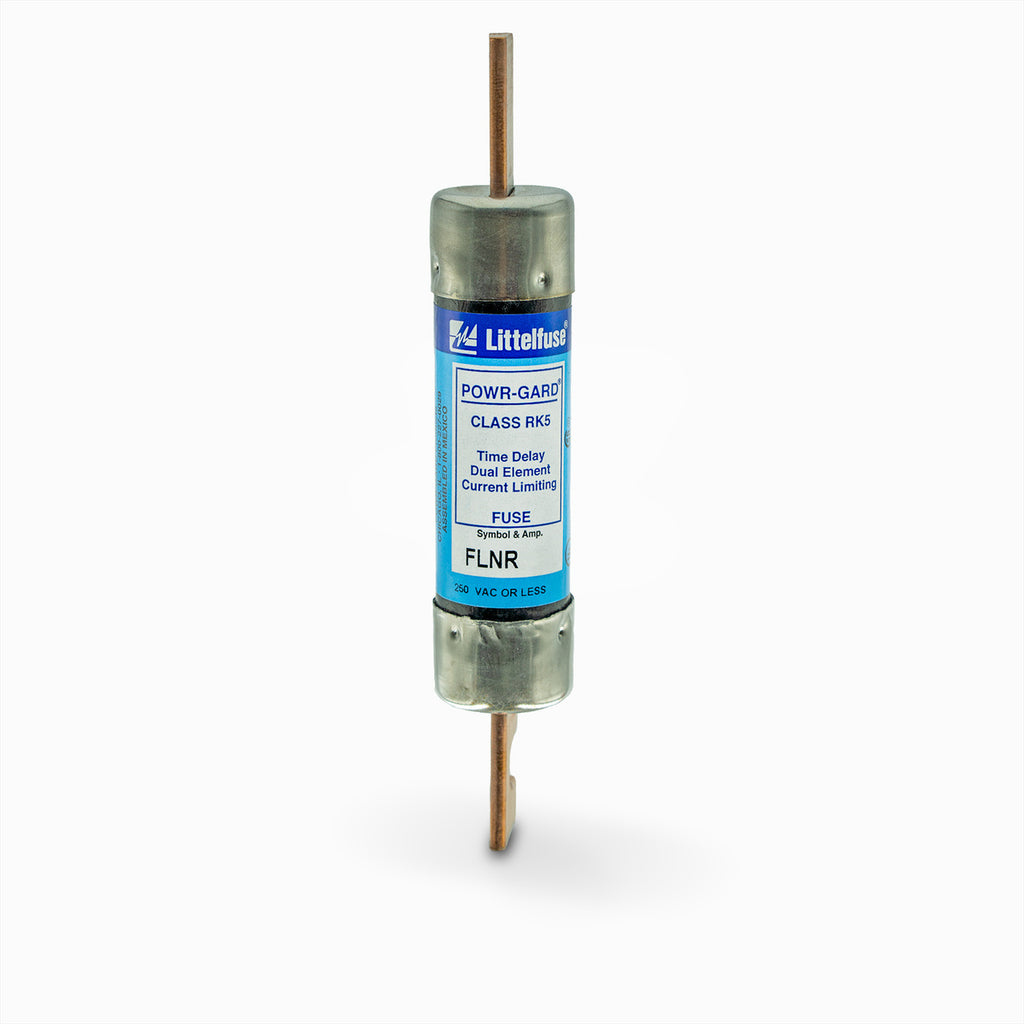

FLNR080 - Littelfuse 80A 250V Class RK5 Dual Element Time Delay Fuse

FLNR080

FLNR080 is an 80 amp, 250 volt Class RK5 dual element time delay fuse designed for general purpose circuit protection.FLNR080 features a dual-element design providing advanced short-circuit and overload protection with a time delay (slow blow) characteristic. It has a knife-blade style construction suitable for fuse block, clip, or holder mounting. The fuse offers a high interrupting rating of 300 kA AC and 20 kA DC, ensuring reliable performance in demanding applications. It meets UL 248-12 Class RK5 standards and is commonly used in service entrance switches, transformers, switchboard mains, feeders, and motor control circuits.

Key Specifications
• Amperage: 80 A
• Voltage Rating: 250 V AC / 125 V DC
• Fuse Class: RK5
• Fuse Type: Dual Element, Time Delay (Slo-Blo)
• Interrupting Rating: 300 kA AC, 20 kA DC
• Mounting Type: Fuse Block / Clip / Holder
• Construction: Knife-Blade Style
• Standards: UL 248-12 Class RK5

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLNR080
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Type : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Voltage : 250
• Amperage : 80
• AIC rating : 200kA@250V
• Connection : Rejection Blade
• Diameter : 2.09
• Class Rating : RK5
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 07945815080
• GTIN : 00079458150803
• Country of Origin : Mexico
• Dimensions : x 5-7/8 in x
• Weight : 0.32
• Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
