FLNR070ID - Littelfuse Class RK5 70A 250VAC 125VDC Time Delay Indicating Fuse

FLNR070ID

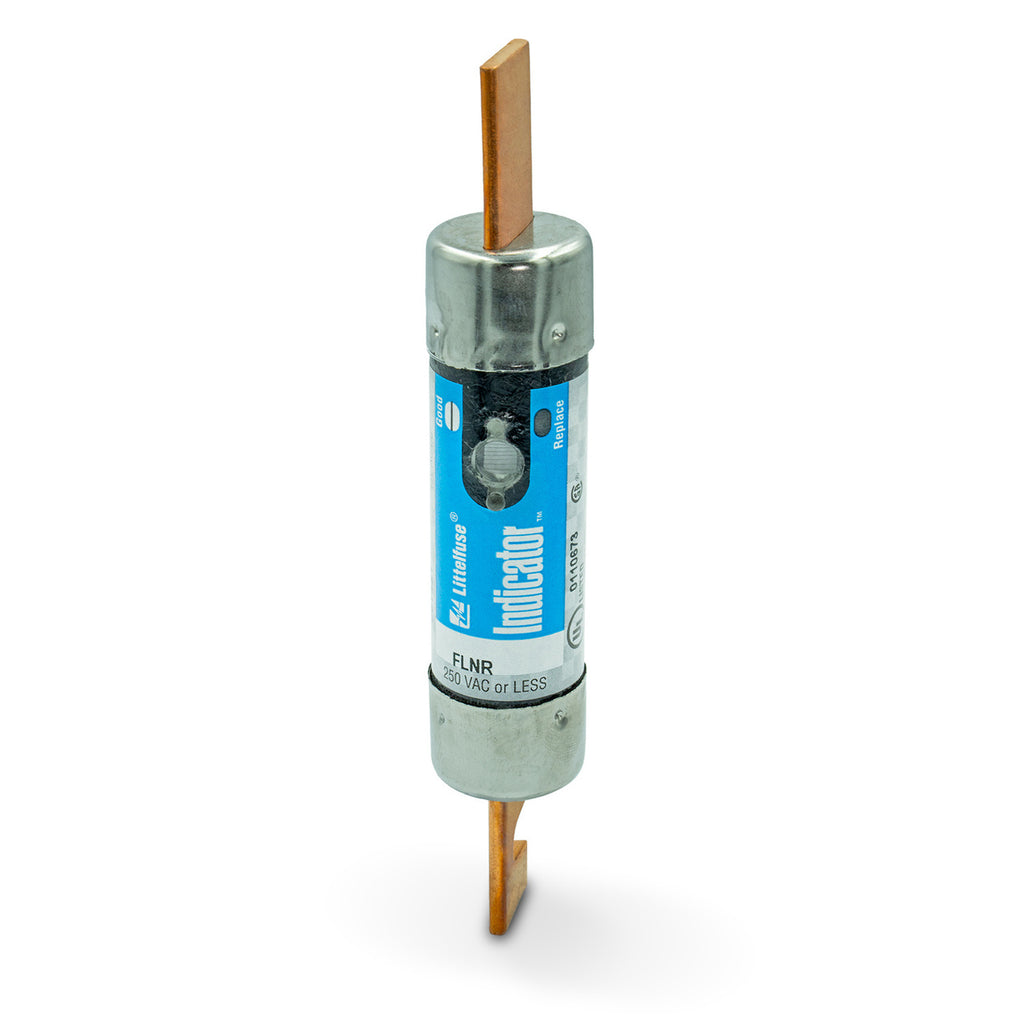

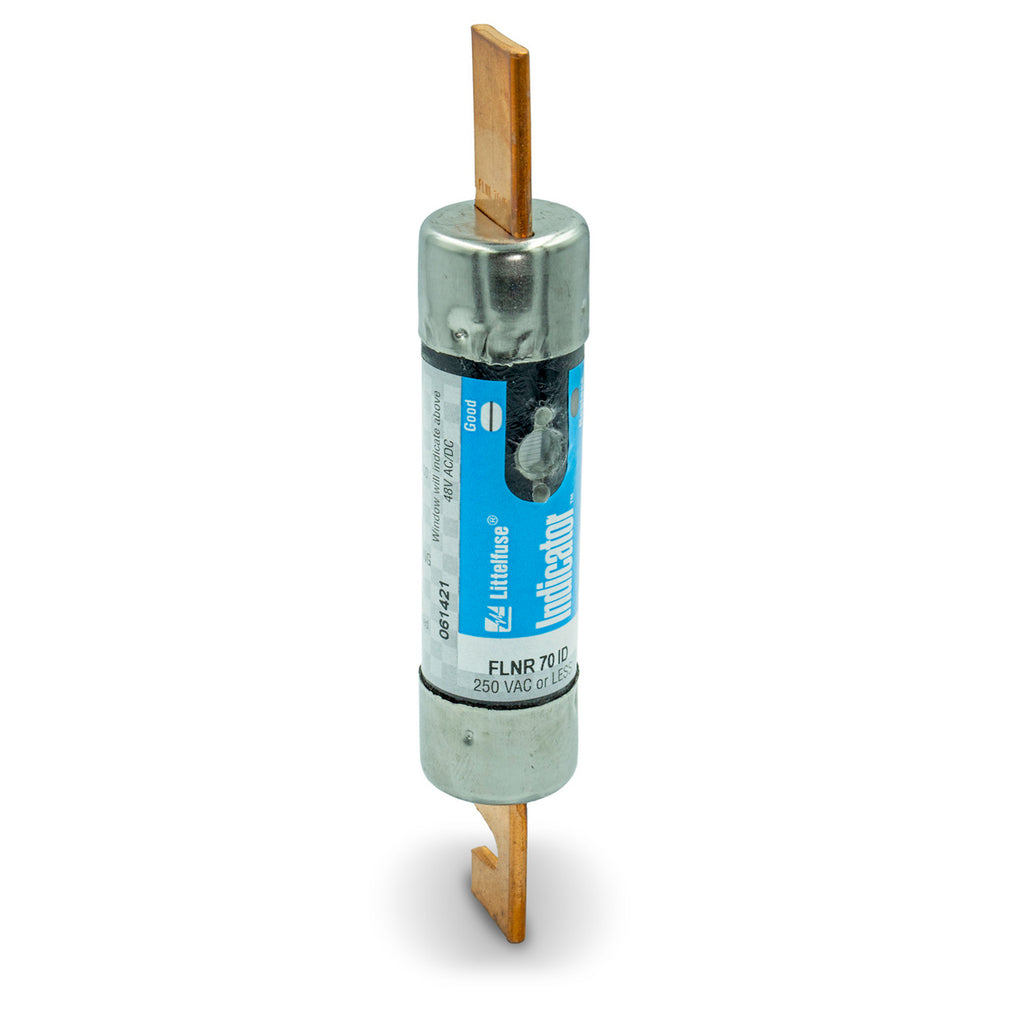

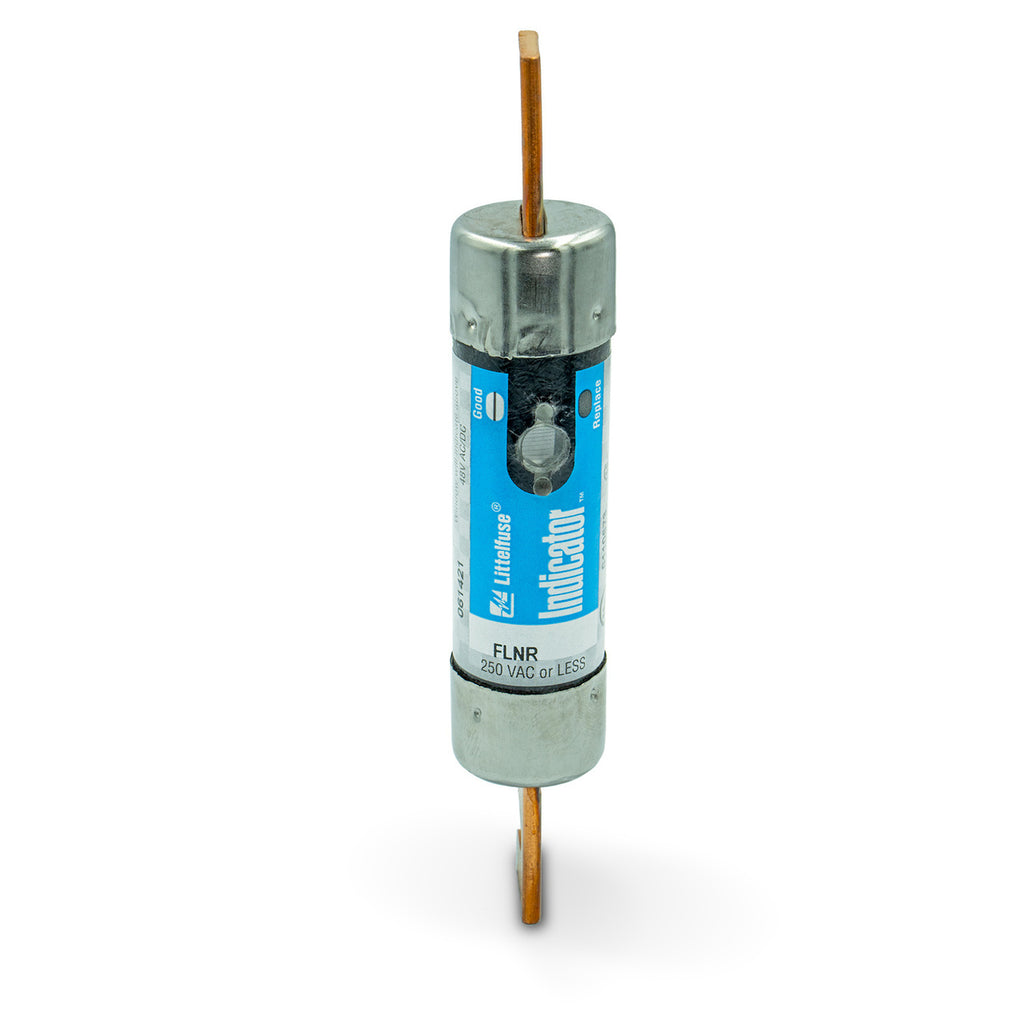

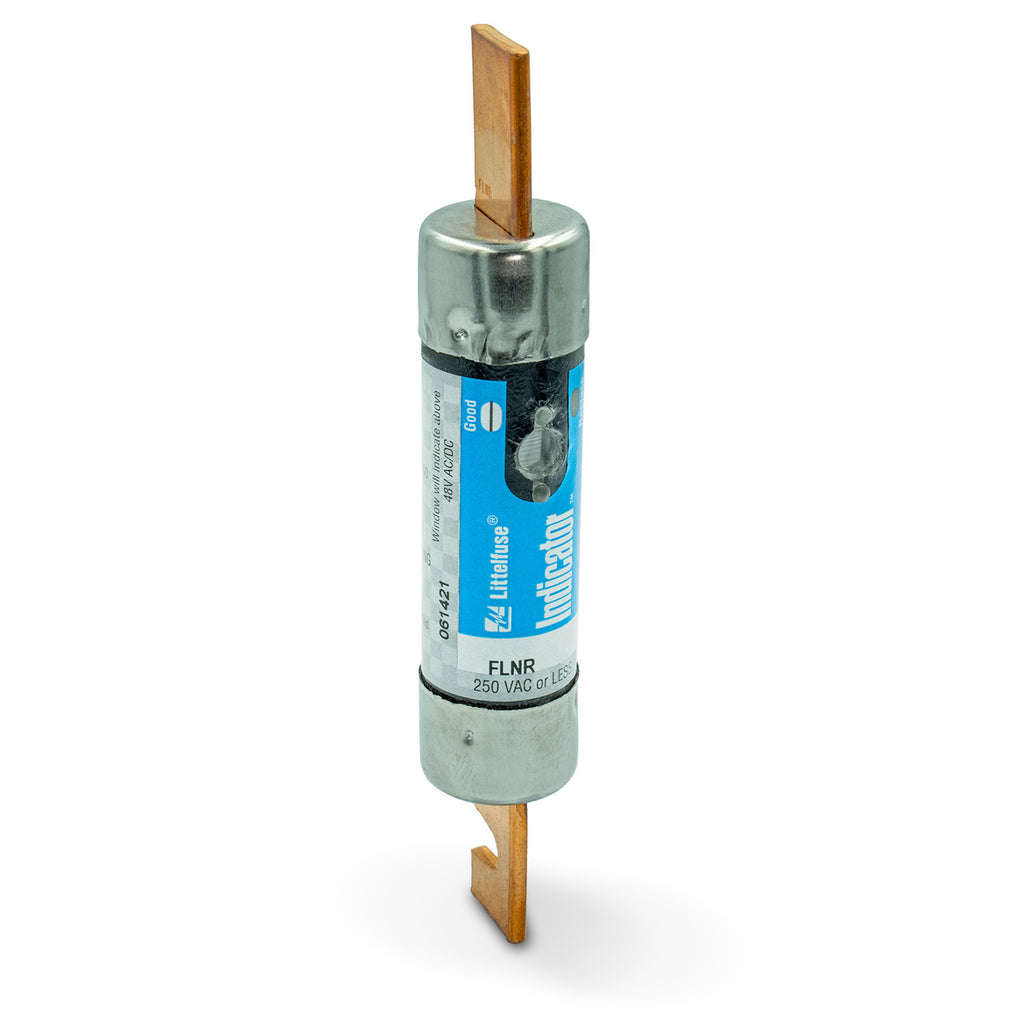

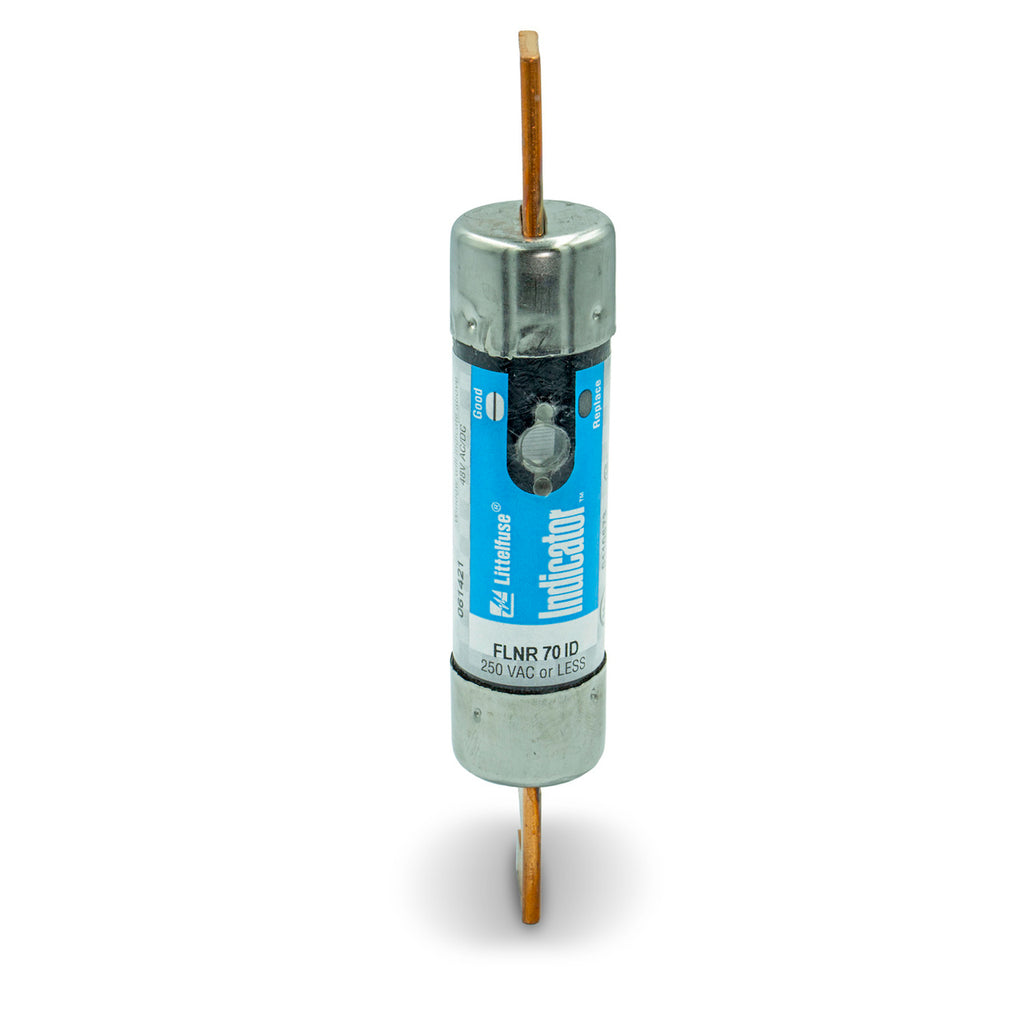

FLNR070ID is a Littelfuse Class RK5 indicating fuse designed for general purpose circuits, offering reliable protection with visual blown fuse indication. This dual-element, time delay fuse features a knife-blade mounting style and is suitable for a wide range of industrial and commercial applications.Engineered for advanced short-circuit and overload protection, the FLNR070ID fuse provides current-limiting performance and fast identification of blown fuses thanks to its patented solid-state indicator. The fuse is compatible with standard fuse blocks and holders, making it easy to install and maintain in service entrance switches, panelboards, and control panels.

• Amperage Rating: 70 A
• AC Voltage Rating: 250 VAC
• DC Voltage Rating: 125 VDC
• Fuse Class: Class RK5
• Interrupting Rating: 200 kA AC, 300 kA AC (self-certified), 20 kA DC
• Mounting Type: Knife-Blade
• Response Time: Time Delay (Slow Blow)
• Element Type: Dual Element
• Body Style: Cartridge
• Diameter: 1-1/16 in
• Length: 5-7/8 in
• Standards: UL 248-12, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLNR070ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Type : FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Voltage : 250
• Amperage : 70
• AIC rating : 200kA@250V
• Connection : Rejection Blade
• Diameter : 1.06
• Class Rating : RK5
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 079458023855
• GTIN : 00079458023855
• Country of Origin : Mexico
• Dimensions : x 5 7/8 in x
• Weight : 1.73
• Certification : CSA, cUL, UL
