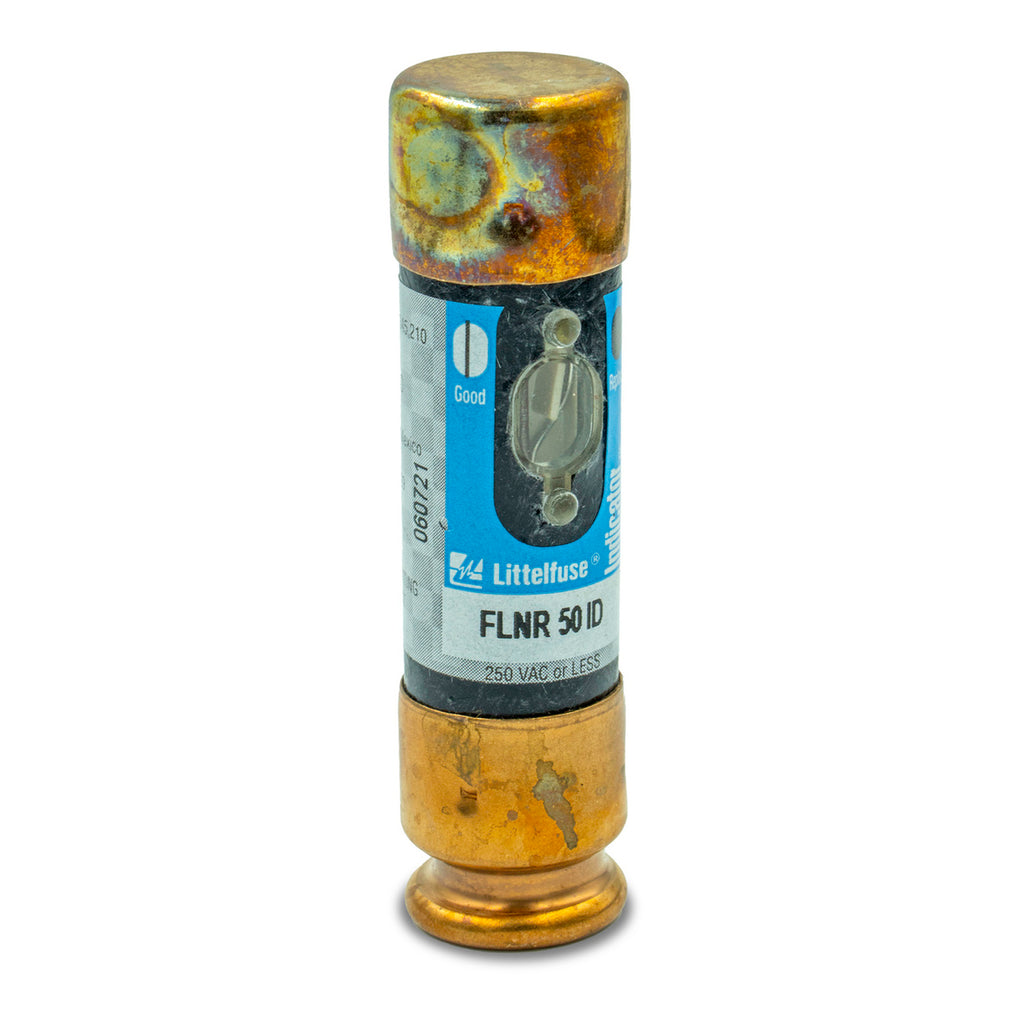

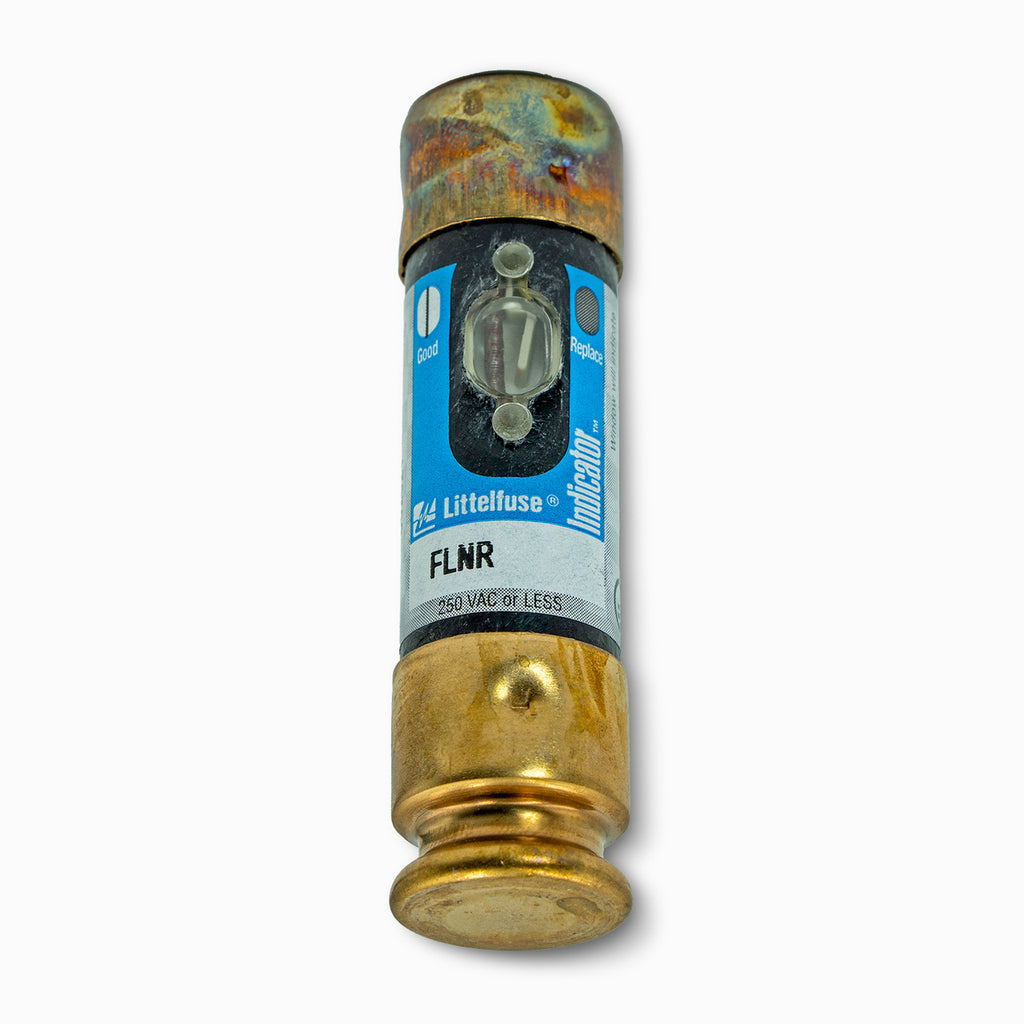

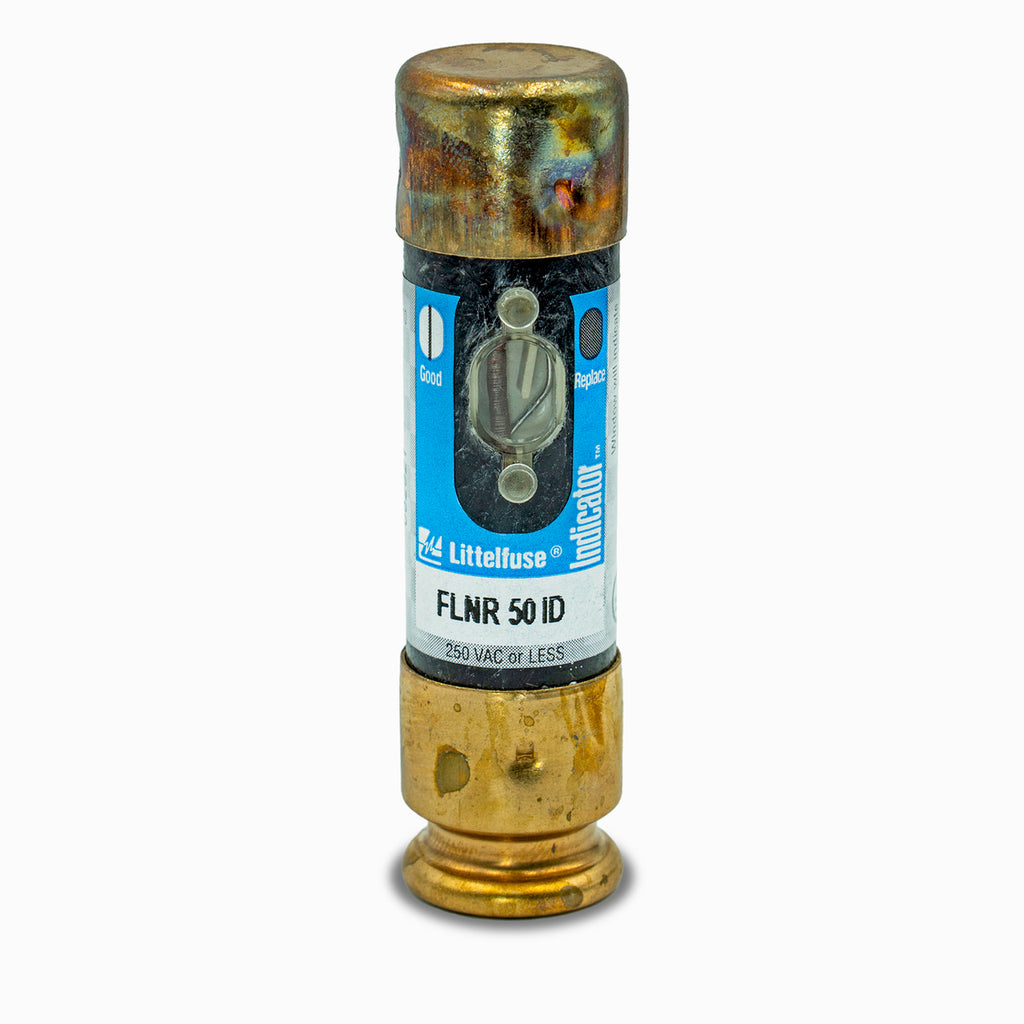

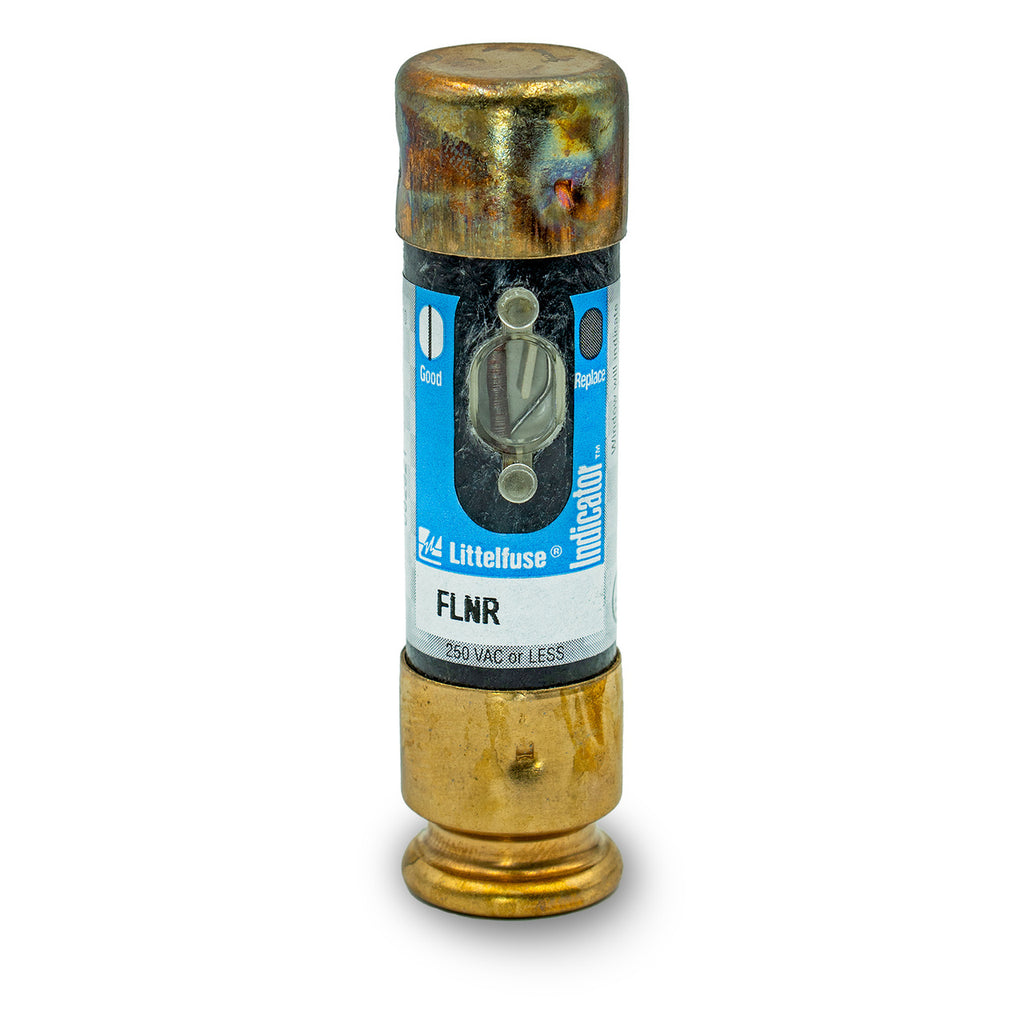

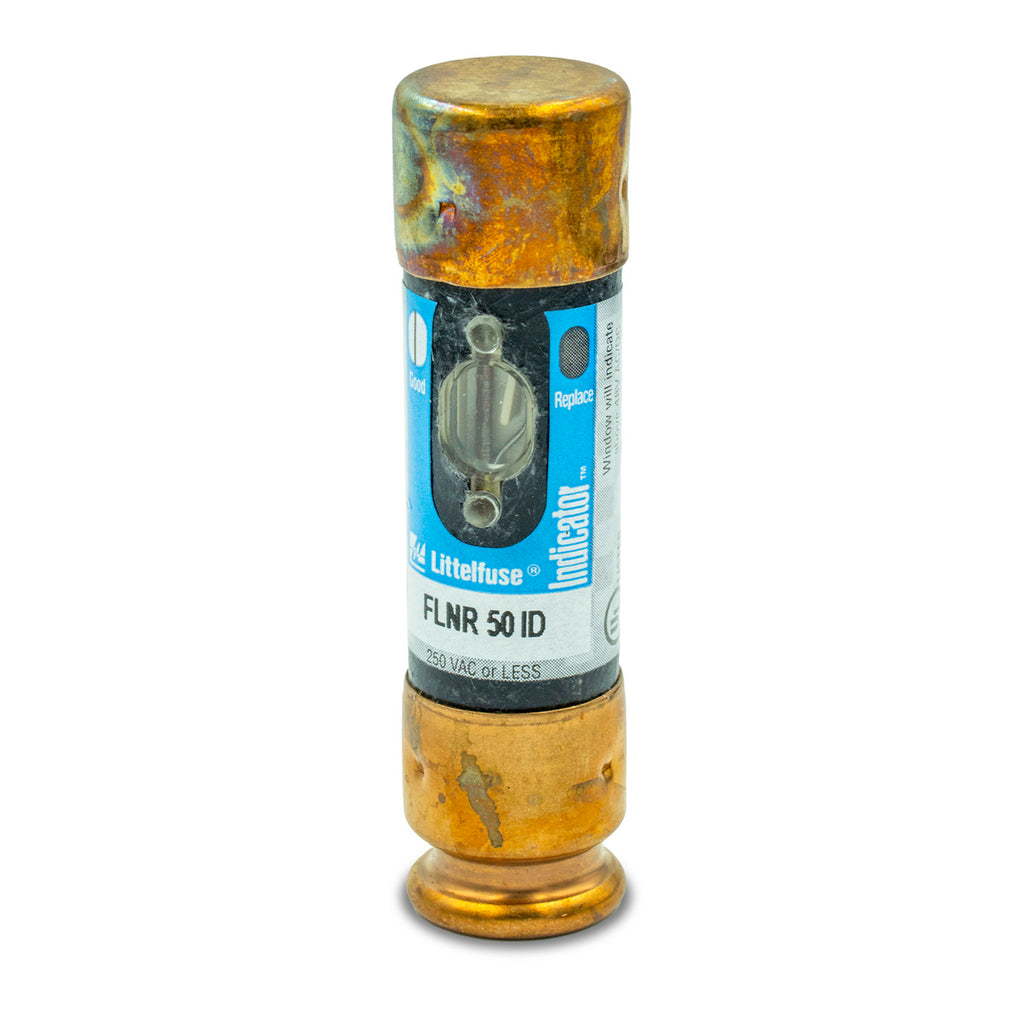

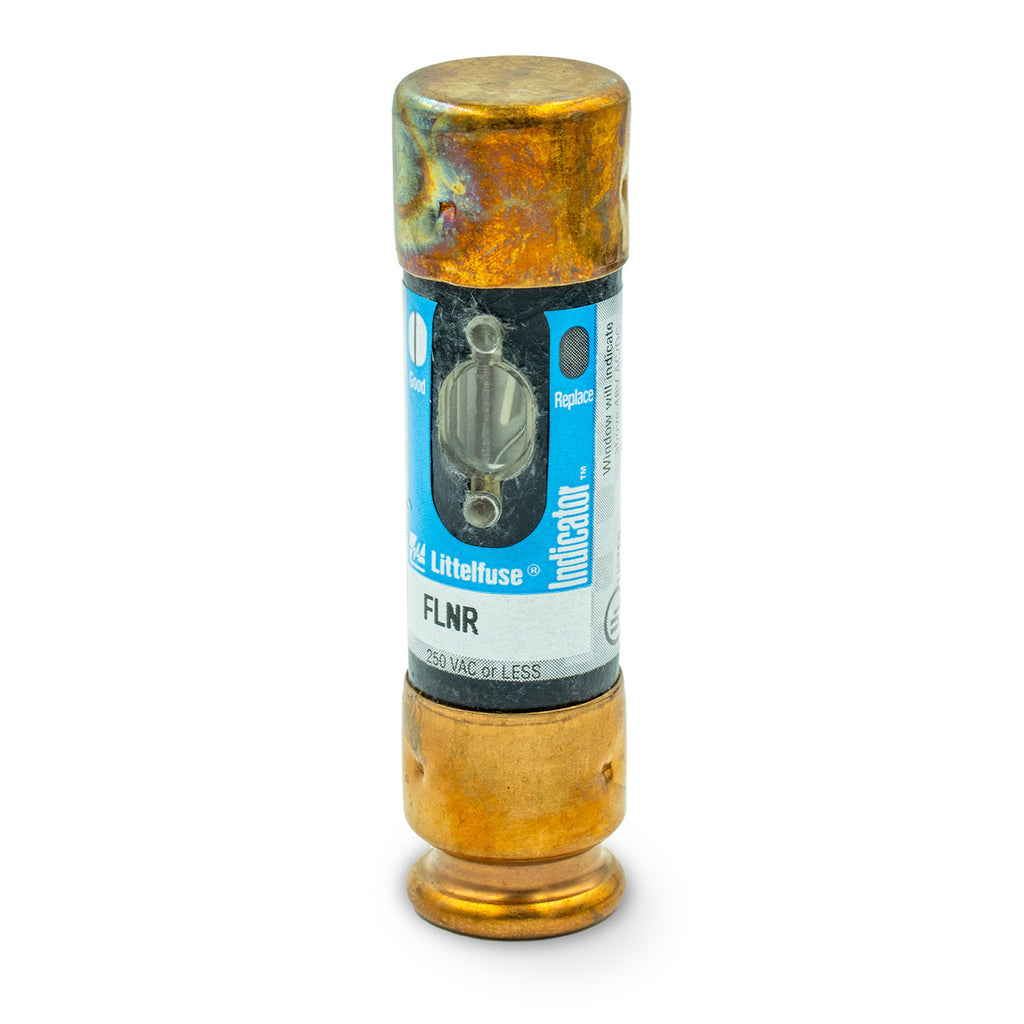

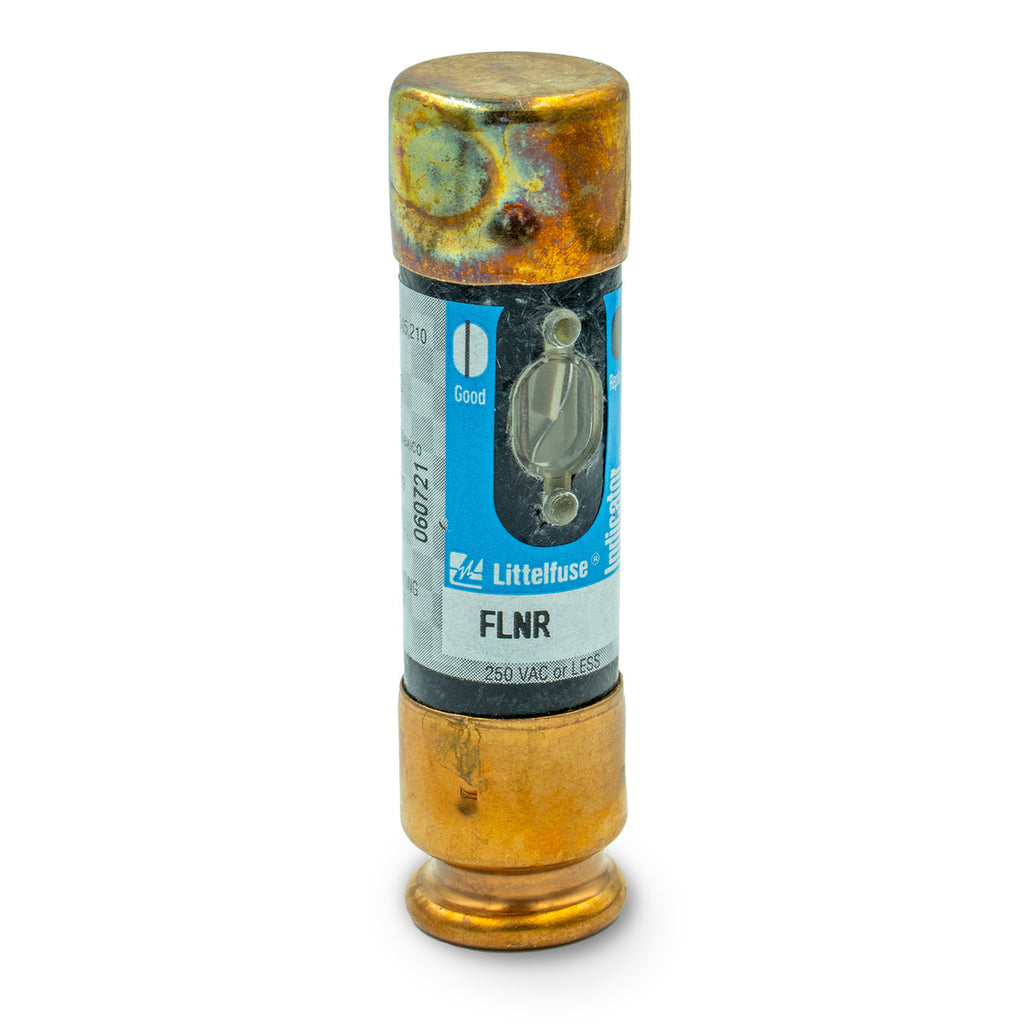

FLNR050ID - Littelfuse 50 Amp 250 Volt Class RK5 Time Delay Indicating Fuse

FLNR050ID

FLNR050ID is a Littelfuse Class RK5 indicating fuse rated for 50 amps and 250 volts AC, designed for general purpose circuit protection with time delay and current limiting features.This fuse features a dual-element design providing advanced short-circuit and overload protection, with a patented solid-state visual blown fuse indicator for quick identification. It is suitable for use in service entrance switches, motor control circuits, switchboard mains, feeders, and distribution panelboards. The fuse has a cartridge-style body measuring 13/16 inch diameter by 3 inches in length and is UL 248-12 and CSA certified.

• Amperage Rating: 50 Amps
• Voltage Rating: 250 VAC / 125 VDC
• Fuse Class: RK5
• Fuse Type: Time Delay (Slow Blow)
• Dual Element Design
• Current Limiting
• Visual Blown Fuse Indication
• Interrupting Rating: 300 kA AC, 20 kA DC
• Mounting Method: Fuse Block / Clip / Holder
• Body Style: Cartridge, 13/16 inch diameter x 3 inch length
• Certifications: UL 248-12, CSA, Federal Spec WF-1814

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLNR050ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Type : FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Voltage : 250
• Amperage : 50
• AIC rating : 200kA
• Connection : Ferrule Rejection
• Class Rating : RK-5
• Velocity : TD - Time Delay

Product Data

• UPC : 079458023831
• GTIN : 00079458023831
• Country of Origin : Mexico
• Dimensions : x 3 in x
• Weight : 0.12
• Certification : CSA, cUL, UL
