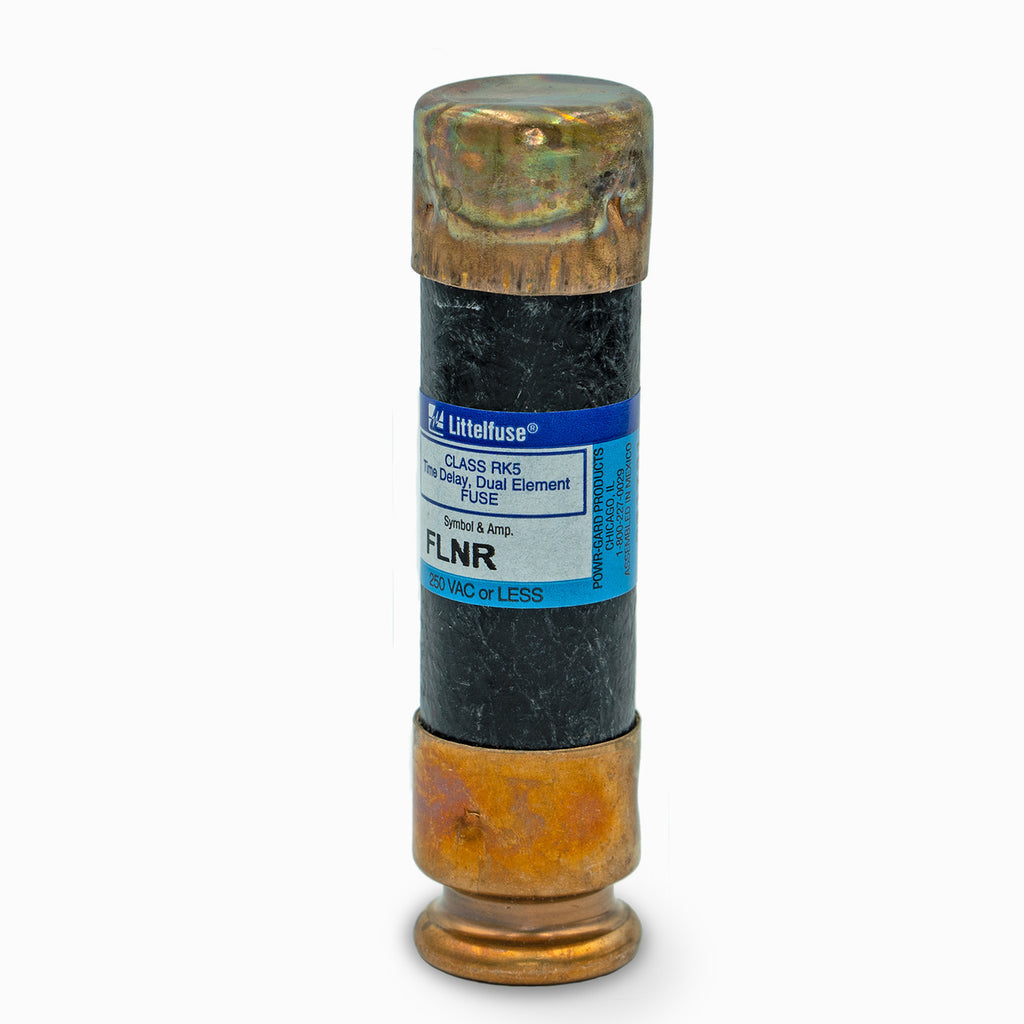

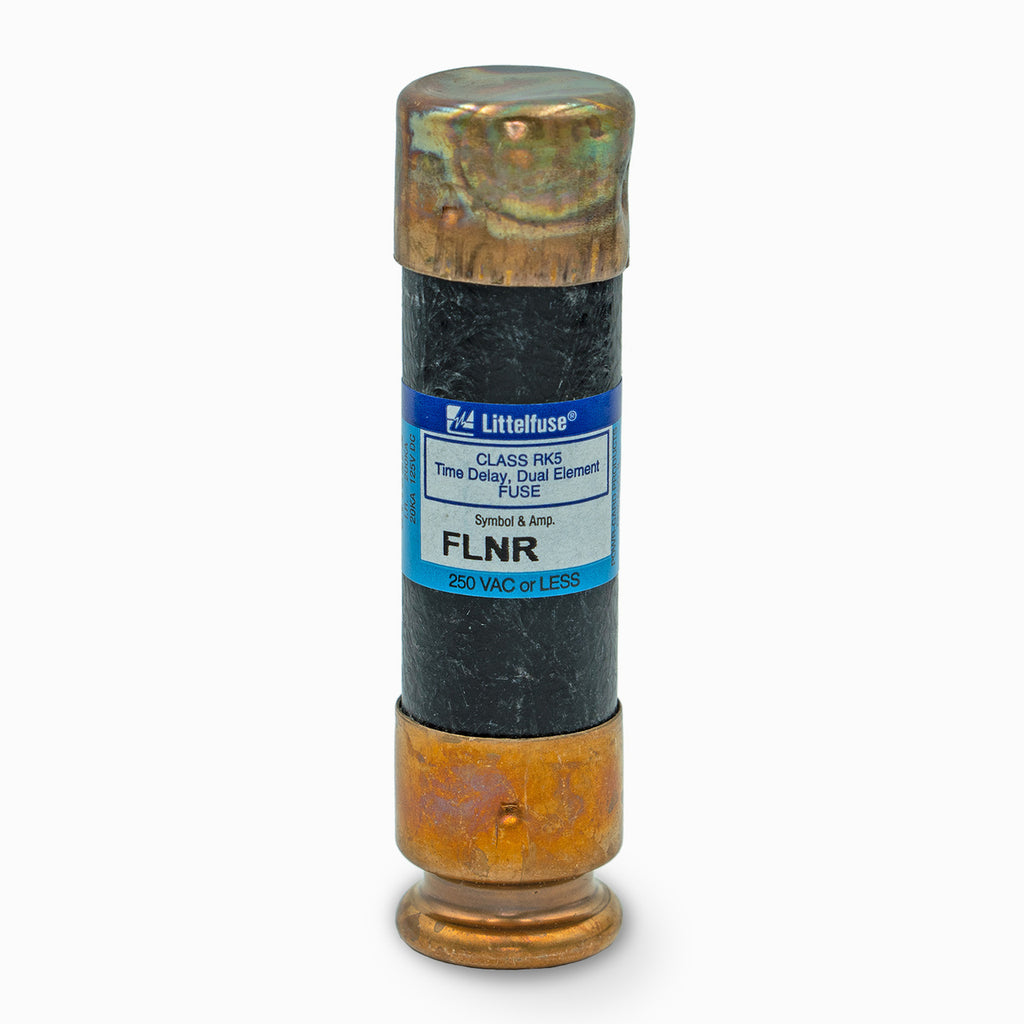

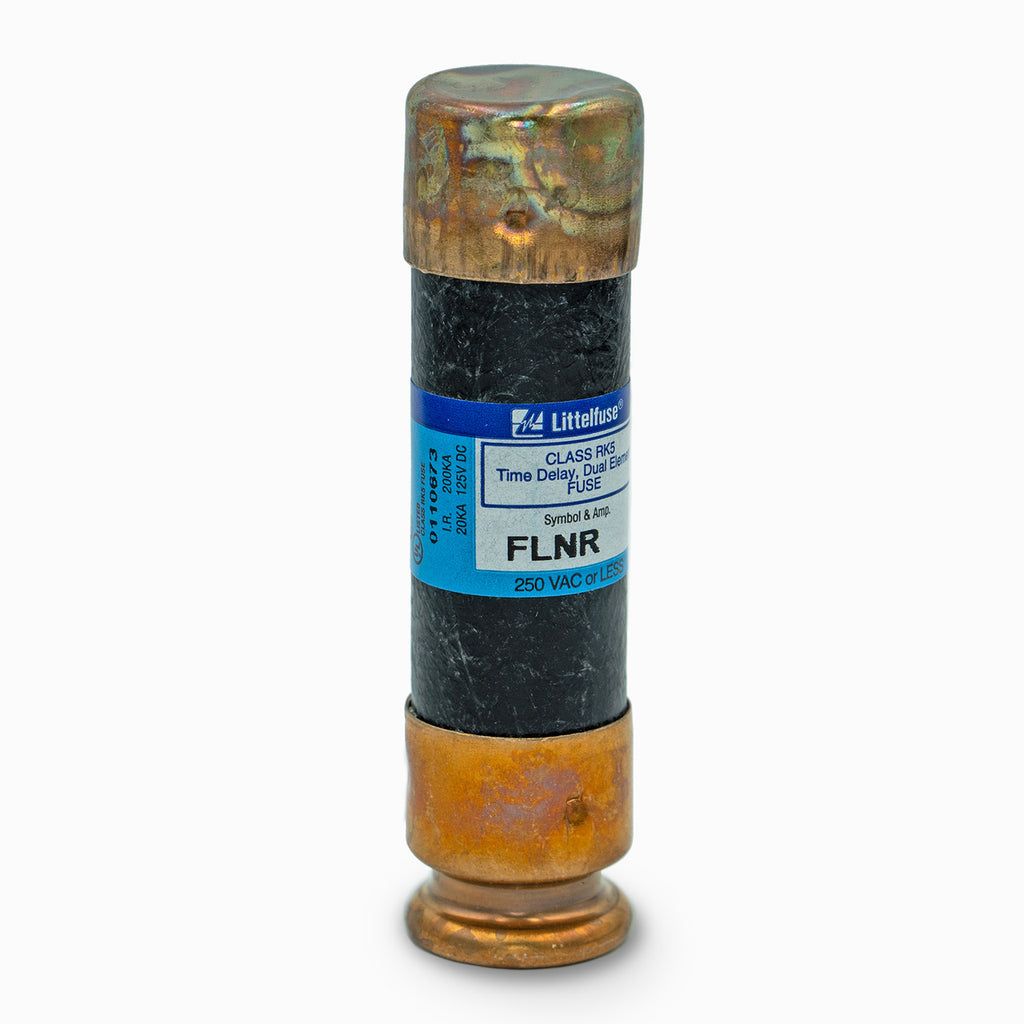

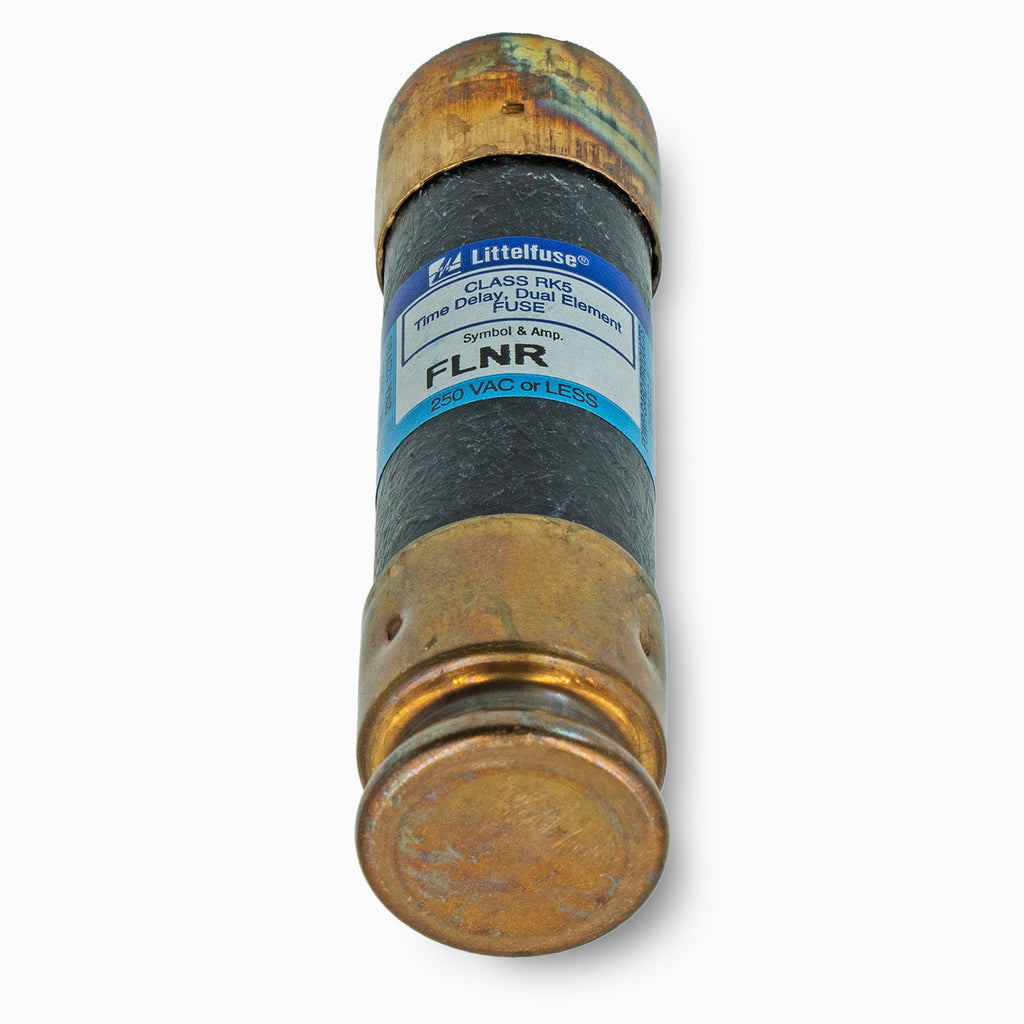

FLNR050 - Littelfuse 50A 250V Class RK5 Dual-Element Time-Delay Fuse

FLNR050

FLNR050 is a Littelfuse 50 Amp, 250 Volt Class RK5 dual-element time-delay fuse designed for general purpose circuit protection.This fuse features a dual-element design that provides advanced short-circuit and overload protection with time-delay characteristics. It is current limiting to restrict fault current and enhance circuit safety. The FLNR050 is an industrial cartridge fuse with a voltage rating of 250 VAC and 125 VDC, and it meets UL 248-12 Class RK5 standards. It is UL Listed and CSA Certified, suitable for applications such as service entrance switches, transformers, switchboard mains and feeders, and motor control circuits.

• Amperage: 50 A
• Voltage Rating: 250 VAC / 125 VDC
• Fuse Type: Dual Element, Time Delay
• Class: RK5
• Size: Industrial Cartridge (1 Barrel)
• Interrupt Rating: 200 kA AC rms symmetrical
• Current Limiting
• UL Listed (File: E81895)
• CSA Certified (File: LR29862)
• Applications: General Purpose Circuit Protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLNR050
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Type : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Voltage : 250
• Amperage : 50
• AIC rating : 200kA@250V
• Connection : Ferrule Rejection
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 07945815077
• GTIN : 00079458150773
• Country of Origin : Mexico
• Dimensions : x 3 in x
• Weight : 0.44
• Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
