FLNR045ID - Littelfuse Class RK5 45A 250VAC/125VDC Time Delay Indicating Fuse

FLNR045ID

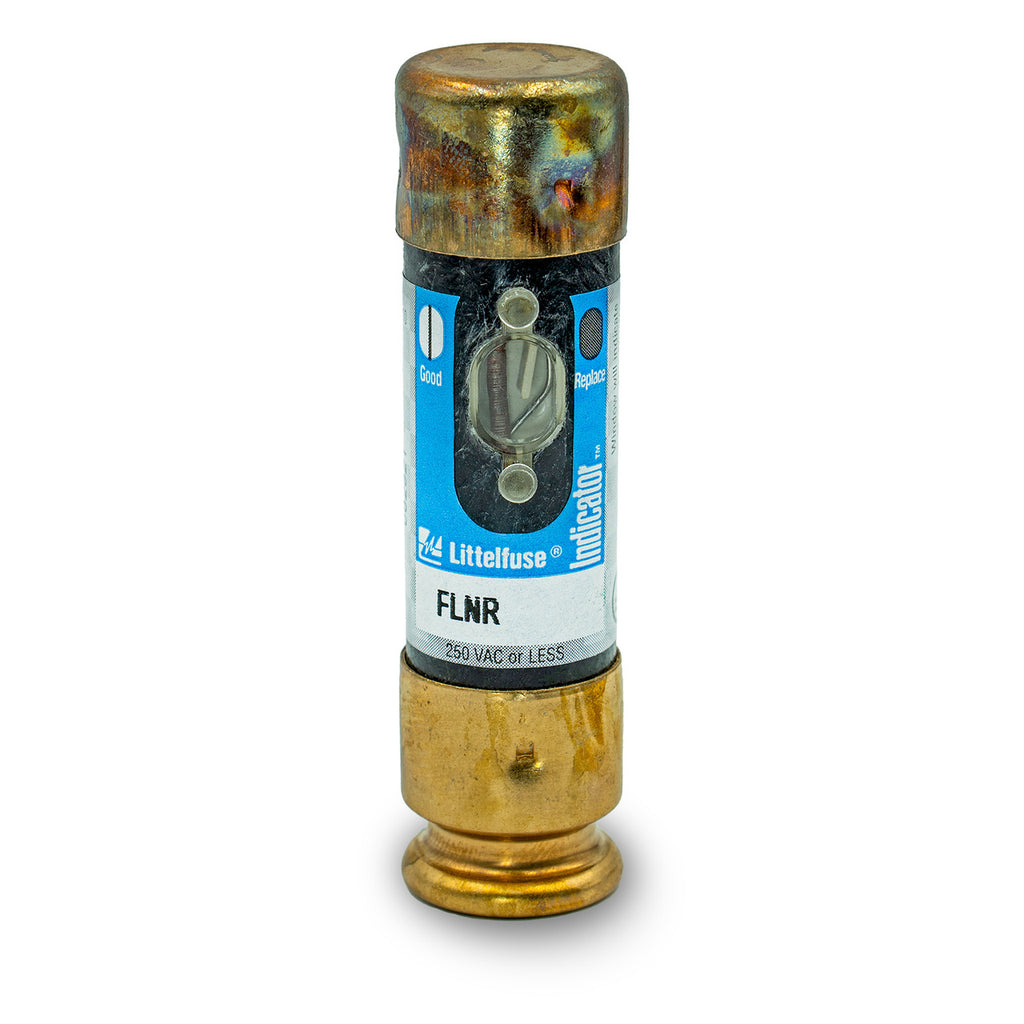

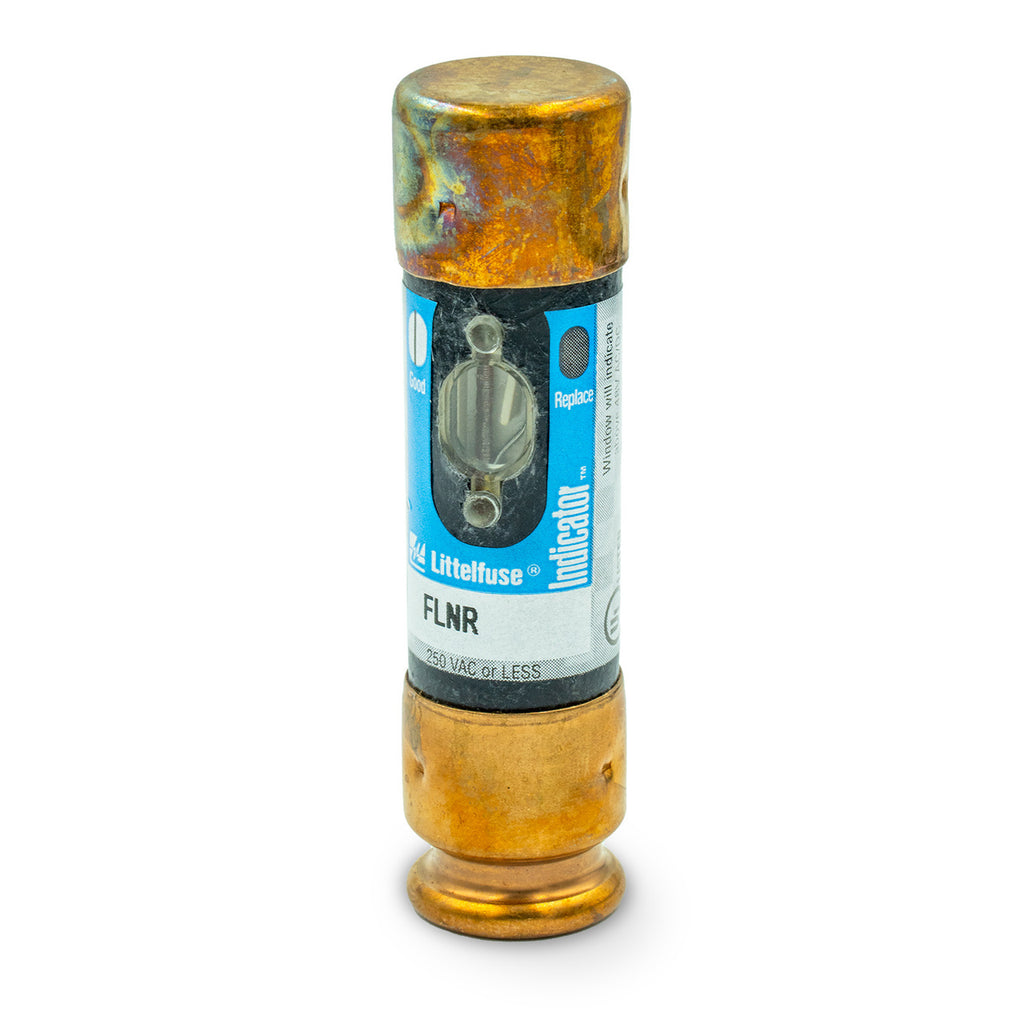

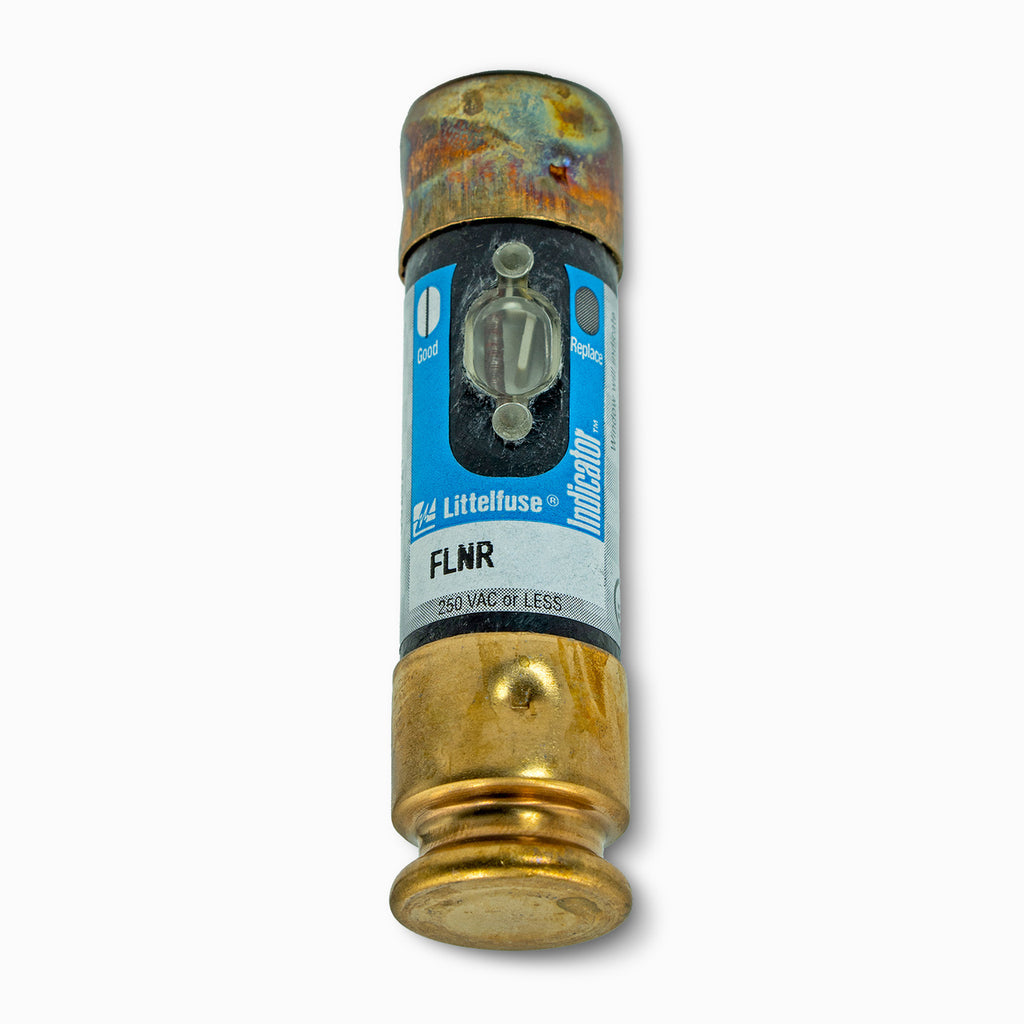

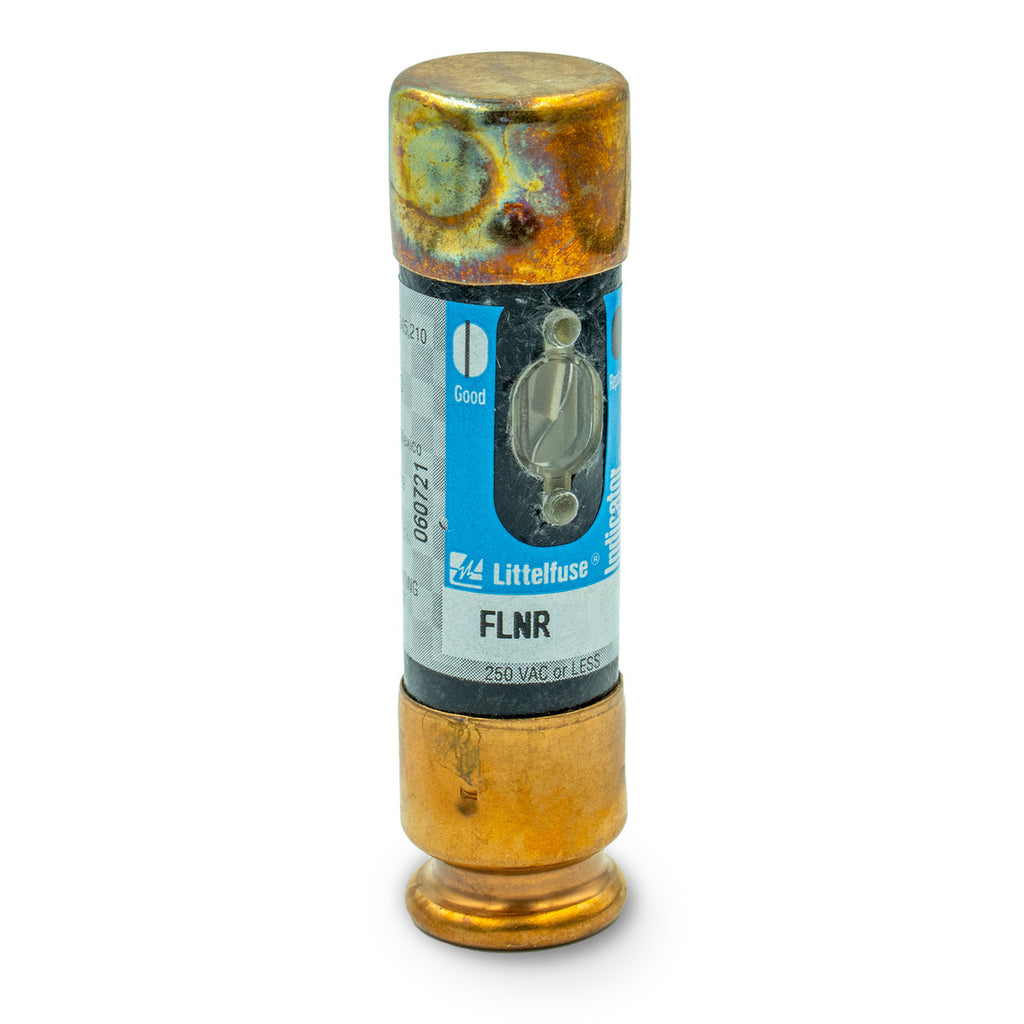

FLNR045ID is a Class RK5, 45-ampere, dual-element time-delay indicating fuse rated for 250VAC/125VDC with current-limiting protection and visual blown fuse indication. POWR-GARD series cartridge-style fuse designed for general purpose circuits including service entrance switches, switchboard mains and feeders, motor control centers, and branch circuits. Features a patented solid-state indicator window that turns black when the fuse blows, enabling fast identification without removing the fuse from the holder. The dual-element design provides advanced short-circuit and overload protection while restricting fault current to minimize circuit damage.

• Amperage Rating: 45 Amps
• Voltage Rating: 250VAC / 125VDC
• Fuse Class: RK5
• Response Time: Time Delay (Slo-Blo)
• Interrupting Rating: 200,000 AIC @ 250VAC; 300,000 AIC (self-certified); 20,000 AIC @ 125VDC
• Physical Size: 13/16 inch diameter x 3 inches length
• Construction: Dual-element, current-limiting, indicating cartridge
• Certifications: UL 248-12, CSA, CE approved
• Mounting: Fuse block / clip / holder compatible
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLNR045ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Type : FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Voltage : 250
• Amperage : 45
• AIC rating : 200kA@250V
• Connection : Ferrule Rejection
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 079458023824
• GTIN : 00079458023824
• Country of Origin : Mexico
• Dimensions : x 3 in x
• Weight : 0.44
• Certification : CSA, cUL, UL
