FLNR035ID - Littelfuse POWR-GARD FLNR 35A 250VAC/125VDC Class RK5 Indicating Slow Blow Time Delay Fuse

FLNR035ID

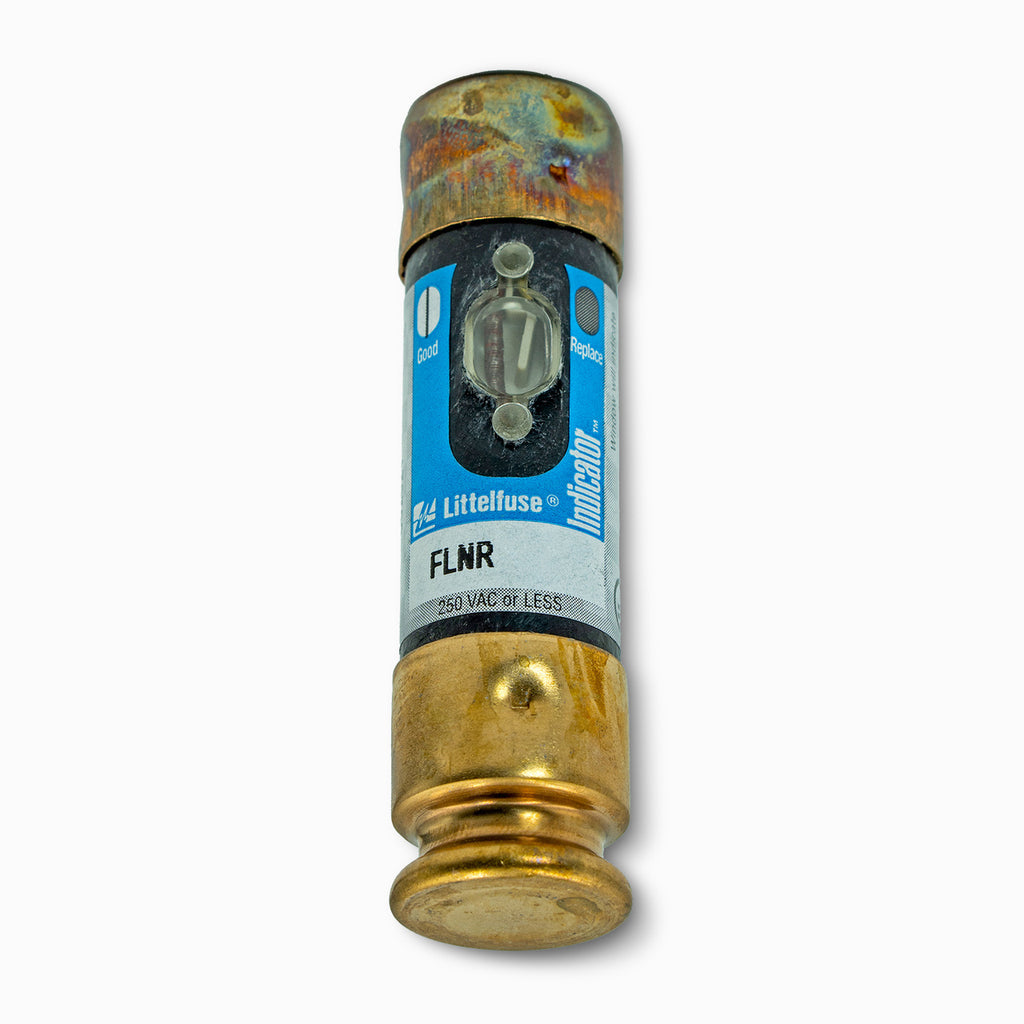

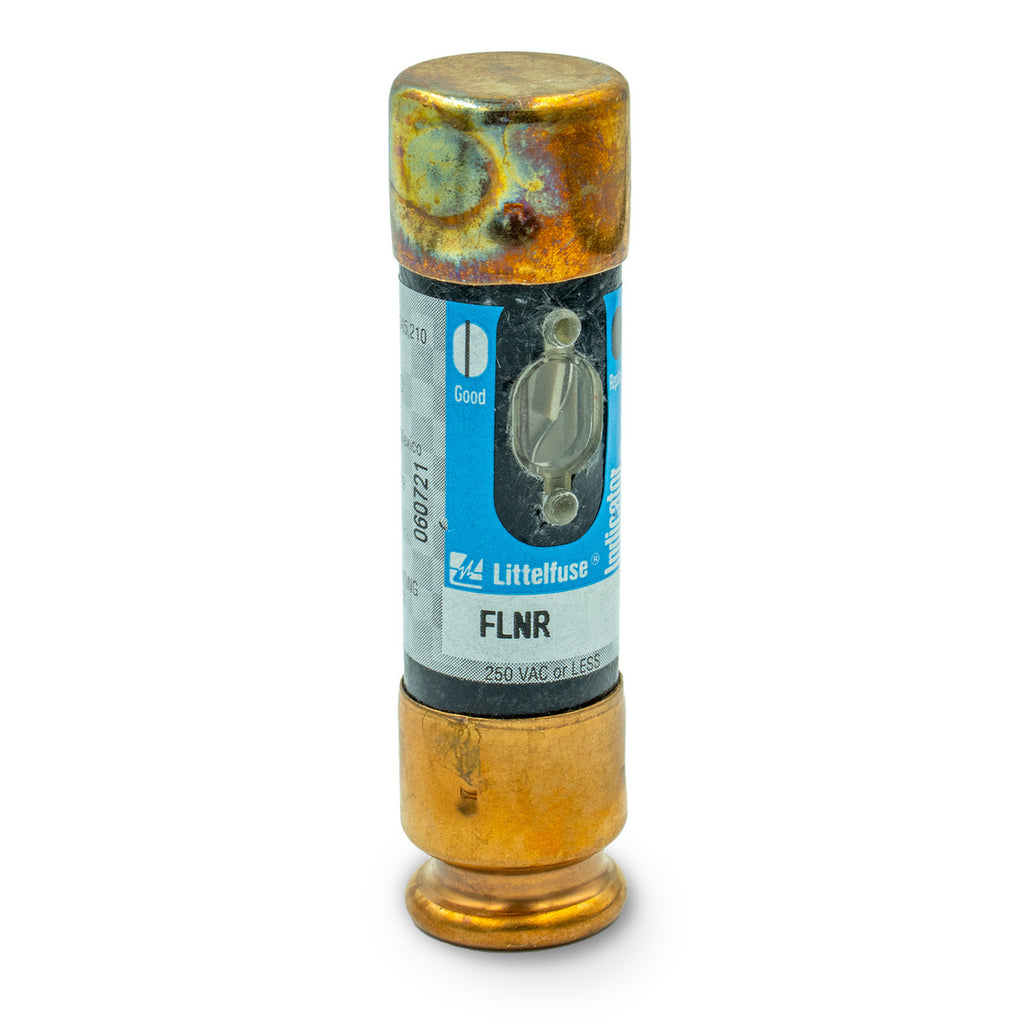

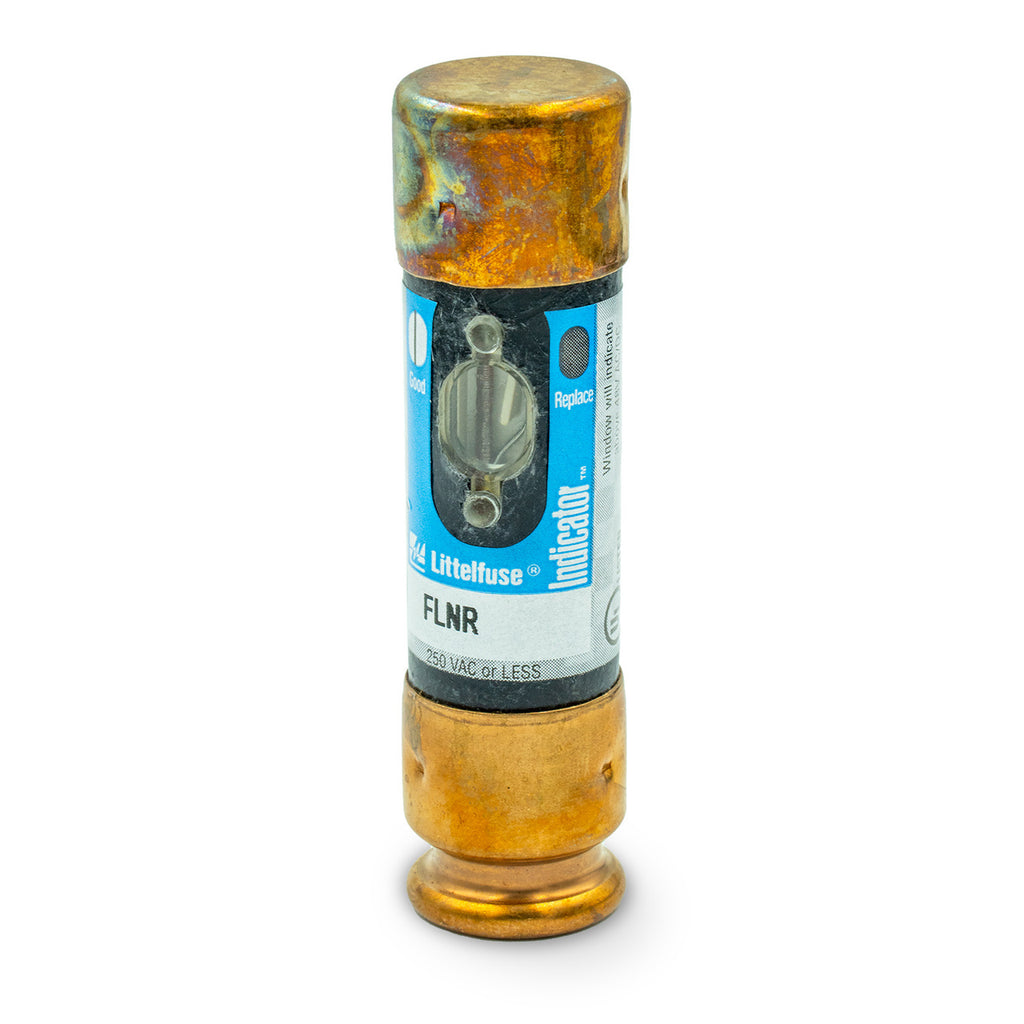

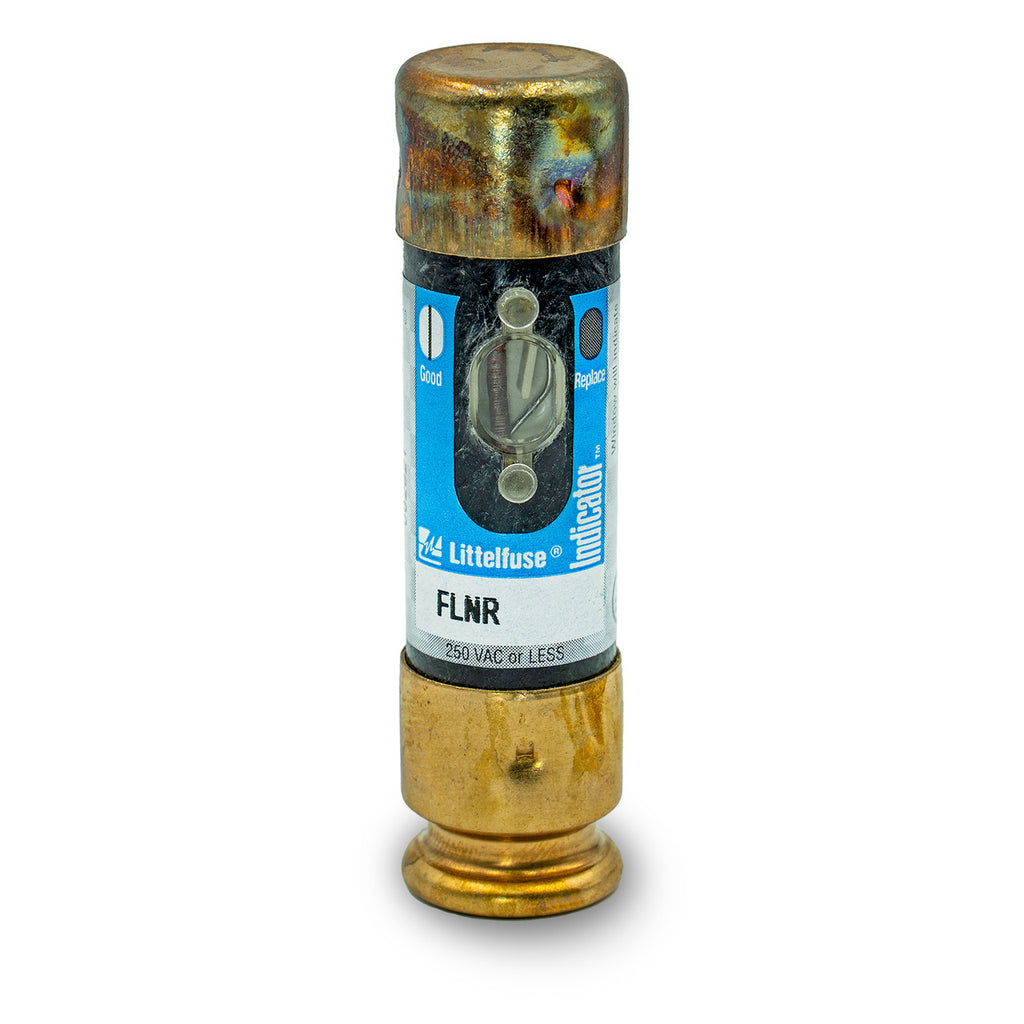

FLNR035ID is a Littelfuse POWR-GARD FLNR series indicating slow blow time delay fuse designed for general purpose circuits and industrial applications. This fuse provides visual blown fuse indication for fast troubleshooting and reduced downtime. The dual-element design ensures advanced short-circuit and overload protection, making it ideal for use in distribution panelboards, industrial control panels, and service entrance switches.The FLNR035ID fuse features a 35A current rating, 250VAC/125VDC voltage rating, and a 200/300 kA RMS AC, 20 kA DC interrupt rating. Its cartridge body style and ferrule terminals provide reliable connections in demanding environments. The patented solid-state indicator design offers maximum reliability and superior performance.

• Amperage Rating: 35 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupt Rating: 200/300 kA RMS AC, 20 kA DC
• Class: RK5
• Speed: Time Delay, Slow Blow
• Body Style: Cartridge
• Terminal Type: Ferrule
• Element: Dual
• Diameter: 13/16 Inch
• Length: 3 Inch
• Series: POWR-GARD FLNR
• Standards: UL 248-12, CSA LR29862, Federal Spec WF-1814

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLNR035ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Type : FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Voltage : 250
• Amperage : 35
• AIC rating : 200kA@250V
• Connection : Ferrule Rejection
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 079458023800
• GTIN : 00079458023800
• Country of Origin : Mexico
• Dimensions : x 3 in x
• Weight : 0.12
• Certification : CSA, cUL, UL
