FLNR035 - Littelfuse 35 Amp 250 Volt Class RK5 Time Delay Fuse

FLNR035

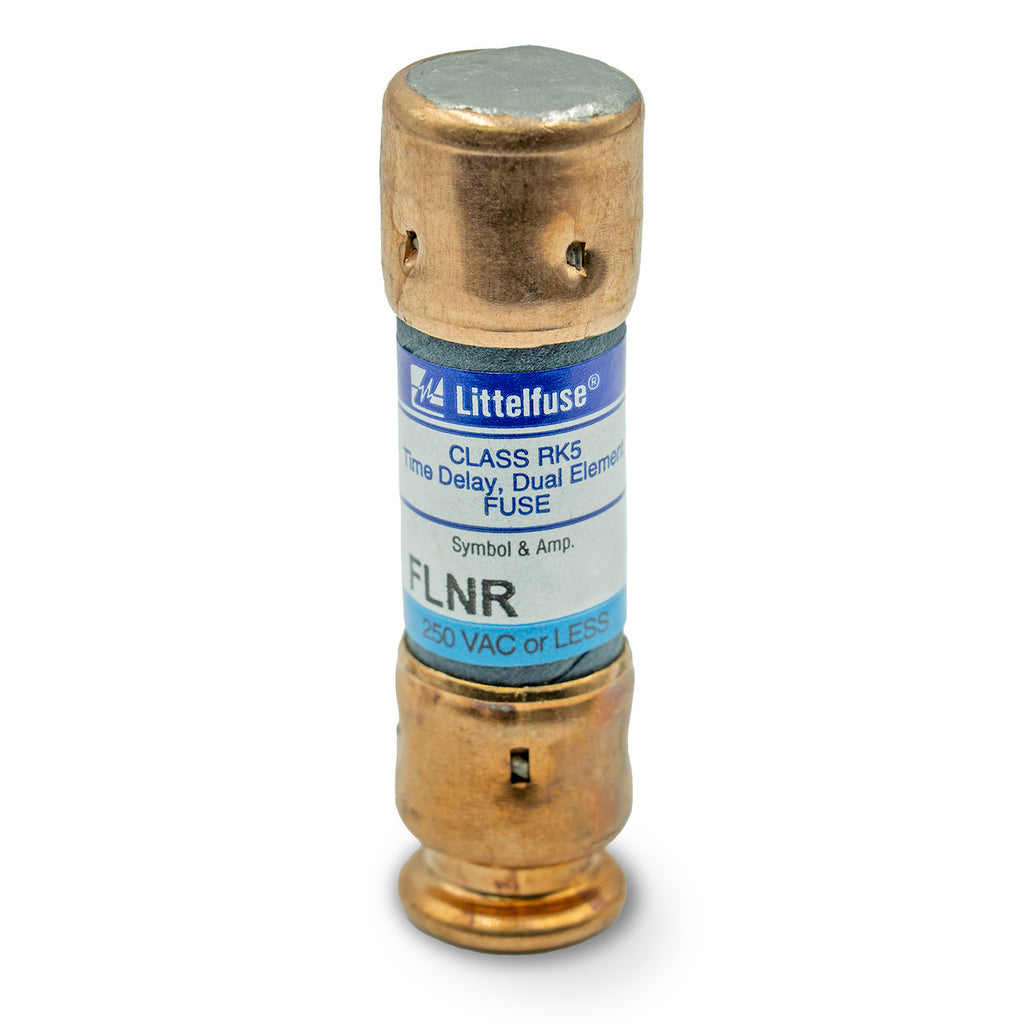

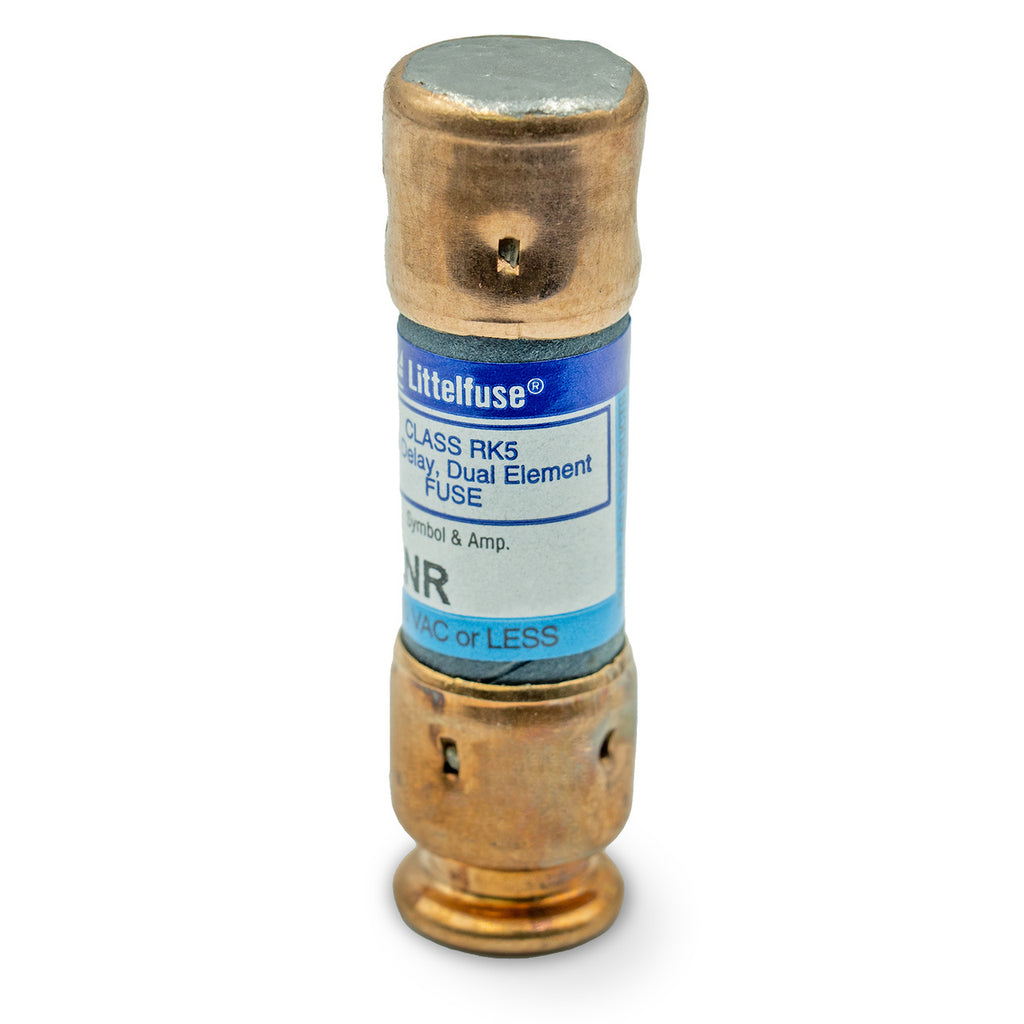

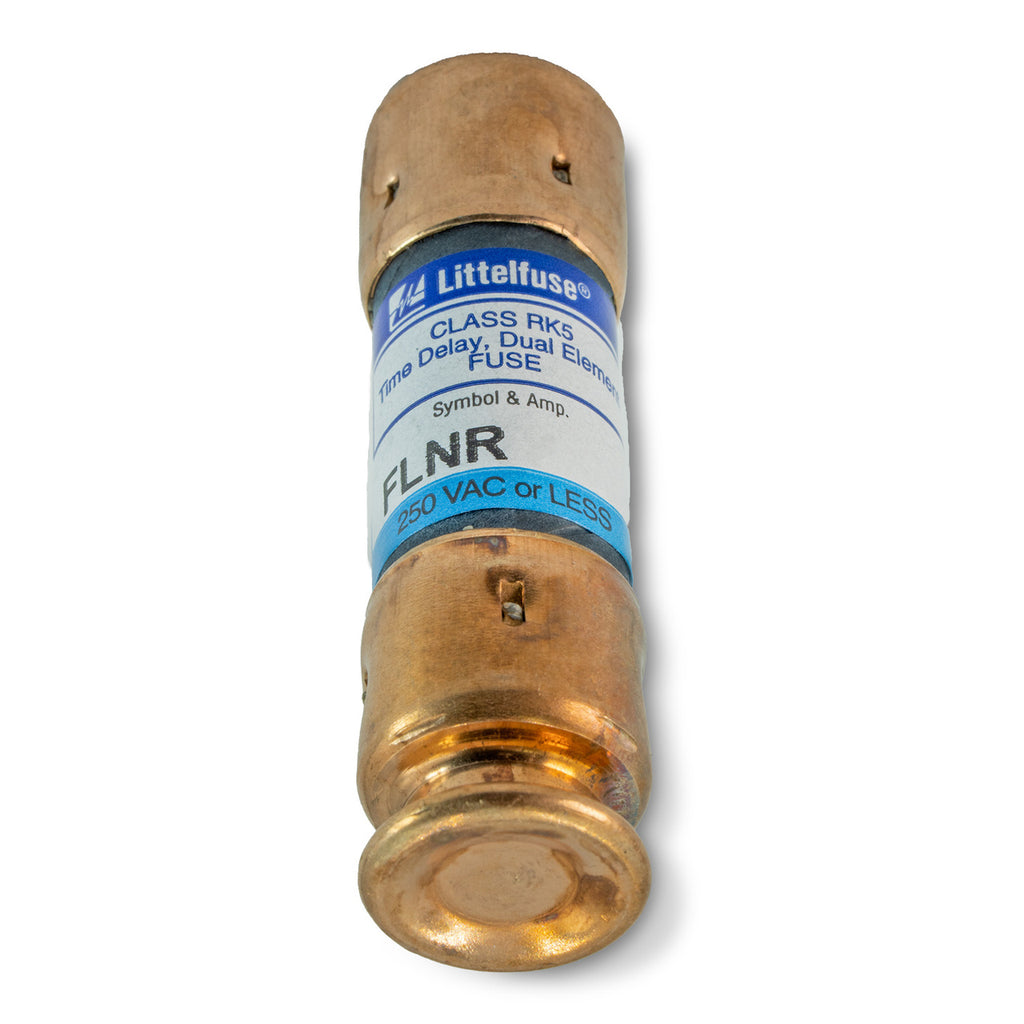

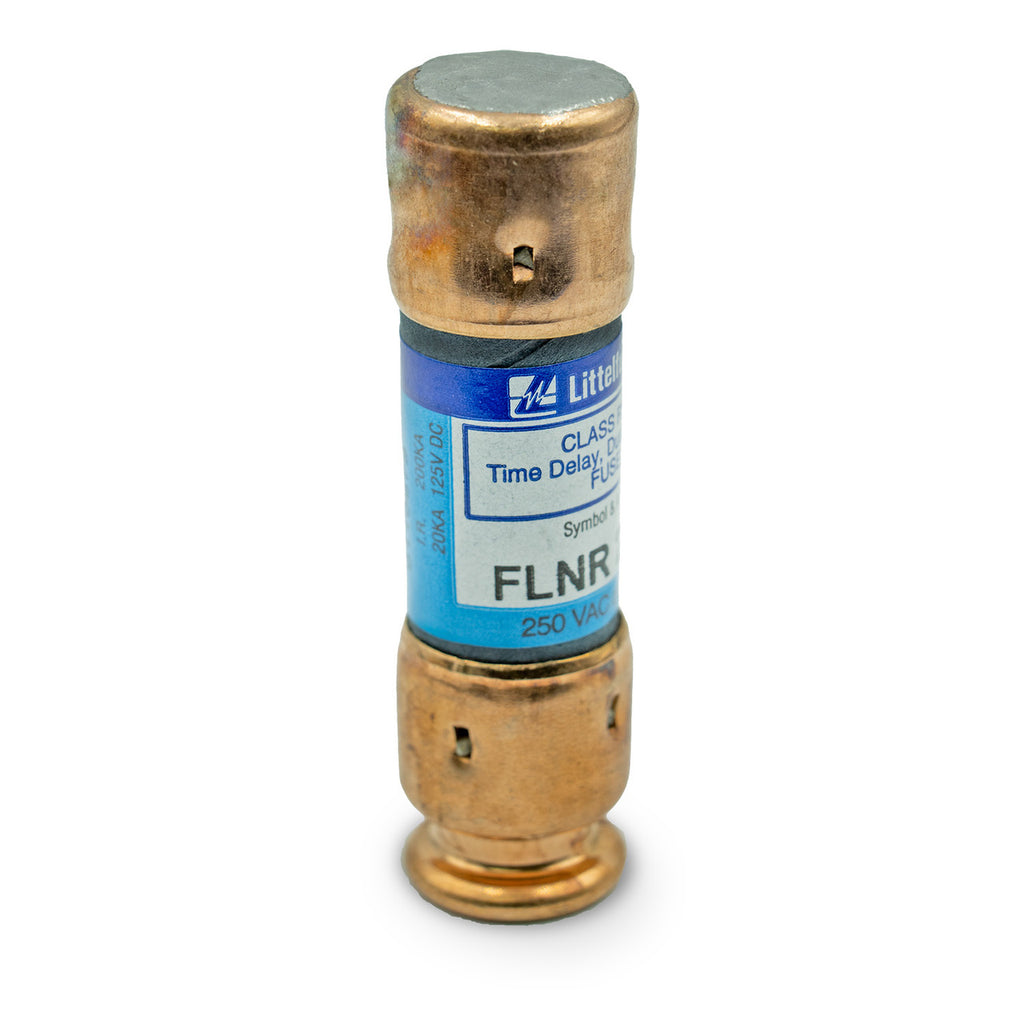

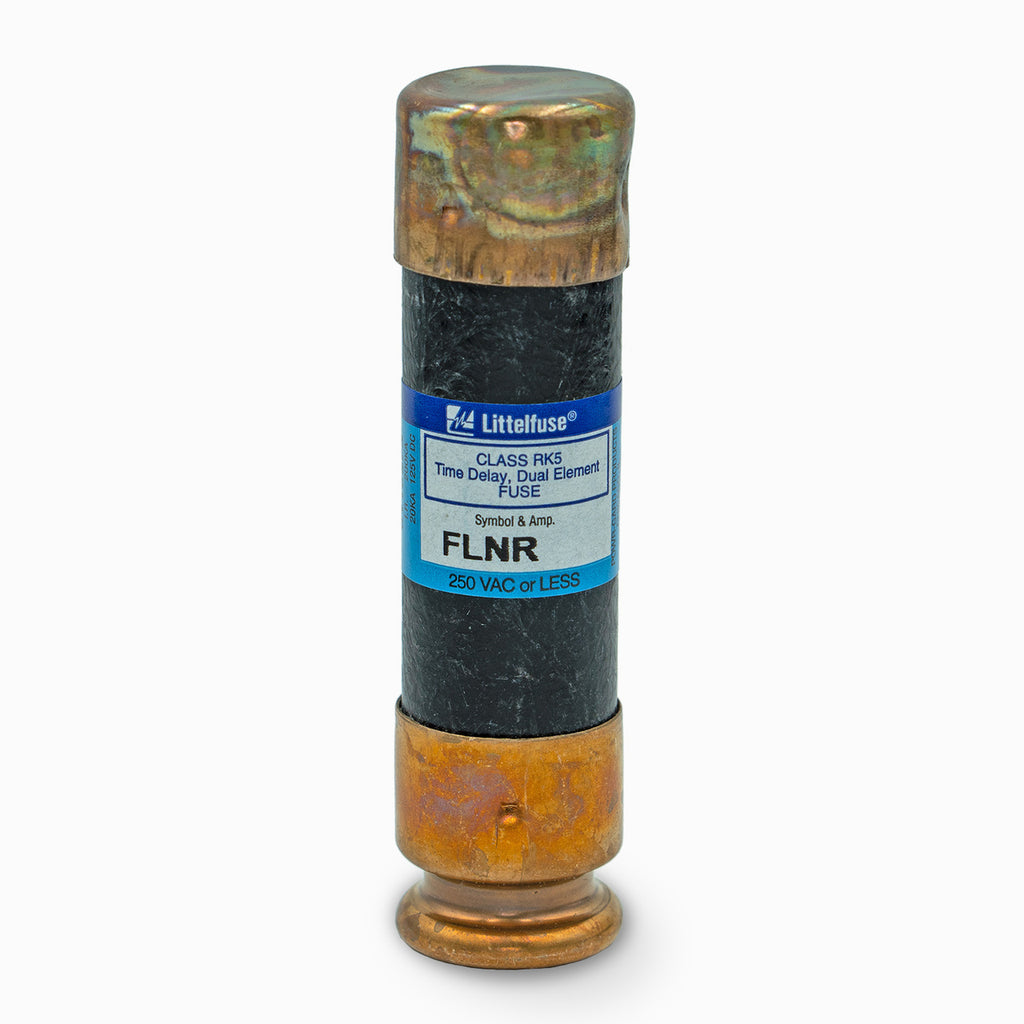

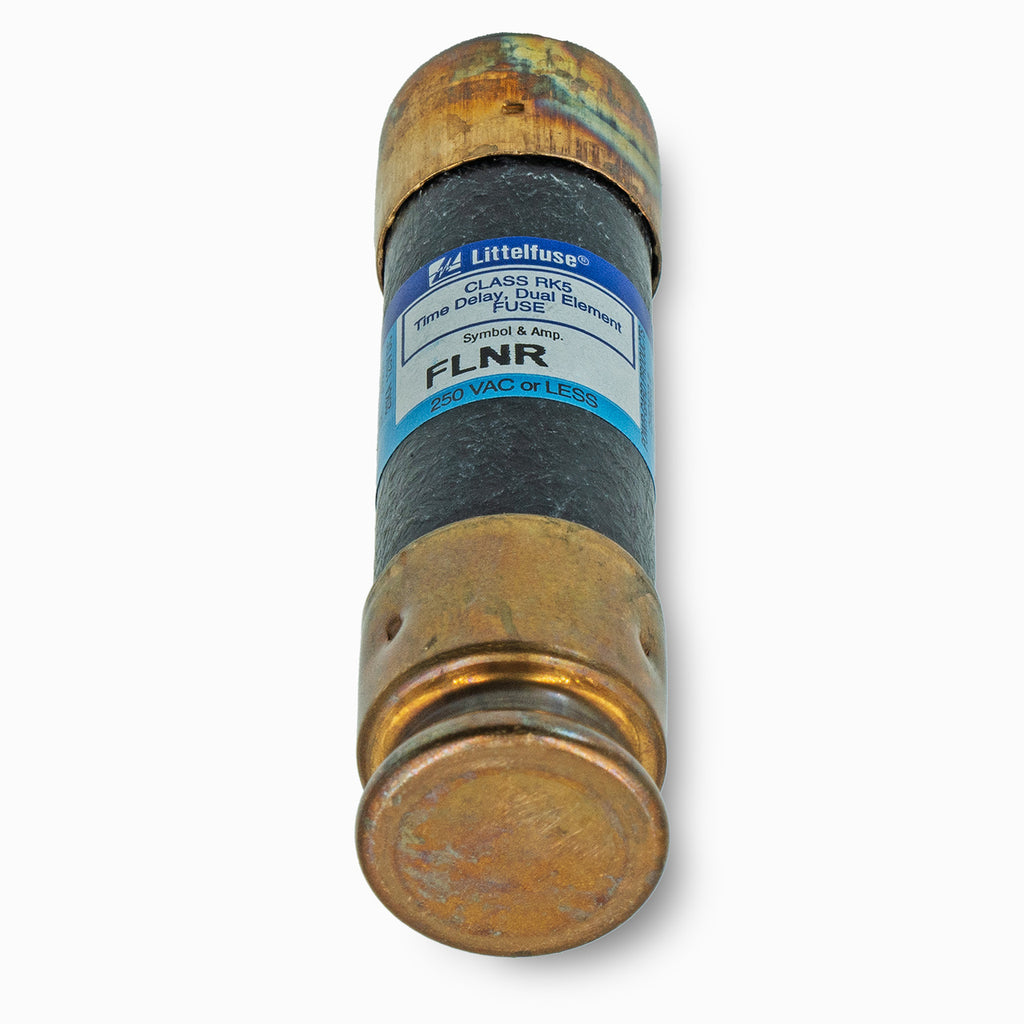

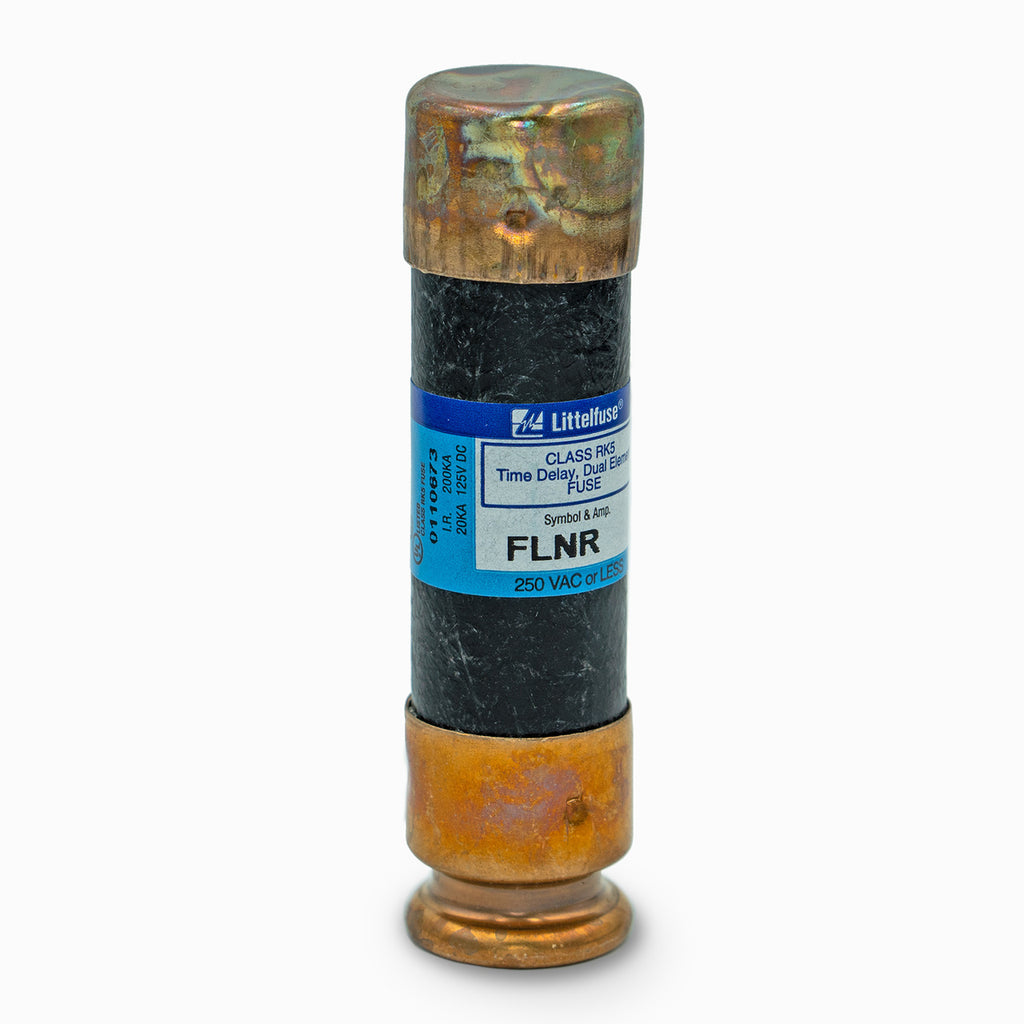

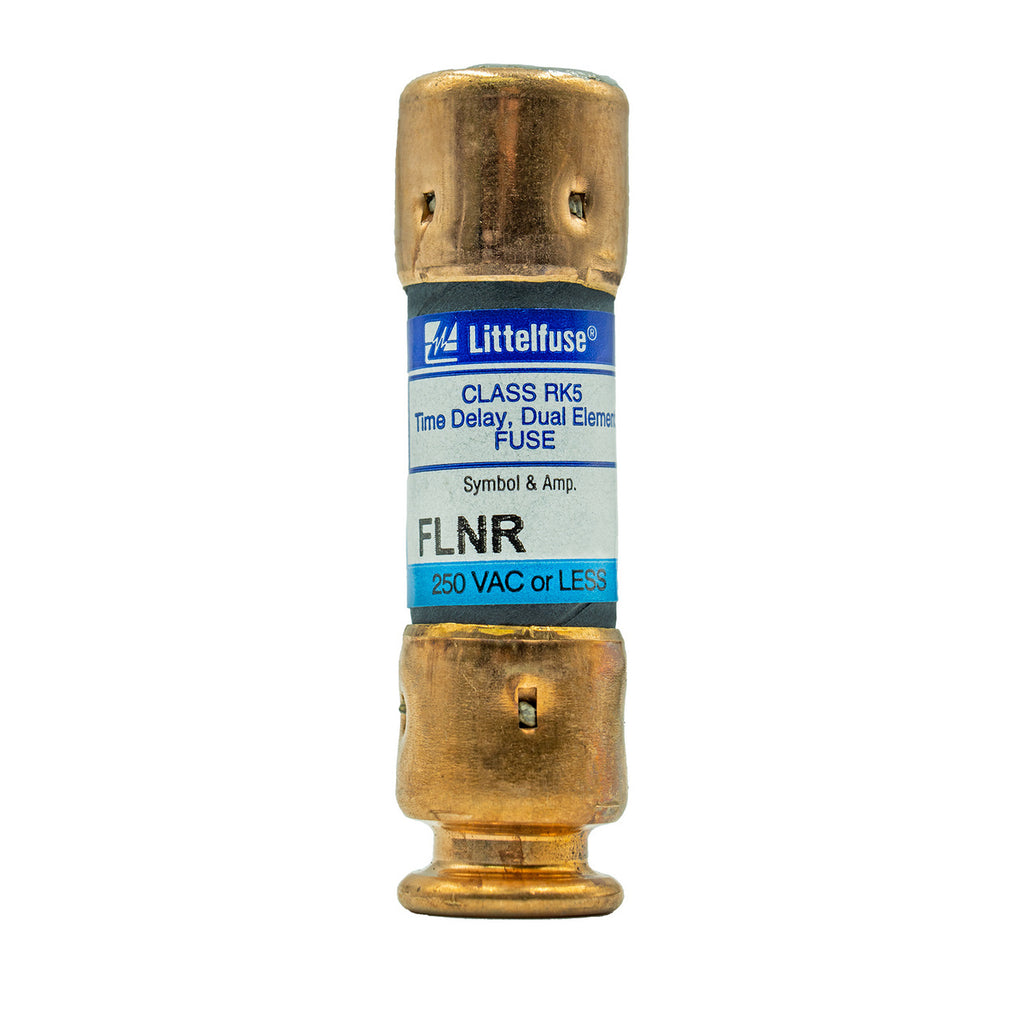

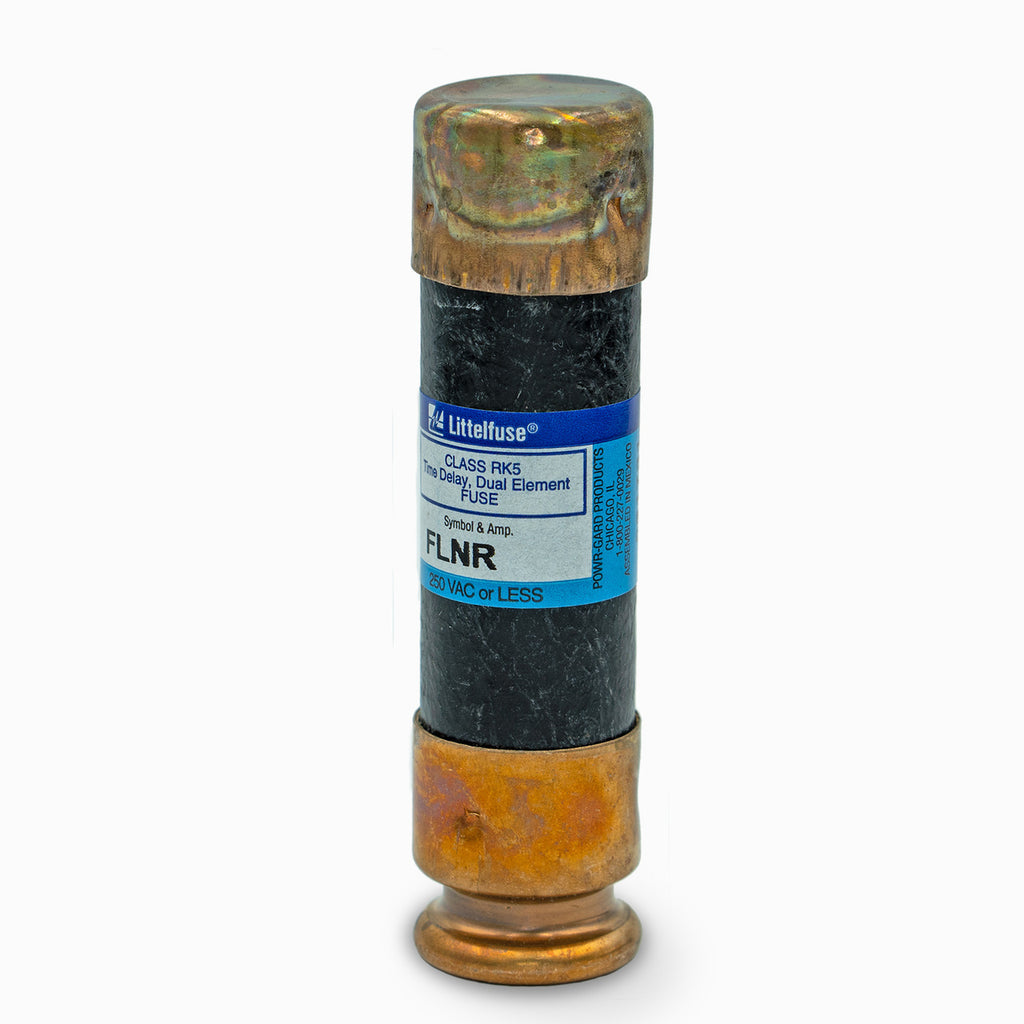

FLNR035 is a Littelfuse Class RK5 time delay fuse rated for 35 amps and 250 volts AC.

This fuse features a dual-element design providing advanced short-circuit and overload protection with current limiting to restrict fault current and enhance circuit safety. It is suitable for general purpose circuits including service entrance switches, transformers, switchboard mains, feeders, and motor control circuits. The fuse is UL Listed and CSA Certified, with an interrupting rating of 200,000 AIC at 250 VAC and 20,000 AIC at 125 VDC. It has a cartridge style with dimensions approximately 13/16 inch diameter by 3 inches length.

Key Specifications
• Amperage: 35 Amps
• Voltage Rating: 250 V AC, 125 V DC
• Fuse Type: Class RK5
• Fuse Response Time: Time Delay
• Interrupting Rating: 200,000 AIC @ 250 VAC, 20,000 AIC @ 125 VDC
• Fuse Size: 13/16 inch diameter x 3 inch length
• Design: Dual Element, Current Limiting
• Certifications: UL Listed, CSA Certified
• Mounting Type: Cartridge

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLNR035
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Type : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Voltage : 250
• Amperage : 35
• AIC rating : 200kA@250V
• Connection : Ferrule Rejection
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 07945815074
• GTIN : 00079458150742
• Country of Origin : Mexico
• Dimensions : x 3 in x
• Weight : 0.44
• Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
