FLNR030 - Littelfuse 30 Amp 250V AC 125V DC Class RK5 Time Delay Dual Element Fuse

FLNR030

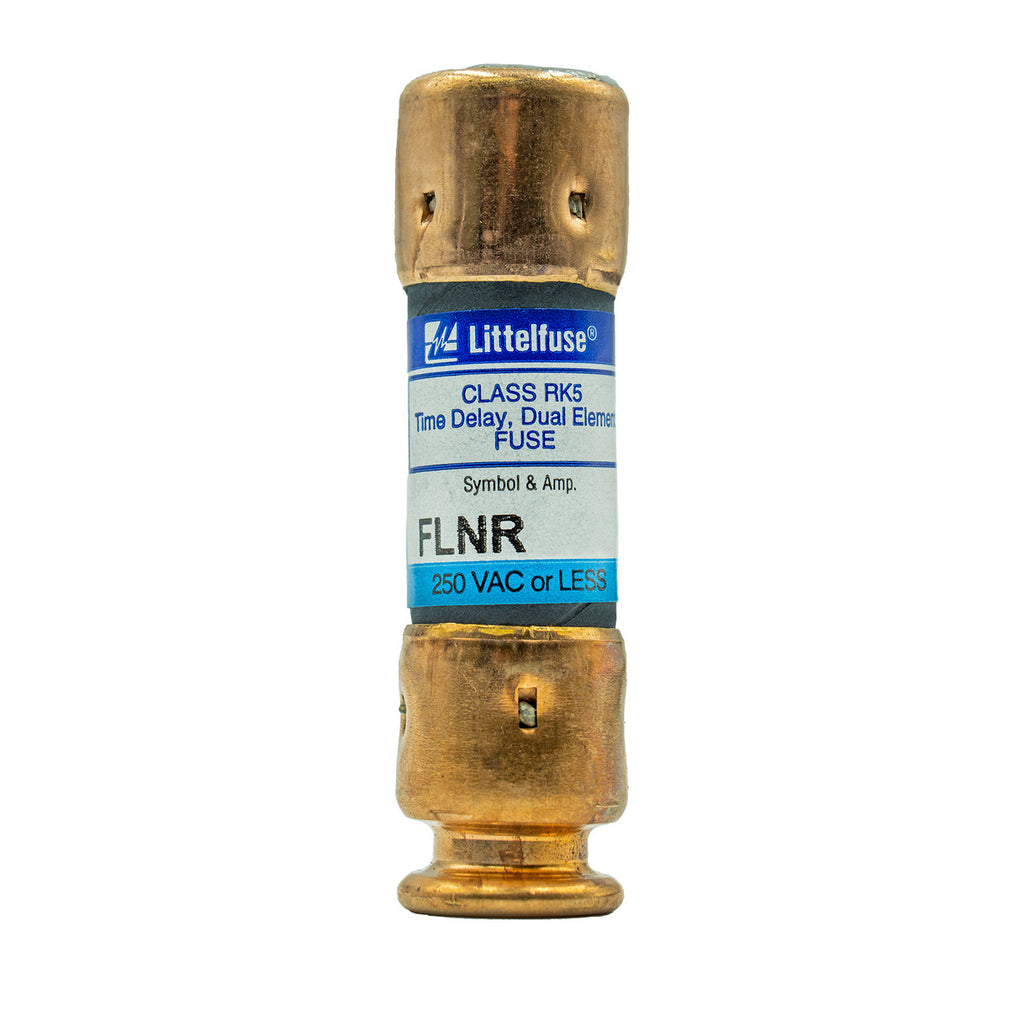

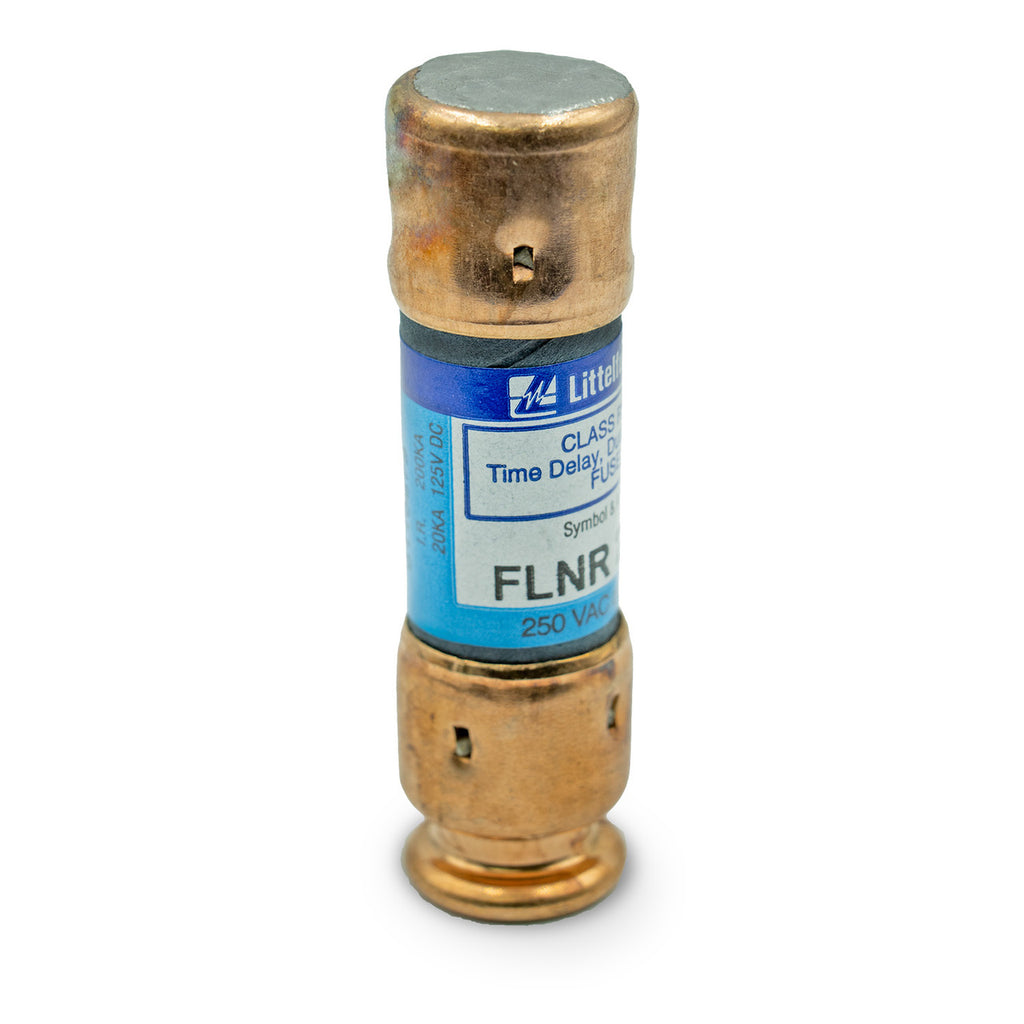

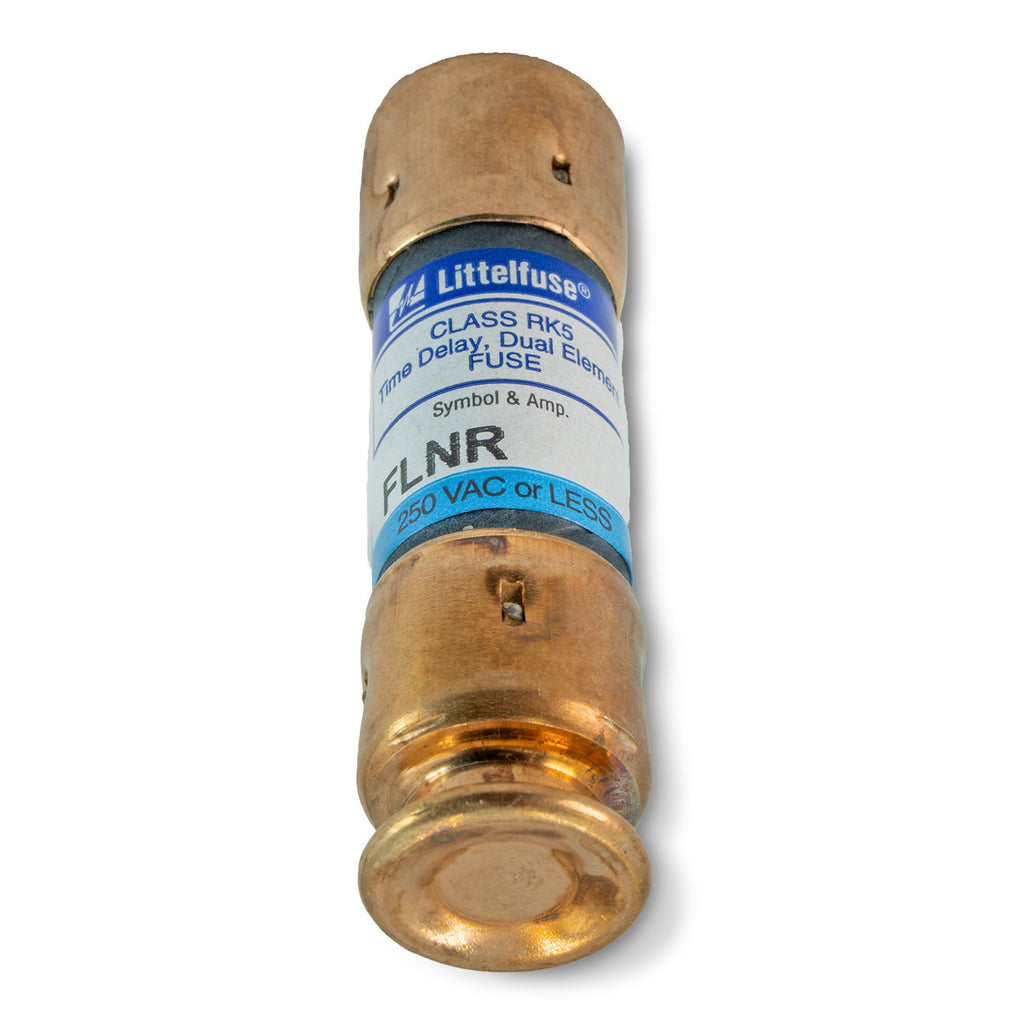

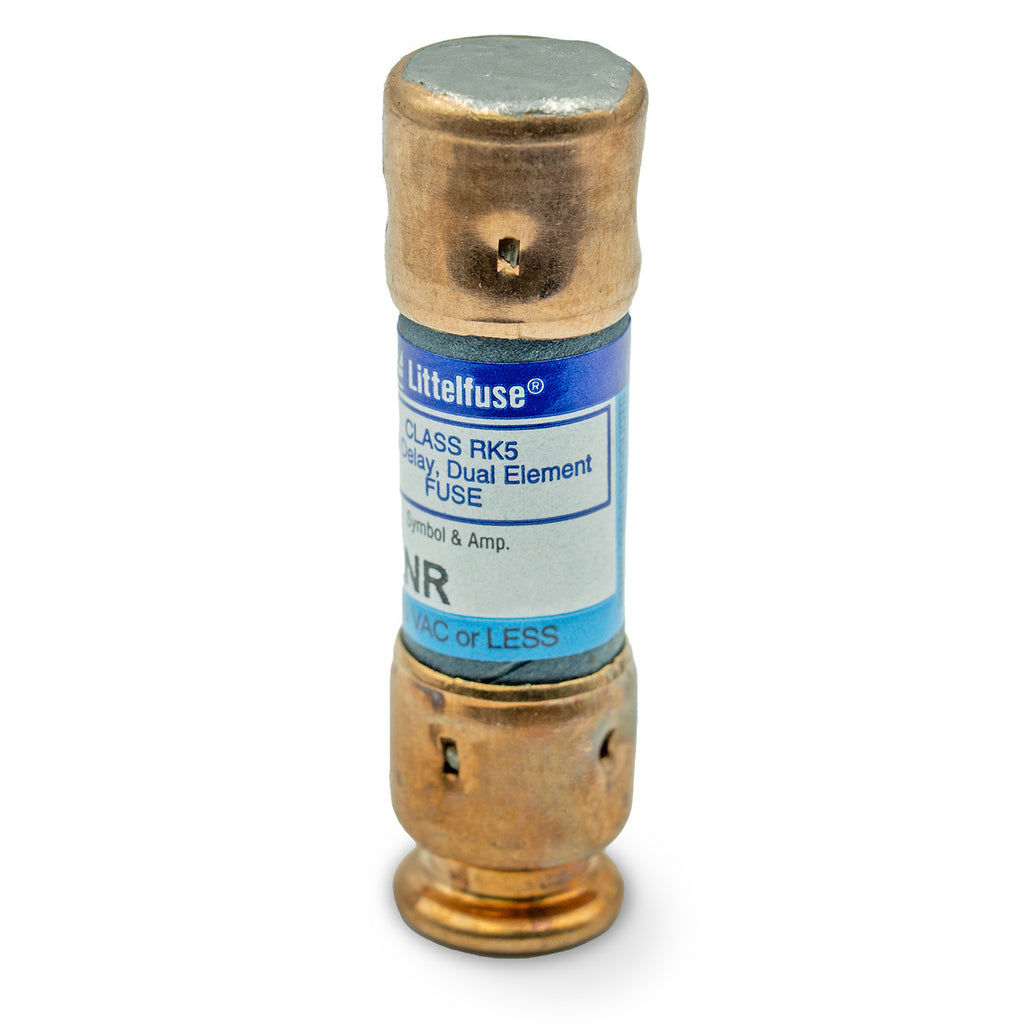

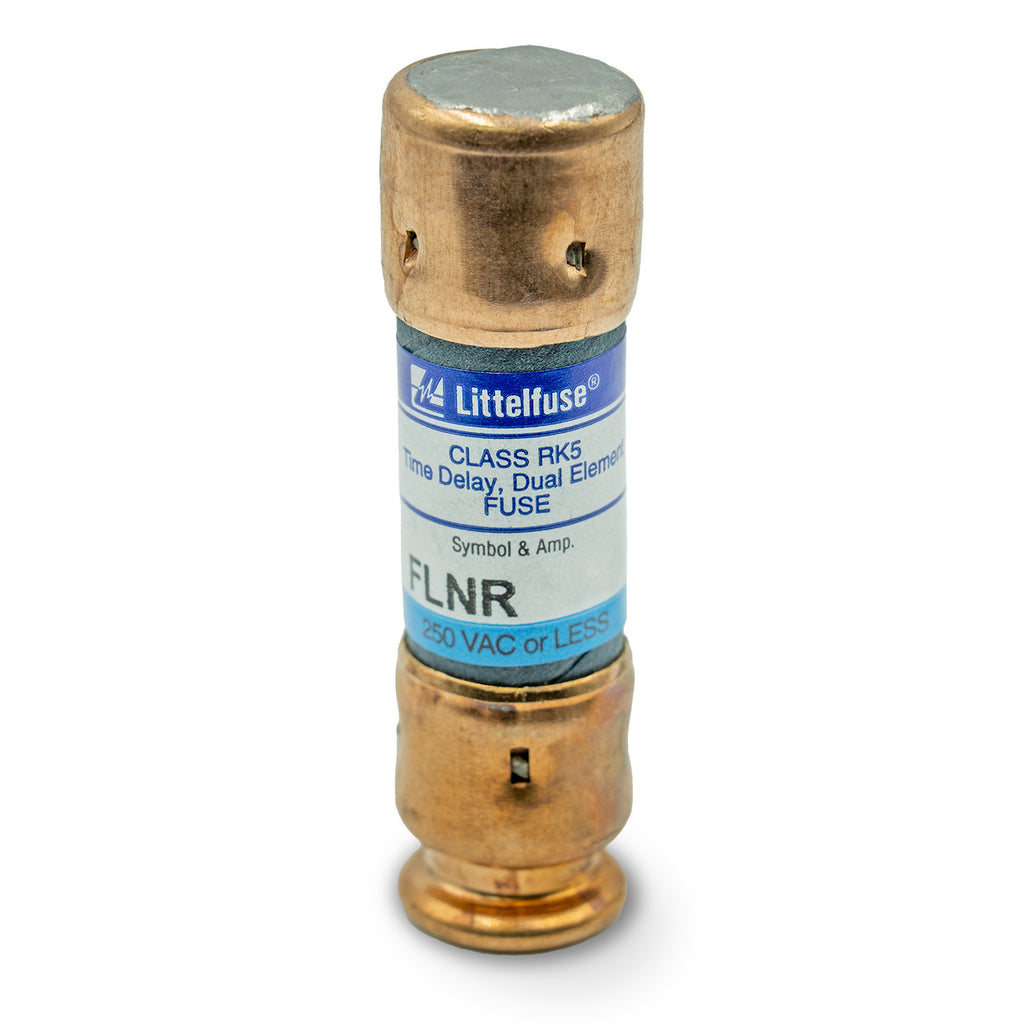

FLNR030 is a 30 Amp, 250 Volt AC / 125 Volt DC Class RK5 time delay dual element fuse designed for industrial cartridge applications.FLNR030 features a dual-element design providing advanced short-circuit and overload protection with a time-delay (slow-blow) characteristic. It has a cartridge-style body measuring approximately 9/16 inch diameter by 2 inches length and is suitable for mounting in fuse blocks, clips, or holders. The fuse has a high interrupting rating of up to 300,000 A RMS symmetrical AC and 20,000 A DC, making it suitable for general purpose circuit protection in industrial environments. It is UL Listed and CSA Certified.

Key Specifications
• Current Rating: 30 Amps
• Voltage Rating: 250 V AC / 125 V DC
• Fuse Class: RK5
• Fuse Style: Dual Element, Time Delay (Slow Blow)
• Size: Industrial Cartridge, 9/16 inch diameter x 2 inch length
• Interrupting Rating: 300 kA AC (self-certified), 200 kA AC (UL), 20 kA DC
• Mounting Method: Fuse Block / Clip / Holder
• Certifications: UL Listed (File: E81895), CSA Certified (File: LR29862)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FLNR030
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Type : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Voltage : 250
• Amperage : 30
• AIC rating : 200kA@250V
• Connection : Ferrule Rejection
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1
• Velocity : TD - Time Delay



Product Data

• UPC : 079458150735
• GTIN : 00079458150735
• Country of Origin : Mexico
• Dimensions : x 2 in x
• Weight : 20.8
• Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
