Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLNR02.5

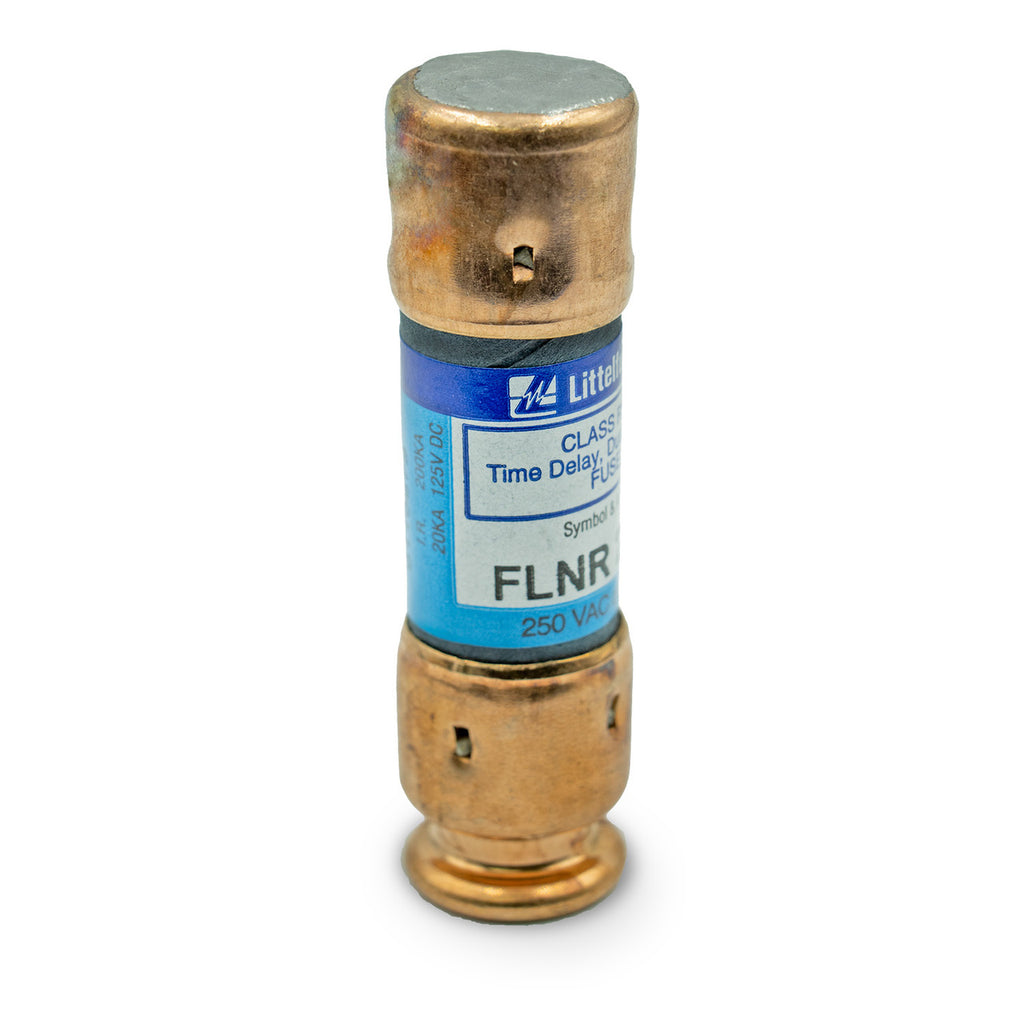

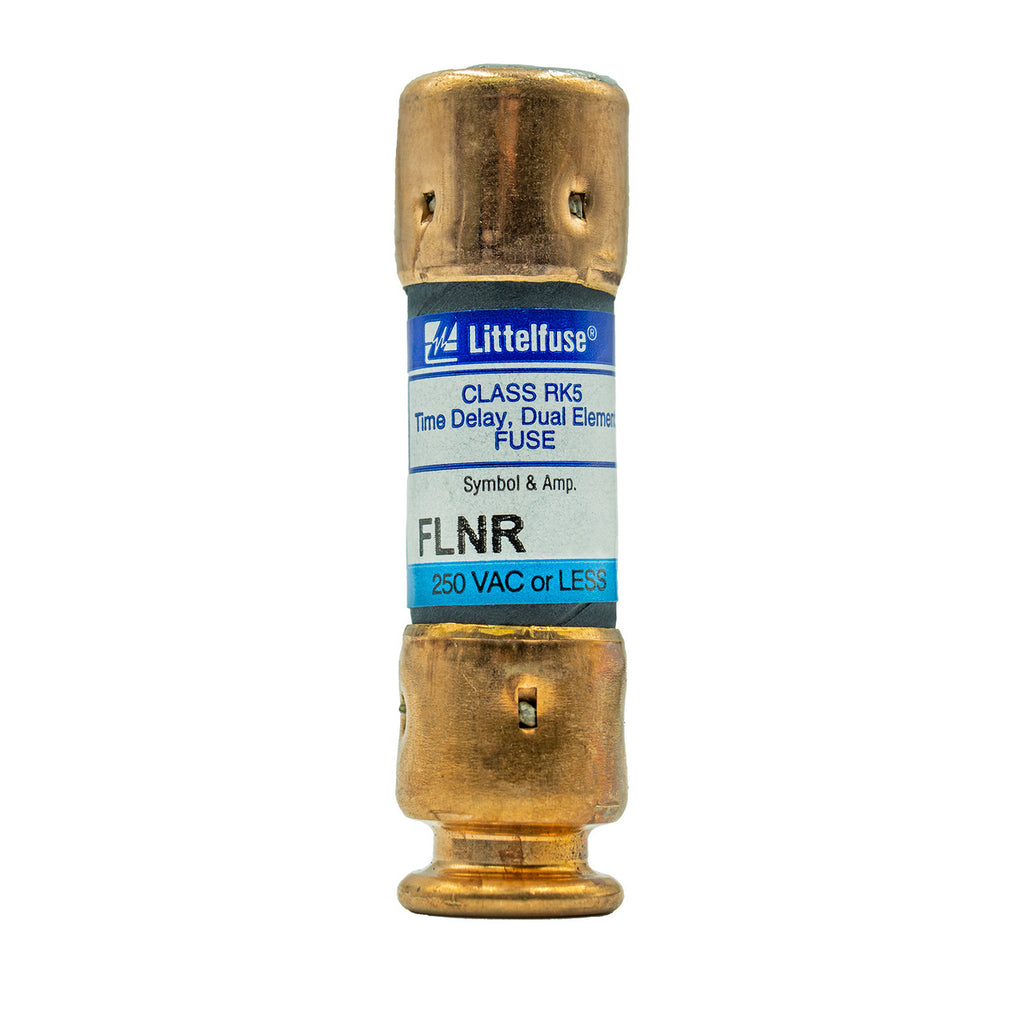

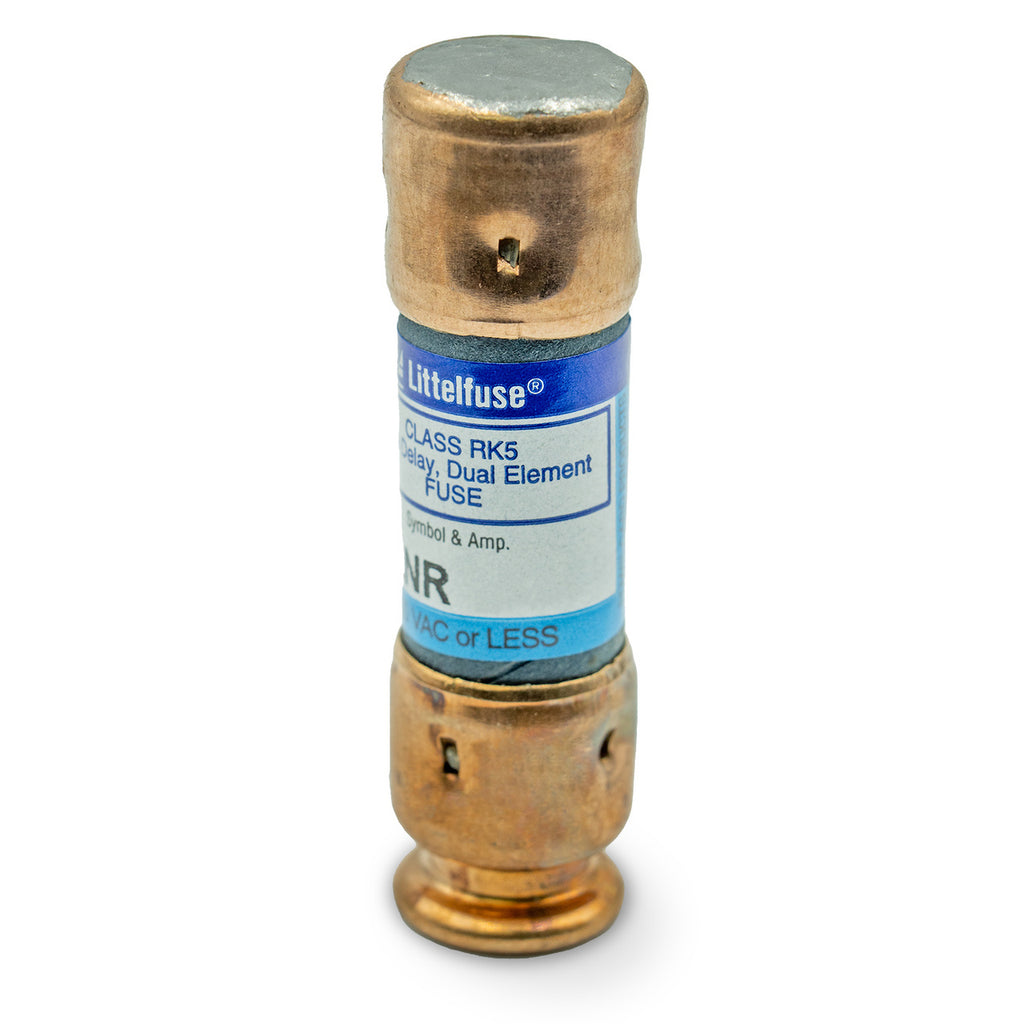

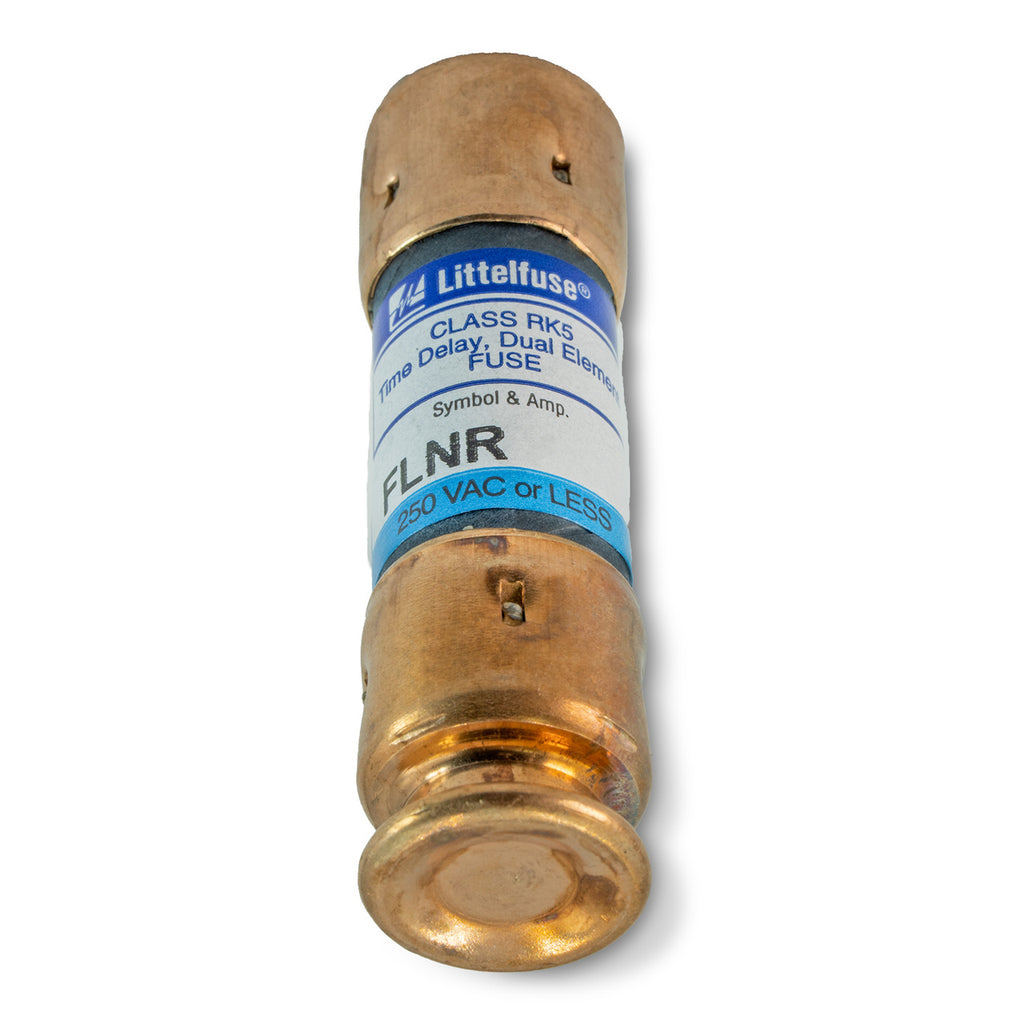

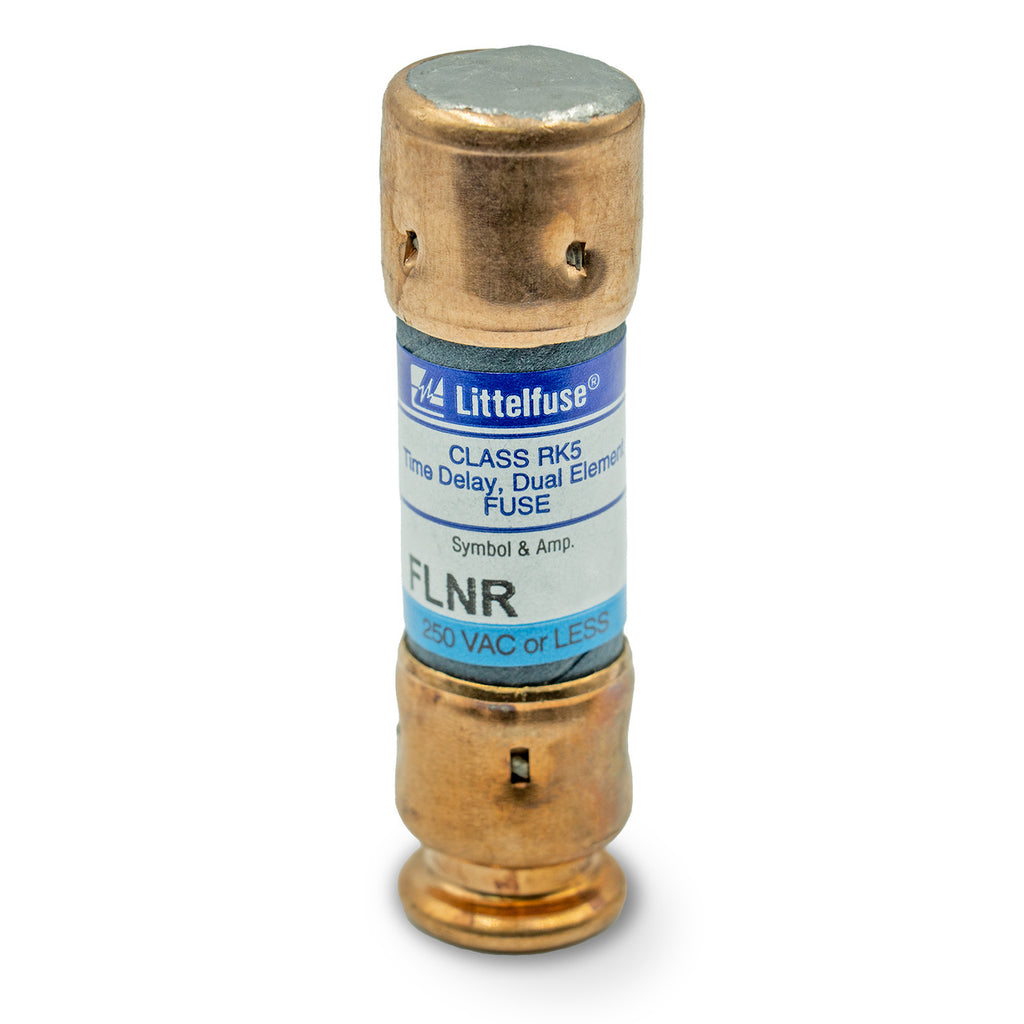

FLNR02.5 is a Class RK5 dual-element time-delay fuse from Littelfuse designed for general purpose circuit protection in service entrance switches, transformers, switchboards, motor control circuits, and all general purpose applications. The dual-element design provides advanced short-circuit and overload protection with current-limiting capabilities that restrict fault current to provide a high degree of circuit protection. This industrial cartridge-style fuse features ferrule terminals and is UL Listed and CSA Certified for reliable performance.
- Current Rating: 2.5 Amps
- Voltage Rating: 250V AC / 125V DC
- Fuse Class: Class RK5
- Type: Dual-Element Time-Delay
- Interrupting Rating: 200 kA AC (symmetrical); 20 kA DC
- Size: 9/16 inch diameter x 2 inch length
- Mounting: Fuse Block / Clip / Holder
- Certifications: UL 248-12, CSA, CE Approved
- Country of Origin: Mexico
Specifications
- Part Number: FLNR02.5
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Type : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Voltage : 250
- Amperage : 2.5
- AIC rating : 200kA@250V
- Connection : Ferrule Rejection
- Diameter : 0.41
- Class Rating : RK-5
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- UPC : 079458150438
- GTIN : 00079458150438
- Country of Origin : Mexico
- Dimensions : x 2 in x
- Weight : 18.2
- Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
