Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLNR015

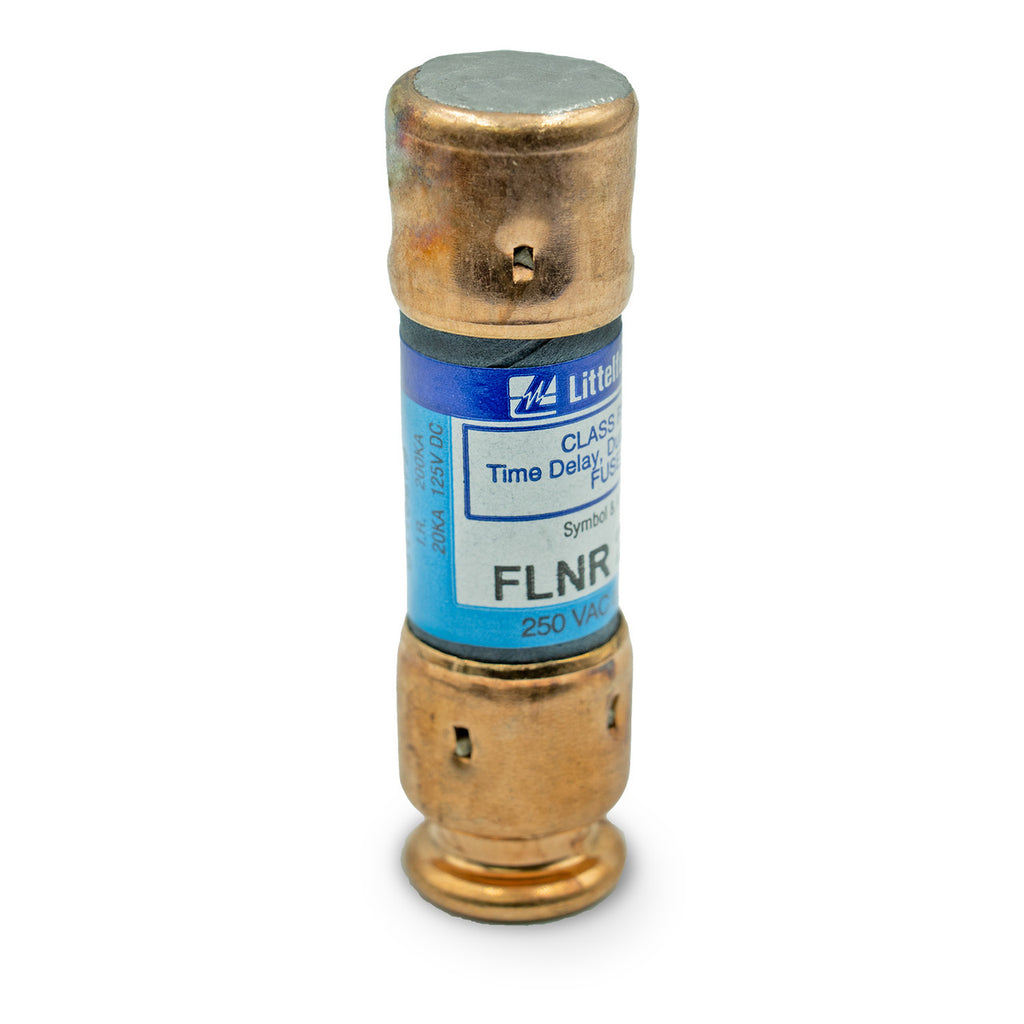

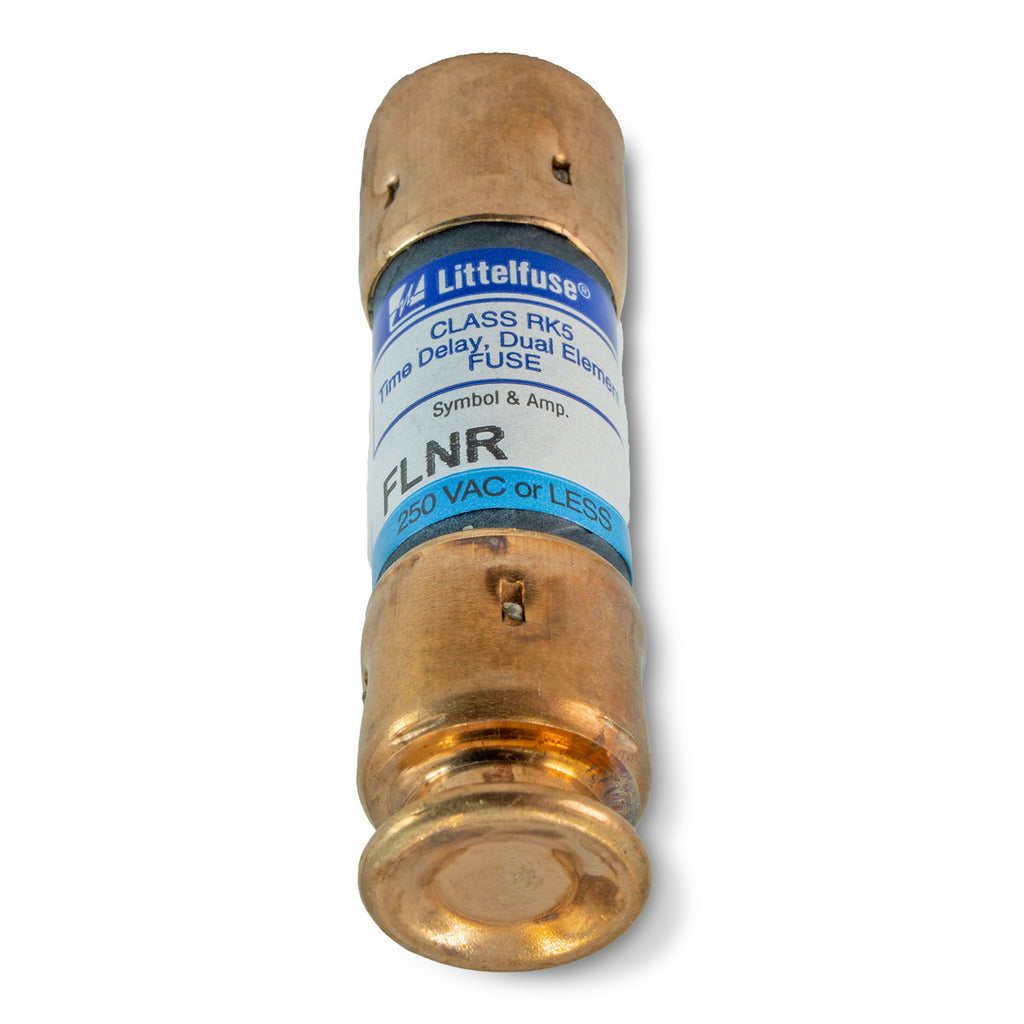

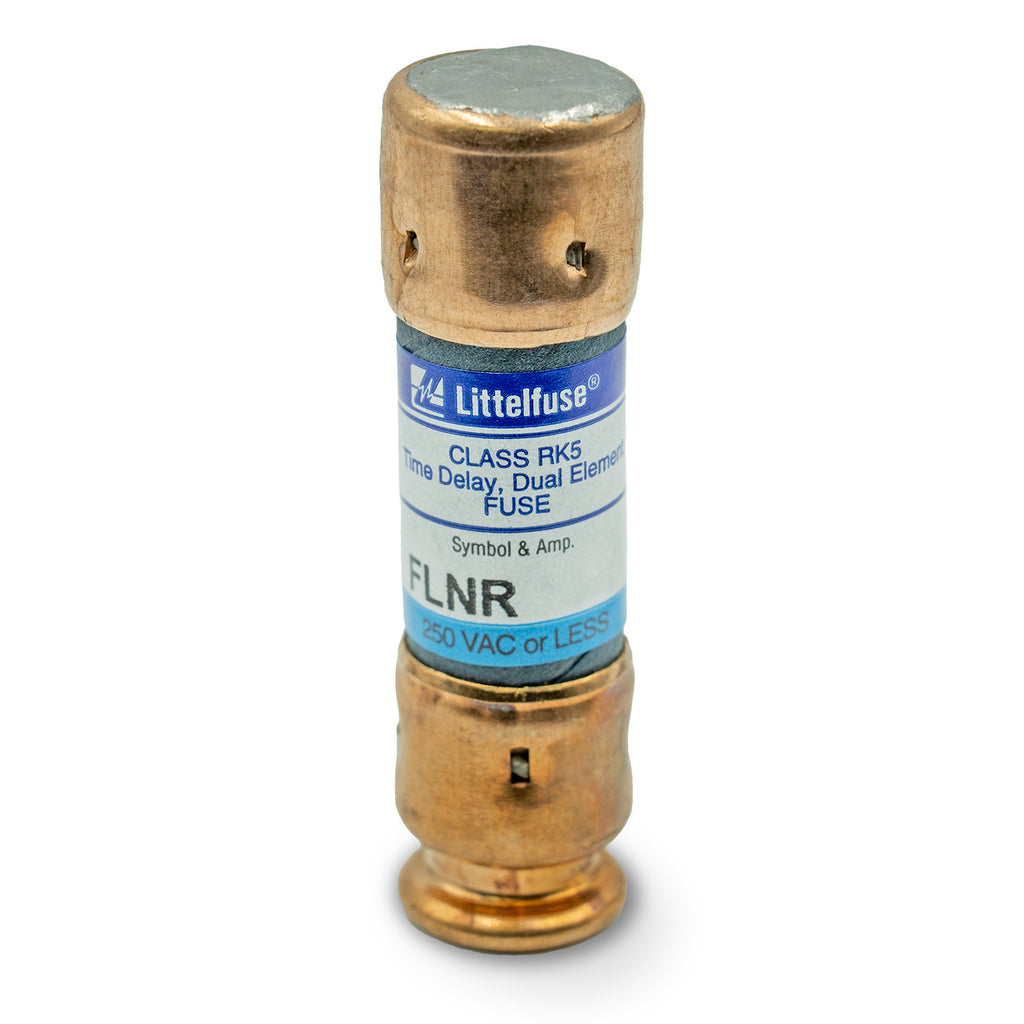

FLNR015 is a Littelfuse Class RK5 dual element time delay fuse designed for general purpose circuit protection.This 15 amp fuse features a cartridge-style construction with a voltage rating of 250 VAC and 125 VDC. It has a high interrupting rating of 300 kA AC and 20 kA DC, making it suitable for protecting motors, transformers, switchboards, and motor control circuits. The fuse is a slow-blow type, providing time delay to withstand temporary surges without nuisance blowing. It mounts using fuse blocks, clips, or holders and complies with UL 248-12 standards.
- Amperage: 15 A
- Voltage Rating: 250 VAC / 125 VDC
- Interrupting Rating: 300 kA AC, 20 kA DC
- Fuse Class: RK5
- Family Style: Dual Element
- Speed: Time Delay (Slow Blow)
- Size: Industrial Cartridge, 9/16 inch diameter x 2 inch length
- Mounting Method: Fuse Block / Clip / Holder
- UL Listed and CSA Certified
Specifications
- Part Number: FLNR015
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Type : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Voltage : 250
- Amperage : 15
- AIC rating : 200kA@250V
- Connection : Ferrule Rejection
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- UPC : 07945815068
- GTIN : 00079458150681
- Country of Origin : Mexico
- Dimensions : x 2 in x
- Weight : 21.79
- Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
