FLNR006 - Littelfuse 6A 250VAC/125VDC Class RK5 Time Delay Fuse

FLNR006

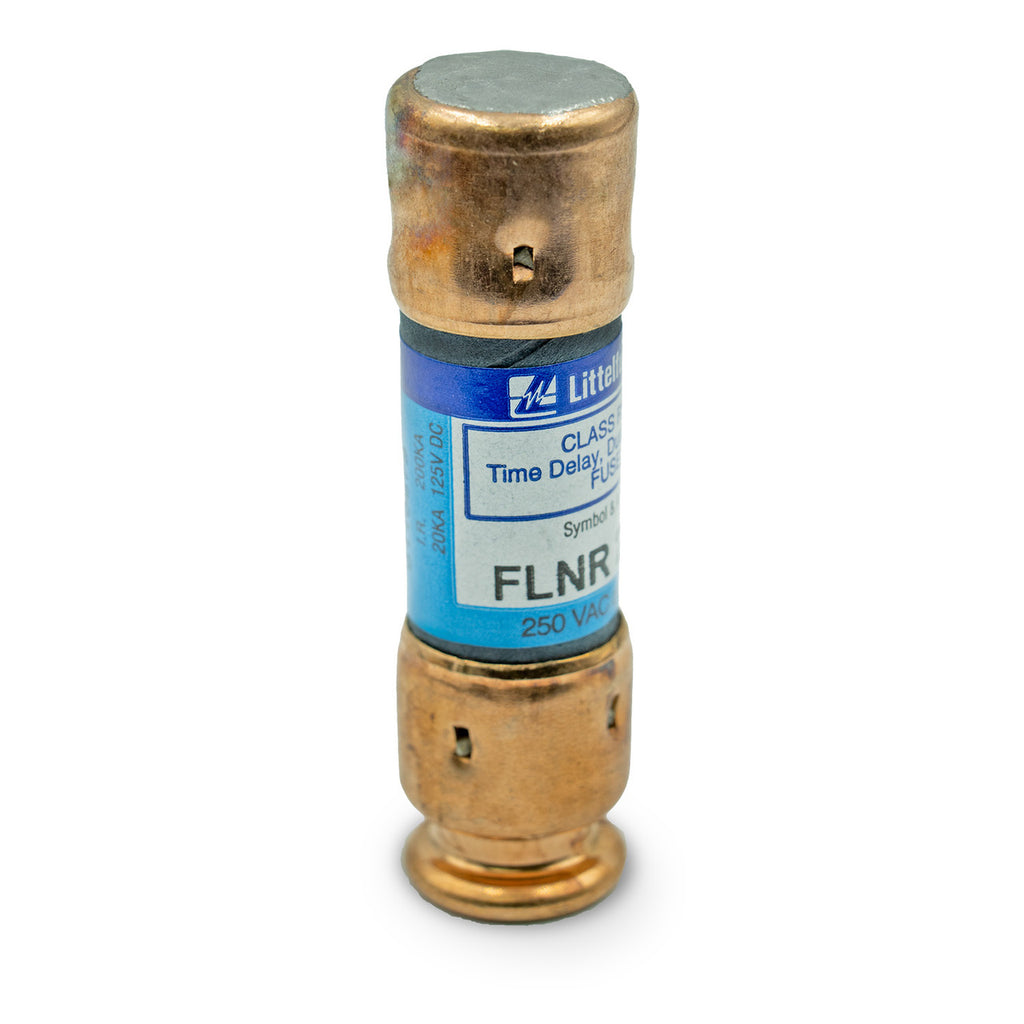

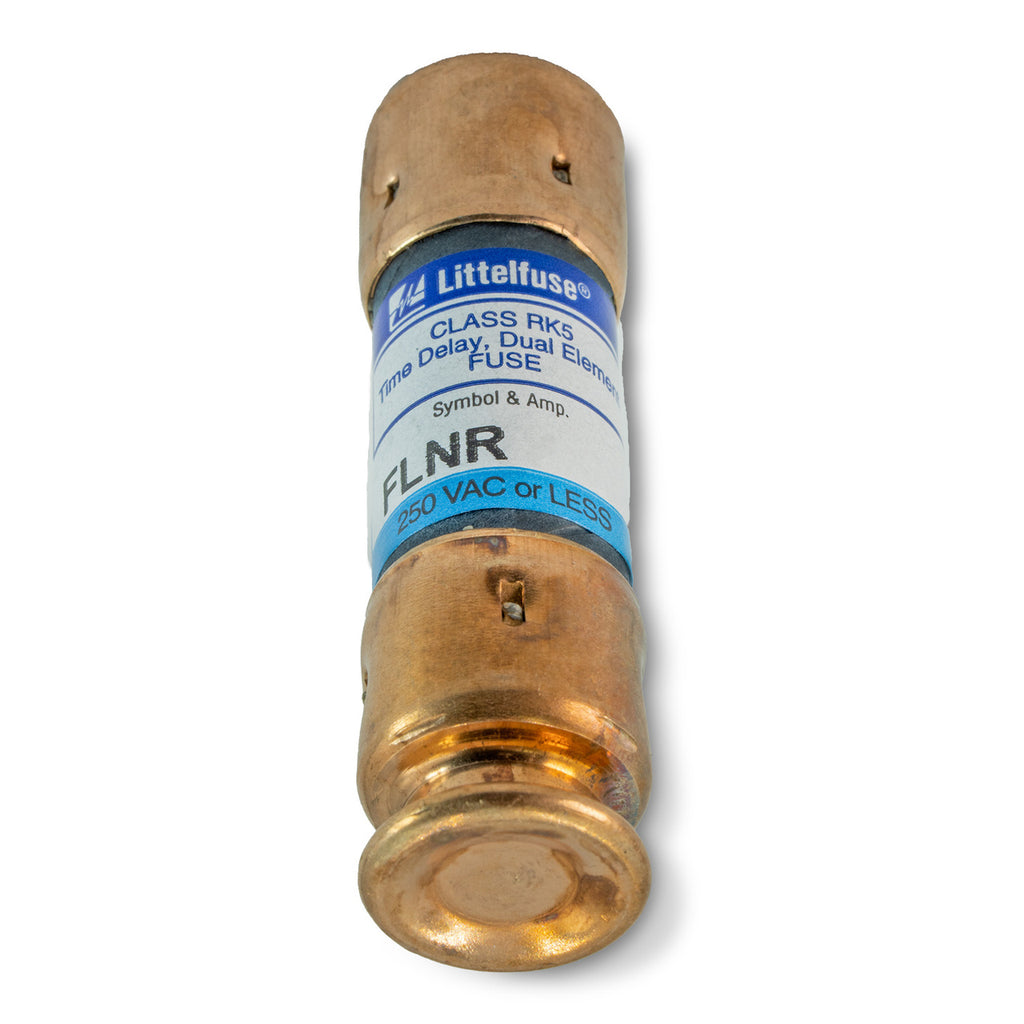

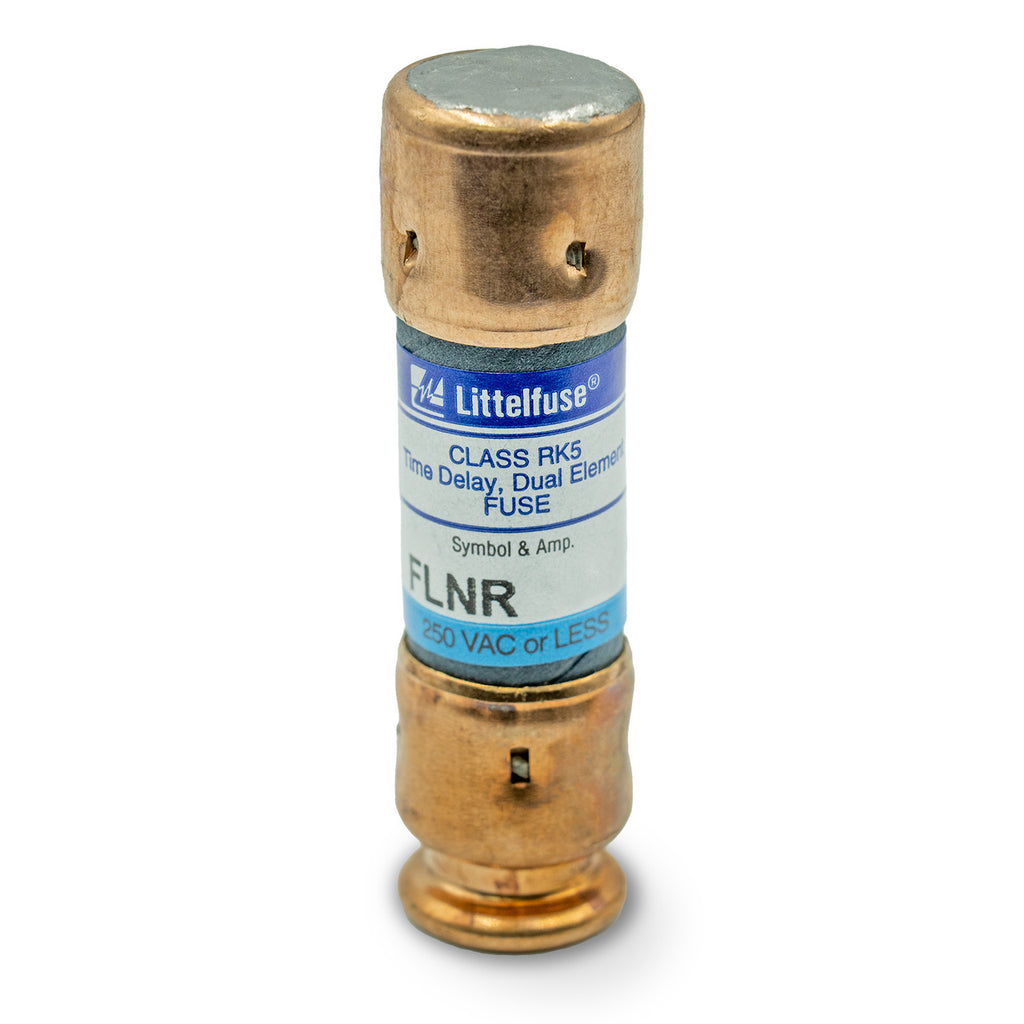

FLNR006 is a Littelfuse Class RK5 time delay fuse designed for general purpose circuit protection. This dual-element fuse provides advanced short-circuit and overload protection for a wide range of electrical applications. The FLNR006 features a cylindrical cartridge body with a 9/16 inch diameter and 2 inch length. It is rated for 6 amps, 250VAC, and 125VDC, making it suitable for both AC and DC circuits. The time delay design allows for temporary current surges without nuisance tripping, ideal for motor and transformer protection.

• Part Number: FLNR006
• Manufacturer: Littelfuse
• Amperage Rating: 6 A
• Voltage Rating: 250 VAC / 125 VDC
• Class: RK5
• Response Time: Time Delay
• Body Type: Cylindrical Cartridge
• Diameter: 9/16 inch
• Length: 2 inch
• Interrupting Rating: 200,000 A AC RMS Symmetrical, 20,000 A DC
• Standards: UL 248-12, CSA Certified
• Applications: General purpose circuits, service entrance, transformers, motor control

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLNR006
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Type : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Voltage : 250
• Amperage : 6
• AIC rating : 200kA@250V
• Connection : Ferrule Rejection
• Diameter : 0.41
• Class Rating : RK-5
• Velocity : TD - Time Delay

Product Data

• UPC : 079458150582
• GTIN : 00079458150582
• Country of Origin : Mexico
• Dimensions : x 2 in x
• Weight : 0.04
• Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
