FLNR003 - Littelfuse 3 Amp 250 Volt Class RK5 Time Delay Current Limiting Fuse

FLNR003

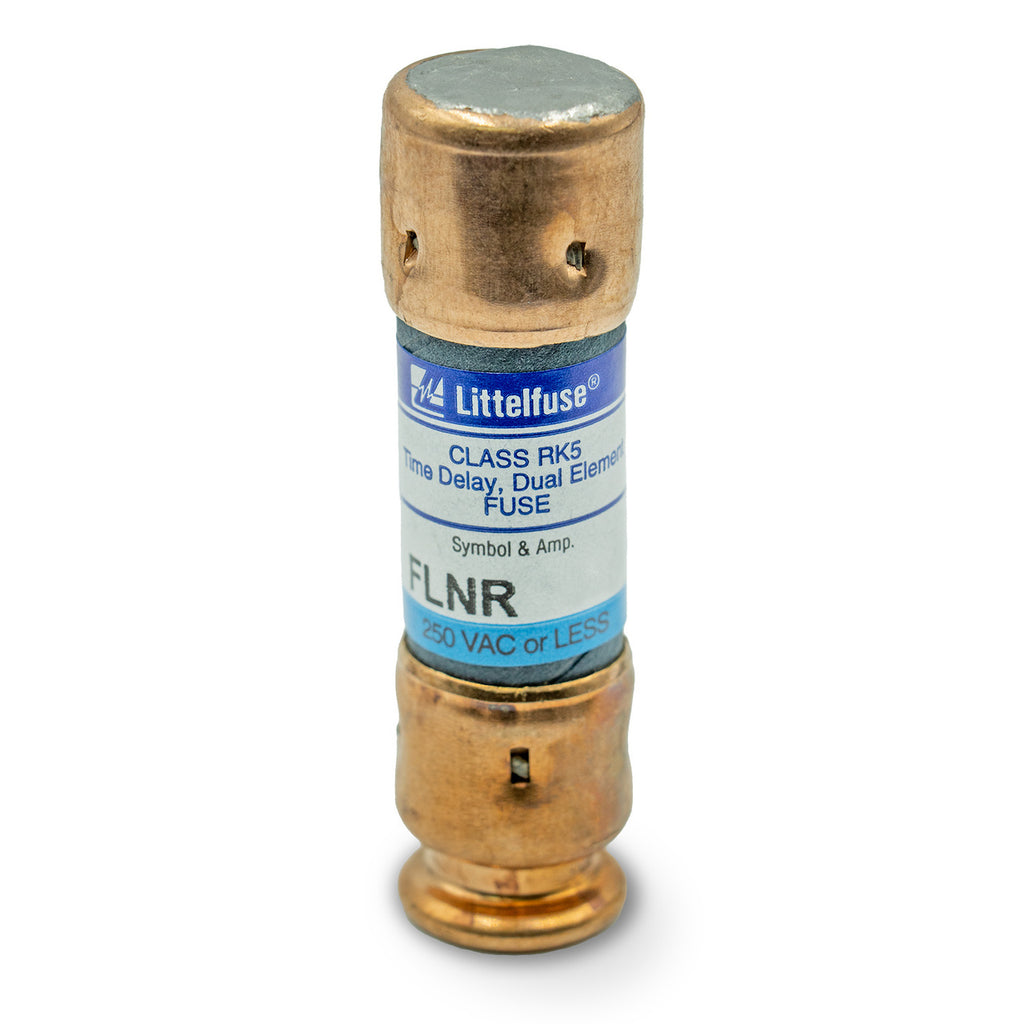

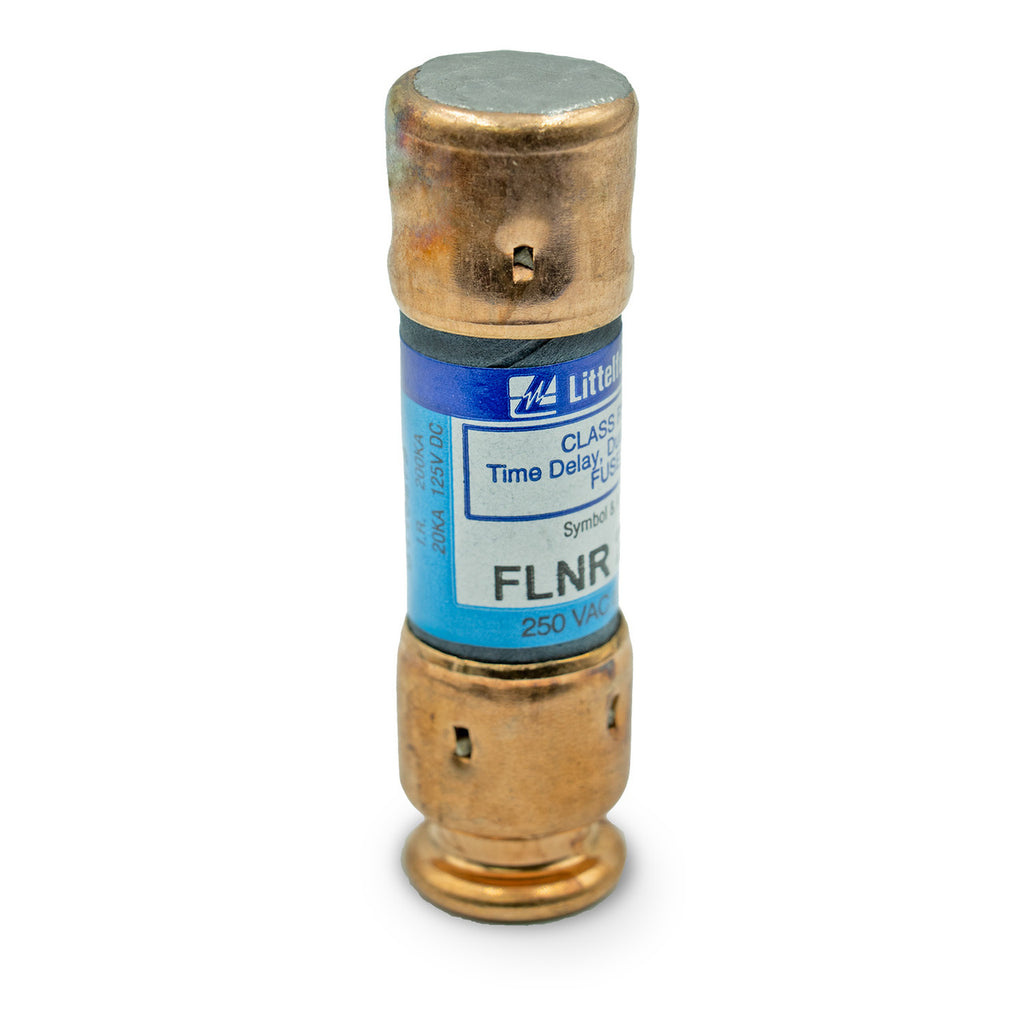

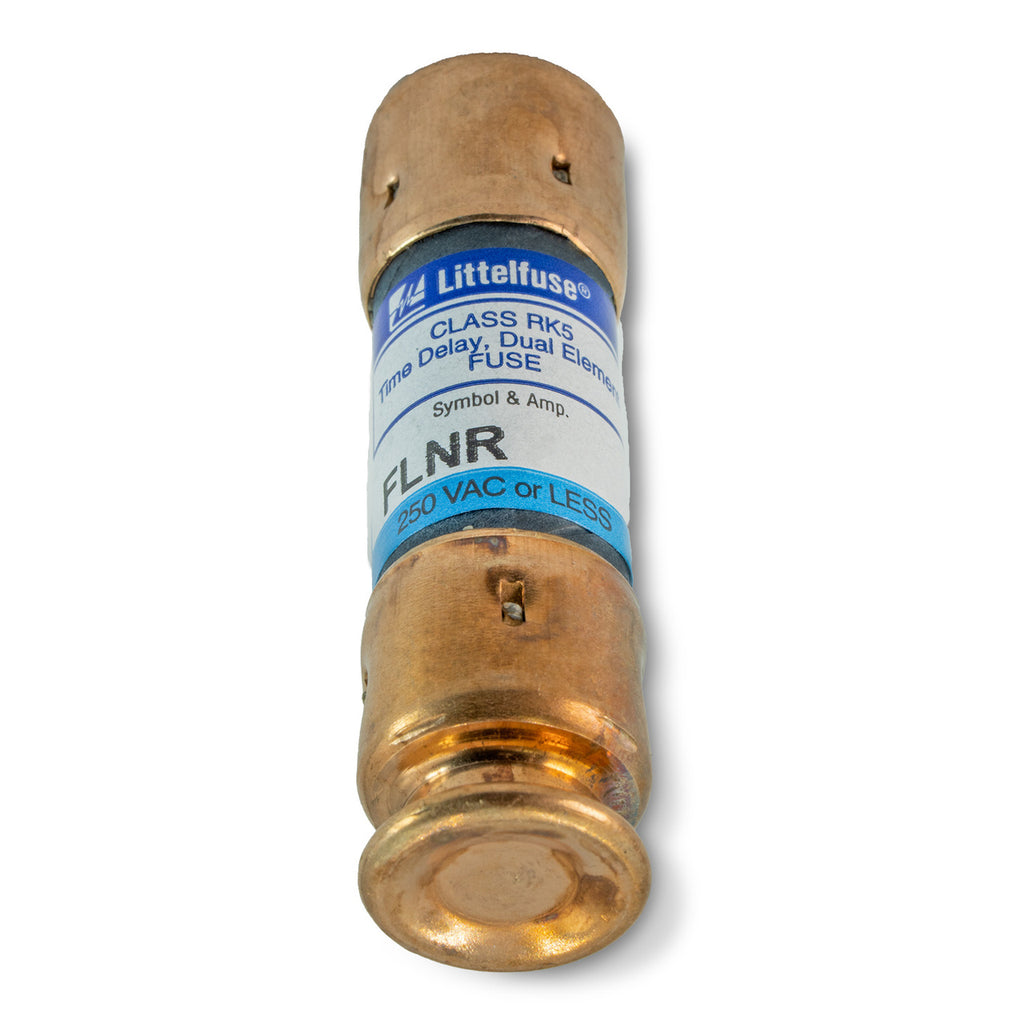

FLNR003 is a Littelfuse 3 Amp, 250 Volt Class RK5 time delay current limiting fuse designed for general purpose circuit protection.This cylindrical cartridge fuse features a dual-element design providing advanced short-circuit and overload protection with a time delay response. It has a 200 kA interrupt rating at 250 VAC and 20 kA at 125 VDC, making it suitable for service entrance switches, transformers, motor control centers, and switchboard mains. The fuse is UL Listed and CSA Certified, with a ferrule terminal type and a 9/16 inch diameter by 2 inch length body size.

• Amperage Rating: 3 Amps
• Voltage Rating: 250 VAC / 125 VDC
• Class: RK5
• Fuse Type: Time Delay (Slow Blow)
• Interrupt Rating: 200 kA AC / 20 kA DC
• Body Type: Cylindrical Cartridge
• Size: 9/16 inch diameter x 2 inch length
• Terminal Type: Ferrule
• Series: FLNR
• Certifications: UL Listed, CSA Certified
• Frequency Rating: 50/60 Hz
• Current Limiting: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLNR003
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Type : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Voltage : 250
• Amperage : 3
• AIC rating : 200kA@250V
• Connection : Ferrule Rejection
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 079458150476
• GTIN : 00079458150476
• Country of Origin : Mexico
• Dimensions : x 2 in x
• Weight : 21.79
• Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
