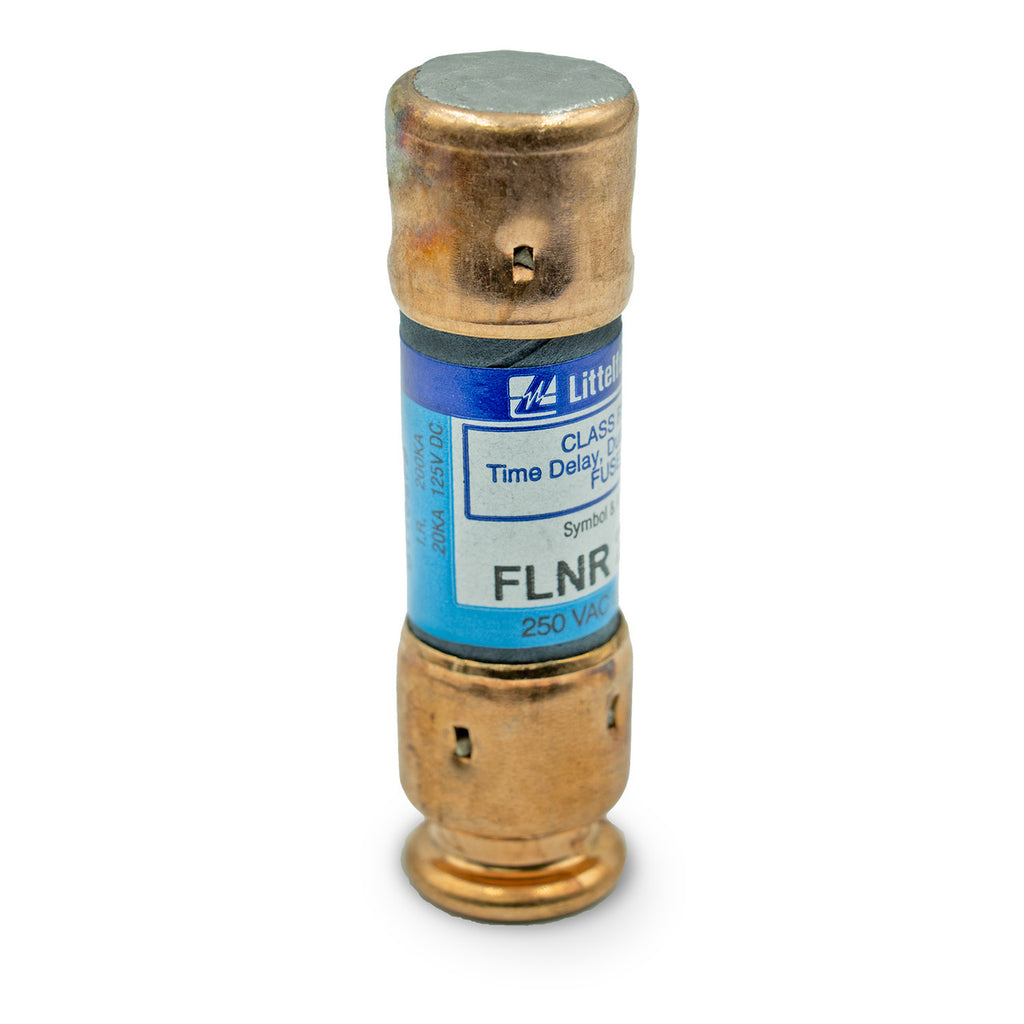

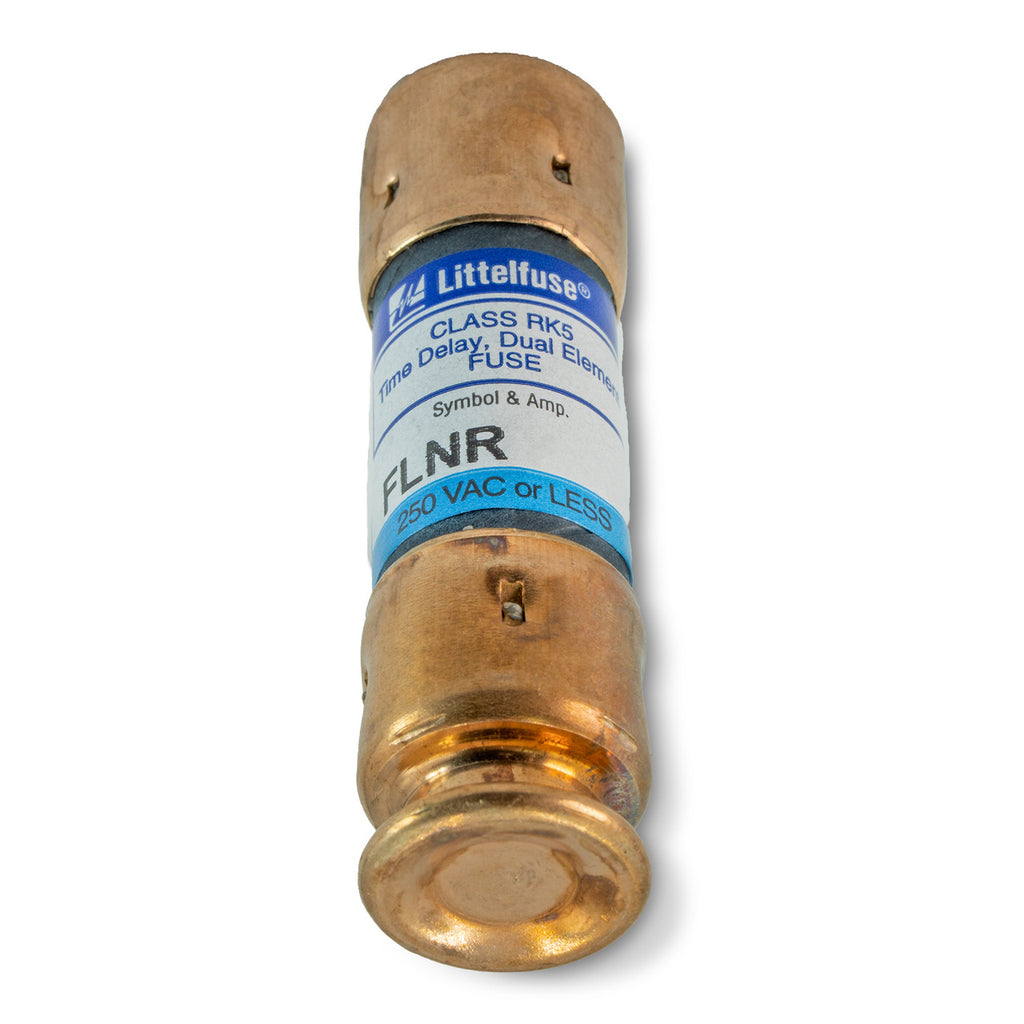

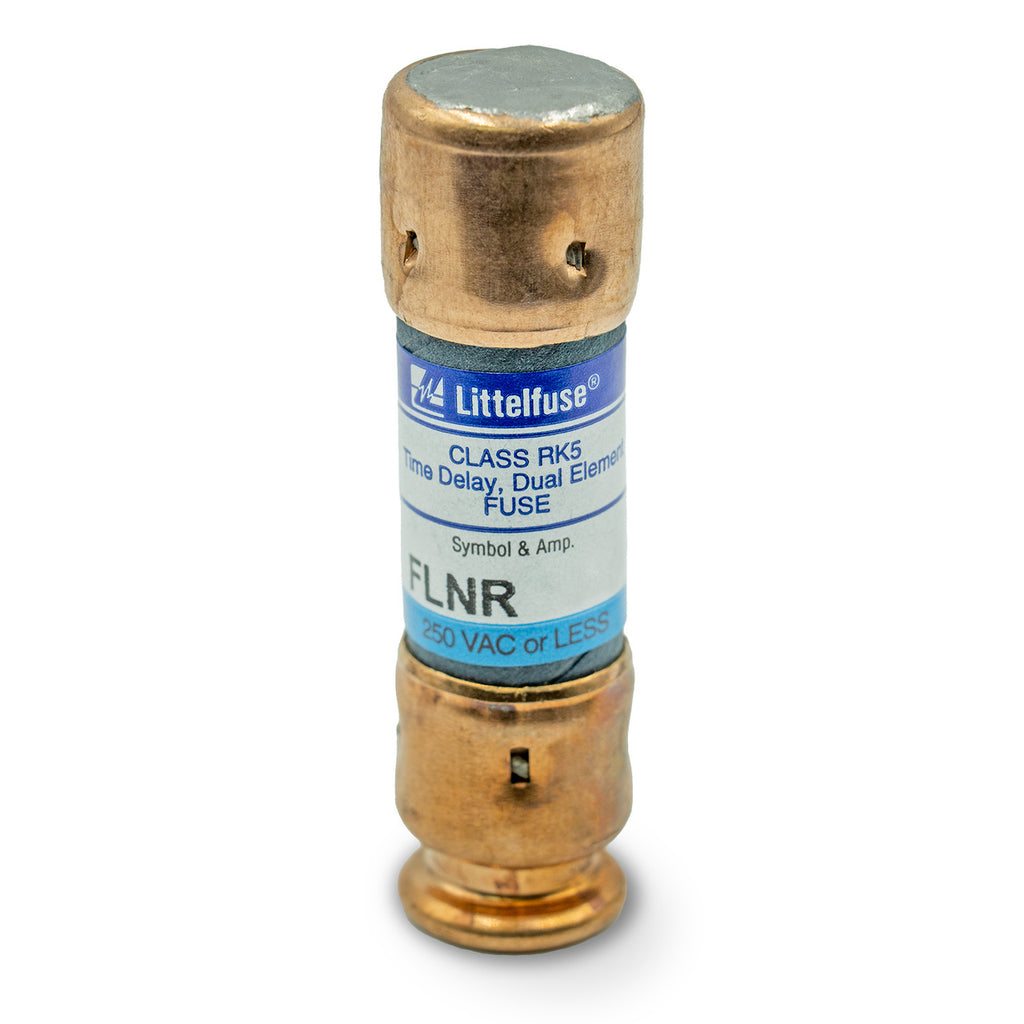

FLNR001 - Littelfuse 1A 250VAC/125VDC Class RK5 Time Delay Fuse

FLNR001

FLNR001 is a Littelfuse Class RK5 time delay fuse designed for general purpose circuit protection with a 1A ampere rating and dual-element construction.This cartridge-style fuse features a 250VAC and 125VDC voltage rating, making it suitable for a wide range of industrial and commercial applications. The dual-element design provides advanced short-circuit and overload protection, while the time delay characteristic allows for temporary current surges without nuisance tripping. The fuse is current limiting and offers high interrupting capacity for reliable circuit safety.

• Amperage Rating: 1A
• AC Voltage Rating: 250V
• DC Voltage Rating: 125V
• Fuse Class: Class RK5
• Interrupting Rating: 200,000A @ 250VAC
• DC Interrupting Rating: 20,000A
• Mounting Type: Fuse Block / Clip / Holder
• Physical Size: 9/16" x 2"
• Response Time: Time Delay (Slow Blow)
• Construction: Dual Element
• Protection Type: General Purpose Circuits
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLNR001
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Type : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Voltage : 250
• Amperage : 1
• AIC rating : 200kA@250V
• Connection : Ferrule Rejection
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 079458150315
• GTIN : 00079458150315
• Country of Origin : Mexico
• Dimensions : x 2 in x
• Weight : 21.79
• Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
