FLNR-500 - Littelfuse 500A 250VAC Class RK5 Dual Element Time Delay Fuse

FLNR-500

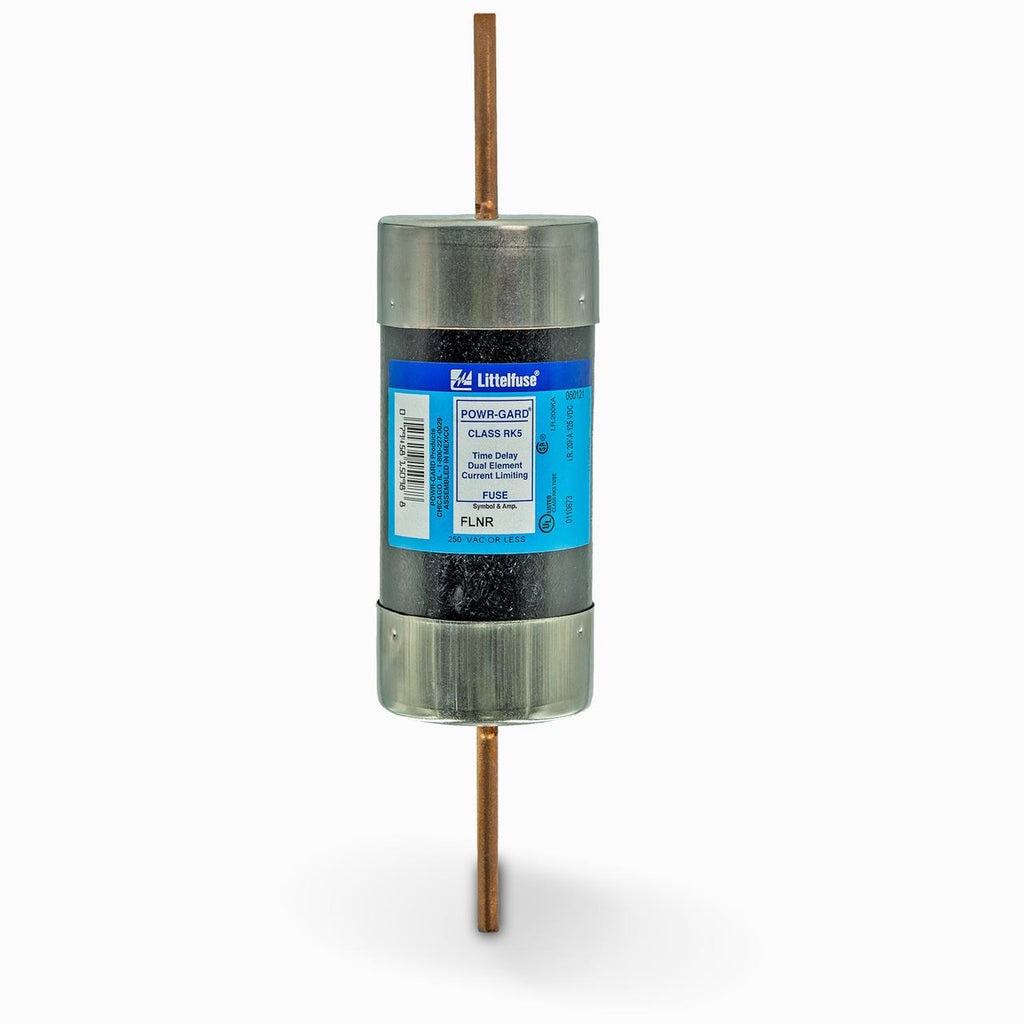

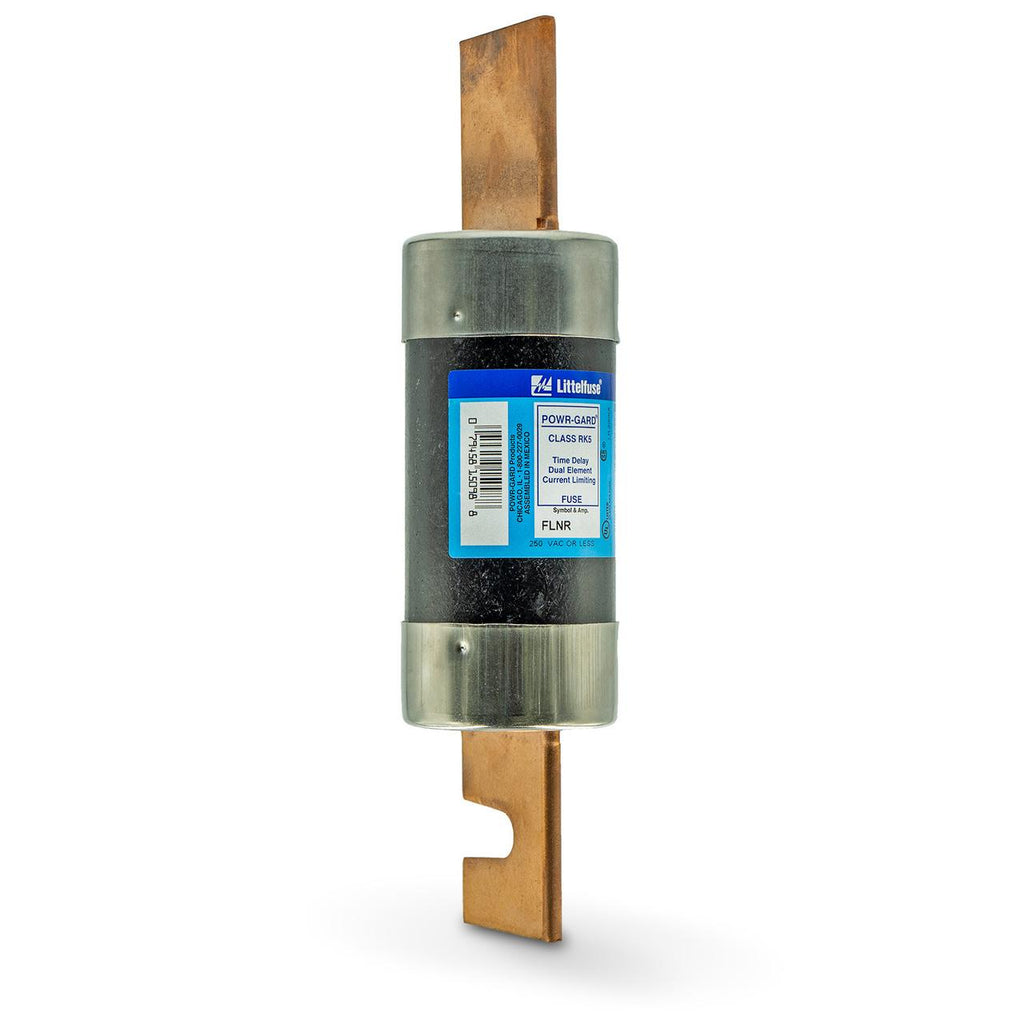

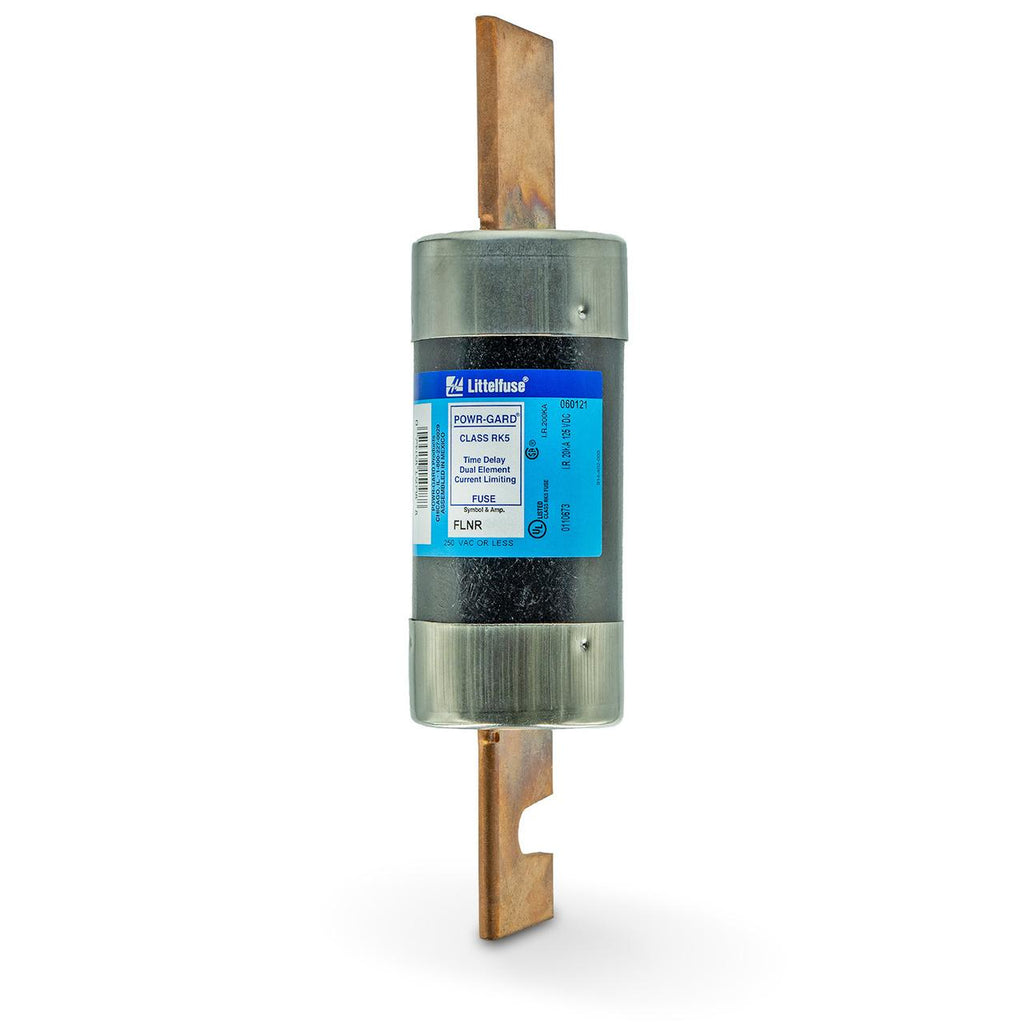

FLNR-500 is a Littelfuse 500 Amp, 250 Volt AC Class RK5 dual-element time delay fuse designed for general purpose circuit protection.This FLNR Series fuse features a dual-element design providing advanced short-circuit and overload protection with current limiting to restrict fault current. It has a voltage rating of 250 VAC and 125 VDC, an interrupting rating of 200kA AC, and is UL Listed and CSA Certified. The fuse is cartridge style with a 9/16 inch diameter and 2 inch length, suitable for service entrance switches, transformers, switchboard mains, motor control circuits, and other general applications.

Key Specifications
• Amperage: 500 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupting Rating: 200,000 AIC AC, 20,000 AIC DC
• Fuse Type: Dual Element, Time Delay
• Frame/Series: FLNR, Class RK5
• Mounting Type: Cartridge
• Size: 9/16 inch diameter x 2 inch length
• Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLNR-500
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage

Product Data

• UPC : 007945815096
• GTIN : 00079458150964
• Weight : 25
