Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description

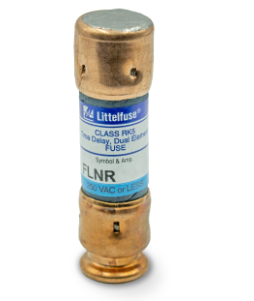

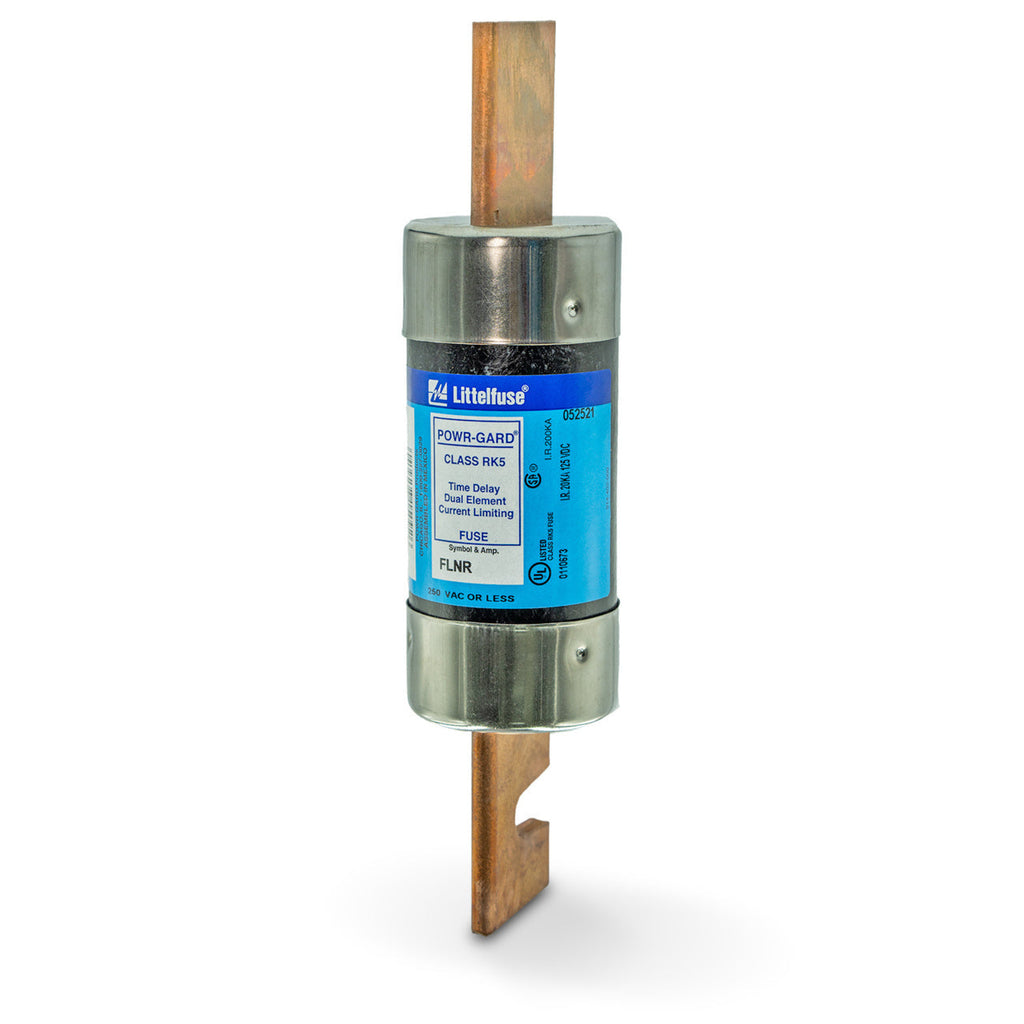

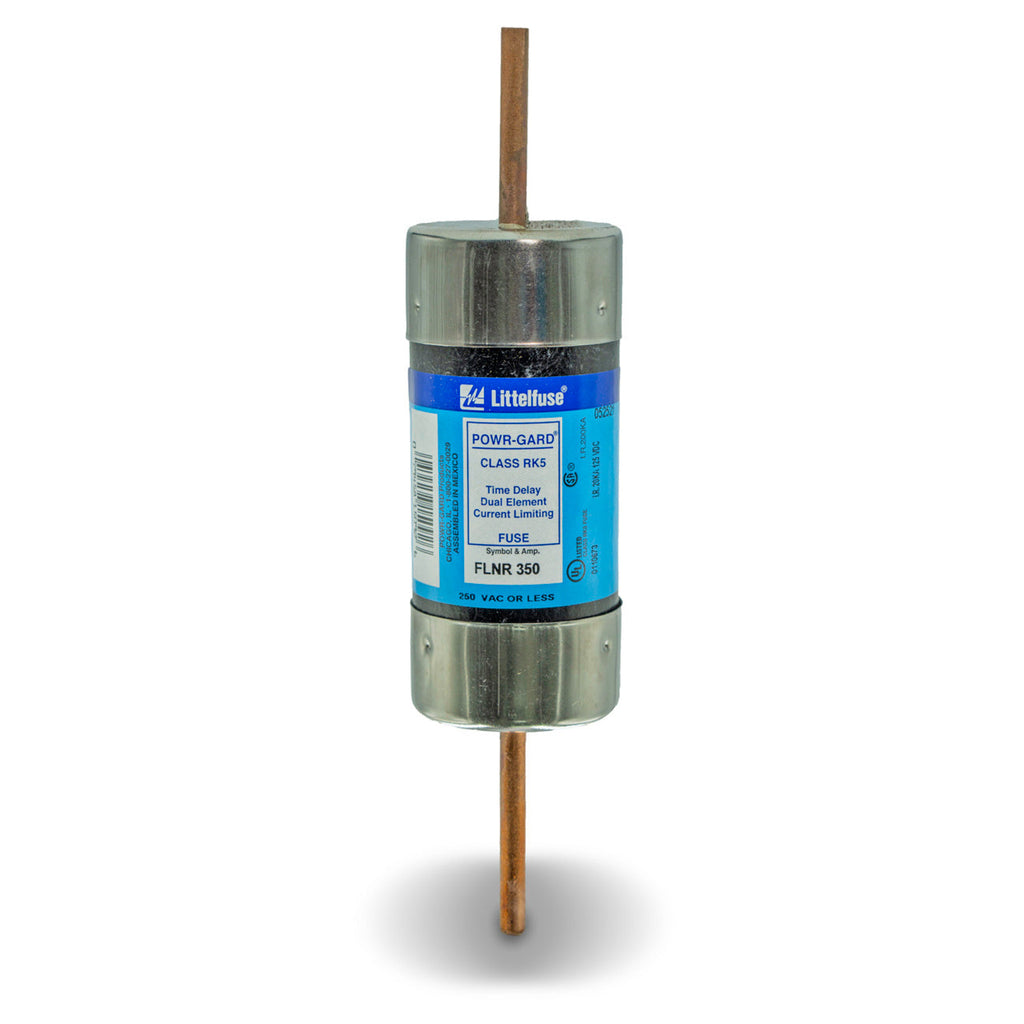

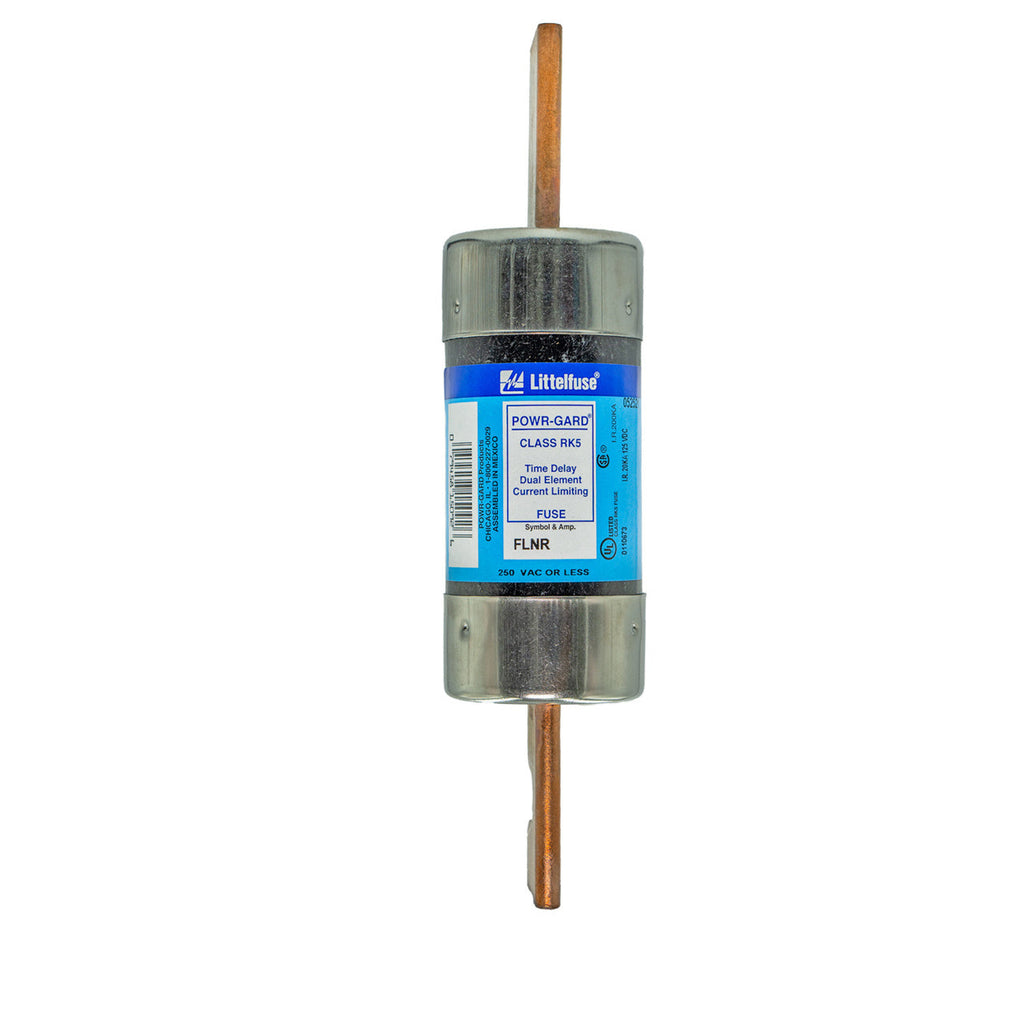

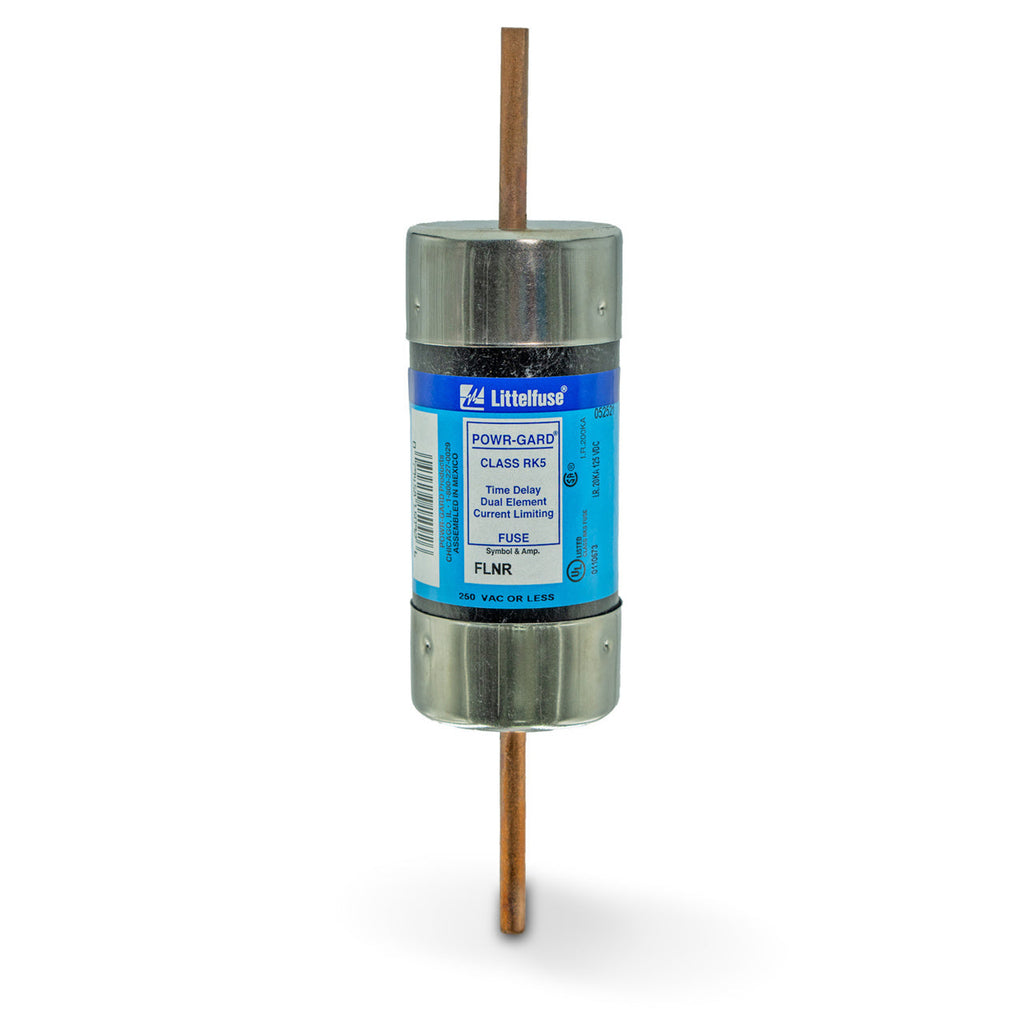

FLNR-350
FLNR-350 is a Littelfuse Class RK5 fuse providing 350 amps and 250 volts AC time-delay protection.This FLNR Series fuse features a dual-element design for advanced short-circuit and overload protection with current limiting to restrict fault current. It is a cylindrical body fuse sized 2-3/32 inches diameter by 8-5/8 inches length, rated for 350A continuous current and 250V AC (125V DC). The fuse has a high interrupting rating of 200 kA at 250V AC and 20 kA at 125V DC, meeting UL 248-12 Class RK5 standards. It is suitable for general purpose circuits including service entrance switches, transformers, switchboard mains, and motor control circuits. The fuse is UL and CSA certified and manufactured in Mexico.
- Key Specifications
- Amperage: 350 A
- Voltage Rating: 250 V AC, 125 V DC
- Interrupting Rating: 200 kA AC, 20 kA DC
- Fuse Class: RK5
- Design: Dual Element, Time Delay (Slow Blow)
- Body Size: 2-3/32 in diameter x 8-5/8 in length
- Mounting Type: Cylindrical cartridge
- Certifications: UL Listed, CSA Certified
- Country of Origin: Mexico
Specifications
- Part Number: FLNR-350
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
Product Data
- UPC : 007945815092
- GTIN : 00079458150926
- Weight : 25
