Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description

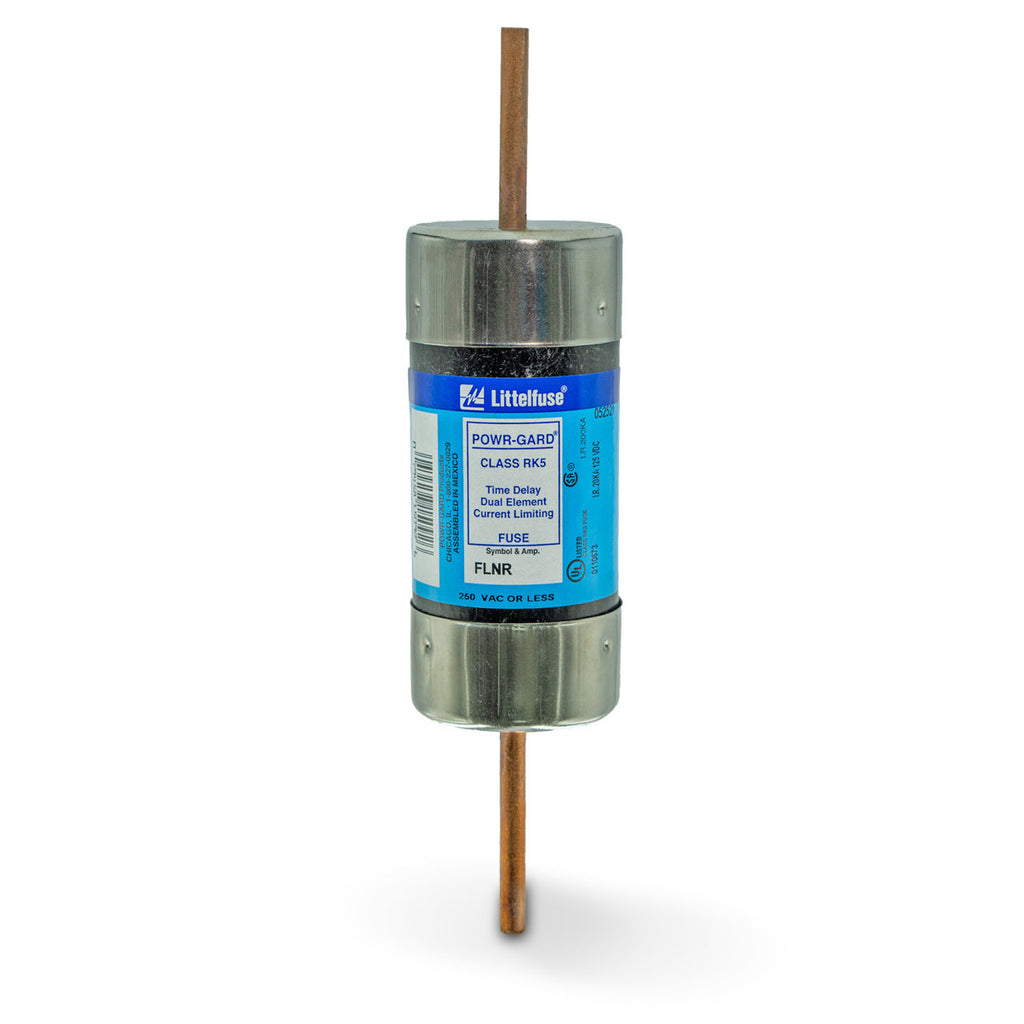

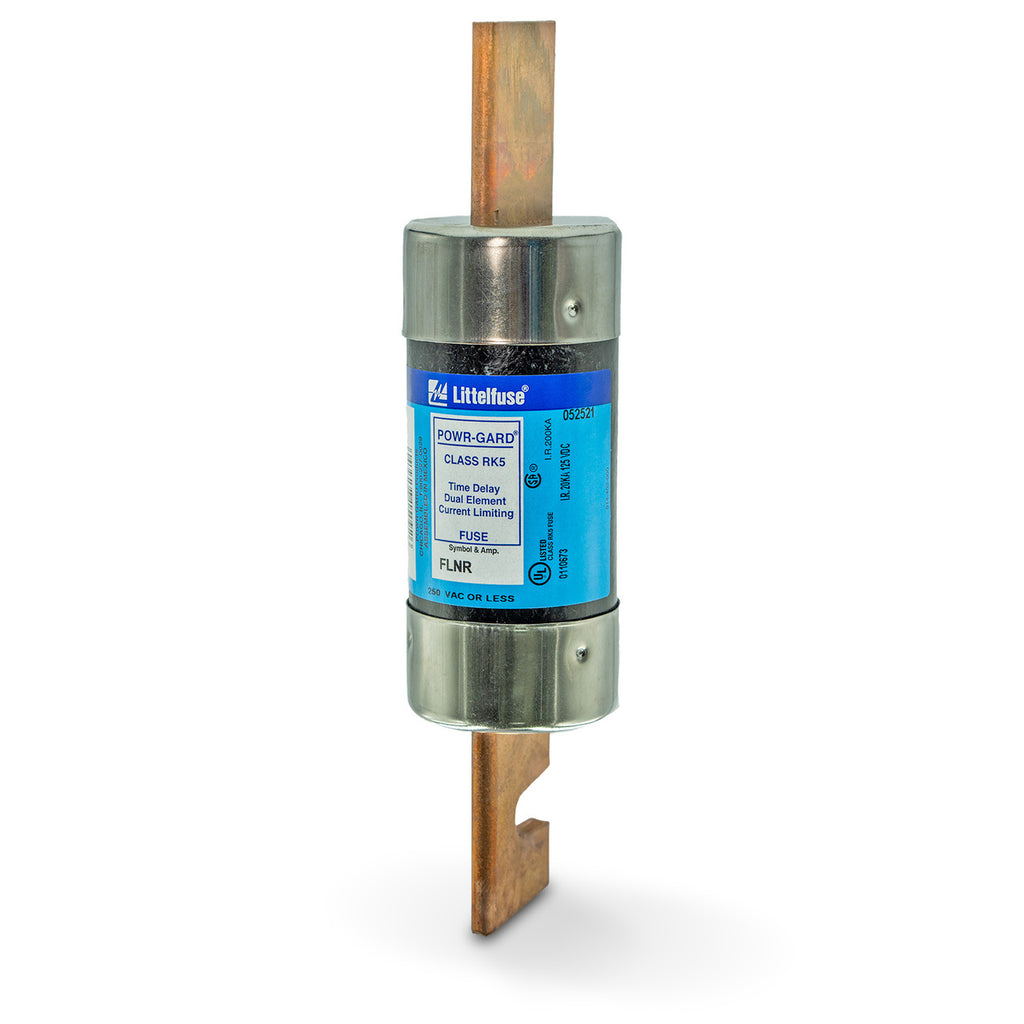

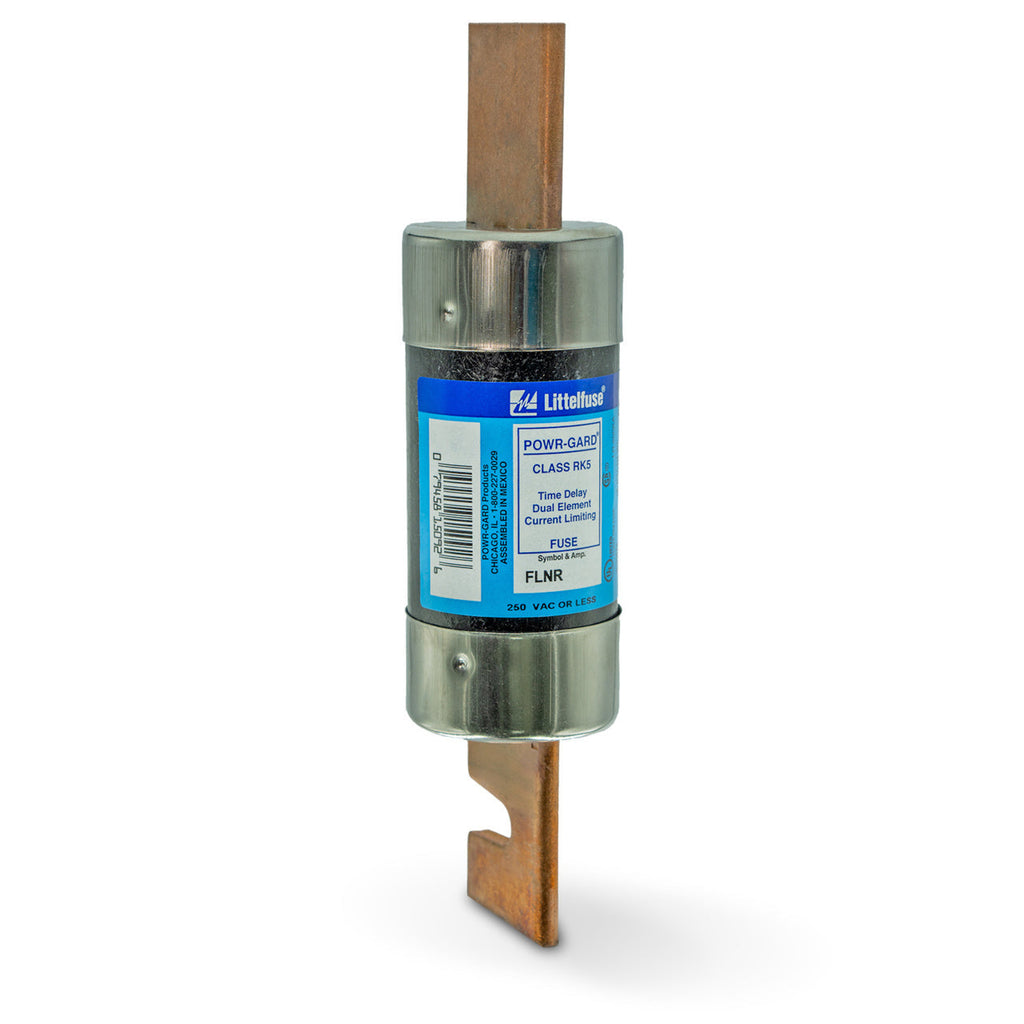

FLNR-250
FLNR-250 is a Littelfuse Class RK5 dual-element time-delay fuse rated for 250 amps and 250 volts AC, designed for advanced circuit protection.FLNR-250 features a dual-element design providing both short-circuit and overload protection with current limiting to restrict fault current. It is a cylindrical industrial cartridge fuse with a 2 3/32 inch diameter and 8 5/8 inch length, suitable for general purpose circuits including service entrance switches, transformers, and motor control circuits. This fuse meets UL 248-12 standards, is UL Listed and CSA Certified, and has an interrupting rating of up to 200 kA AC and 20 kA DC.
- Key Specifications
- Amperage: 250 A
- Voltage Rating: 250 V AC, 125 V DC
- Fuse Type: Dual Element, Time-Delay
- Class: RK5
- Interrupting Rating: 200 kA AC, 20 kA DC
- Body Type: Cylindrical Industrial Cartridge
- Dimensions: 2 3/32 in Diameter x 8 5/8 in Length
- Certifications: UL Listed, CSA Certified
- Country of Origin: Mexico
- Applications: General Purpose Circuits, Motor Control, Transformers
Specifications
- Part Number: FLNR-250
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- UPC : 007945815090
- GTIN : 00079458150902
- Weight : 25
