Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLNR-225ID

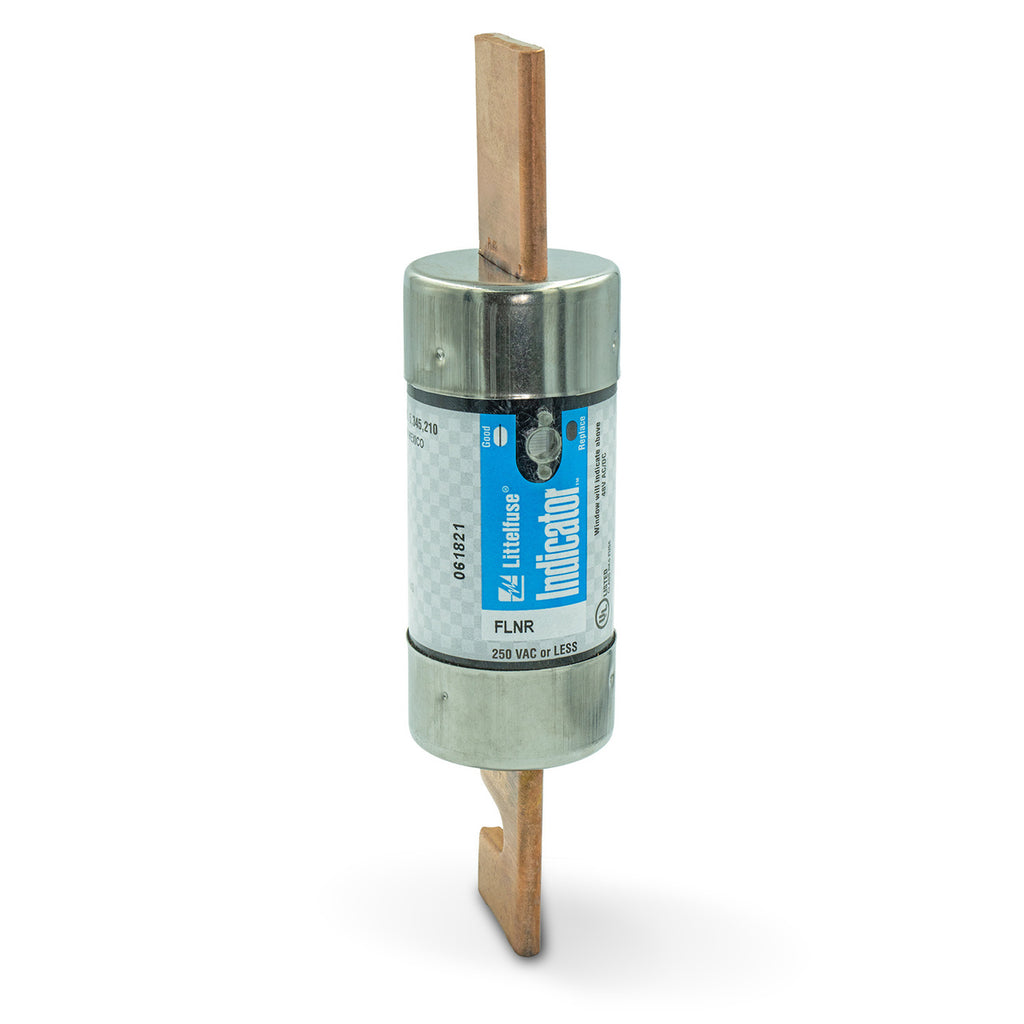

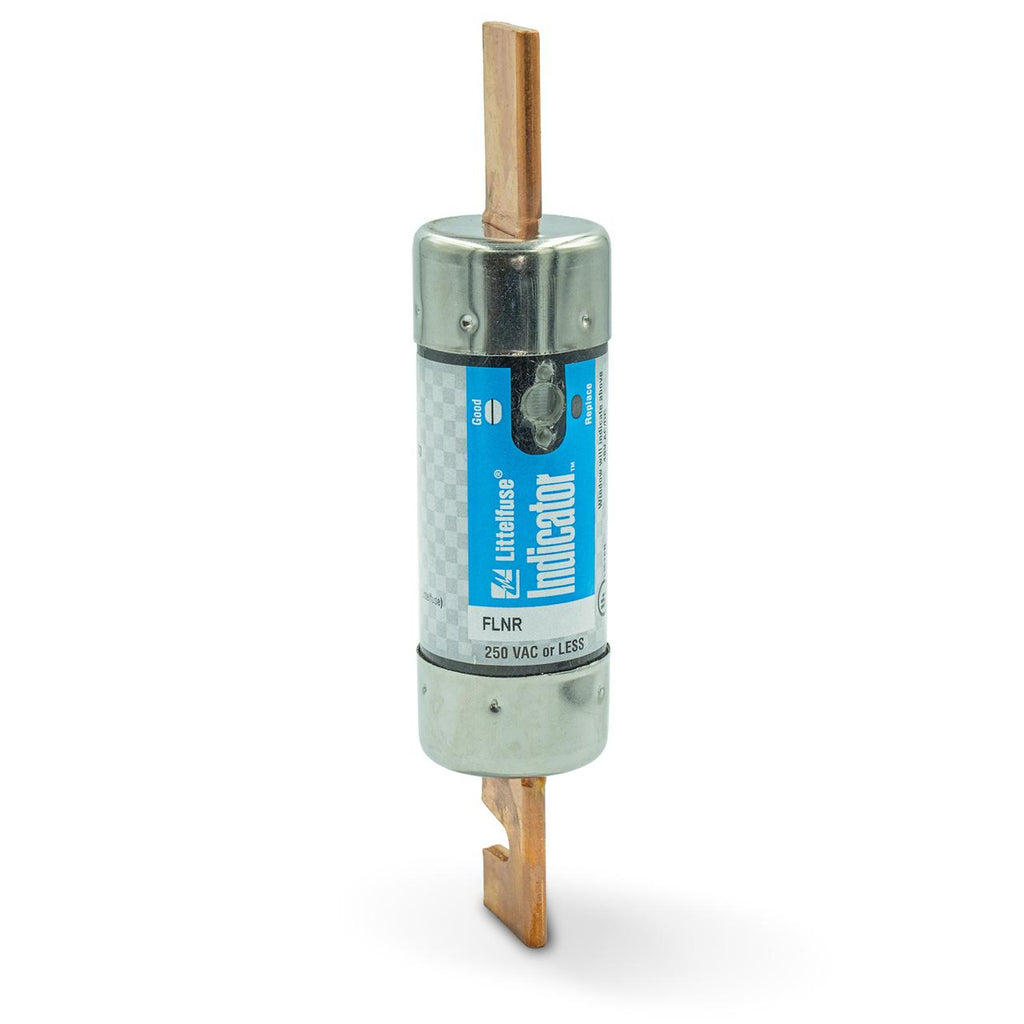

FLNR-225ID is a Littelfuse Class RK5 indicating fuse rated for 225 amps and 250 volts AC, designed for advanced circuit protection with visual blown fuse indication.This dual-element, time delay fuse provides superior short-circuit and overload protection with current limiting capabilities. It features a patented solid-state indicator window that turns black when the fuse blows, allowing quick identification and reducing downtime. The fuse is suitable for general purpose circuits including service entrance switches, transformers, switchboard mains, and motor control circuits. It meets UL 248-12 standards and has a high interrupting rating of 200,000 amps symmetrical.
- Key Specifications
- Amperage: 225 A
- Voltage Rating: 250 V AC / 125 V DC
- Fuse Class: RK5
- Type: Dual Element, Time Delay
- Interrupting Rating: 200,000 A RMS Symmetrical
- Visual Blown Fuse Indication
- Mounting Type: Knife Blade
- Standards: UL 248-12, CSA, CE
- Physical Size: 2 3/32" diameter x 8 5/8" length
- Country of Origin: Mexico
- Part Number: FLNR-225ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
- Velocity : TD - Time Delay
- UPC : 07945802394
- Weight : 25
