Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLNR-150ID

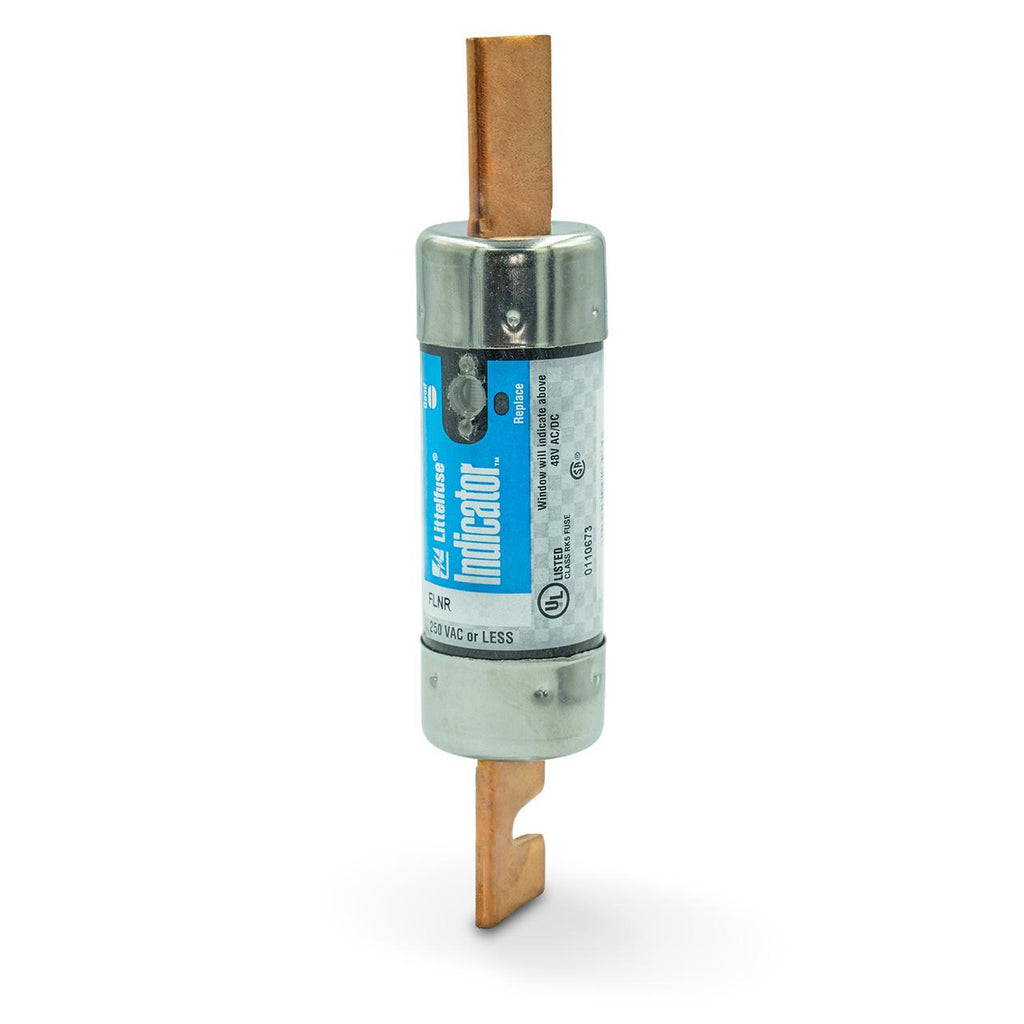

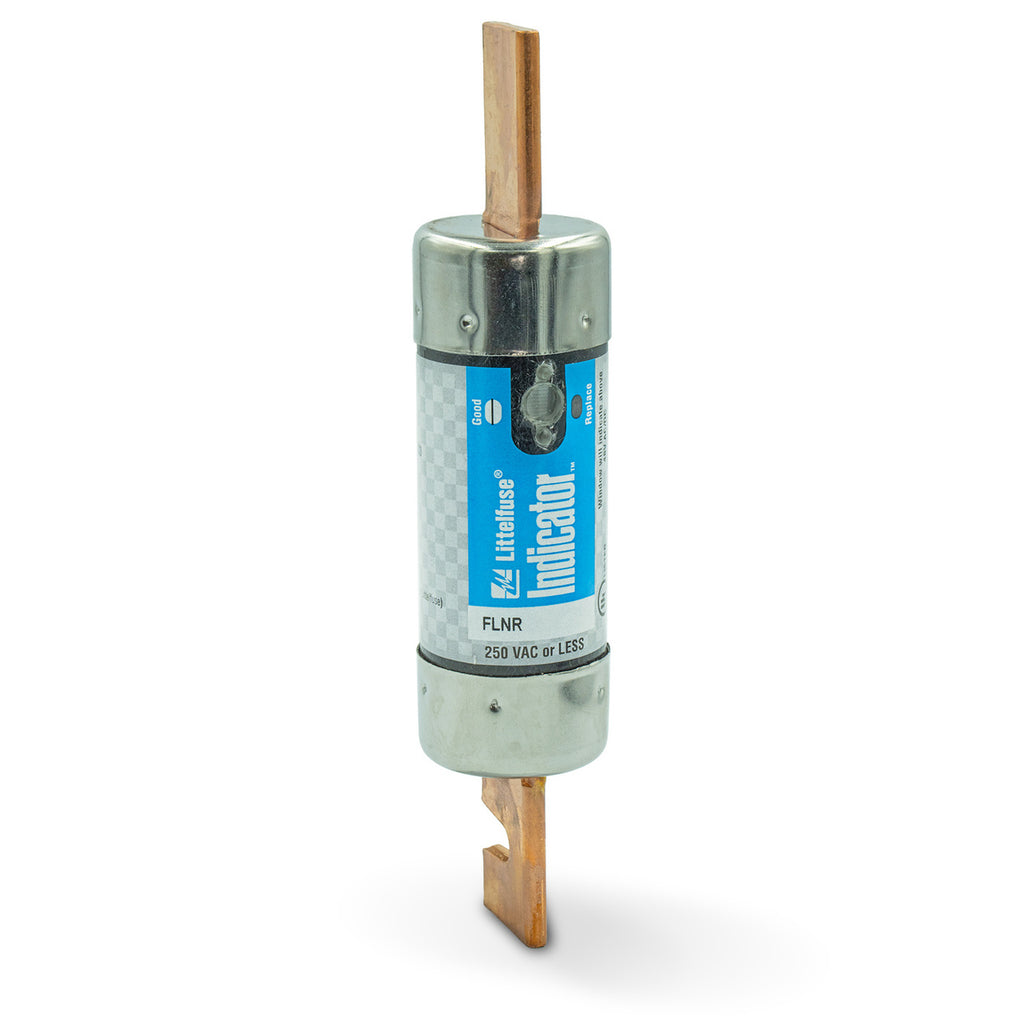

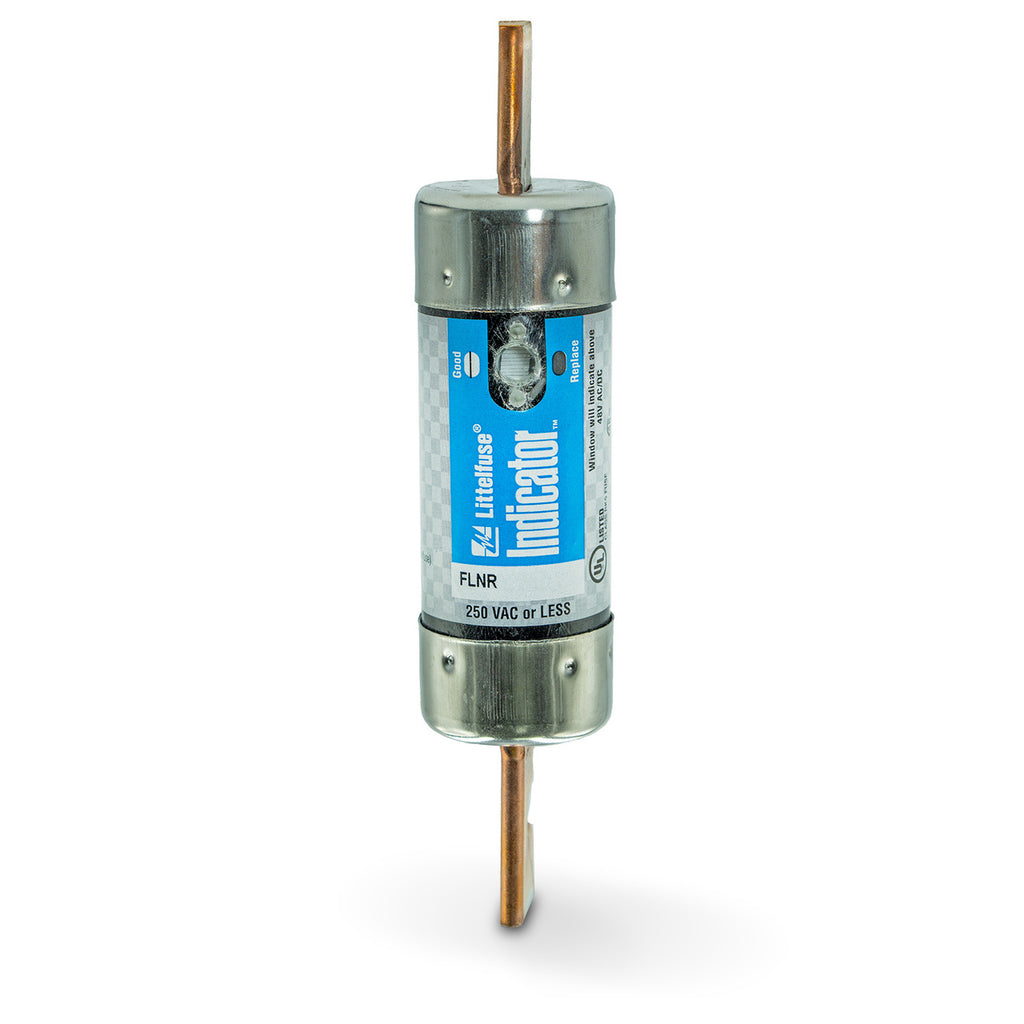

FLNR-150ID is a 150 Amp, 250 Volt Class RK5 time delay indicating fuse from Littelfuse designed for general purpose circuit protection.This fuse features a dual-element design providing advanced short-circuit and overload protection with current limiting capability. It includes a visual blown fuse indicator for quick identification, has a knife-blade terminal style, and meets UL 248-12 and CSA certification standards. The fuse has an interrupting rating of 200,000 AIC at 250 VAC and 20,000 AIC at 125 VDC, with a physical size of 1 19/32" x 7 1/8".
- Key Specifications
- Amperage: 150 Amp
- Voltage Rating: 250 VAC / 125 VDC
- Fuse Type: UL Class RK5
- Time Delay: Yes
- Dual Element: Yes
- Current Limiting: Yes
- Visual Blown Fuse Indicator: Yes
- Interrupting Rating: 200,000 AIC @ 250 VAC, 20,000 AIC @ 125 VDC
- Terminal Type: Knife-blade
- Physical Size: 1 19/32" x 7 1/8"
- Certifications: UL Listed, CSA Certified
- Part Number: FLNR-150ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
- Velocity : TD - Time Delay
- UPC : 7945802391
- Weight : 5.19
