FLNR-090 - Littelfuse 90 Amp 250 Volt AC Class RK5 Time Delay Dual Element Fuse

FLNR-090

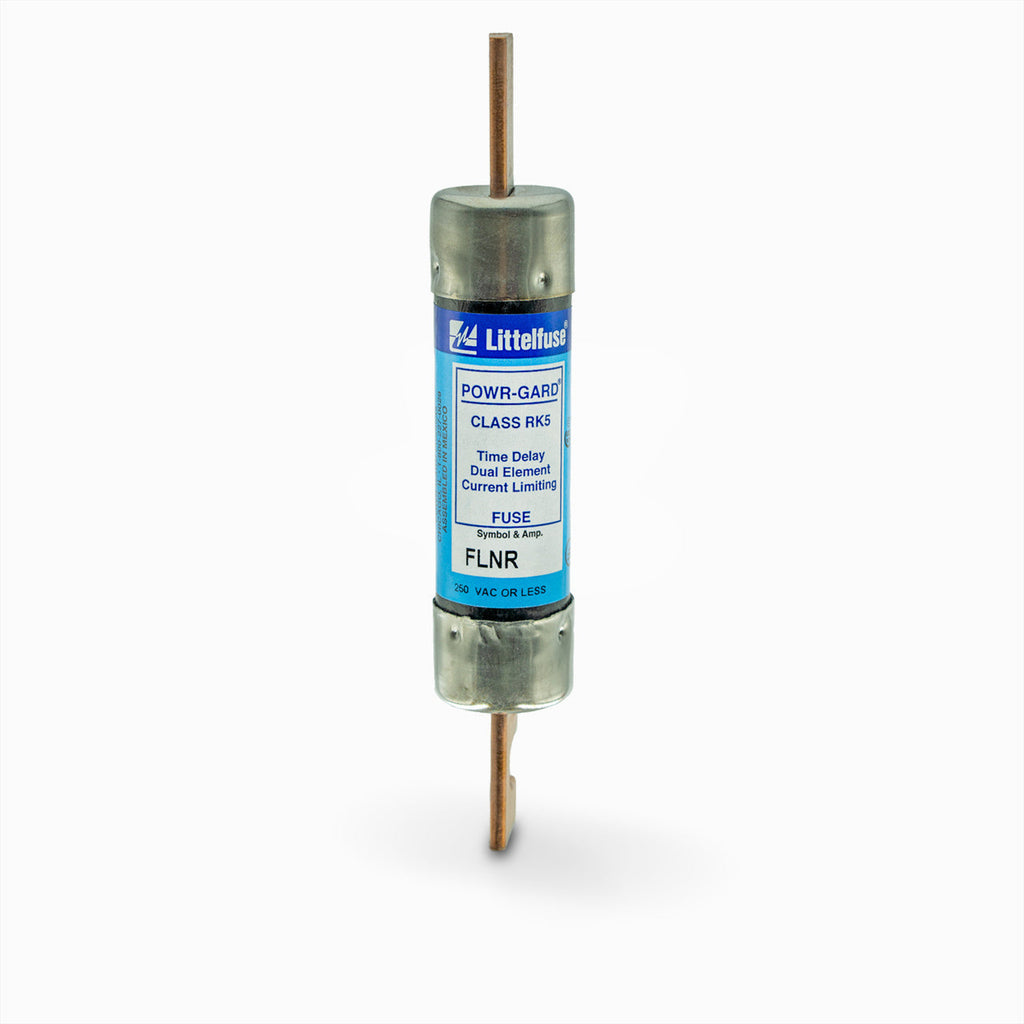

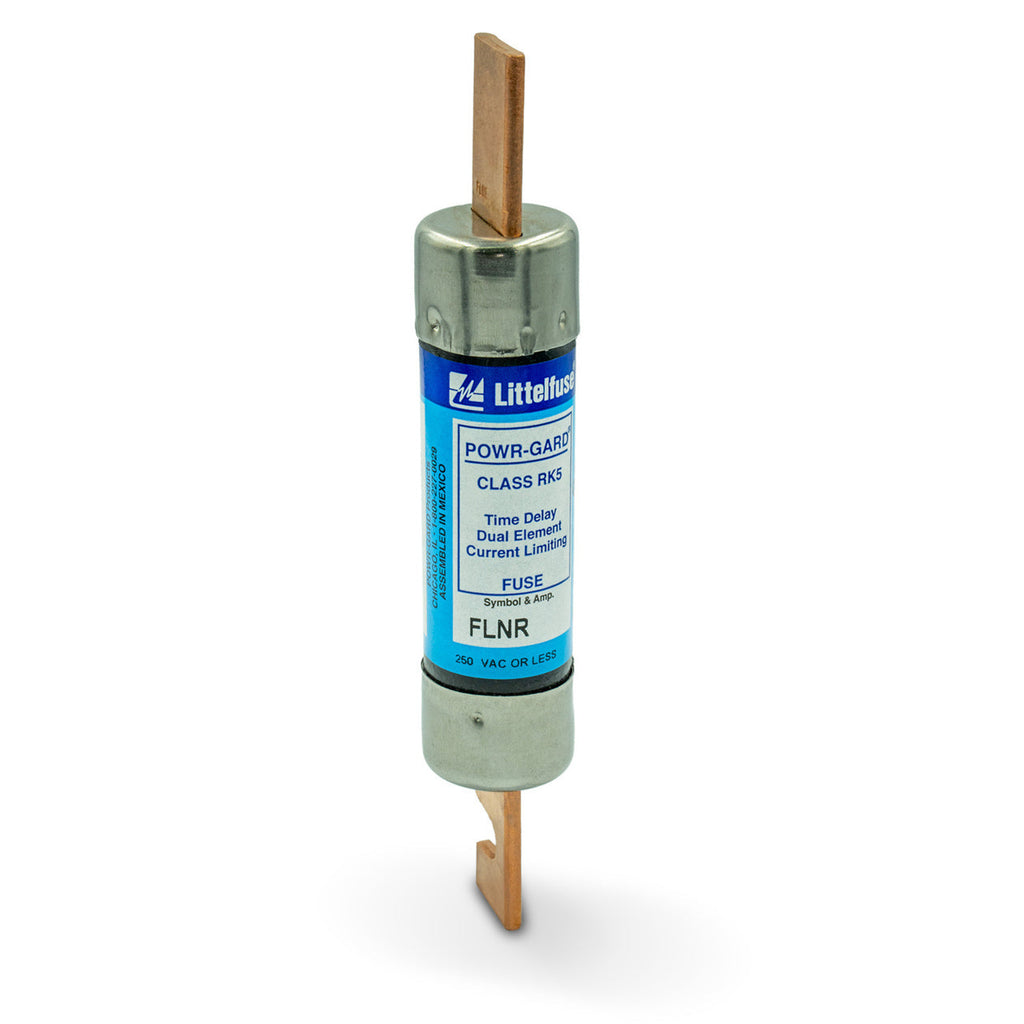

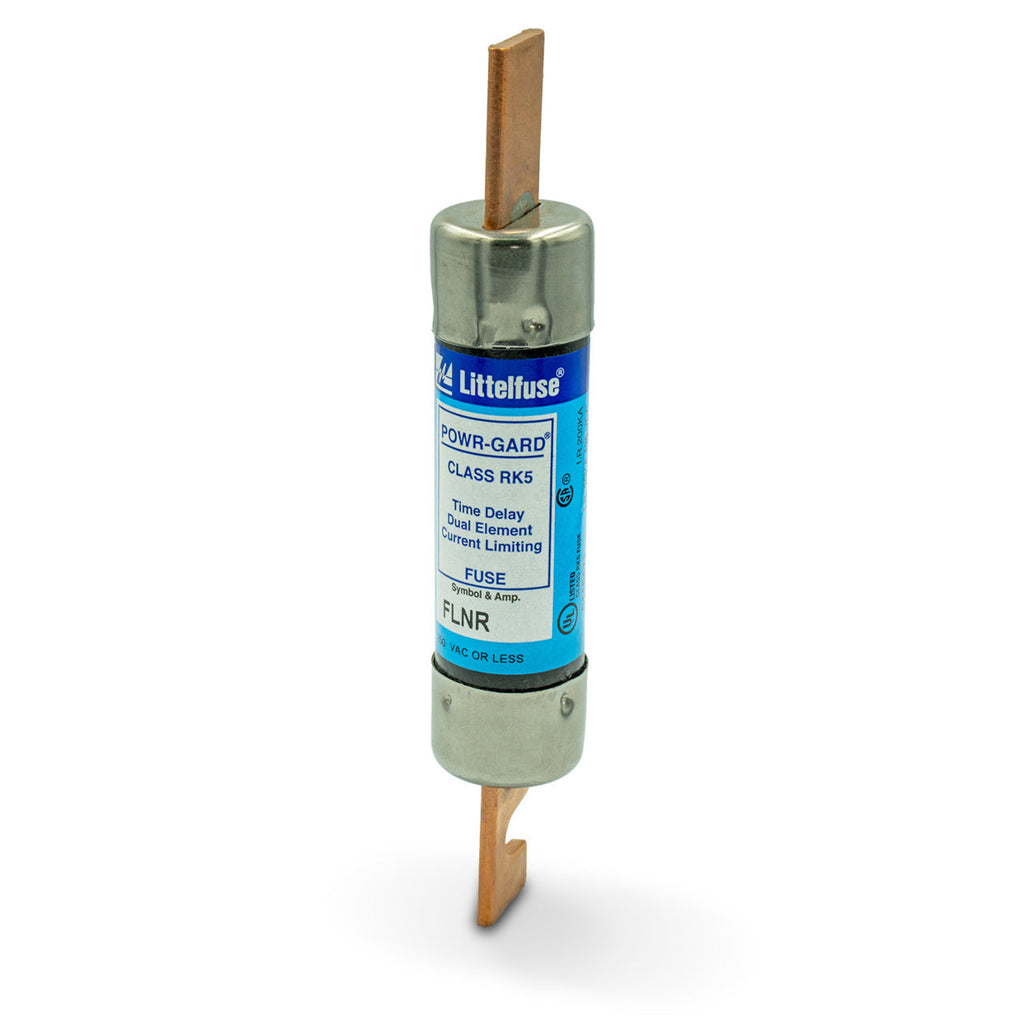

FLNR-090 is a Littelfuse 90 Amp, 250 Volt AC Class RK5 time delay dual element fuse designed for general purpose circuit protection.This fuse features a dual-element design providing advanced short-circuit and overload protection with current limiting to restrict fault current. It has a time-delay characteristic suitable for motor and transformer circuits. The fuse is UL Listed and CSA Certified, with an interrupting rating of 200,000 AIC at 250 VAC and 20,000 AIC at 125 VDC. It has a knife-blade mounting style and a physical size of approximately 1 1/16" x 5 7/8".

Key Specifications
• Amperage: 90 Amps
• Voltage Rating: 250 V AC, 125 V DC
• Fuse Class: RK5
• Time Delay: Yes
• Dual Element Design
• Interrupting Rating: 200,000 AIC at 250 VAC, 20,000 AIC at 125 VDC
• Mounting Type: Knife-Blade
• Physical Size: 1 1/16" x 5 7/8"
• UL Listed (File: E81895)
• CSA Certified (File: LR29862)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLNR-090
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage

Product Data

• UPC : 007945815081
• GTIN : 00079458150810
• Weight : 25
