Product Info
- Manufacturer:Littelfuse
Description
FLNR-045ID

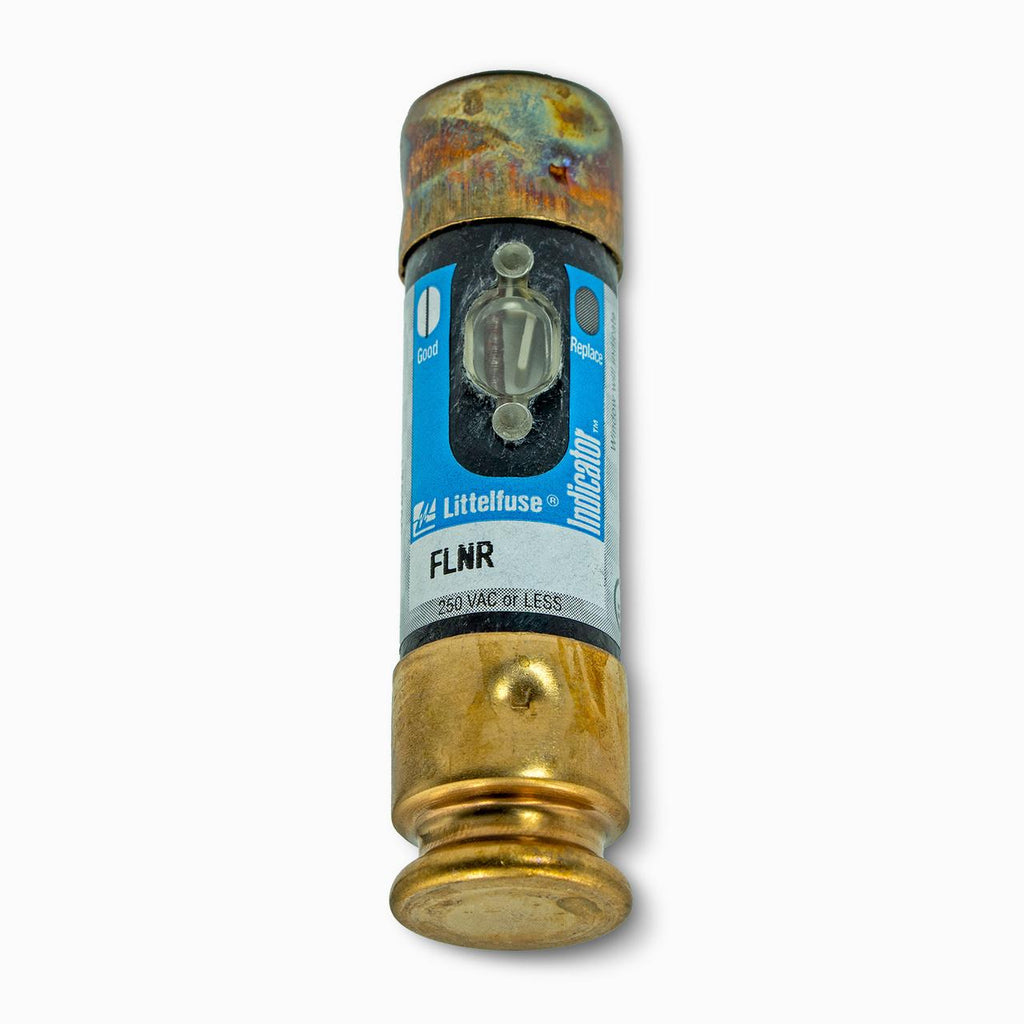

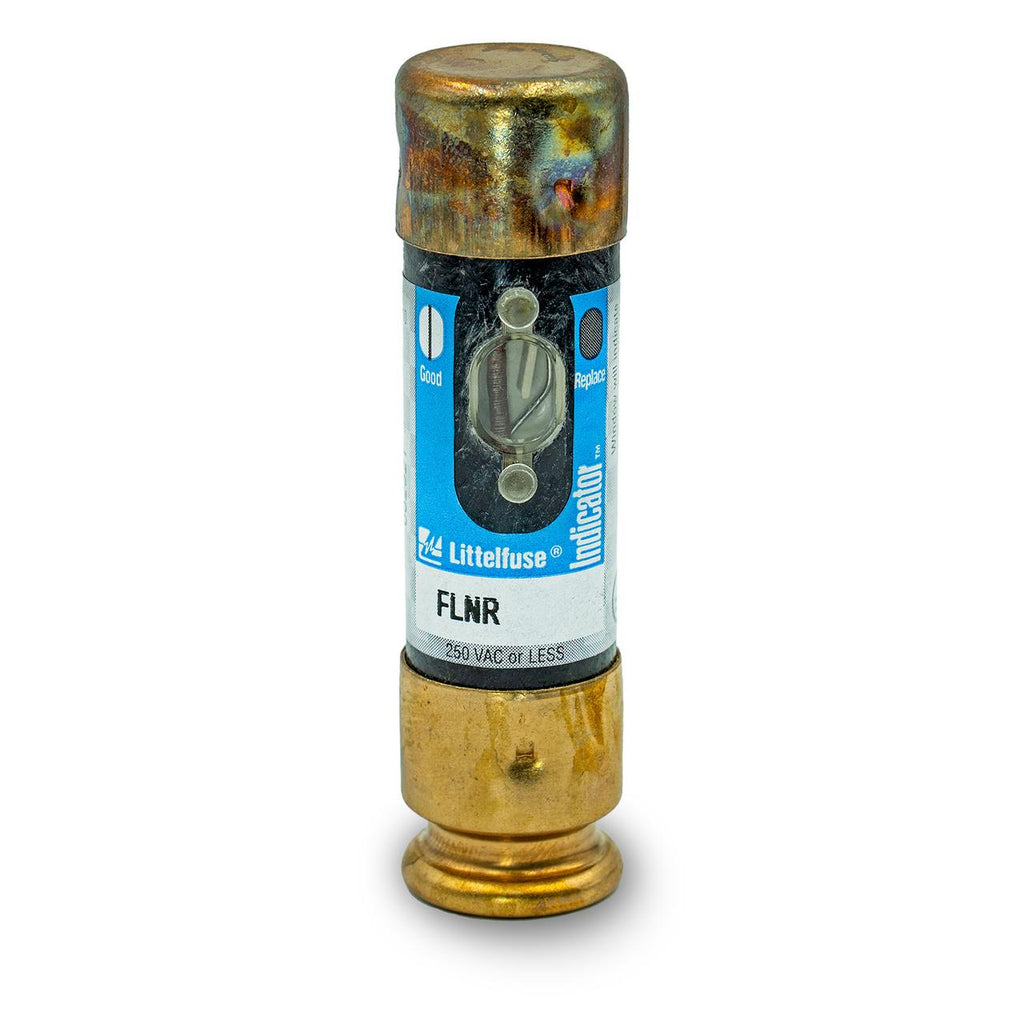

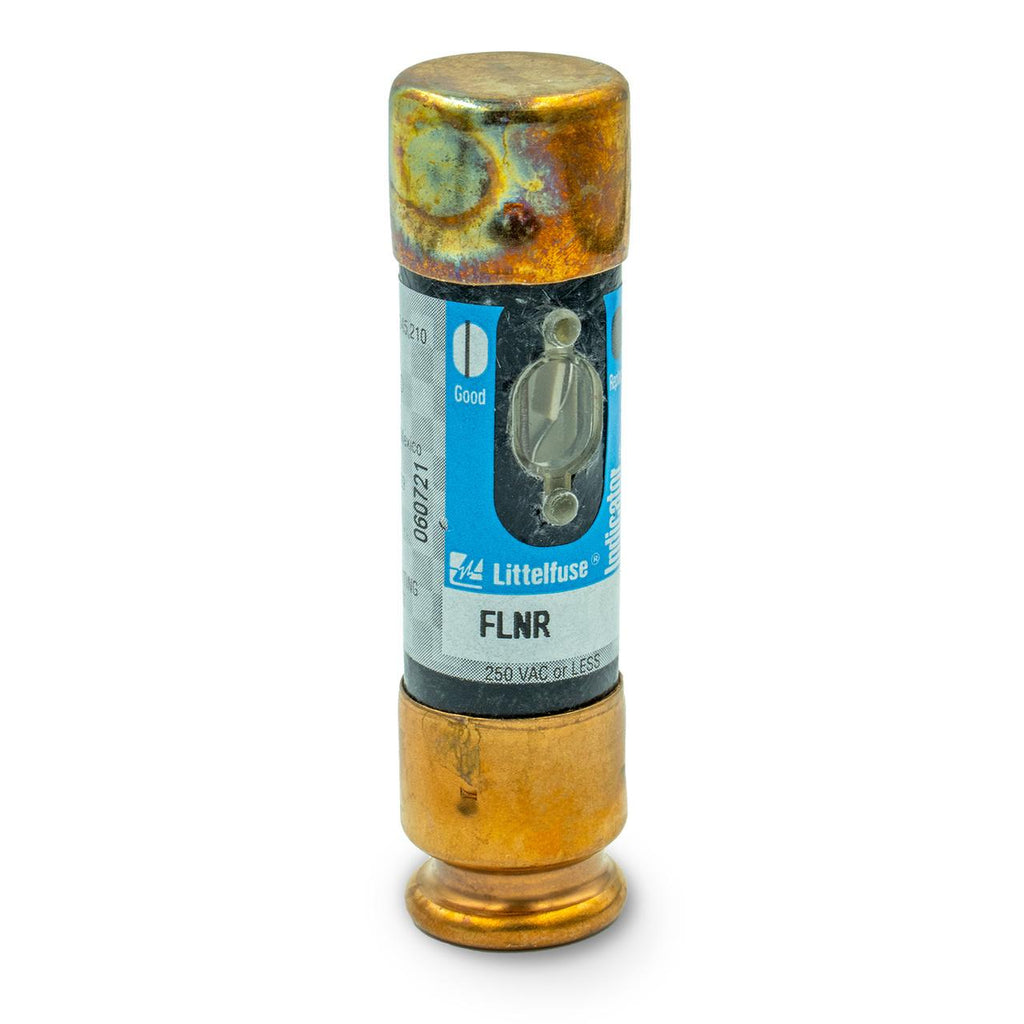

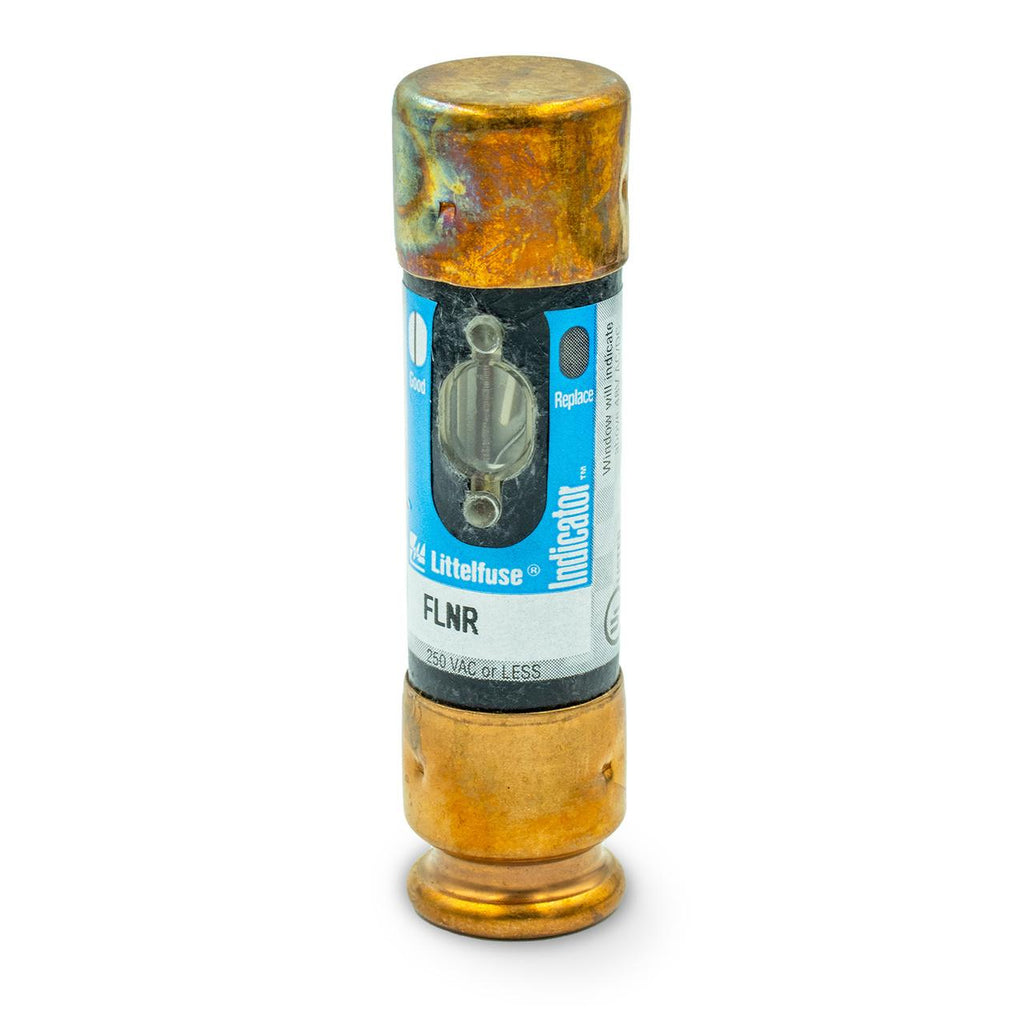

FLNR-045ID is a 45 Amp, 250 Volt AC Class RK5 dual element time delay fuse with an indicator for visual blown fuse identification.This Littelfuse FLNR-045ID fuse features a current limiting design and dual-element construction to provide advanced short-circuit and overload protection. It is UL listed and CSA certified, rated for 200,000 A interrupting capacity at 250 VAC and 20,000 A at 125 VDC. The fuse size is 13/16" diameter by 3" length, suitable for general purpose circuits including service entrance switches, transformers, and motor control circuits. The indicator window turns black when blown, enabling quick fault detection and reducing downtime.
- Key Specifications
- Amperage: 45 Amps
- Voltage Rating: 250 VAC / 125 VDC
- Fuse Class: UL Class RK5
- Fuse Type: Dual Element, Time Delay
- Interrupting Rating: 200,000 AIC @ 250 VAC, 20,000 AIC @ 125 VDC
- Physical Size: 13/16" x 3"
- Visual Blown Fuse Indicator
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
- Current Limiting
- Applications: General Purpose Circuits, Motor Control, Transformers
Specifications
- Part Number: FLNR-045ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Voltage : 250
- Amperage : 45
Product Data
- UPC : 007945802382
- GTIN : 00079458023824
- Weight : 0.8
