Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

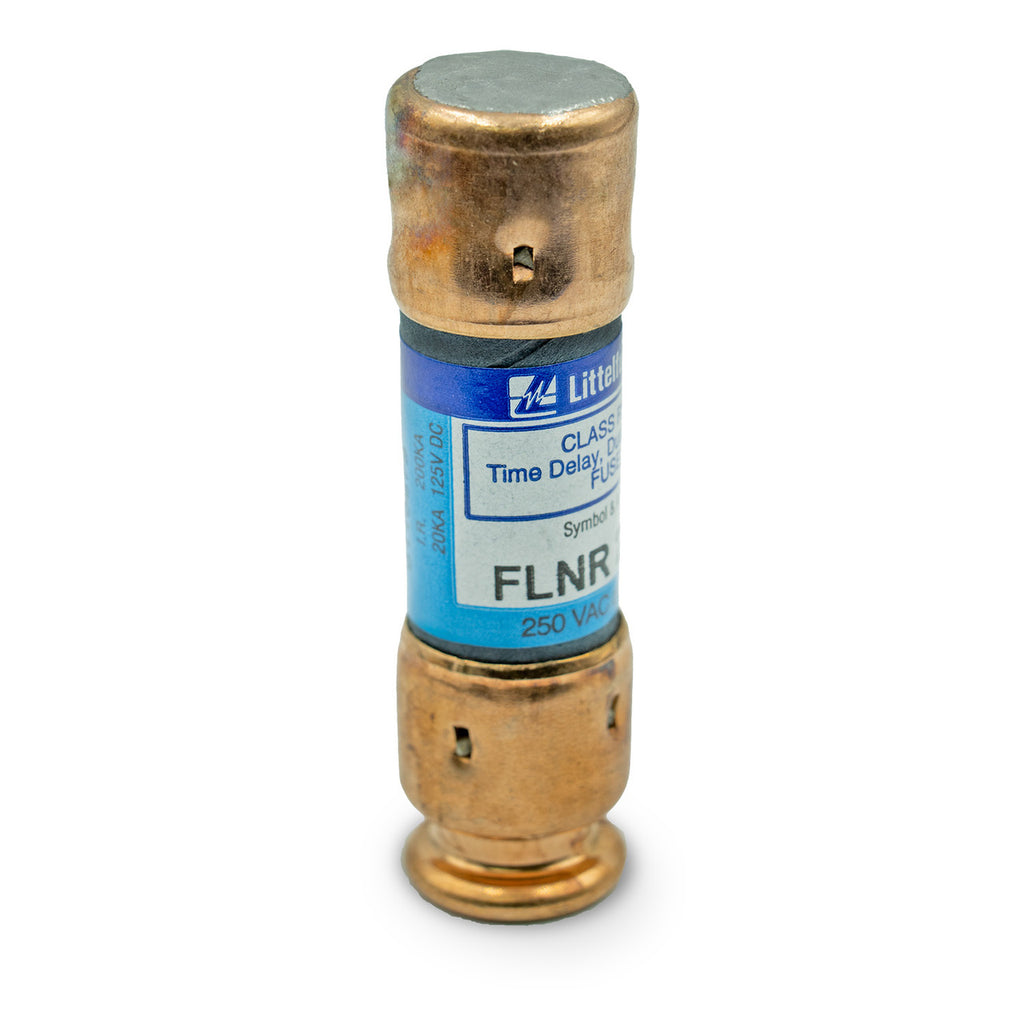

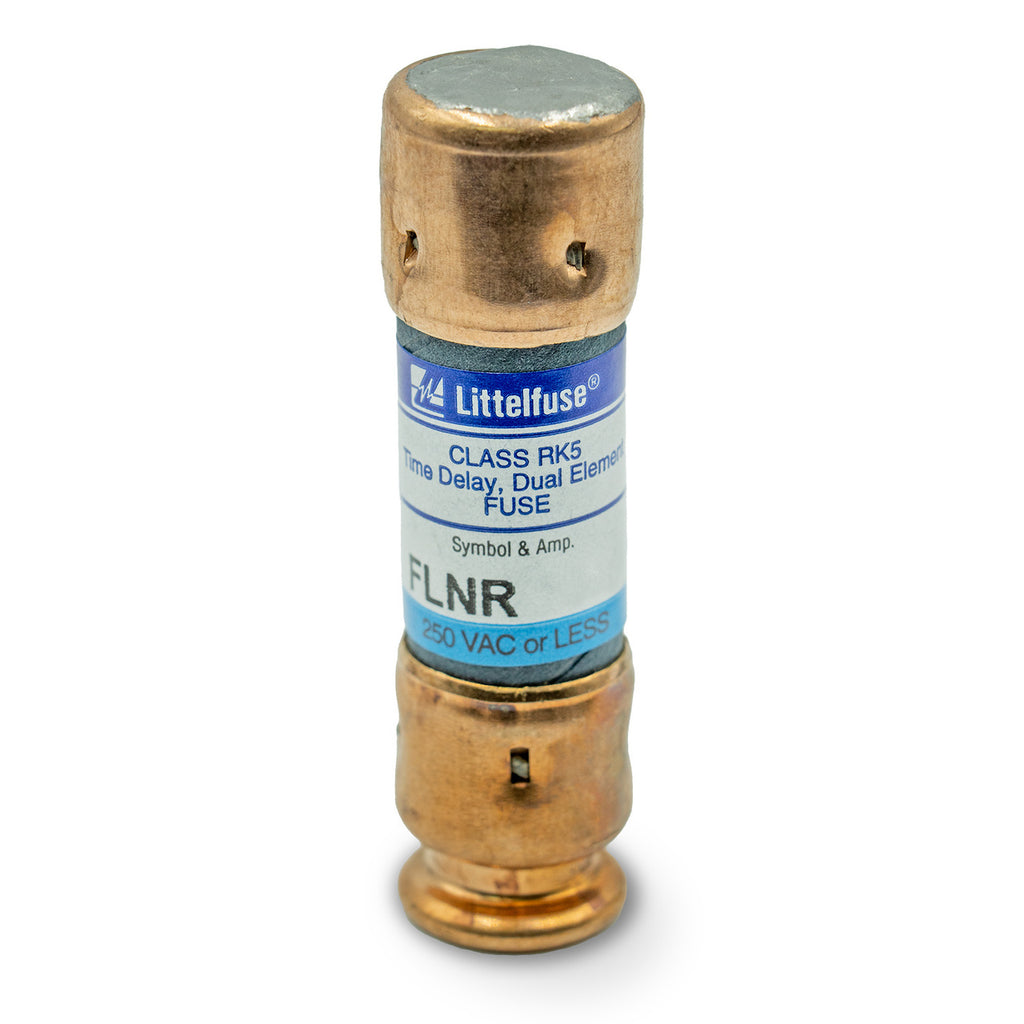

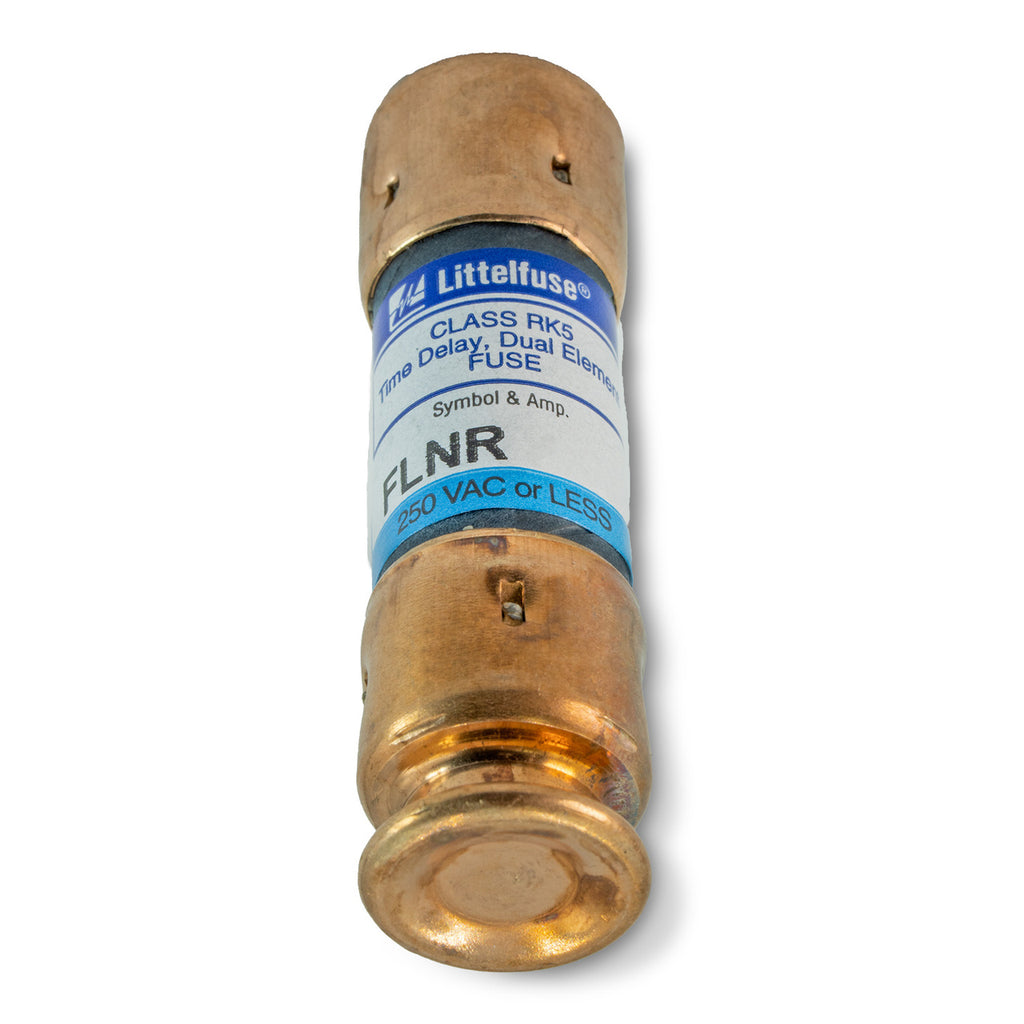

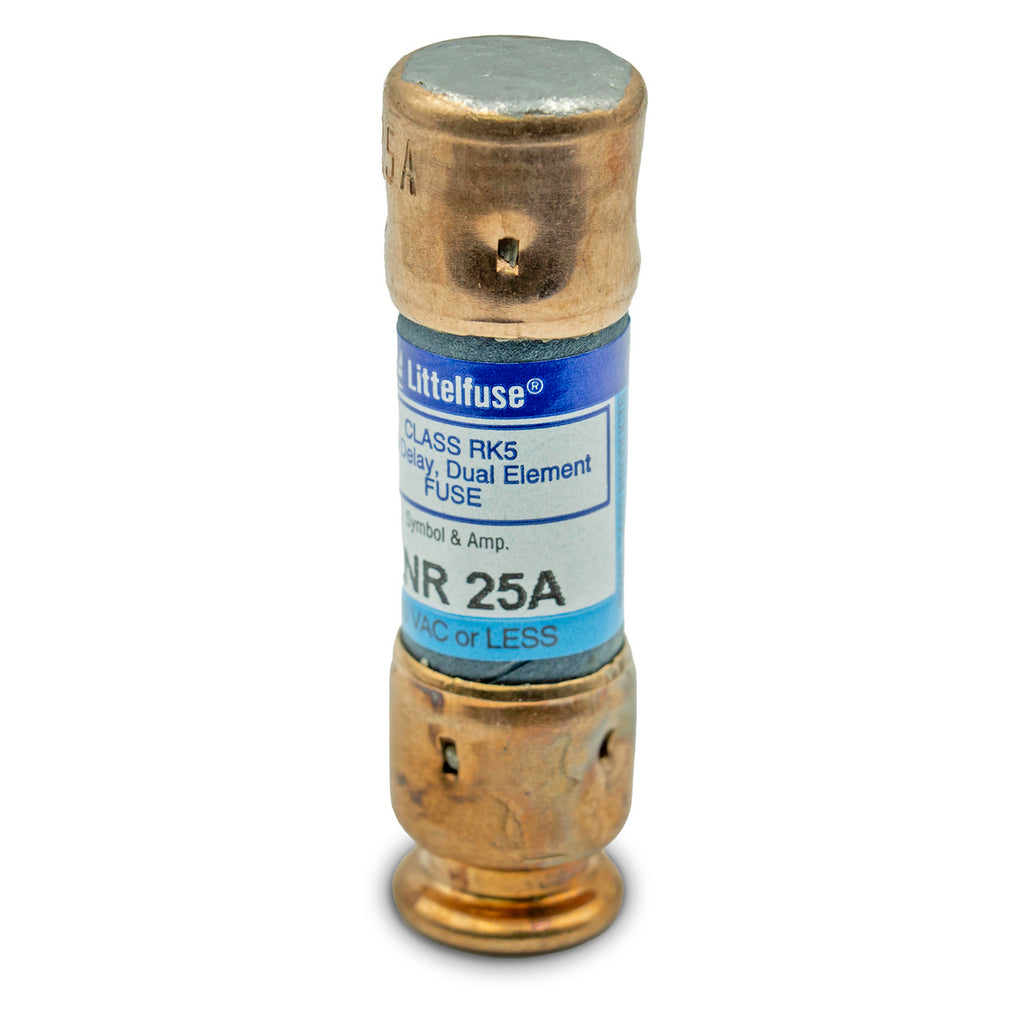

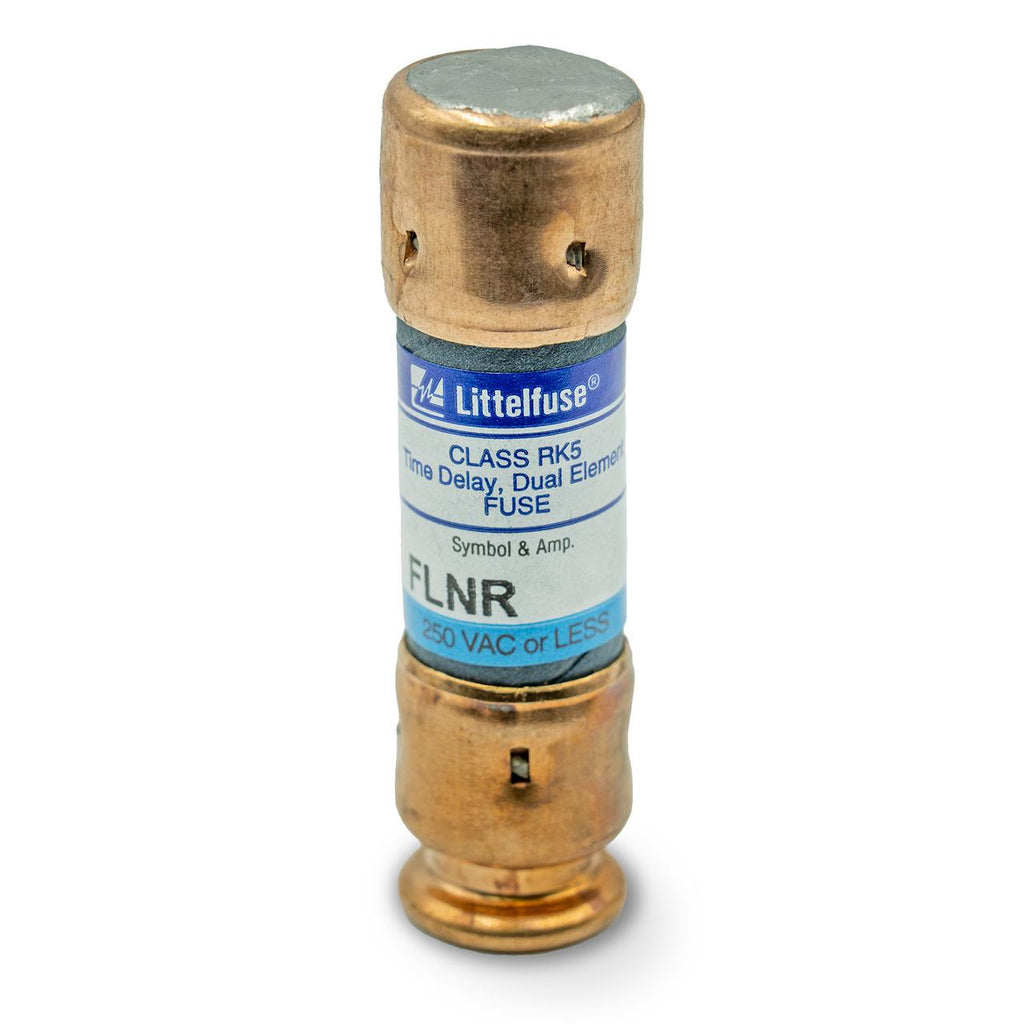

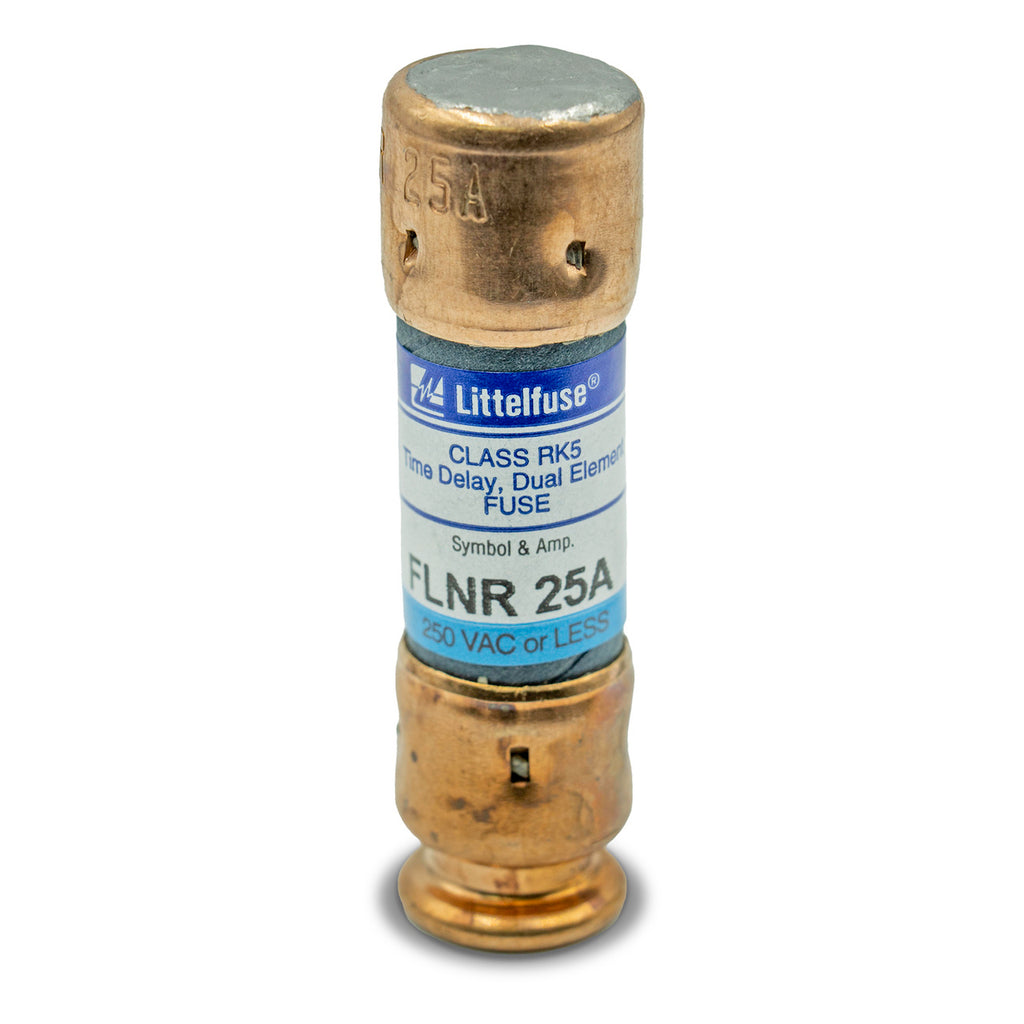

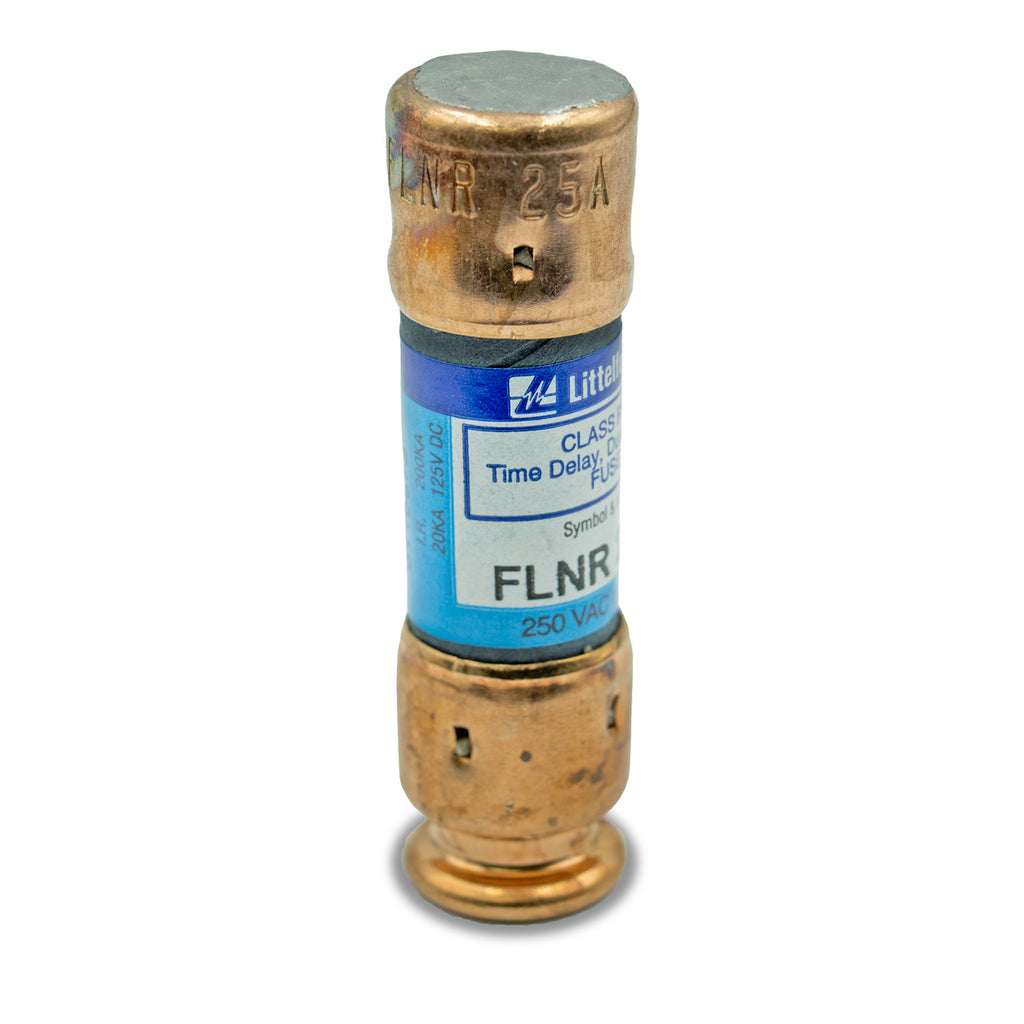

FLNR-025
FLNR-025 is a 25 Amp, 250 Volt AC Class RK5 time delay dual element fuse designed for general purpose circuit protection.This Littelfuse FLNR-025 fuse features a dual-element design providing advanced short-circuit and overload protection with current limiting to restrict fault current. It is UL Listed and CSA Certified, rated for 250 VAC and 125 VDC operation, with an interrupting rating of 200,000 AIC at 250 VAC and 20,000 AIC at 125 VDC. The fuse has a cylindrical cartridge body measuring 9/16" diameter by 2" length, suitable for use in service entrance switches, transformers, switchboard mains, feeders, and motor control circuits.
- Key Specifications
- Amperage: 25 Amps
- Voltage Rating: 250 VAC / 125 VDC
- Fuse Class: RK5
- Time Delay: Yes
- Dual Element Design
- Interrupting Rating: 200,000 AIC AC / 20,000 AIC DC
- Physical Size: 9/16" diameter x 2" length
- UL Listed (File: E81895)
- CSA Certified (File: LR29862)
- Current Limiting
- Mounting Type: Cartridge
Specifications
- Part Number: FLNR-025
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- UPC : 079458150728
- GTIN : 00079458150728
- Weight : 25
