FLNR-020 - Littelfuse 20 Amp 250 Volt AC Class RK5 Dual Element Time Delay Fuse

FLNR-020

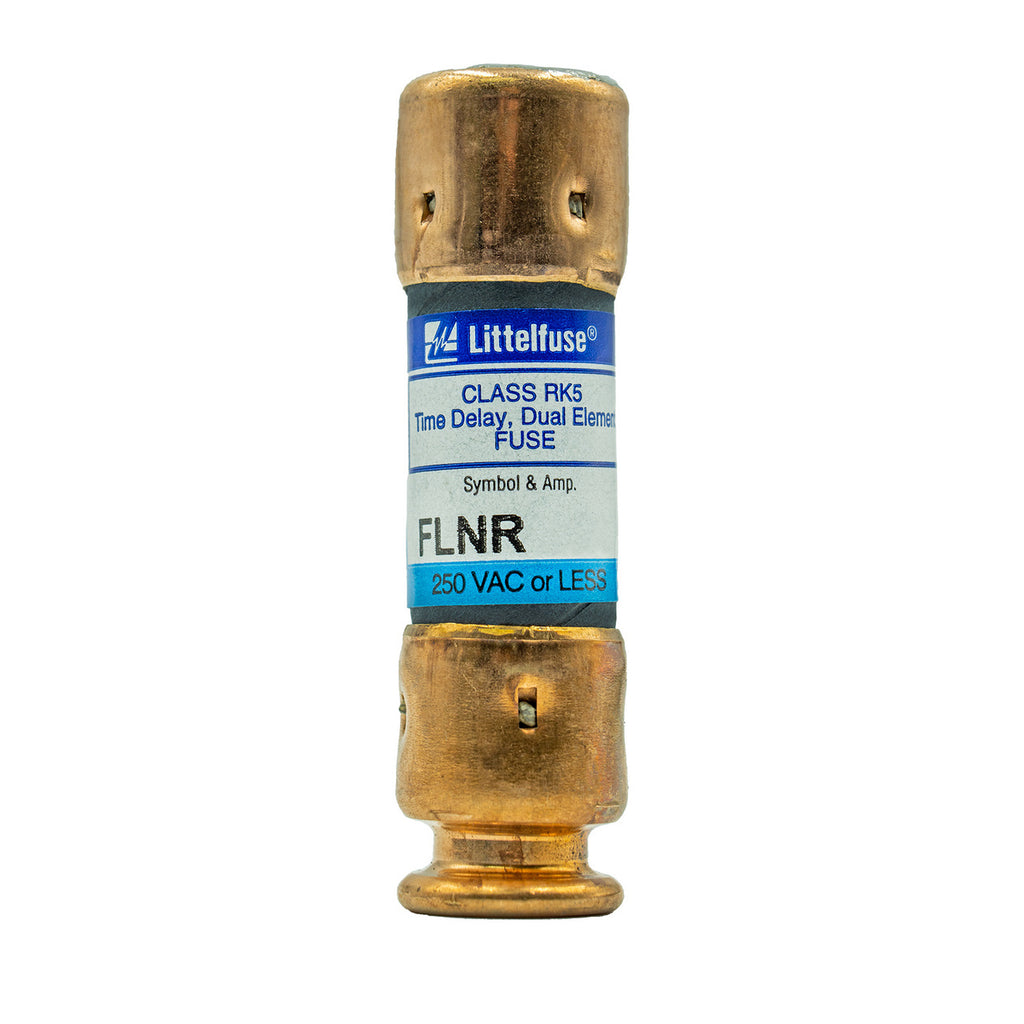

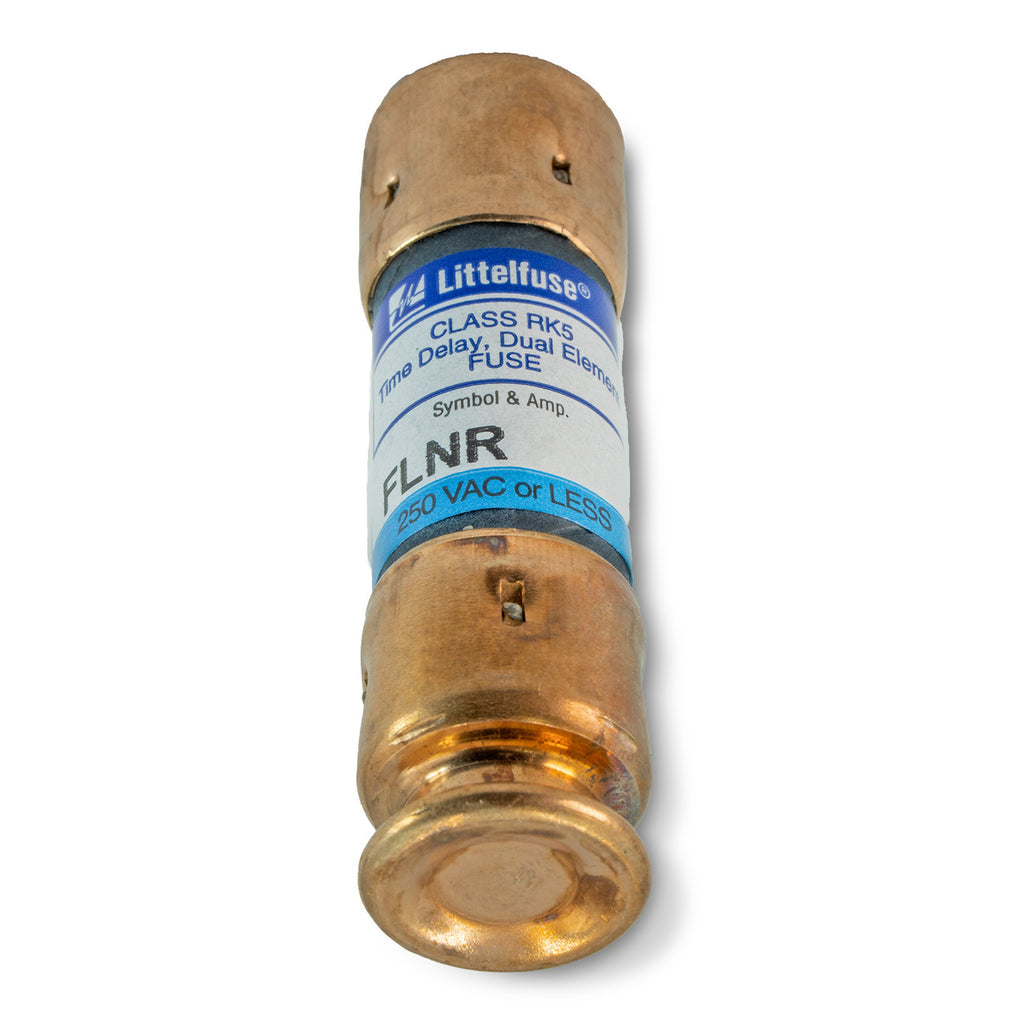

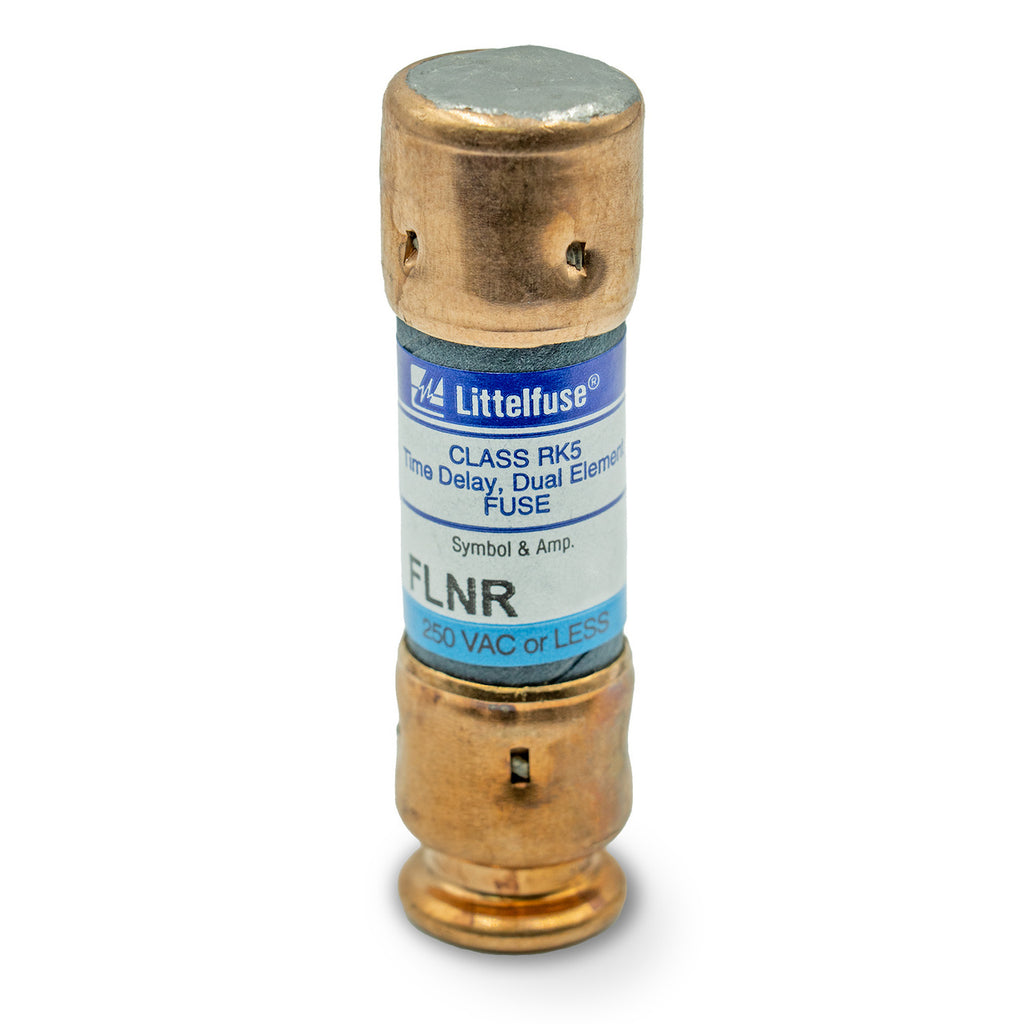

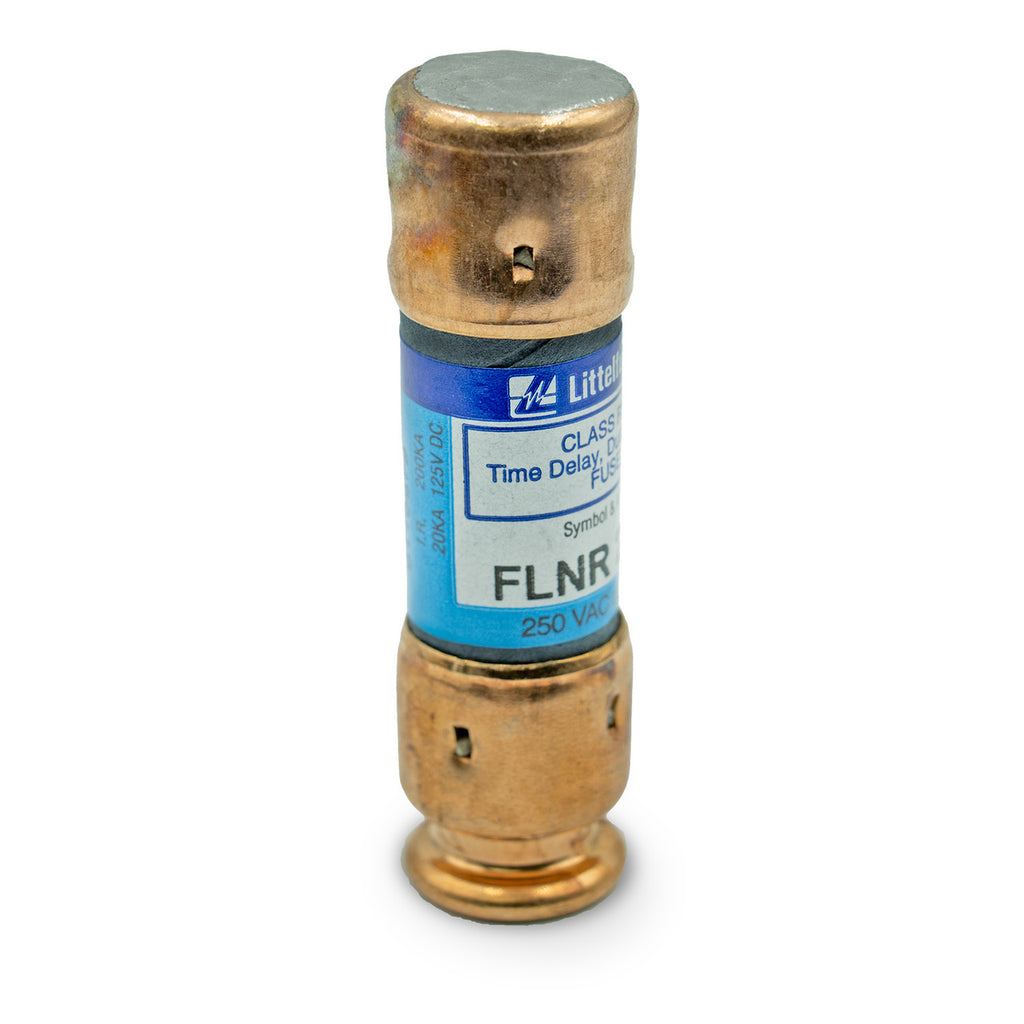

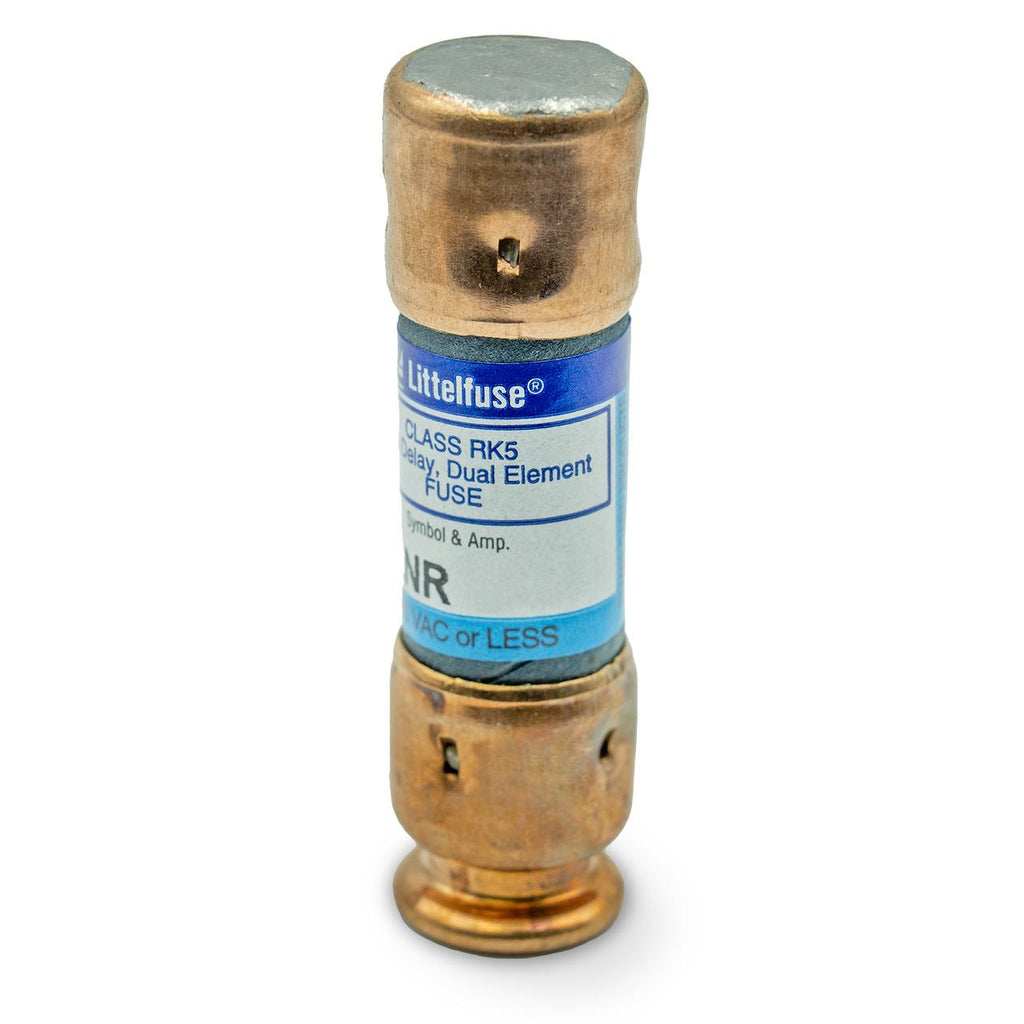

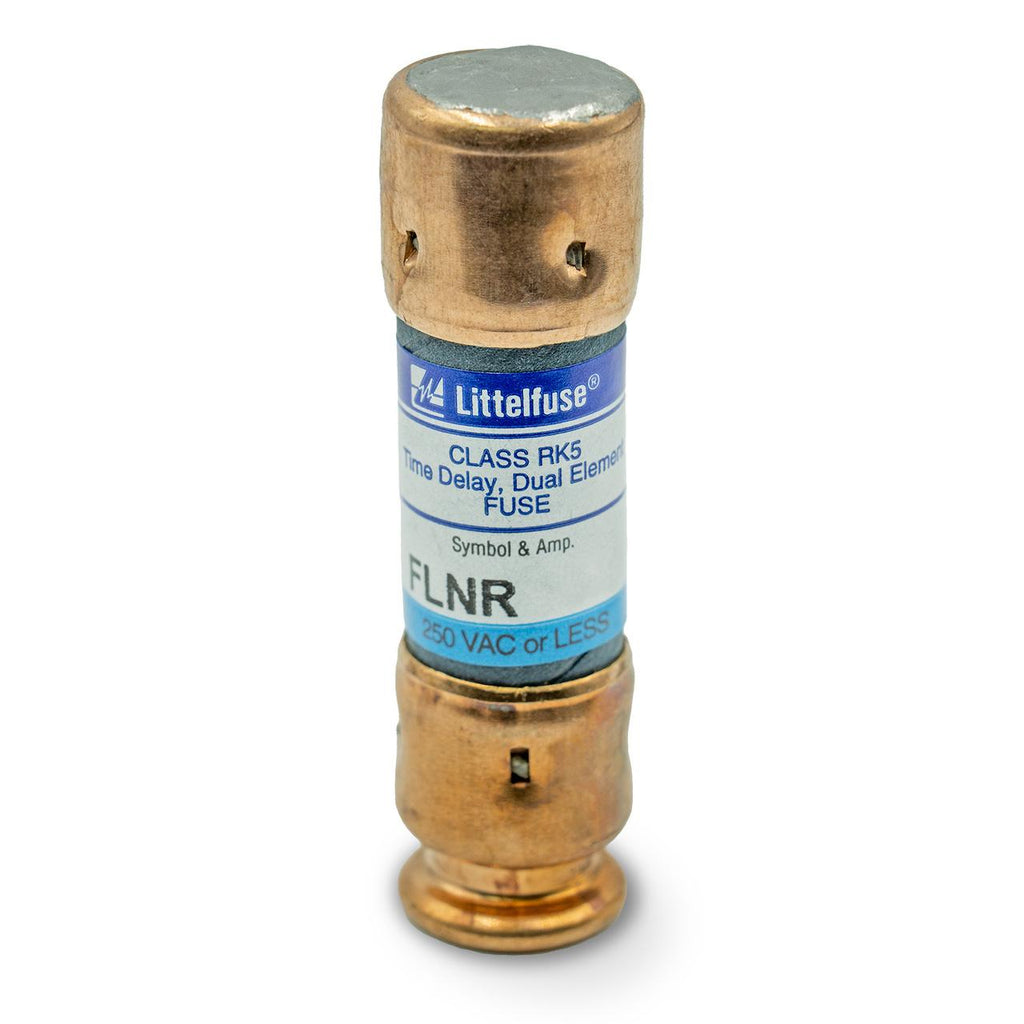

FLNR-020 is a Littelfuse 20 Amp, 250 Volt AC Class RK5 dual element time delay fuse designed for general purpose circuit protection.This fuse features a cylindrical cartridge body measuring 9/16" x 2", with current limiting and dual element time delay construction for advanced short-circuit and overload protection. It has an interrupt rating of 200,000 AIC at 250 VAC and 20,000 AIC at 125 VDC. The FLNR-020 is UL Listed and CSA Certified, meeting UL 248-12 standards. It is suitable for motor control circuits, switchboard mains, and general purpose applications.

Key Specifications
• Amperage: 20 Amps
• Voltage Rating: 250 VAC / 125 VDC
• Fuse Class: RK5
• Fuse Type: Dual Element Time Delay
• Interrupt Rating: 200,000 AIC @ 250 VAC, 20,000 AIC @ 125 VDC
• Physical Size: 9/16" diameter x 2" length
• Mounting Type: Cartridge
• Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
• Current Limiting: Yes
• Application: General Purpose, Motor Circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLNR-020
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 079458150711
• GTIN : 0079458150711
• Weight : 0.08
