Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLNR-010

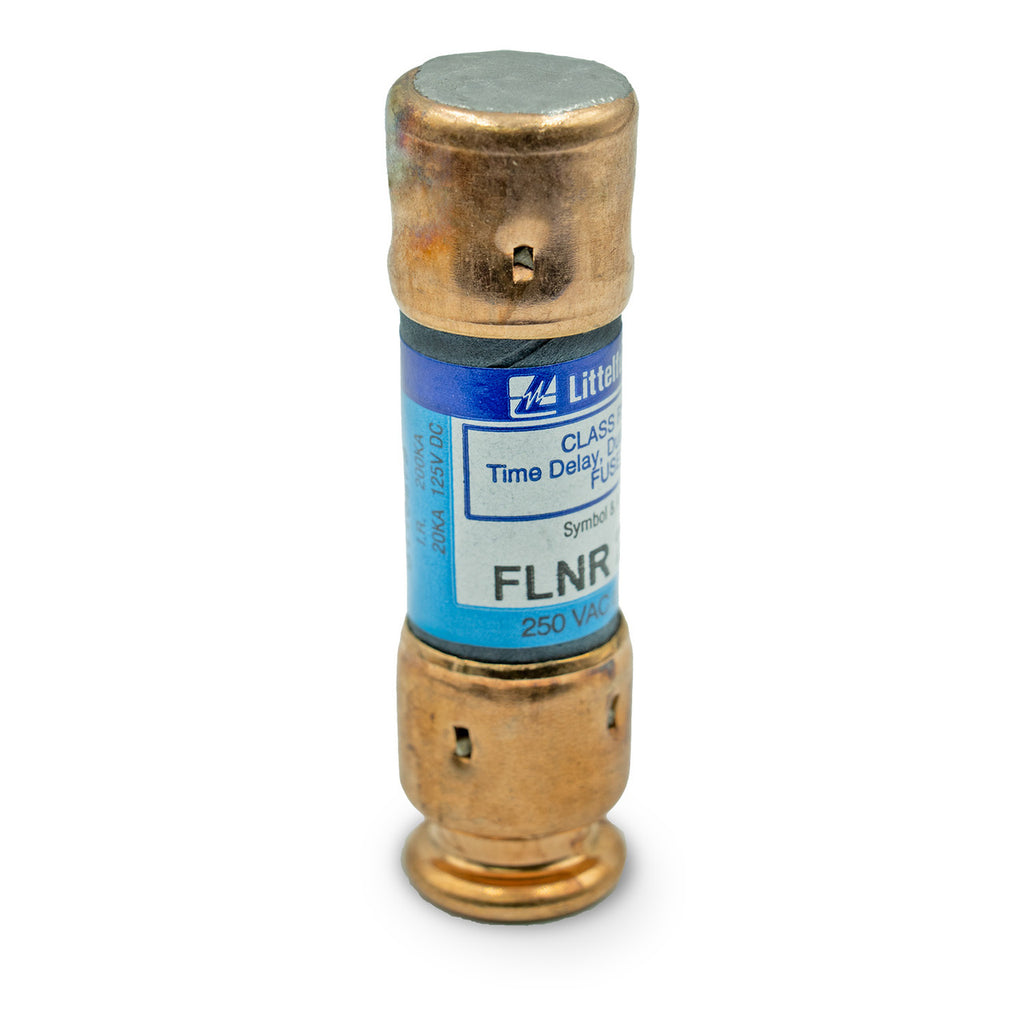

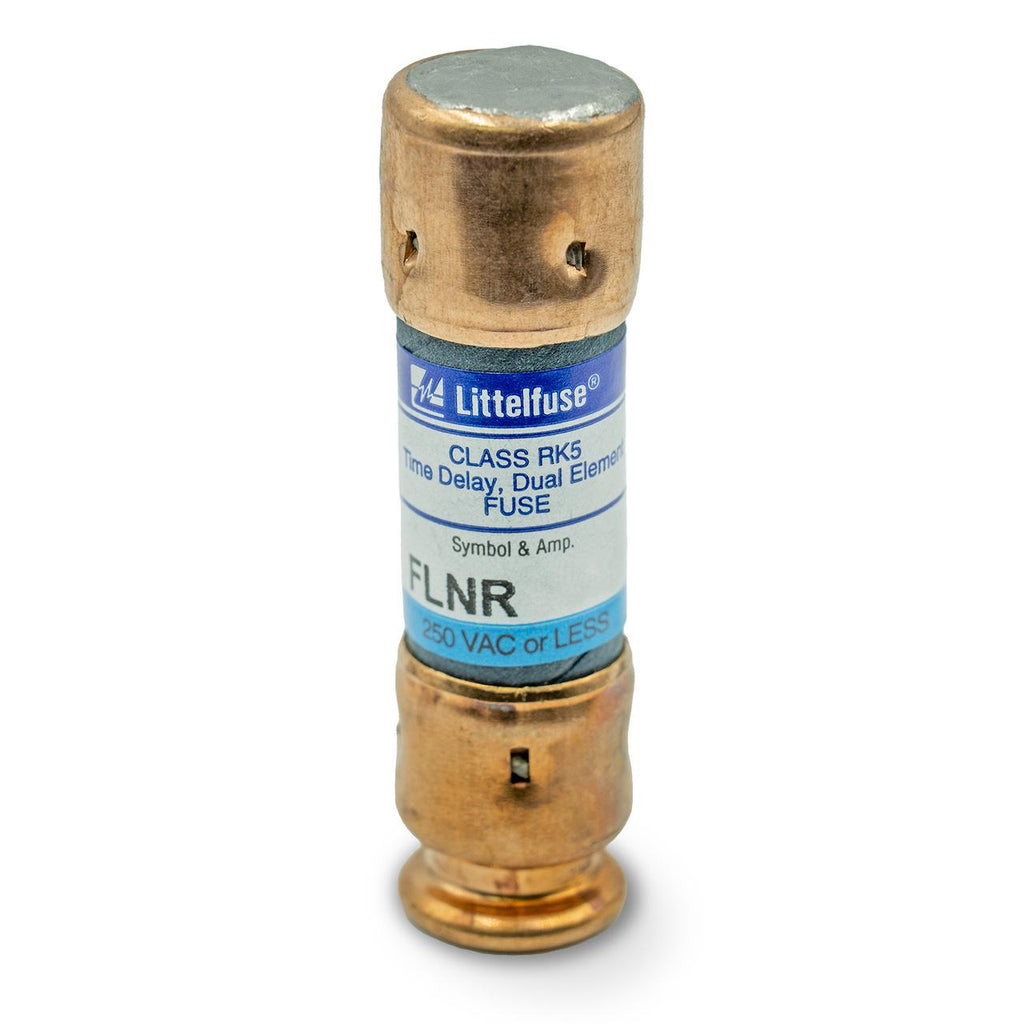

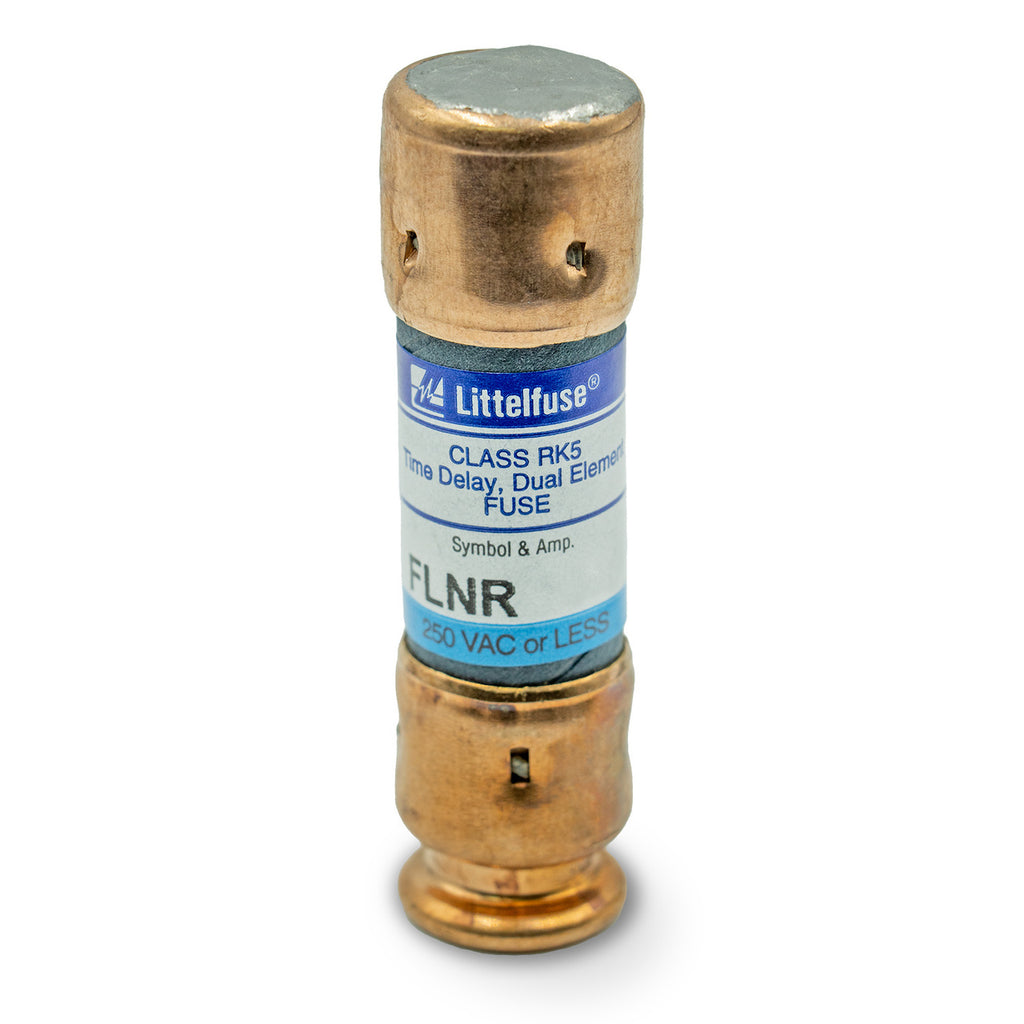

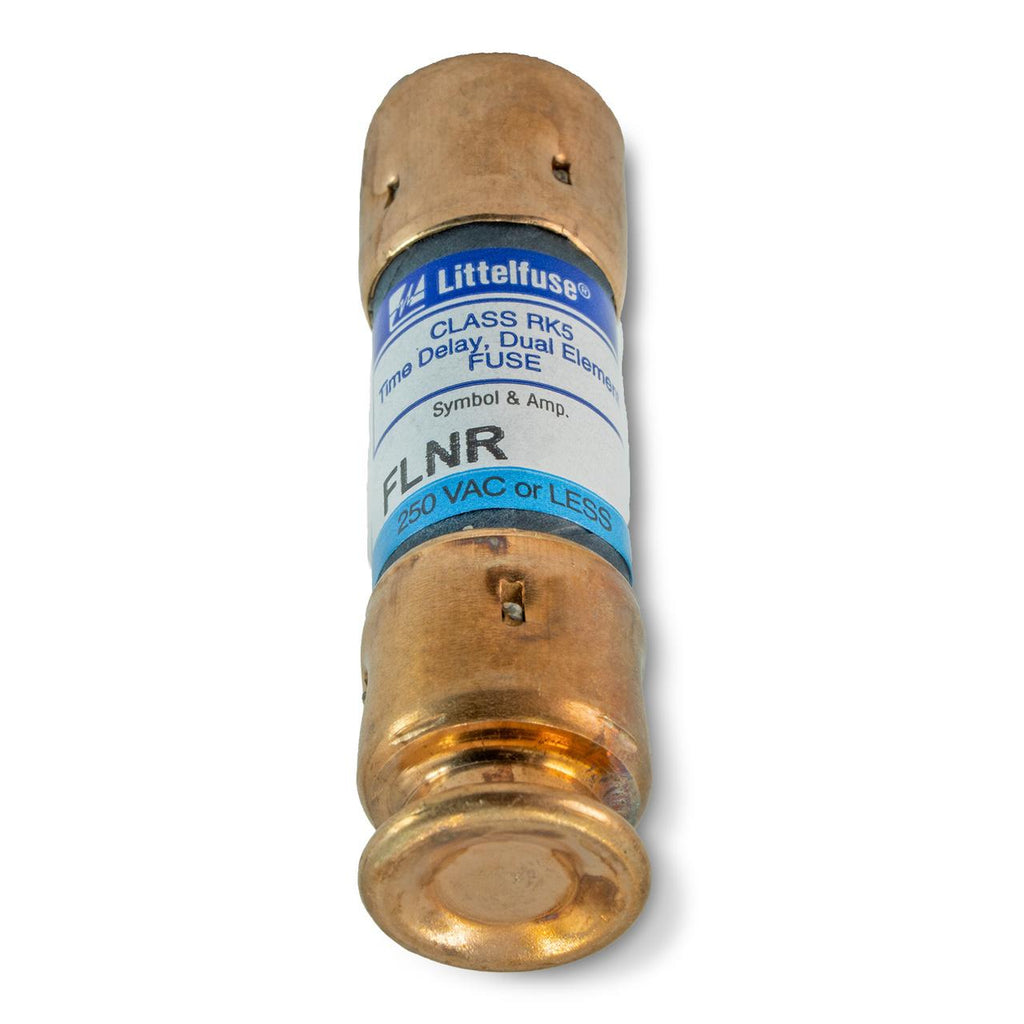

FLNR-010 is a Littelfuse 10 Amp, 250 Volt AC dual element time delay fuse designed for general purpose circuit protection.This Class RK5 fuse features a dual-element design providing advanced short-circuit and overload protection with current limiting to restrict fault current. It is rated for 250 VAC and 125 VDC with an interrupting rating of 200,000 AIC at 250 VAC and 20,000 AIC at 125 VDC. The fuse has a cylindrical cartridge body measuring 9/16 inch diameter by 2 inches length and is UL Listed and CSA Certified.
- Key Specifications
- Amperage: 10 Amps
- Voltage Rating: 250 VAC / 125 VDC
- Interrupt Rating: 200,000 AIC AC / 20,000 AIC DC
- Fuse Class: RK5
- Fuse Type: Dual Element Time Delay
- Physical Size: 9/16 inch diameter x 2 inch length
- Mounting Type: Cartridge
- Certifications: UL Listed (E81895), CSA Certified (LR29862)
- Current Limiting: Yes
- Application: General Purpose Circuits, Motor Control, Switchboards
Specifications
- Part Number: FLNR-010
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- UPC : 079458150650
- GTIN : 0079458150650
- Weight : 0.4 lb
