Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
FLNR-006

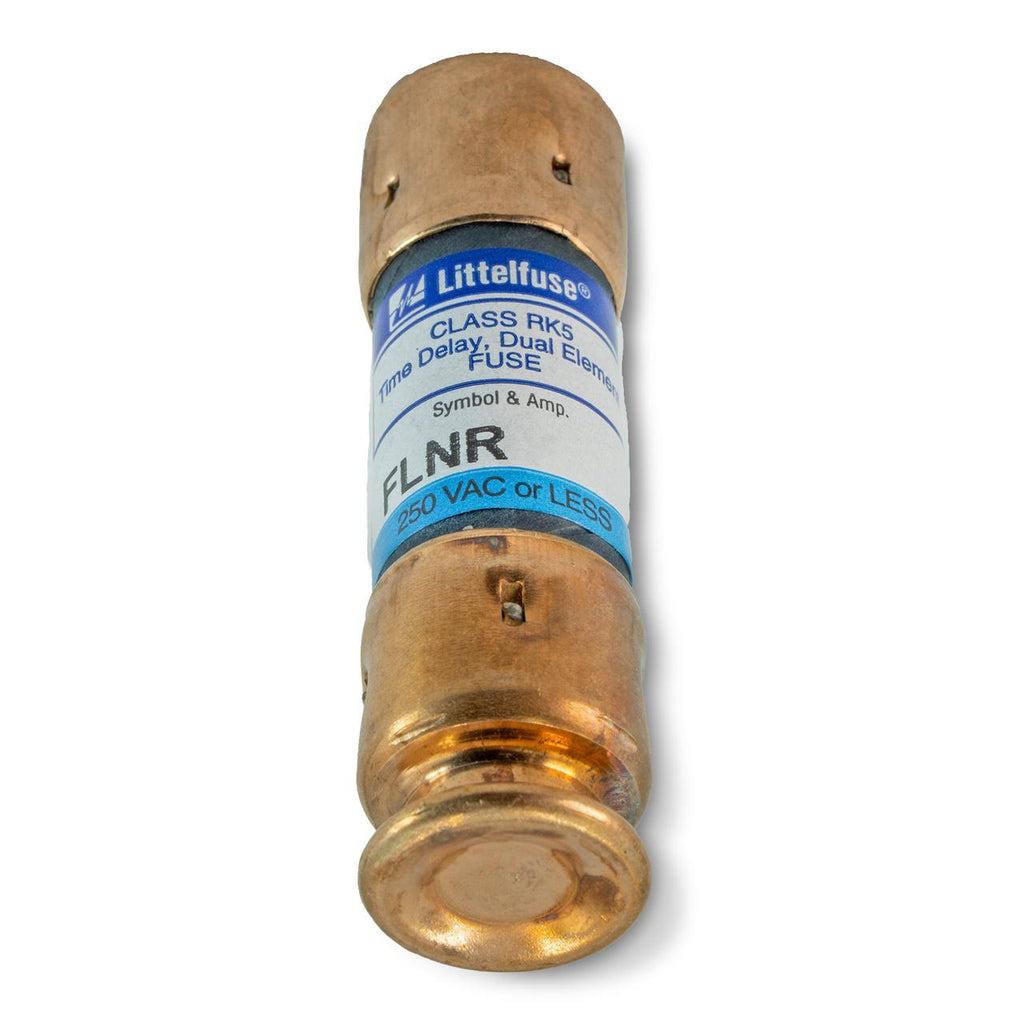

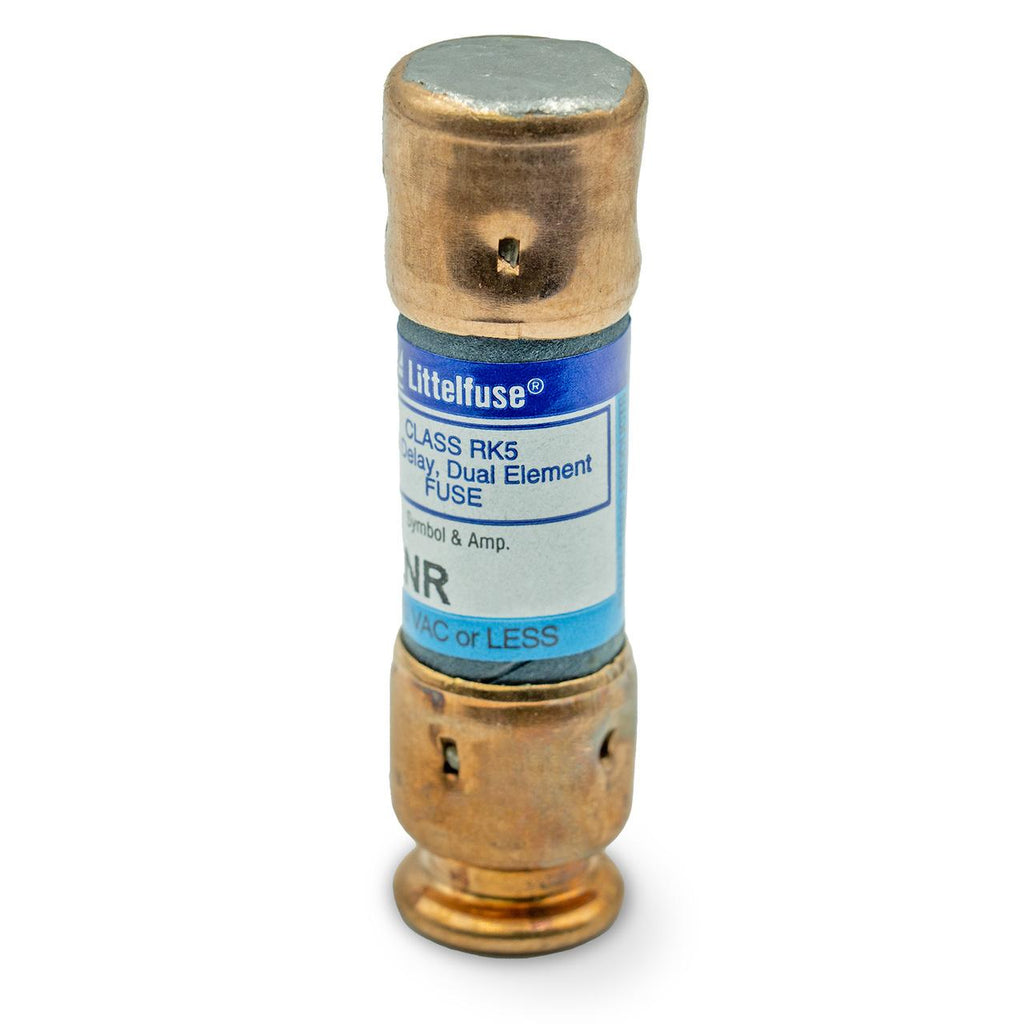

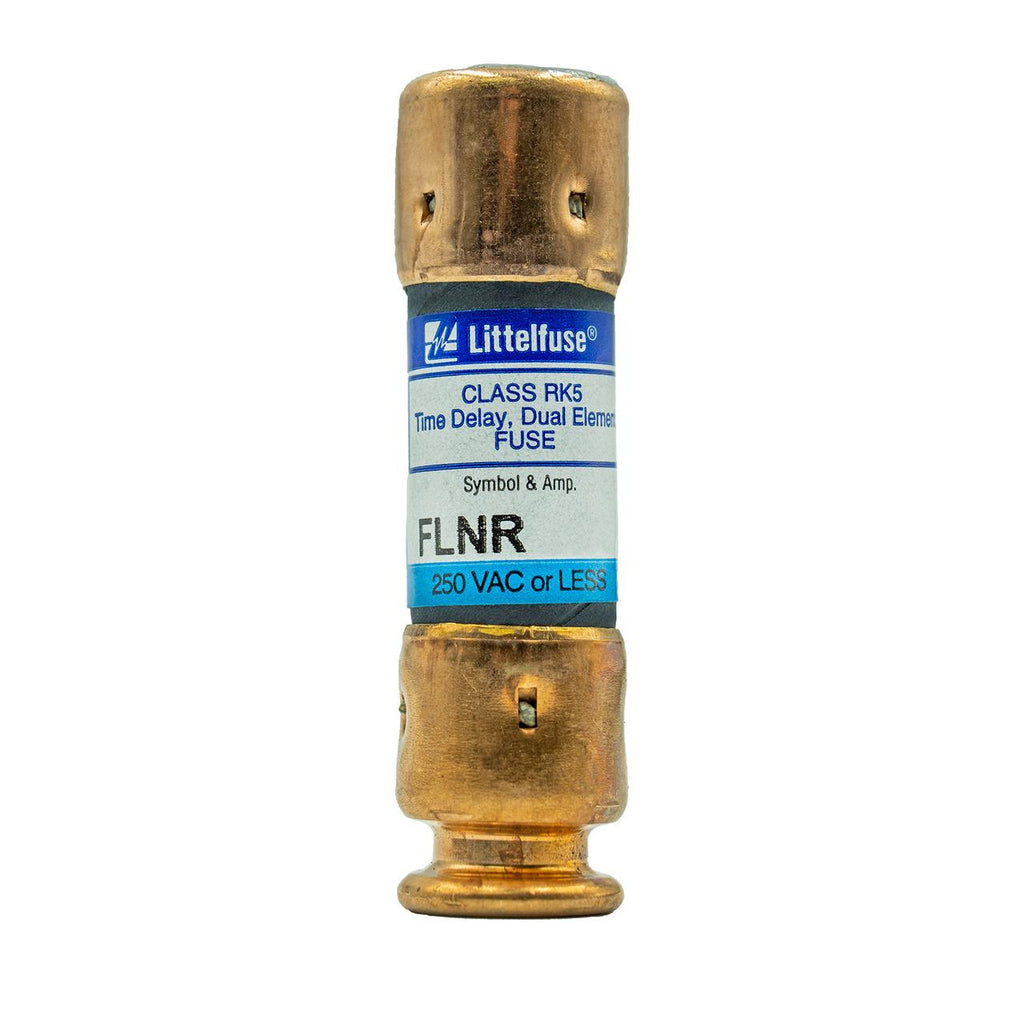

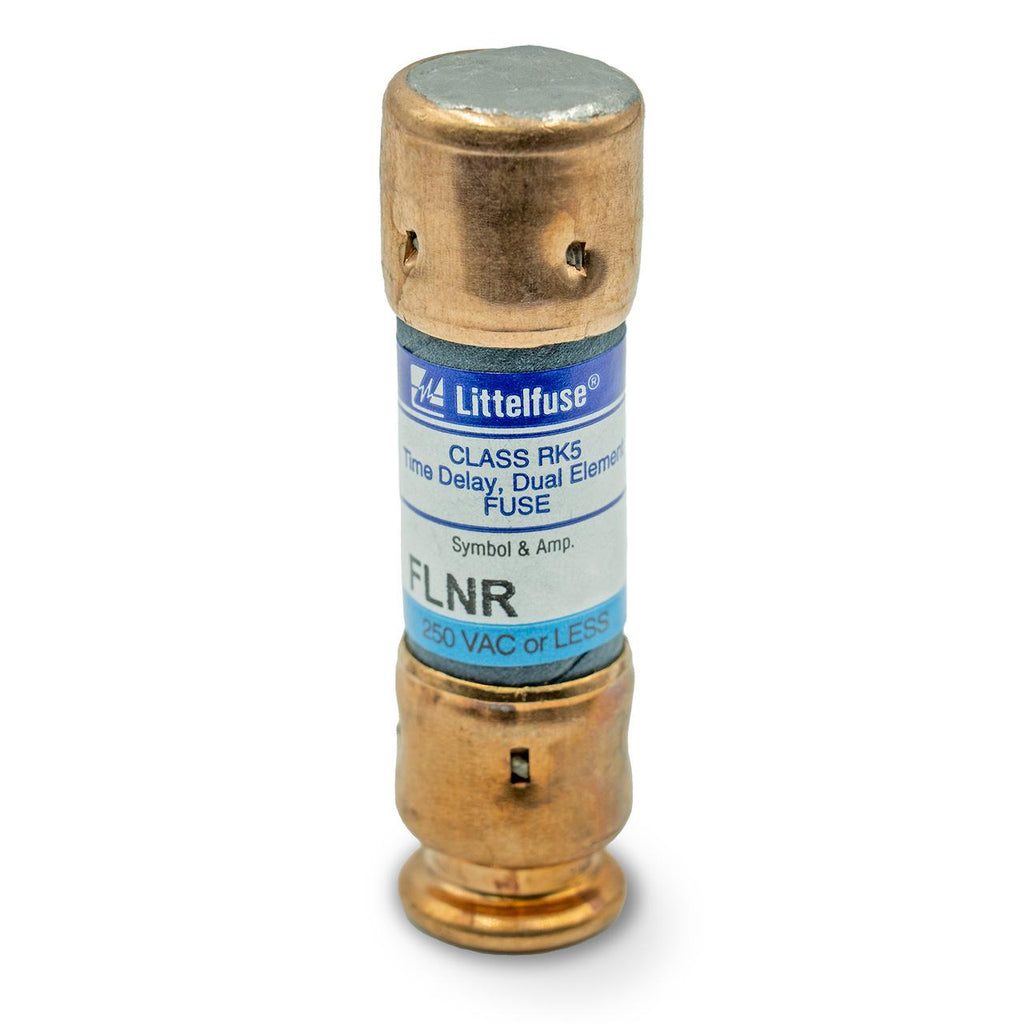

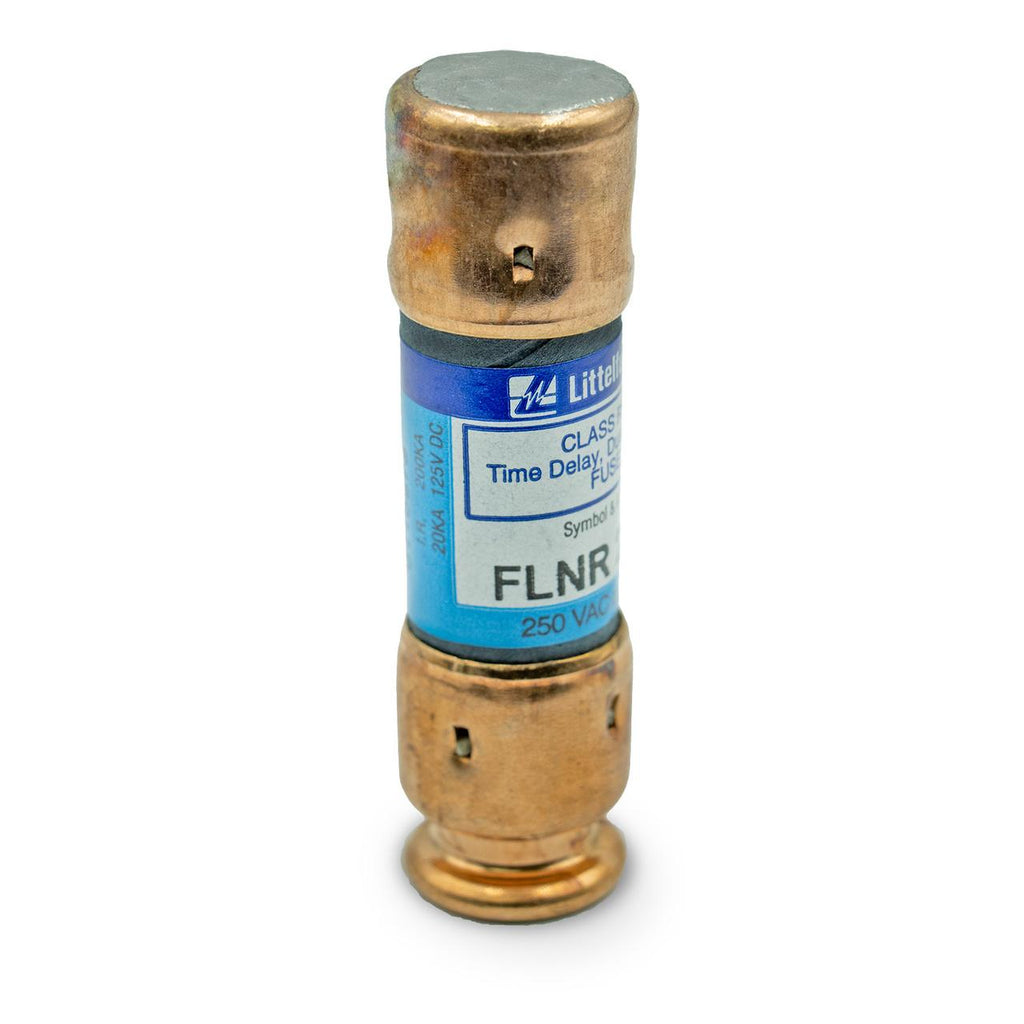

FLNR-006 is a Littelfuse 6 Amp, 250 Volt AC Class RK5 time delay dual element fuse designed for general purpose circuit protection.This fuse features a dual-element design providing advanced short-circuit and overload protection with current limiting to restrict fault current. It is UL Listed and CSA Certified, rated for 200,000 AIC interrupting capacity at 250 VAC and 20,000 AIC at 125 VDC. The fuse measures 9/16" x 2" and is suitable for service entrance switches, transformers, switchboard mains, motor control circuits, and other general applications.
- Key Specifications
- Amperage: 6 Amps
- Voltage Rating: 250 VAC, 125 VDC
- Fuse Class: RK5
- Time Delay: Yes, dual element
- Interrupting Rating: 200,000 AIC @ 250 VAC, 20,000 AIC @ 125 VDC
- Physical Size: 9/16" x 2"
- Certifications: UL Listed (File: E81895), CSA Certified (File: LR29862)
- Current Limiting: Yes
- Mounting Type: Cartridge fuse
Specifications
- Part Number: FLNR-006
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Amperage : 6
Product Data
- UPC : 007945815058
- GTIN : 00079458150582
