Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
FLM2-1/2

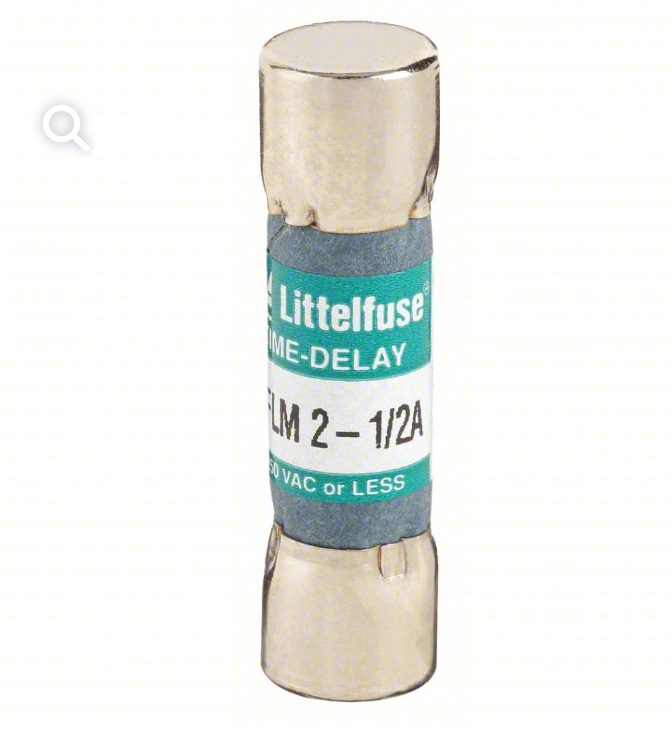

FLM2-1/2 is a Littelfuse 2.5 Amp, 250 Volt midget time-delay fuse designed for supplemental overcurrent protection.This FLM series fuse features a cylindrical cartridge body, 1 pole, and a time-delay characteristic that allows it to carry temporary current surges without blowing. It is rated for 10,000 Amp interrupt capacity at 250 VAC and is suitable for protecting control circuit transformers, solenoids, and small motors with high inrush currents. The fuse mounts in a holder or clip and complies with UL 248-14 and CSA certifications.
- Amperage: 2.5 A
- Voltage Rating: 250 VAC
- Poles: 1
- Fuse Type: Midget, Cartridge
- Fuse Speed: Time-Delay
- Interrupt Rating: 10,000 A RMS Symmetrical
- Mounting Type: Holder/Clip
- Dimensions: 13/32 inch diameter x 1 1/2 inch length
- Series: FLM
- Certifications: UL 248-14, CSA, QPL Approved
- Body Style: Cylindrical
- Visual Indication: Non-Indicating
Specifications
- Part Number: FLM2-1/2
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : FLM Series
- Type : FLM
- Voltage : 250
- Amperage : 2.5
- AIC rating : 10kA@250V
- Connection : Ferrule Non-Rejection
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- Weight : 25
