Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description

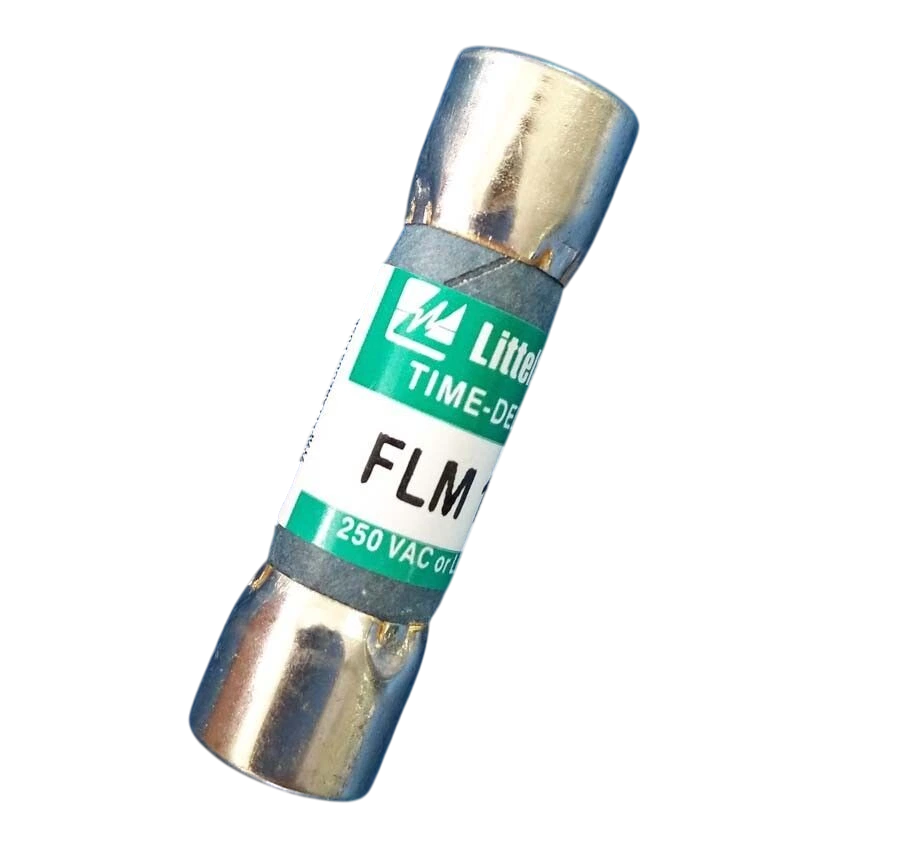

FLM1-4/10
FLM1-4/10 is a Littelfuse FLM Series time-delay midget fuse rated for 1.4 amperes at 250 volts AC, designed to protect control circuit transformers, solenoids, and circuits with high in-rush currents. This supplemental overcurrent protection fuse features a dual-element design that allows temporary current surges without nuisance blowing, making it ideal for small motor protection and sensitive electronic circuits. The cartridge-style construction with 10x38 mm dimensions provides reliable performance in standard fuse blocks and holders.
- Amperage Rating: 1.4 A (1-4/10 A)
- Voltage Rating: 250 VAC / 125 VDC
- Fuse Type: Time Delay (Slo-Blo)
- Class: Midget Fuse
- Body Style: Cylindrical Cartridge
- Physical Size: 10x38 mm (0.41 in x 1.5 in)
- Interrupt Rating: 10,000 AIC at 250 VAC
- Certifications: UL Listed and CSA Certified
- Opening Time @ 135%: 1 Hour Maximum
- Opening Time @ 200%: 5 Seconds Minimum
- Technology: POWR-GARD
Specifications
- Part Number: FLM1-4/10
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : FLM Series
- Voltage : 250
- Amperage : 1.4
- AIC rating : 10kA@250V
- Connection : Ferrule Non-Rejection
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- Weight : 5.19
