Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLM030

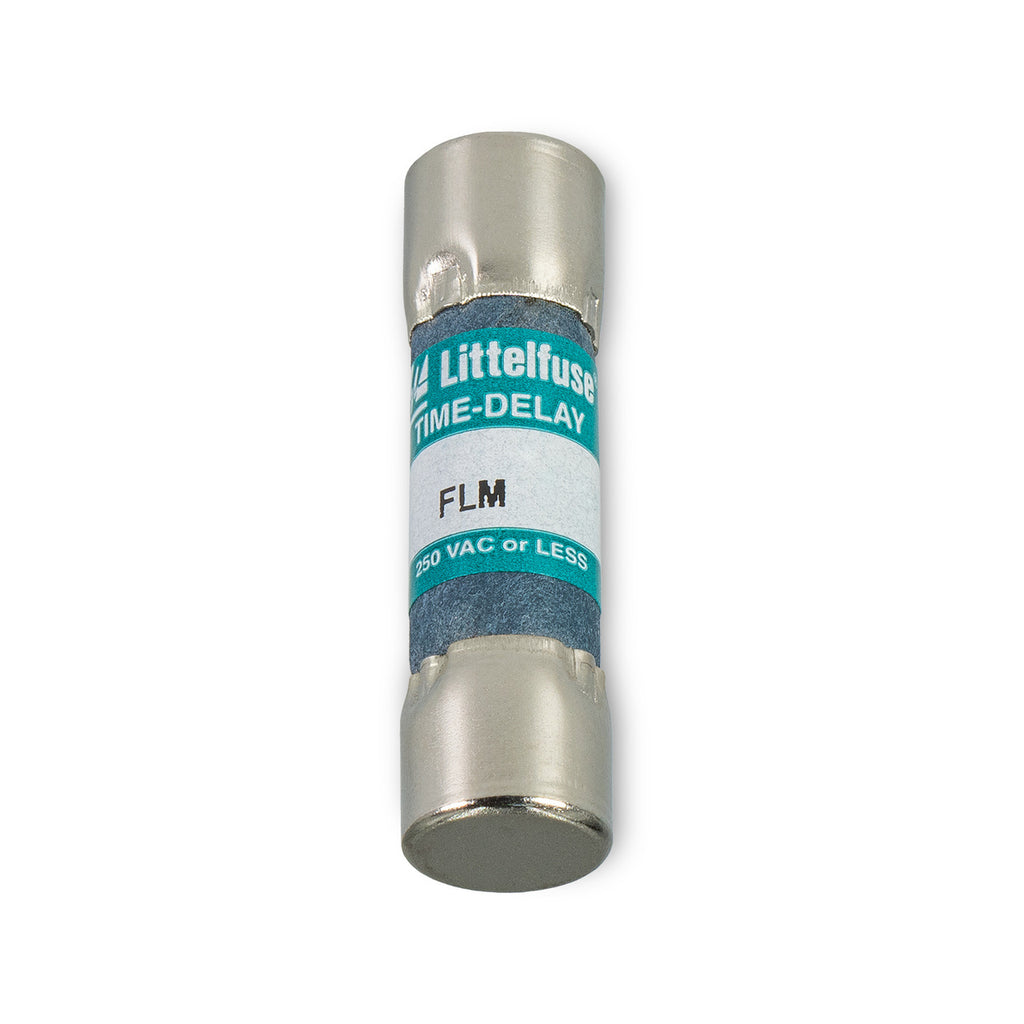

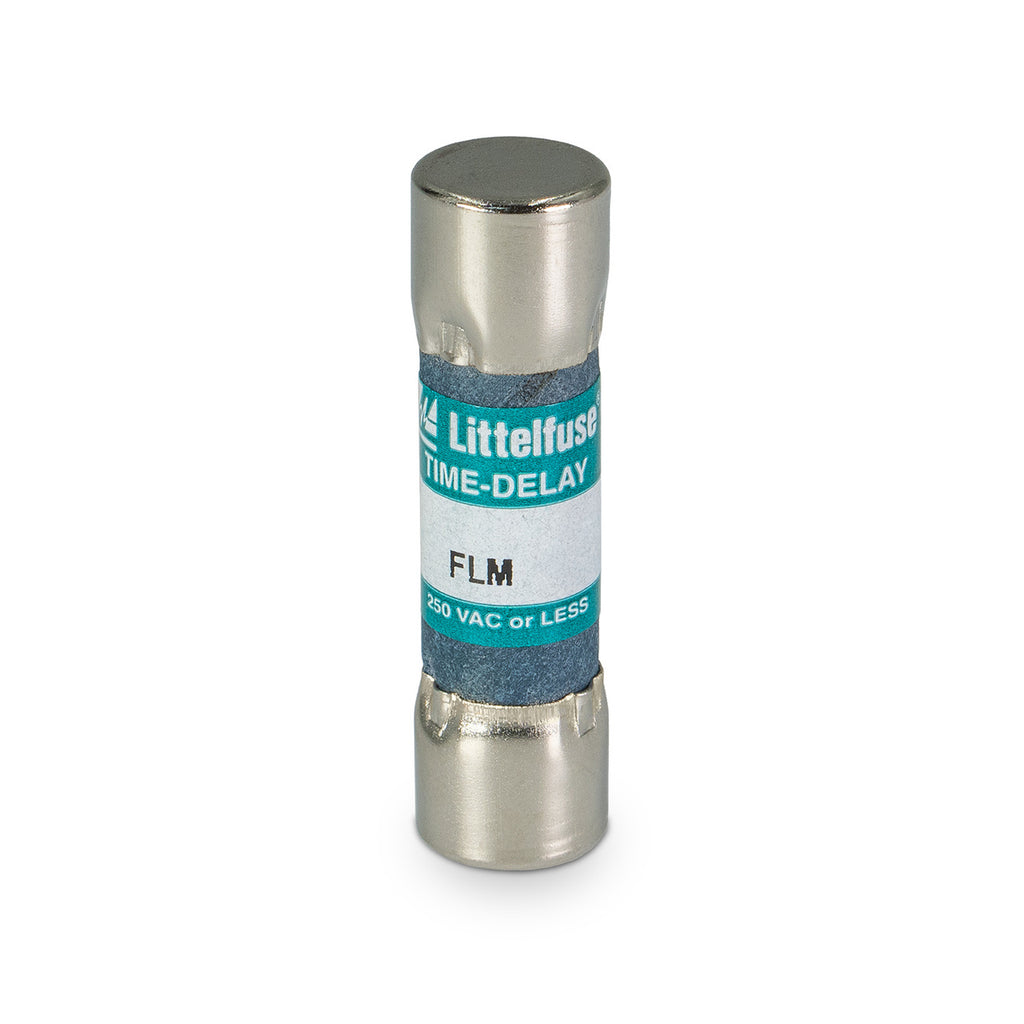

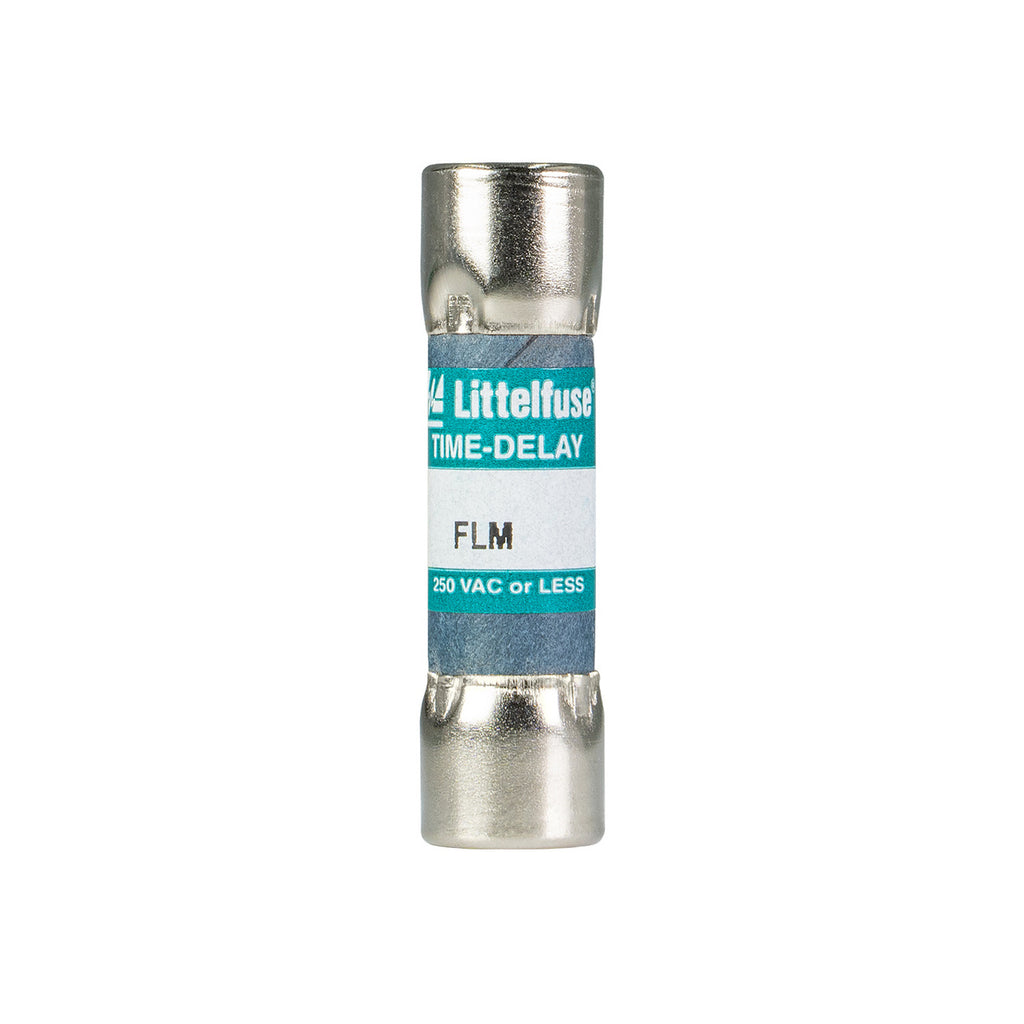

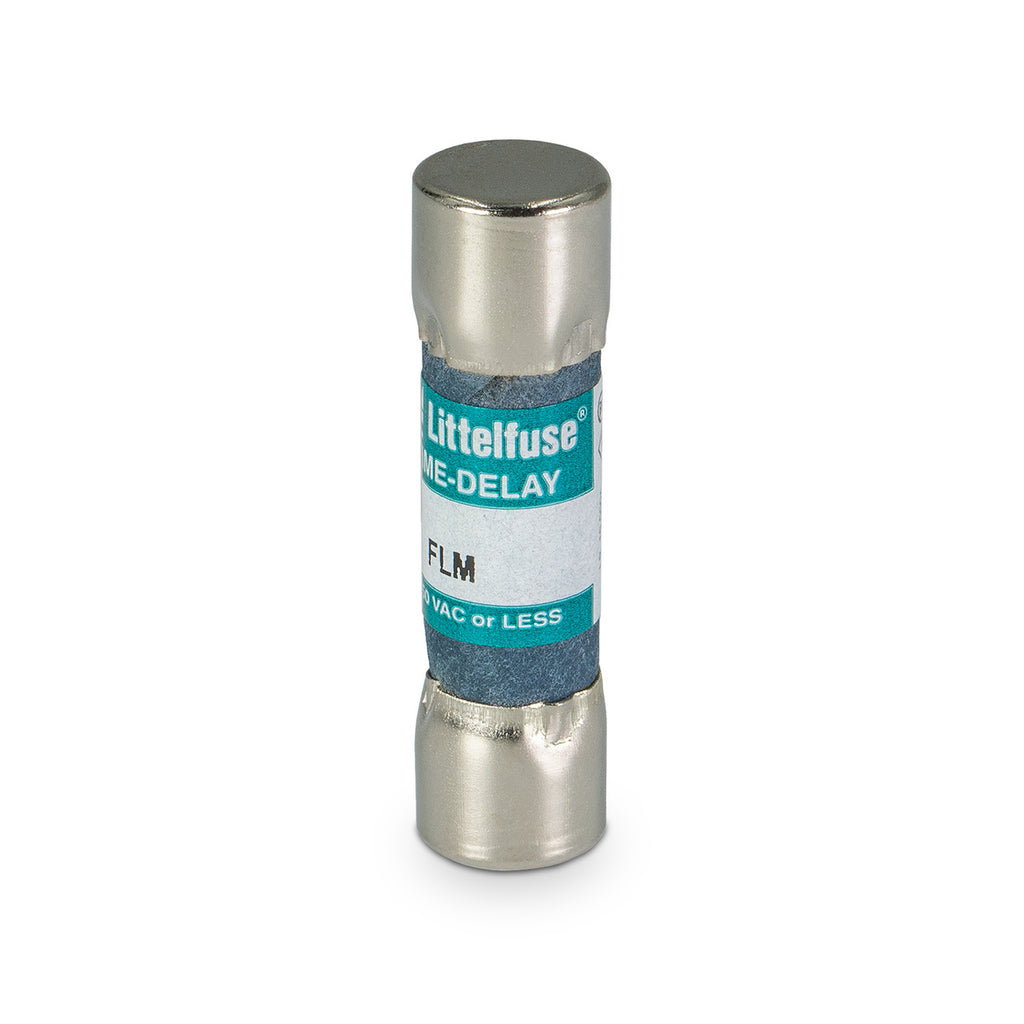

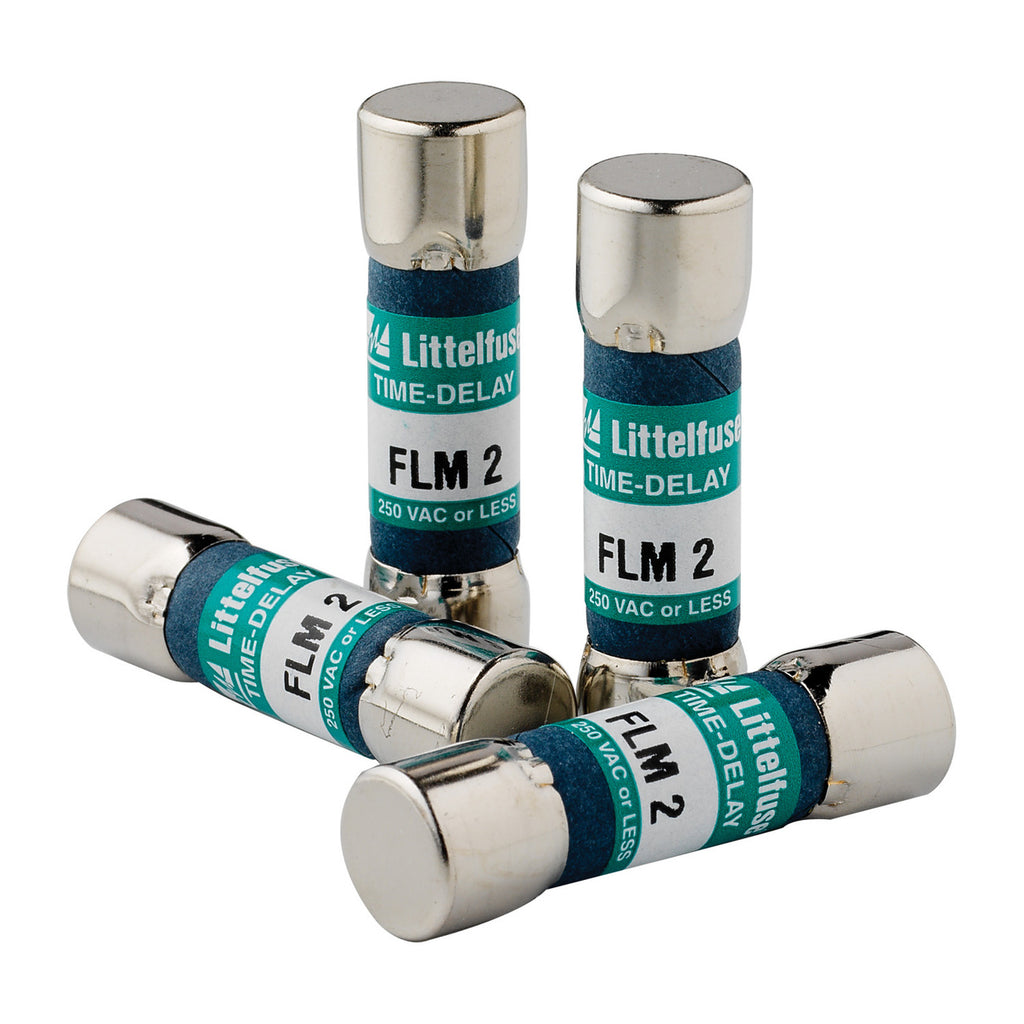

FLM030 is a Littelfuse 30A 250VAC Midget Time Delay Fuse designed for reliable circuit protection in a variety of industrial and commercial applications. This fuse features a dual-element construction for enhanced performance and durability. The FLM030 is a 5AG size midget fuse with a time-delay response, making it suitable for applications requiring protection against both short-term overloads and sustained overcurrents. It is UL Listed and CSA Certified, ensuring compliance with recognized safety standards.
- Amperage Rating: 30 Amps
- Voltage Rating: 250 VAC / 125 VDC
- Fuse Type: Midget (5AG)
- Response Time: Time Delay
- Interrupting Rating: 10,000 AIC @ 250VAC
- Class: CC
- Physical Size: 0.41" x 1.5"
- Terminal Type: Ferrule
- UL Listed
- CSA Certified
Specifications
- Part Number: FLM030
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLM Series - Time-Delay 250 V Midget Fuses
- Type : FLM Series - Time-Delay 250 V Midget Fuses
- Voltage : 250
- Amperage : 30
- AIC rating : 10kA@250V
- Connection : Ferrule Non-Rejection
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- UPC : 079458140736
- GTIN : 00079458140736
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5.6
- Certification : UL Listed, CSA Certified, QPL, RoHS
