Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLM03.5

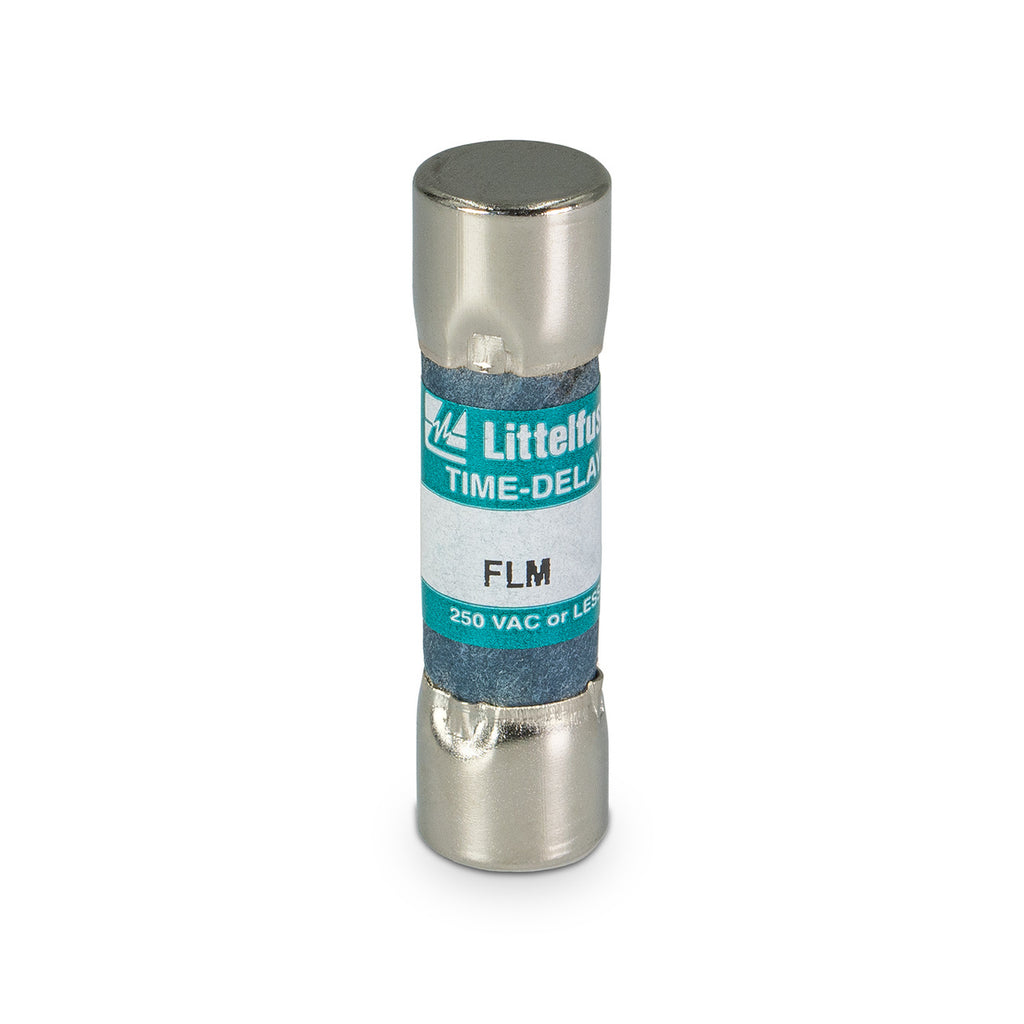

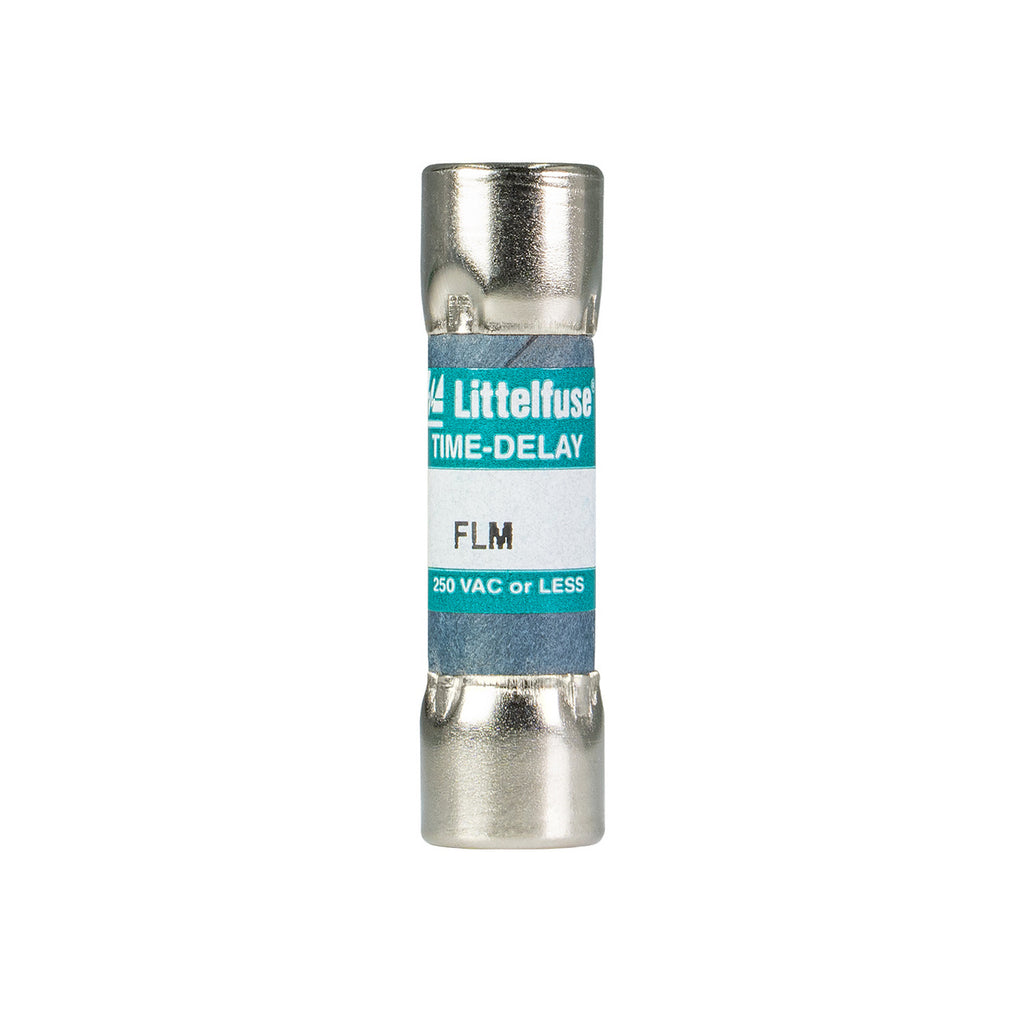

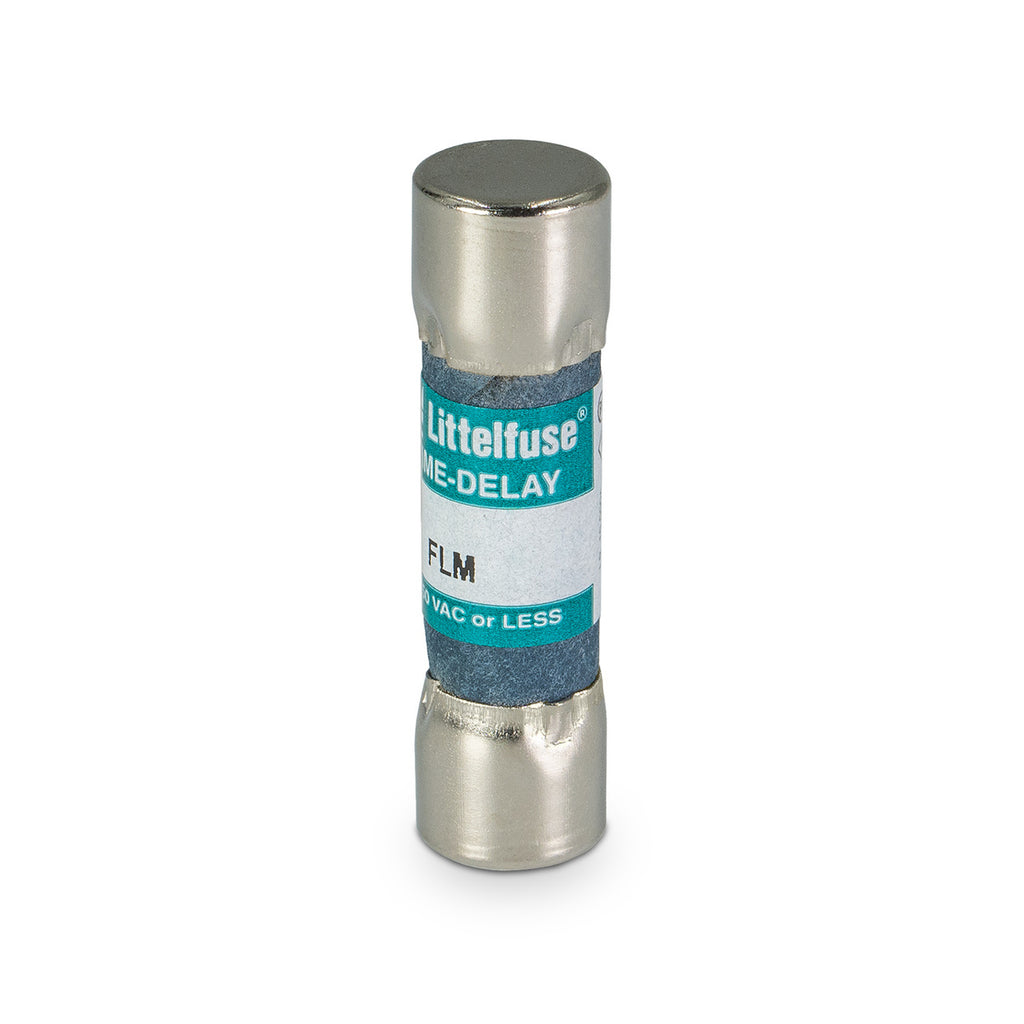

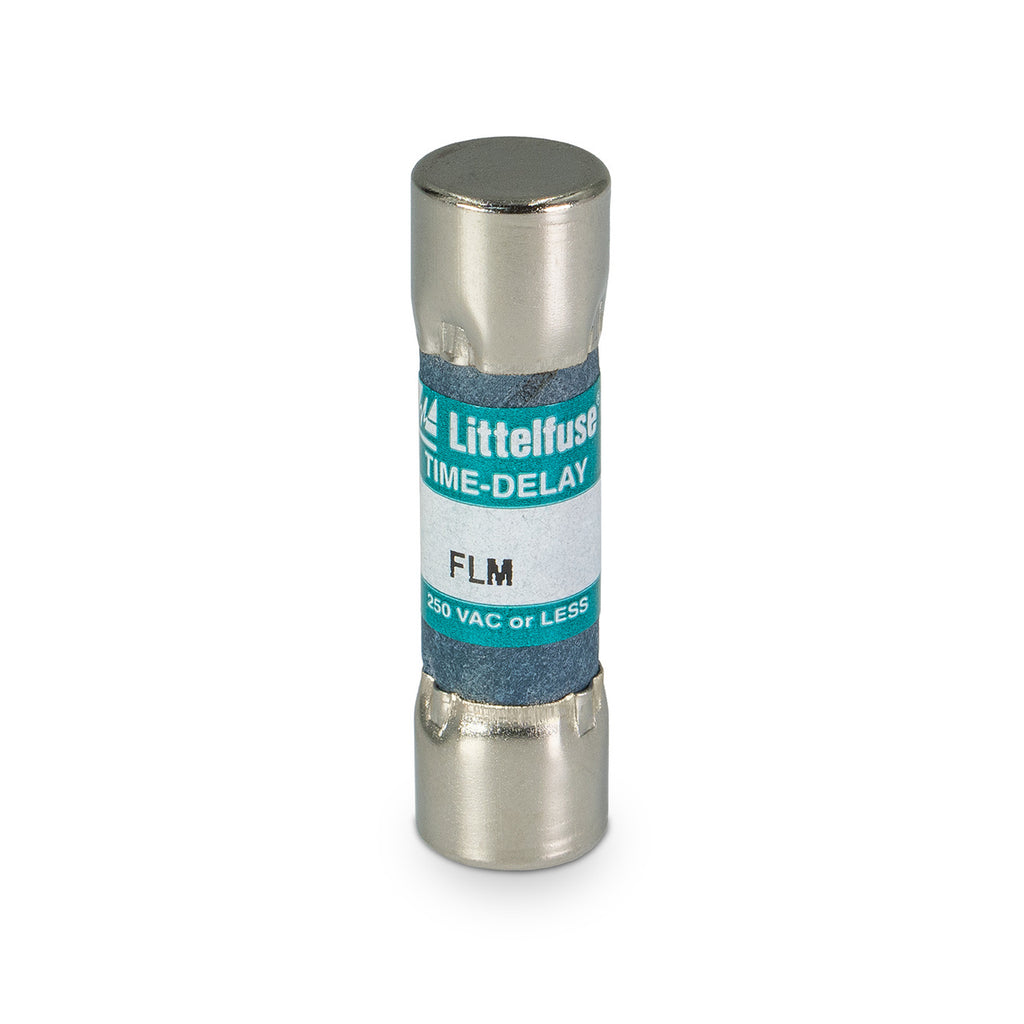

FLM03.5 is a Littelfuse POWR-GARD time delay midget fuse rated for 3.5 amperes at 250 volts AC, designed for supplemental circuit protection in industrial and commercial applications. This 5AG size fuse features dual-element construction with Slo-Blo technology, providing reliable overload and short-circuit protection with intentional time delay characteristics. The fuse meets UL 248-14 standards and is suitable for use with indicating or non-indicating fuse blocks.
- Amperage Rating: 3.5 A
- Voltage Rating: 250 VAC / 125 VDC
- Fuse Type: Time Delay (Slo-Blo)
- Size: 5AG Midget
- Physical Dimensions: 1.5 inches length x 0.406 inches diameter
- Interrupting Rating: 10,000 AIC at 250 VAC
- Opening Time at 135% Rating: 1 hour maximum
- Opening Time at 200% Rating: 12 seconds minimum
- Body Material: Paper with nickel-plated bronze cap
- Certifications: UL Listed, CSA Certified, QPL Approved
- Environmental Compliance: REACH, RoHS
Specifications
- Part Number: FLM03.5
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLM Series - Time-Delay 250 V Midget Fuses
- Type : FLM Series - Time-Delay 250 V Midget Fuses
- Voltage : 250
- Amperage : 3.5
- AIC rating : 10kA@250V
- Connection : Ferrule Non-Rejection
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- UPC : 079458140514
- GTIN : 00079458140514
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5.1
- Certification : UL Listed, CSA Certified, QPL, RoHS
