Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLM02.5

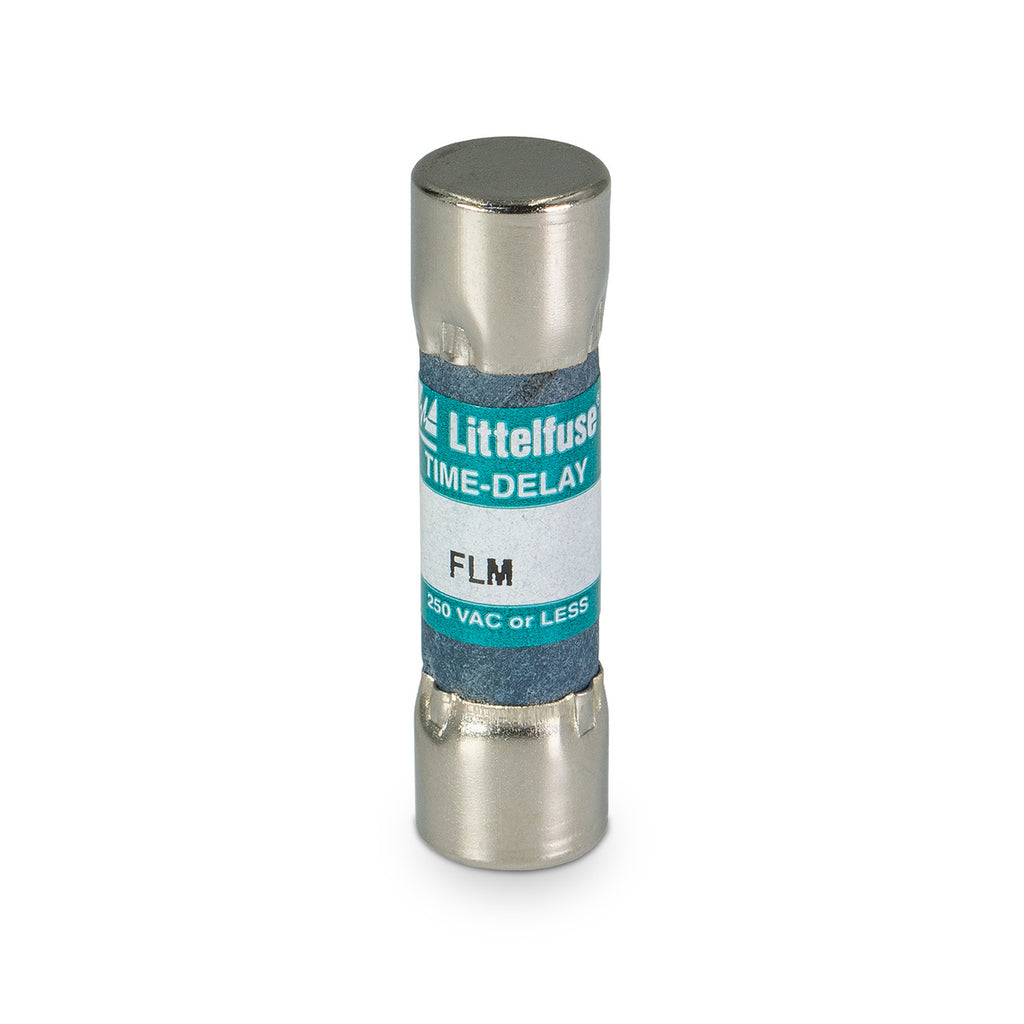

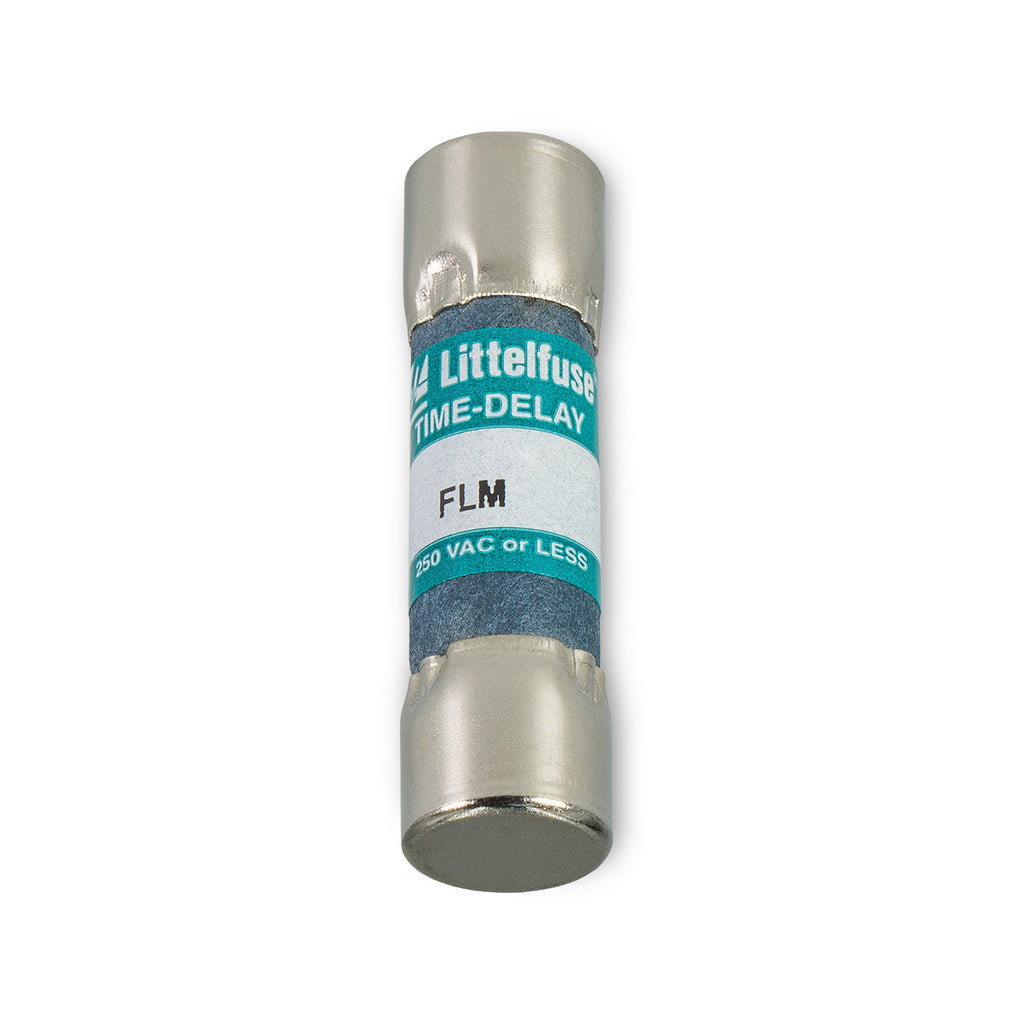

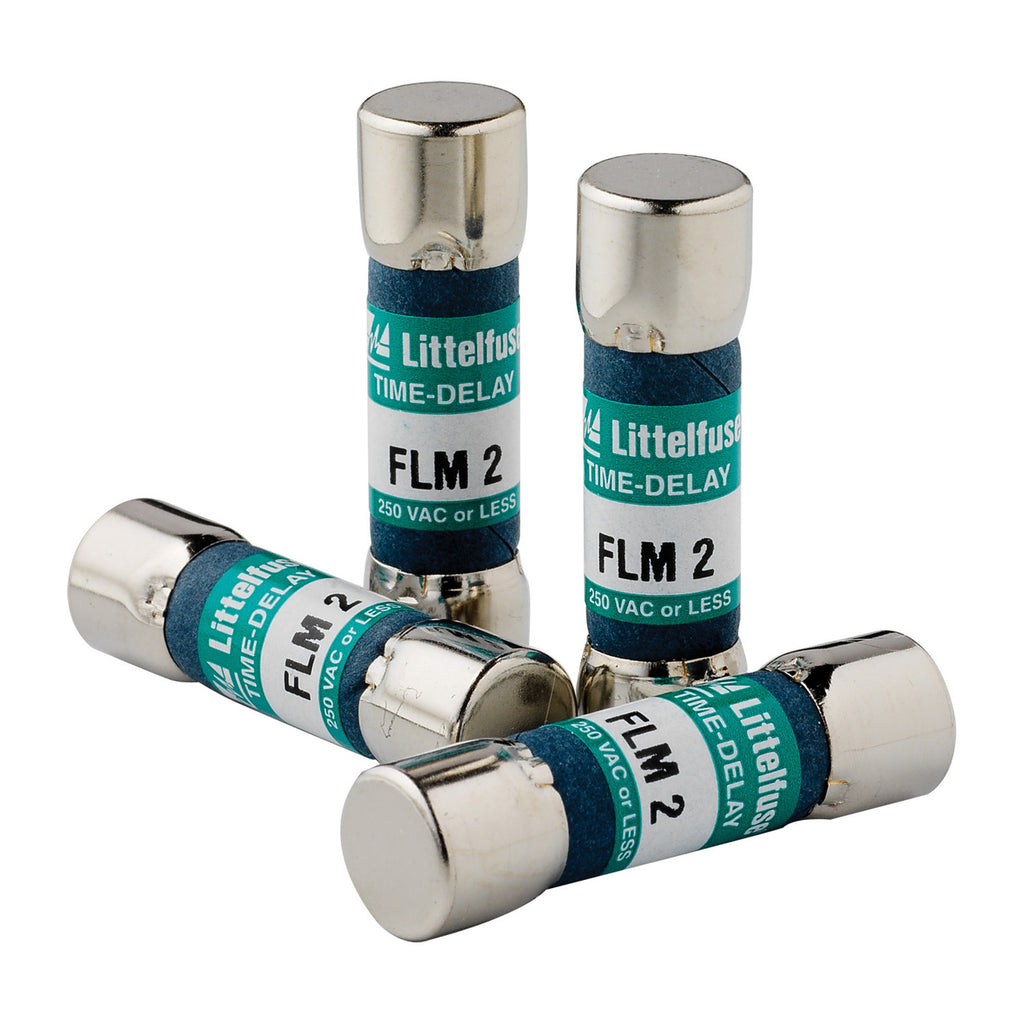

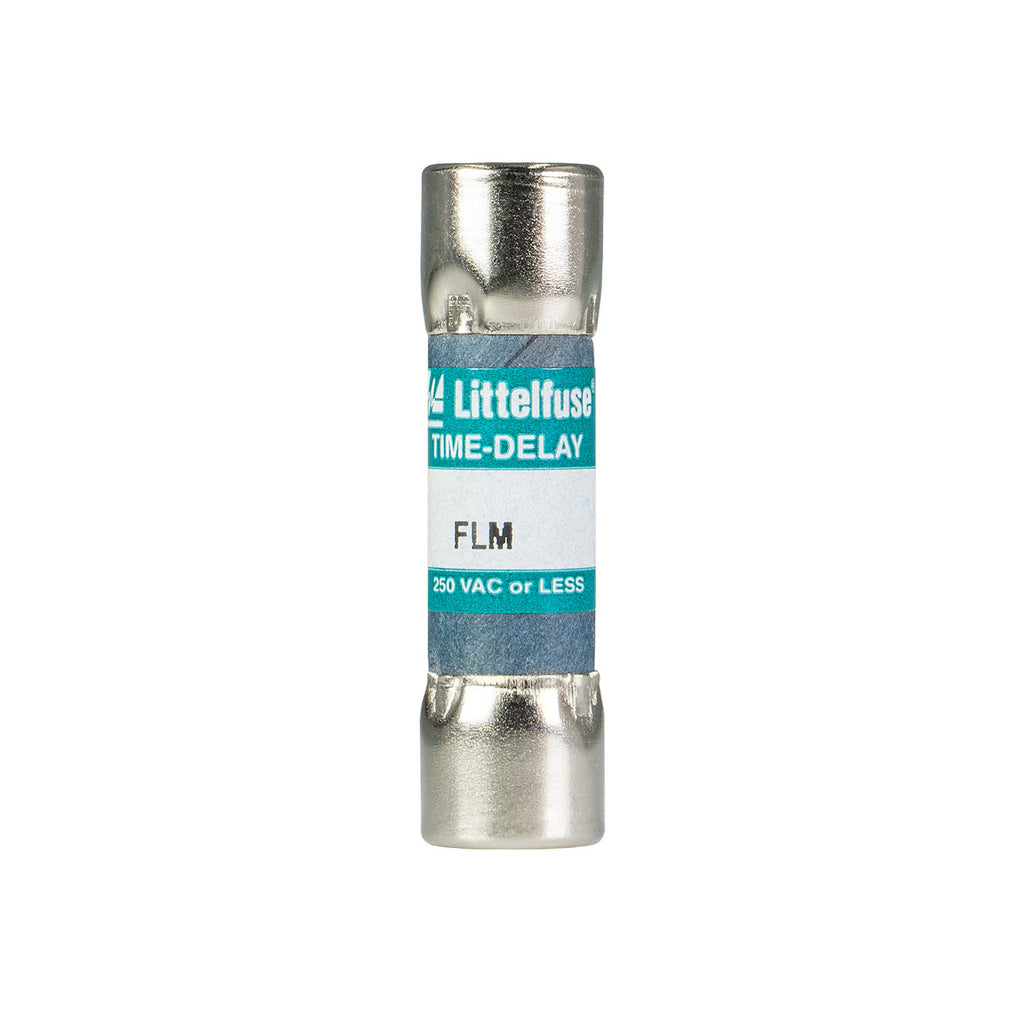

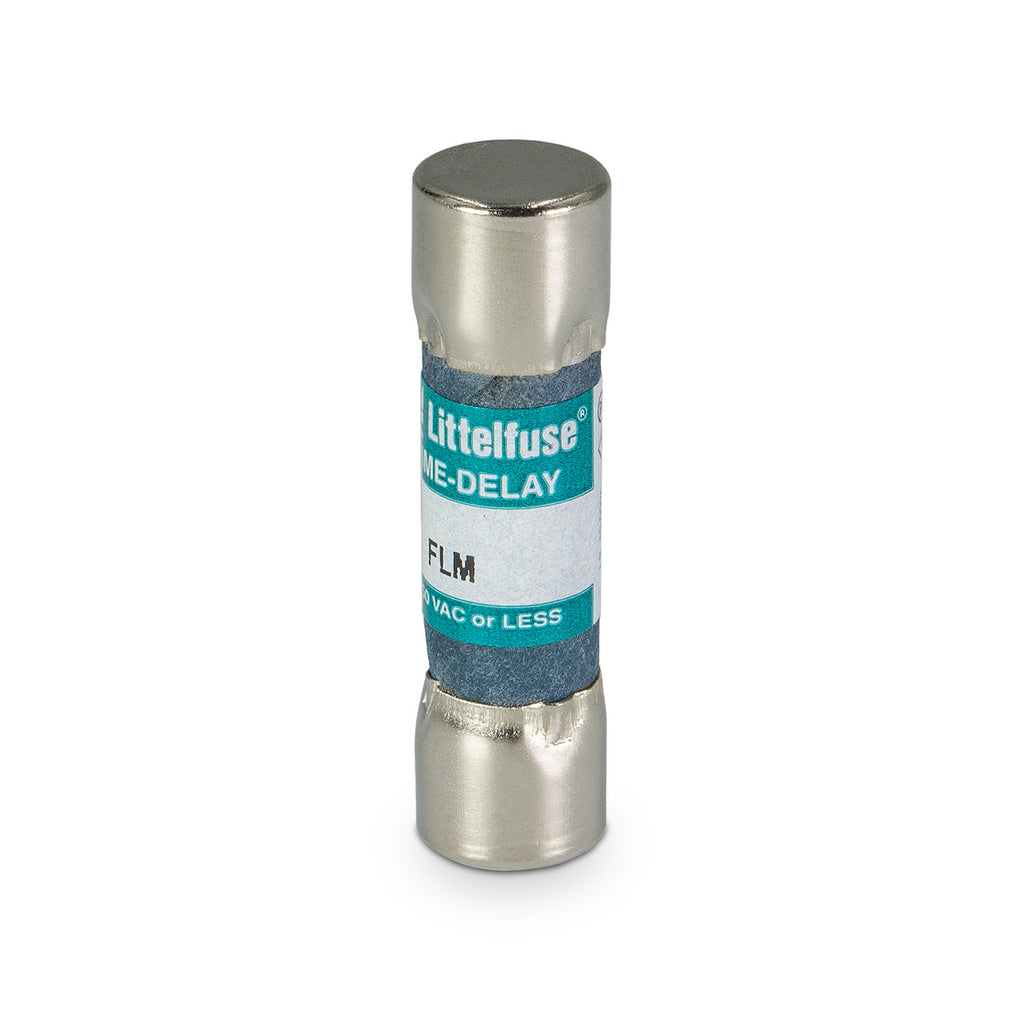

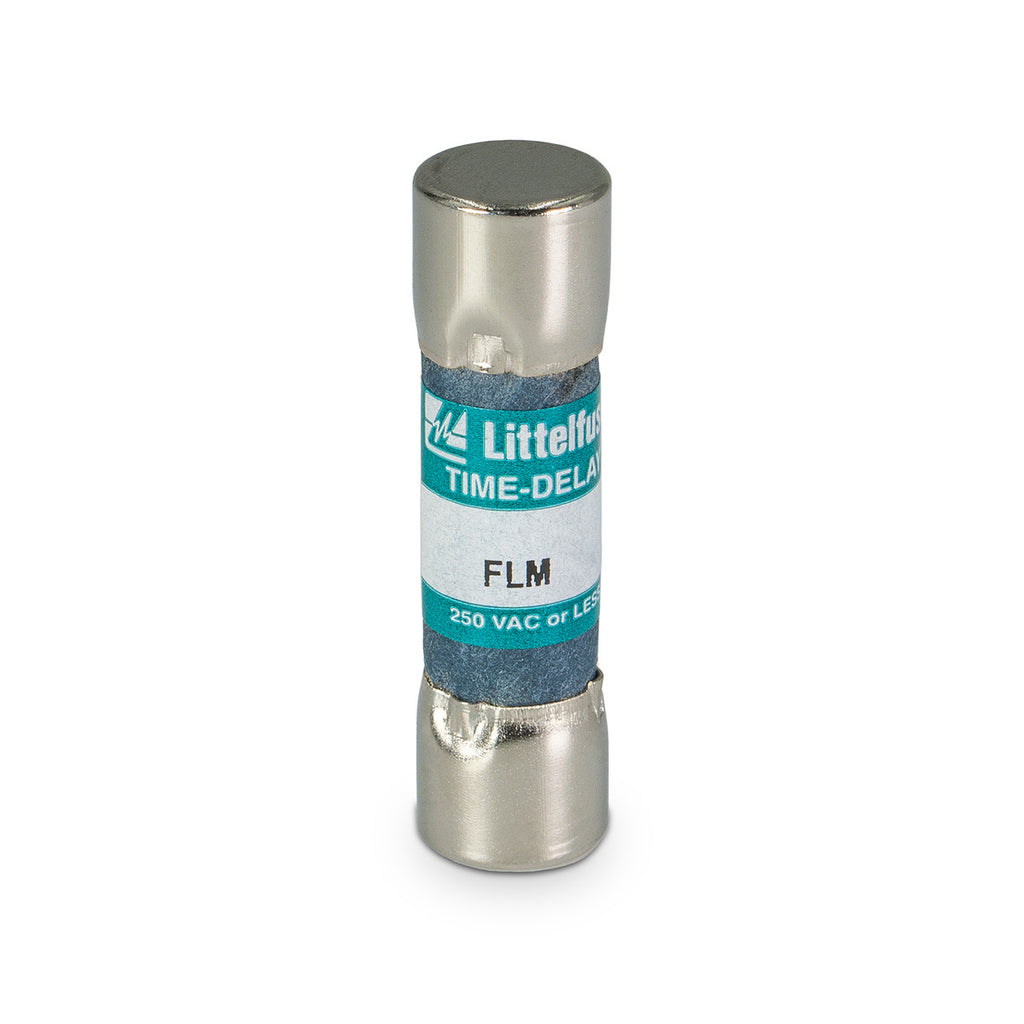

FLM02.5 is a Littelfuse FLM Series time-delay midget fuse designed for protection in control circuit transformers, solenoids, and other circuits with high in-rush currents. This fuse features a 2.5A current rating and a 250V AC voltage rating, making it suitable for a variety of low-voltage applications. The FLM02.5 is a 5AG type fuse with a 1-1/2 inch length and a 13/32 inch diameter. It is constructed with a paper body and nickel-plated bronze cap, and is self-certified to UL 248-14, CSA, and QPL standards. The fuse provides a minimum time delay of 5 seconds at 200% of its rated current, ensuring reliable protection for sensitive equipment.
- Amperage: 2.5A
- Voltage Rating: 250V AC / 125V DC
- Fuse Type: 5AG Midget
- Interrupting Rating: 10,000A at 250V AC
- Series: FLM
- Response Time: Time-Delay
- Agency Approvals: UL 248-14, CSA, QPL
- Body Material: Paper
- Cap Material: Nickel-plated bronze
- Dimensions: 1-1/2 inch length, 13/32 inch diameter
Specifications
- Part Number: FLM02.5
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLM Series - Time-Delay 250 V Midget Fuses
- Type : FLM Series - Time-Delay 250 V Midget Fuses
- Voltage : 250
- Amperage : 2.5
- AIC rating : 10kA@250V
- Connection : Ferrule Non-Rejection
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- UPC : 079458140439
- GTIN : 00079458140439
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5.5
- Certification : UL Listed, CSA Certified, QPL, RoHS
