Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLM007

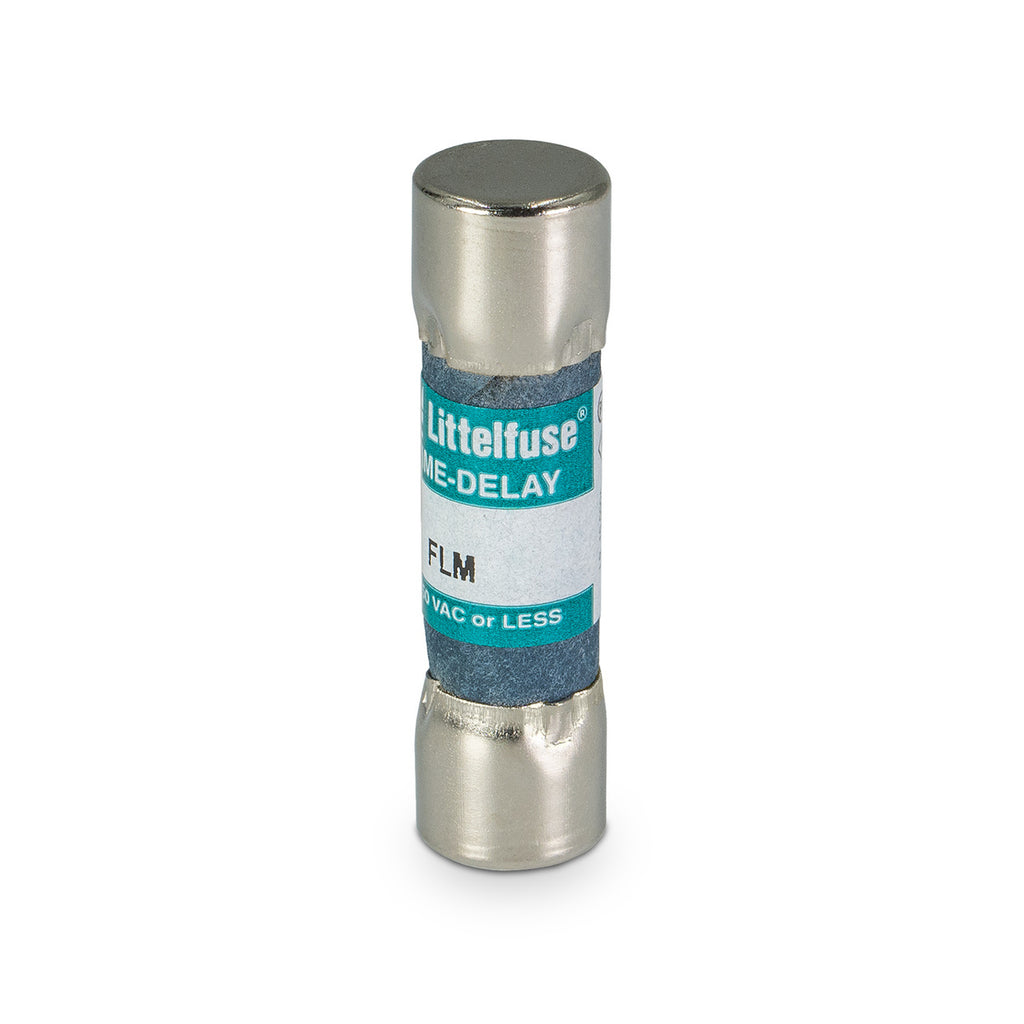

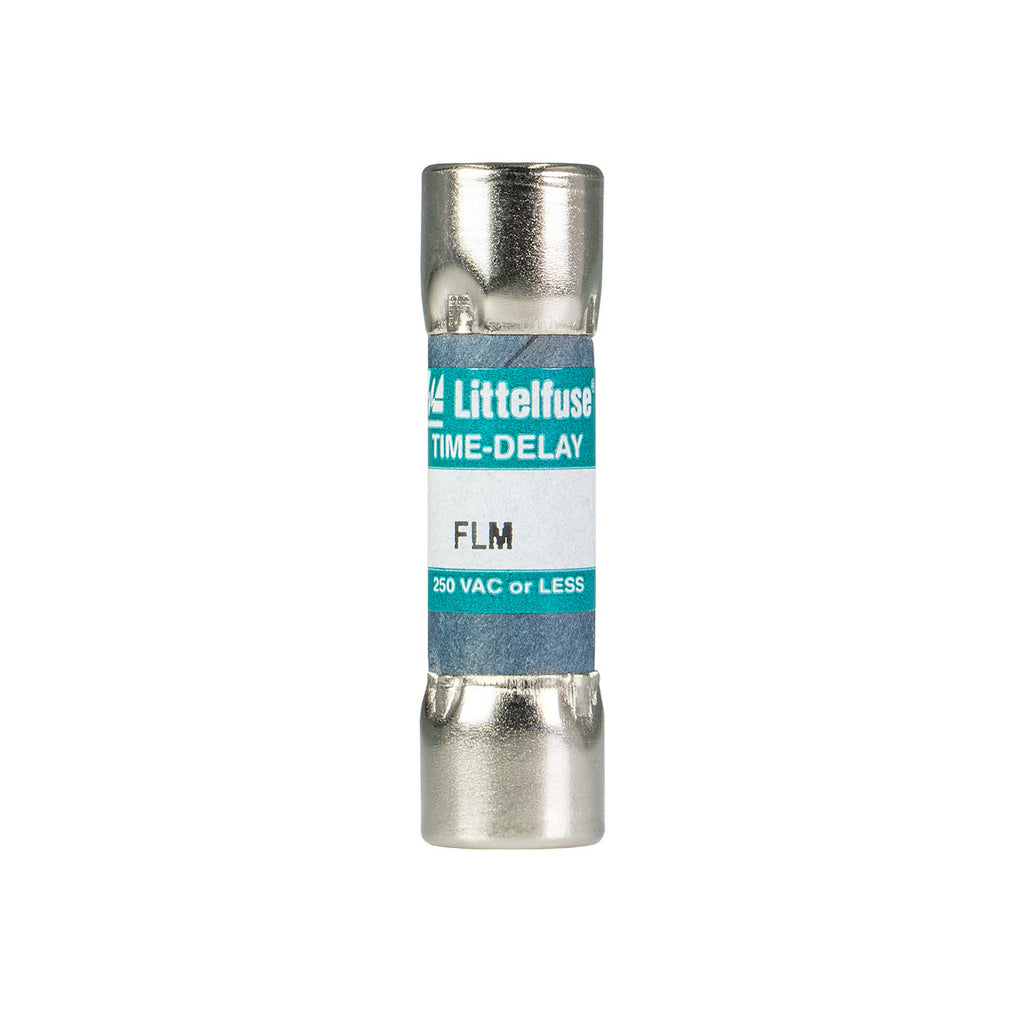

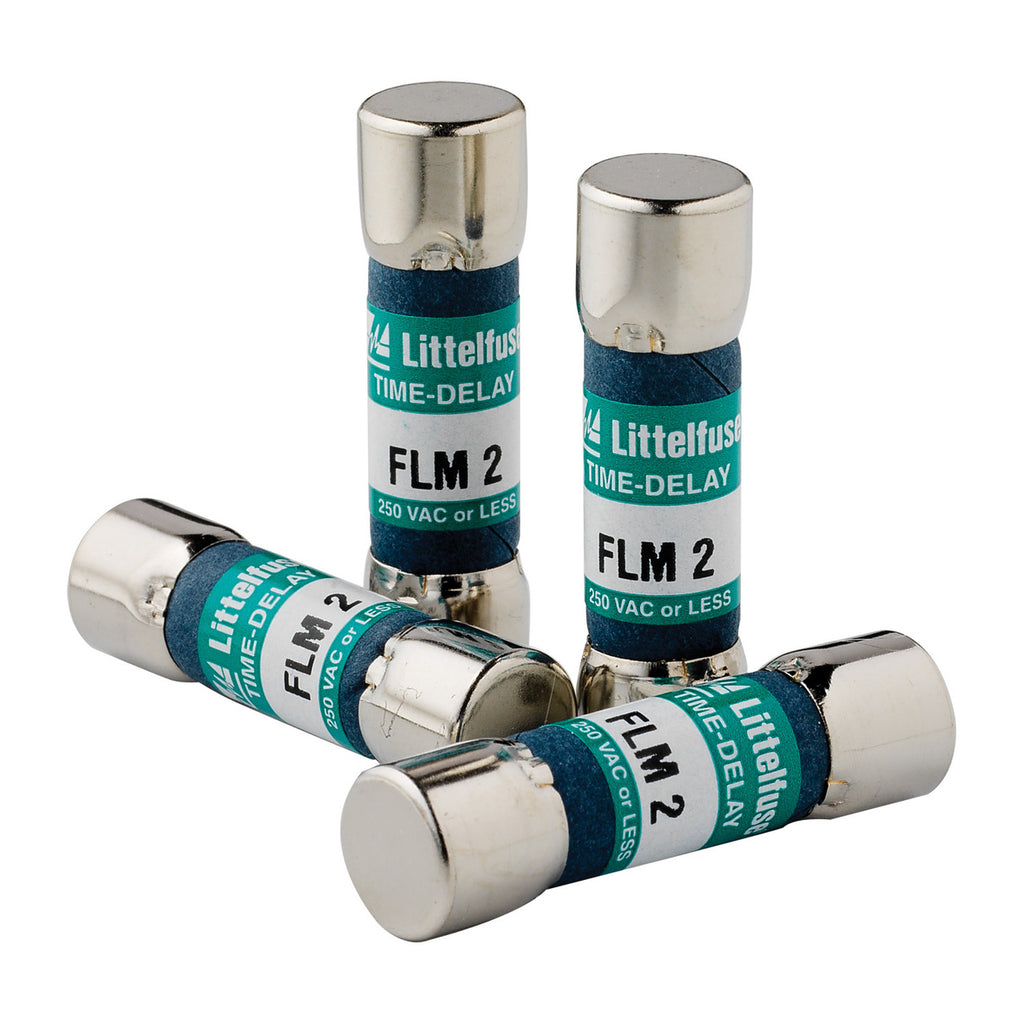

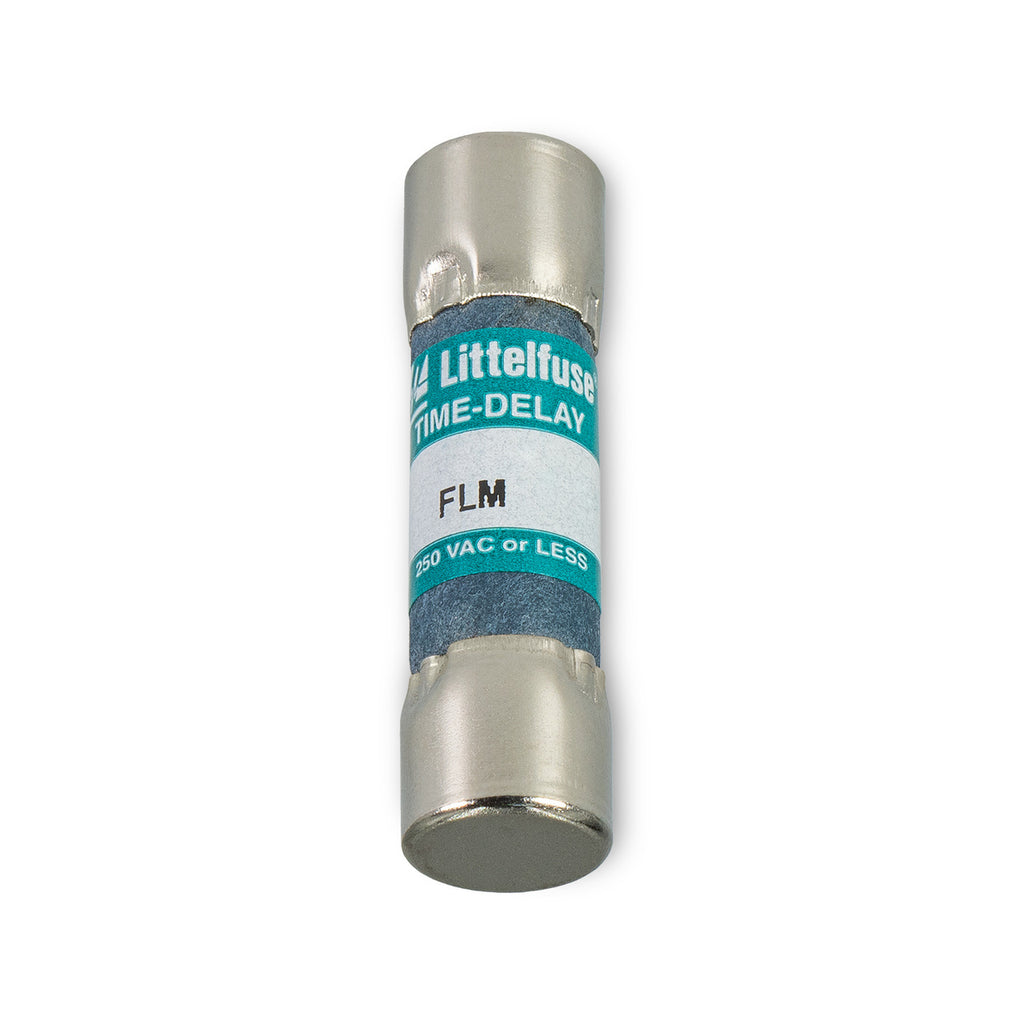

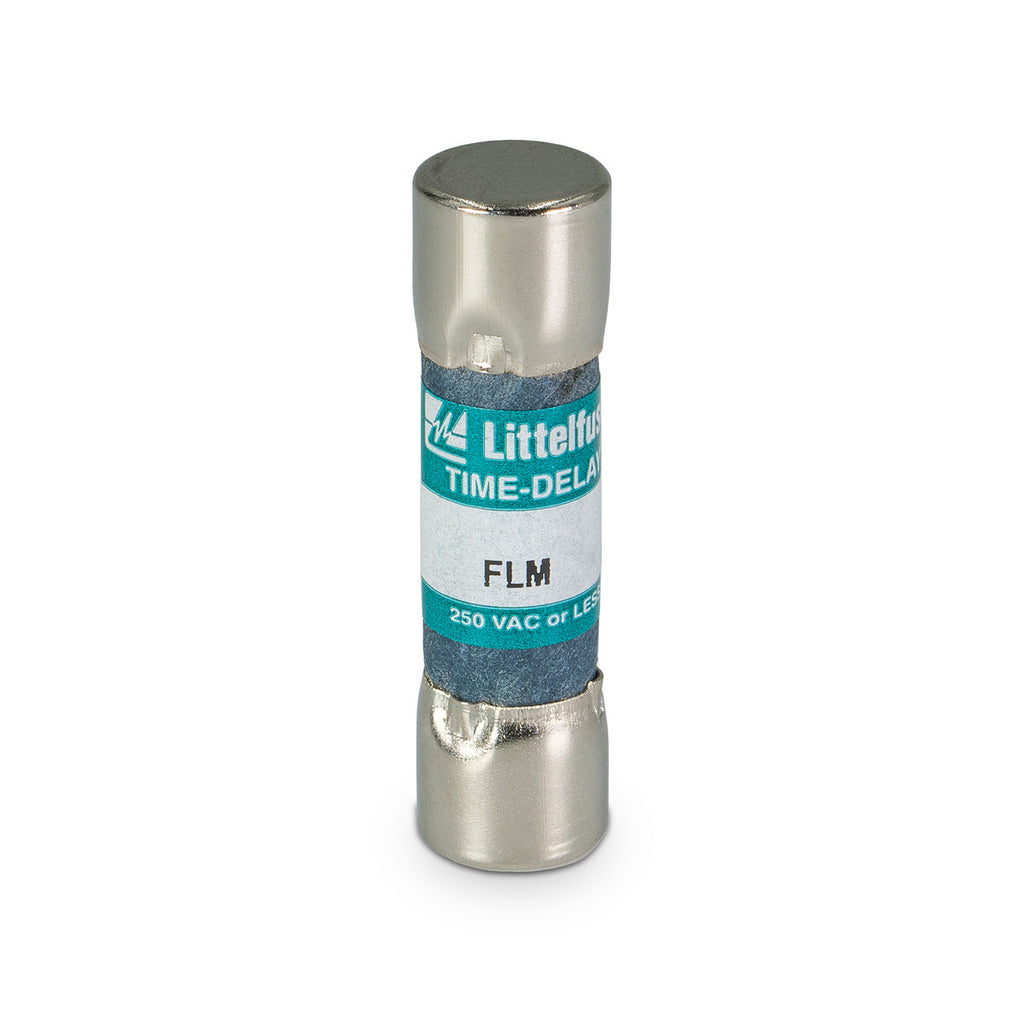

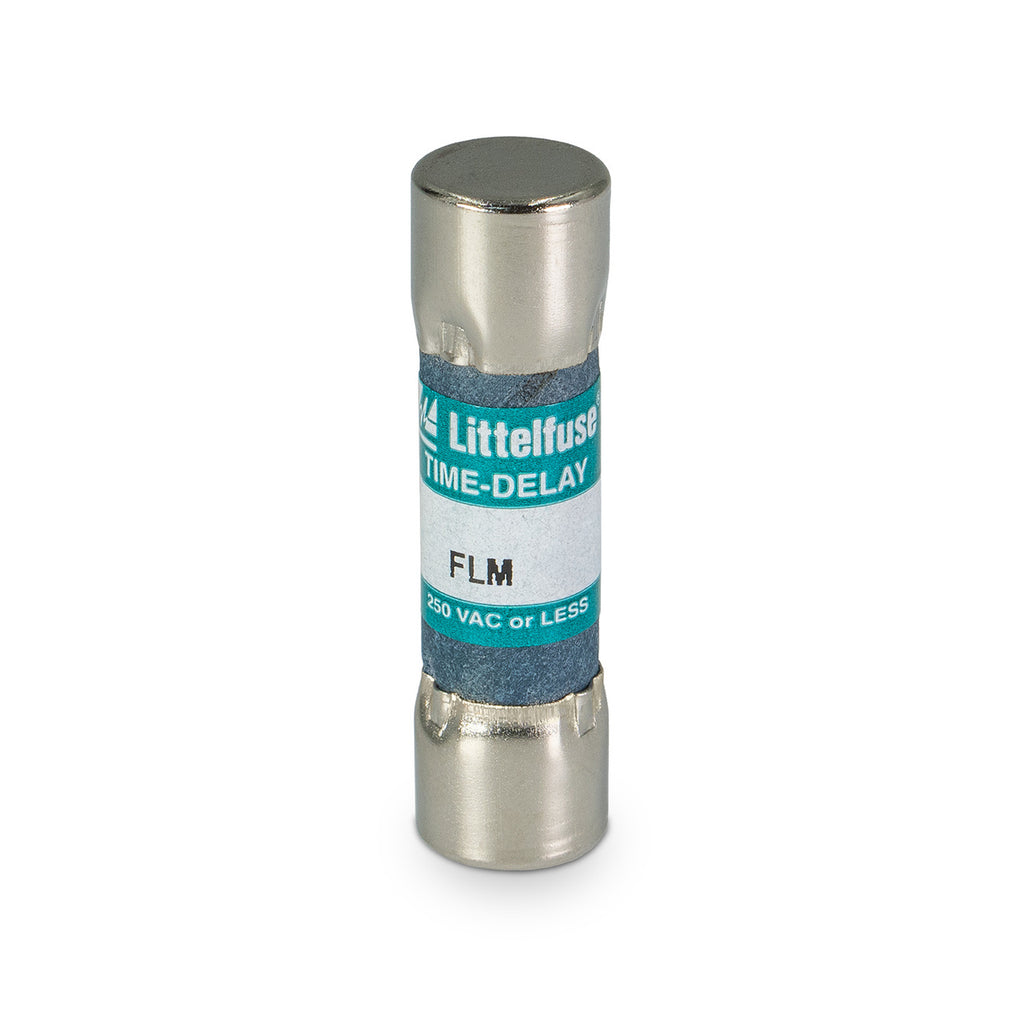

FLM007 is a 7 ampere, 250 volt time delay midget fuse designed to protect control circuit transformers, solenoids, and other circuits with high in-rush currents. FLM007 features dual element construction with Slo-Blo time delay characteristics, providing reliable circuit protection with a 10,000 ampere interrupting rating at 250 VAC. This cartridge-style fuse meets UL 248-14 and CSA standards for supplemental fuse applications.
- Amperage Rating: 7 Amps
- Voltage Rating: 250 VAC / 125 VDC
- Fuse Type: Class Midget (5AG)
- Response Time: Time Delay (Slo-Blo)
- Interrupting Rating: 10,000 Amperes at 250 VAC
- Physical Dimensions: 0.406 inches diameter x 1.50 inches length
- Terminal Type: Ferrule
- Opening Time at 135% Rating: 60 minutes maximum
- Opening Time at 200% Rating: 12 seconds minimum
- Certifications: UL Listed, CSA Certified, QPL Approved
- Material: Paper body with nickel plated bronze cap
Specifications
- Part Number: FLM007
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLM Series - Time-Delay 250 V Midget Fuses
- Type : FLM Series - Time-Delay 250 V Midget Fuses
- Voltage : 250
- Amperage : 7
- AIC rating : 10kA@250V
- Connection : Ferrule Non-Rejection
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- UPC : 079458140613
- GTIN : 00079458140613
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 6.5
- Certification : CSA Certified, QPL, RoHS, UL Listed
