Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLM006

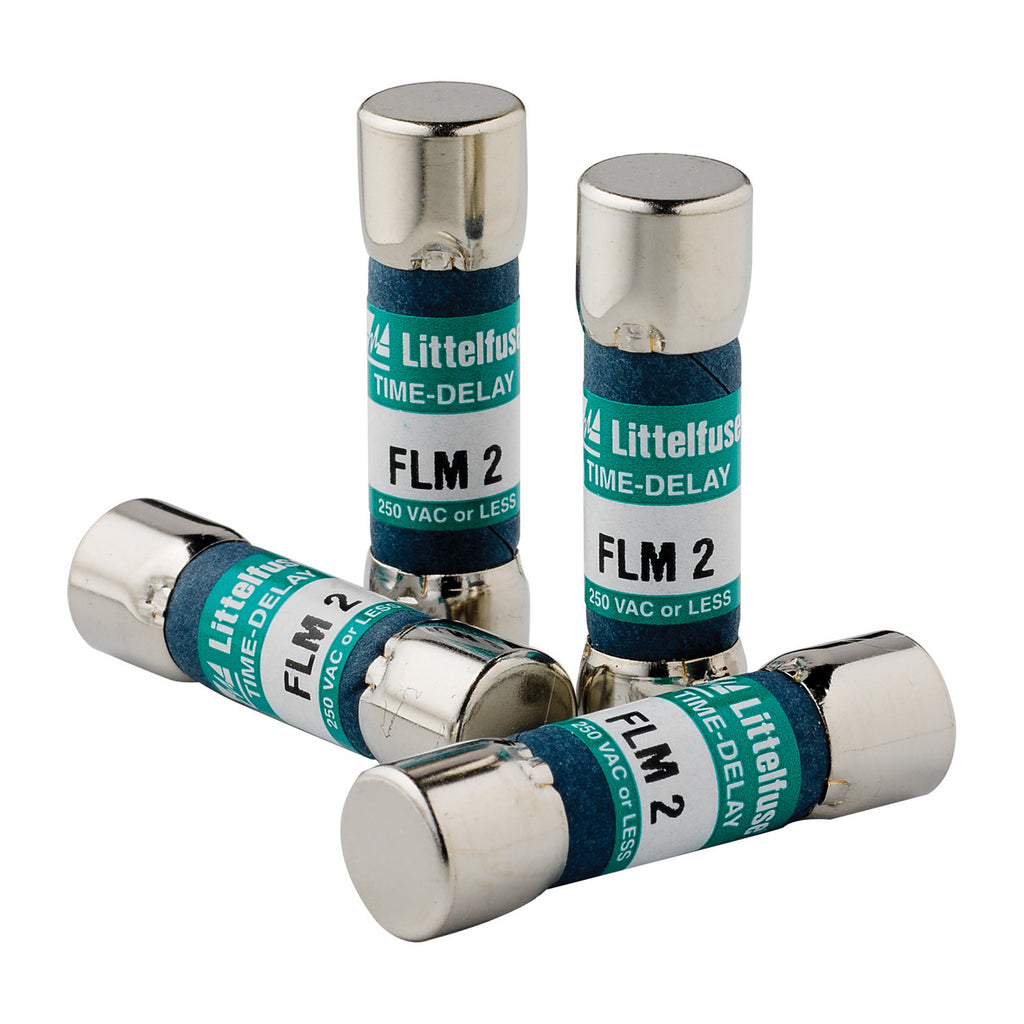

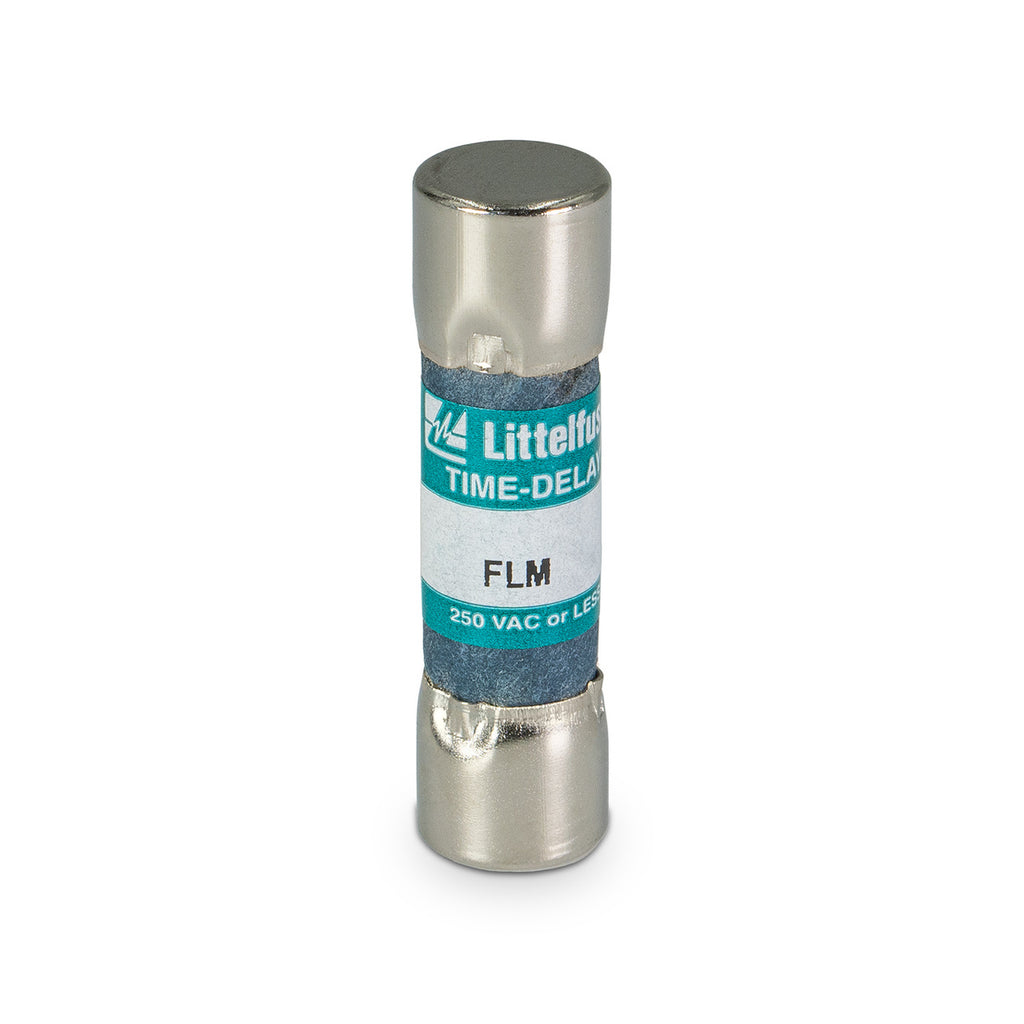

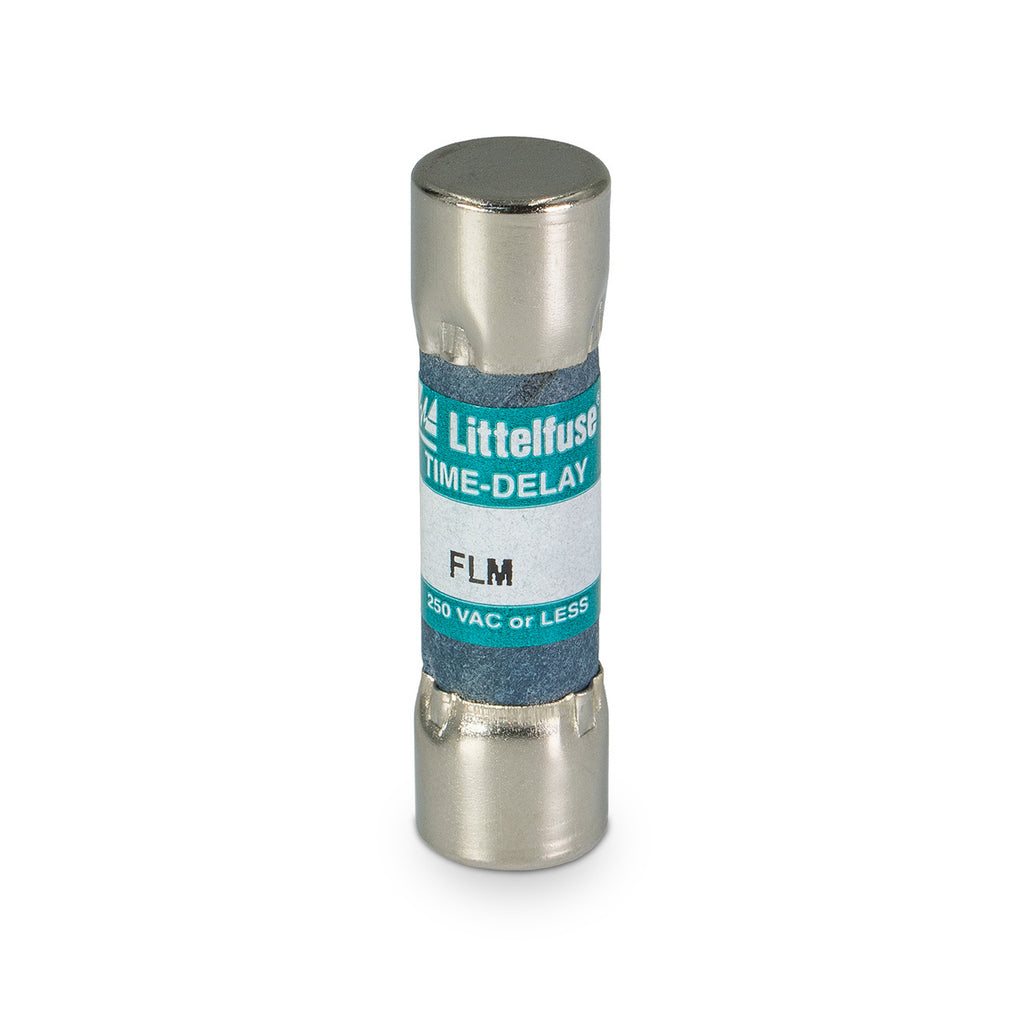

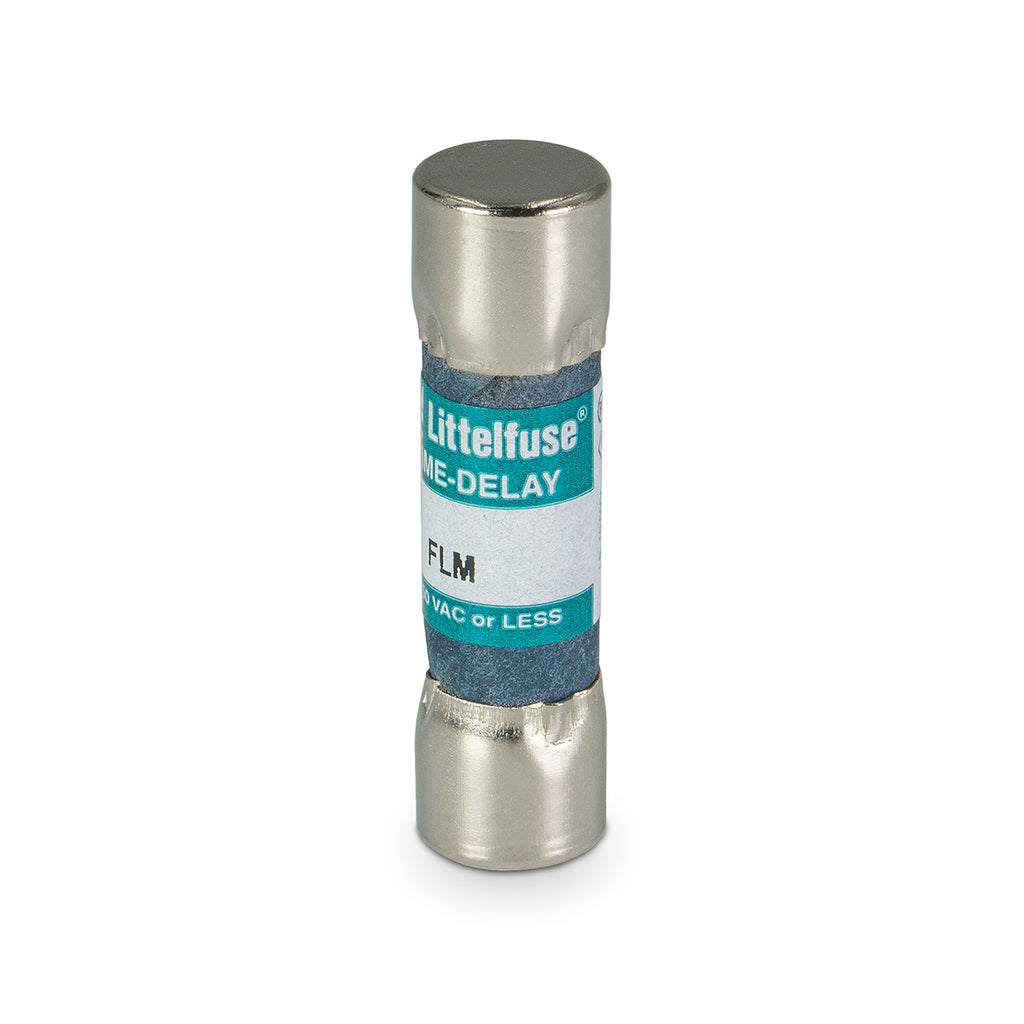

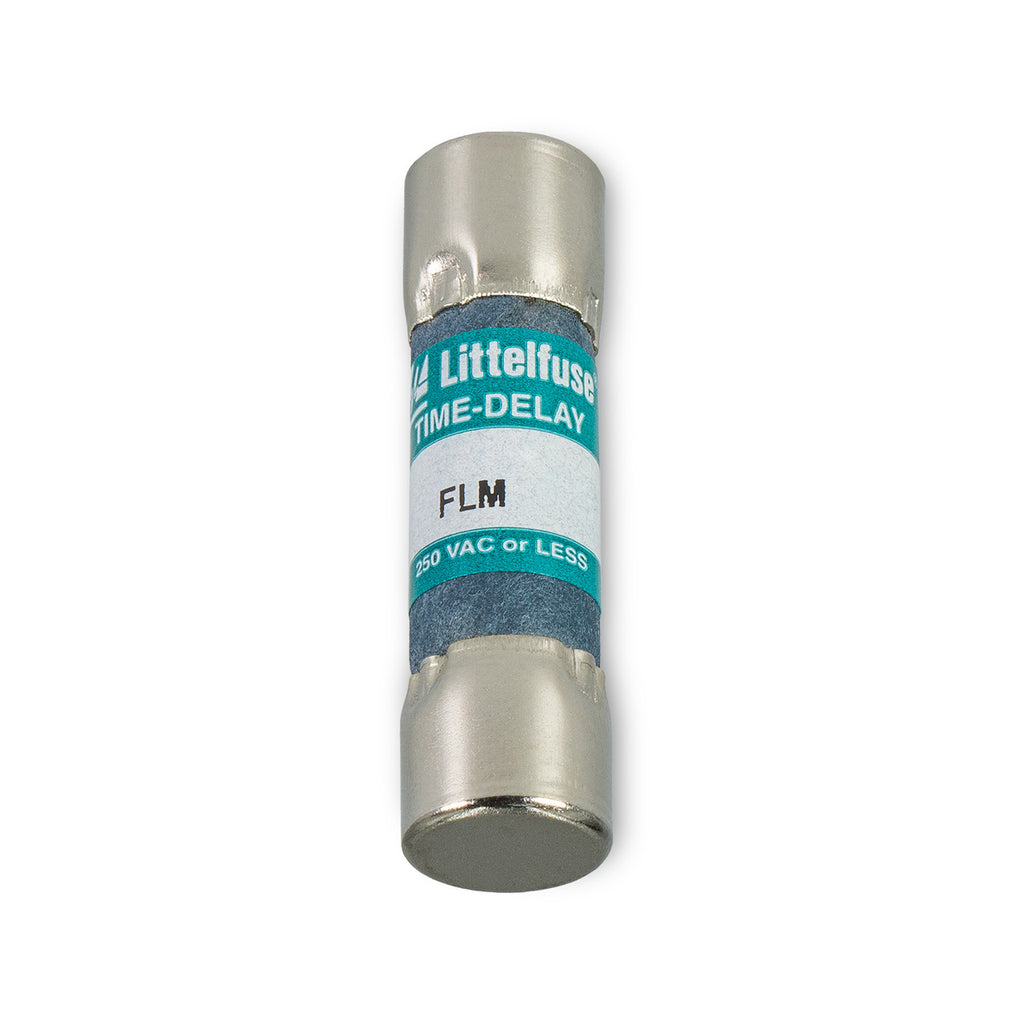

FLM006 is a Littelfuse Class Midget time delay fuse rated for 6 amps and 250 volts AC, designed for circuit protection with high interrupting capacity.This fuse features a time-delay (Slo-Blo®) characteristic suitable for circuits with high inrush currents such as transformers and small motors. It has a physical size of 0.41" x 1.5", an interrupting rating of 10,000 amperes at 250 VAC, and is UL Listed and CSA Certified for safety and reliability.
- Amperage Rating: 6 Amps
- Voltage Rating: 250 Volts AC / 125 Volts DC
- Fuse Type: Class Midget
- Response Time: Time Delay (Slo-Blo®)
- Interrupting Rating: 10,000 Amperes at 250 VAC
- Physical Size: 0.41" diameter x 1.5" length
- Certifications: UL Listed, CSA Certified, QPL Approved
- Material: Paper body with nickel plated bronze caps
- Mounting Type: Ferrule terminal
- Series: FLM
Specifications
- Part Number: FLM006
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLM Series - Time-Delay 250 V Midget Fuses
- Type : FLM Series - Time-Delay 250 V Midget Fuses
- Voltage : 250
- Amperage : 6
- AIC rating : 10kA@250V
- Connection : Ferrule Non-Rejection
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- UPC : 079458140583
- GTIN : 00079458140583
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 6.5
- Certification : UL Listed, CSA Certified, QPL, RoHS
