FLM005 - Littelfuse 5A 250VAC Time Delay Midget Fuse 10kA

FLM005

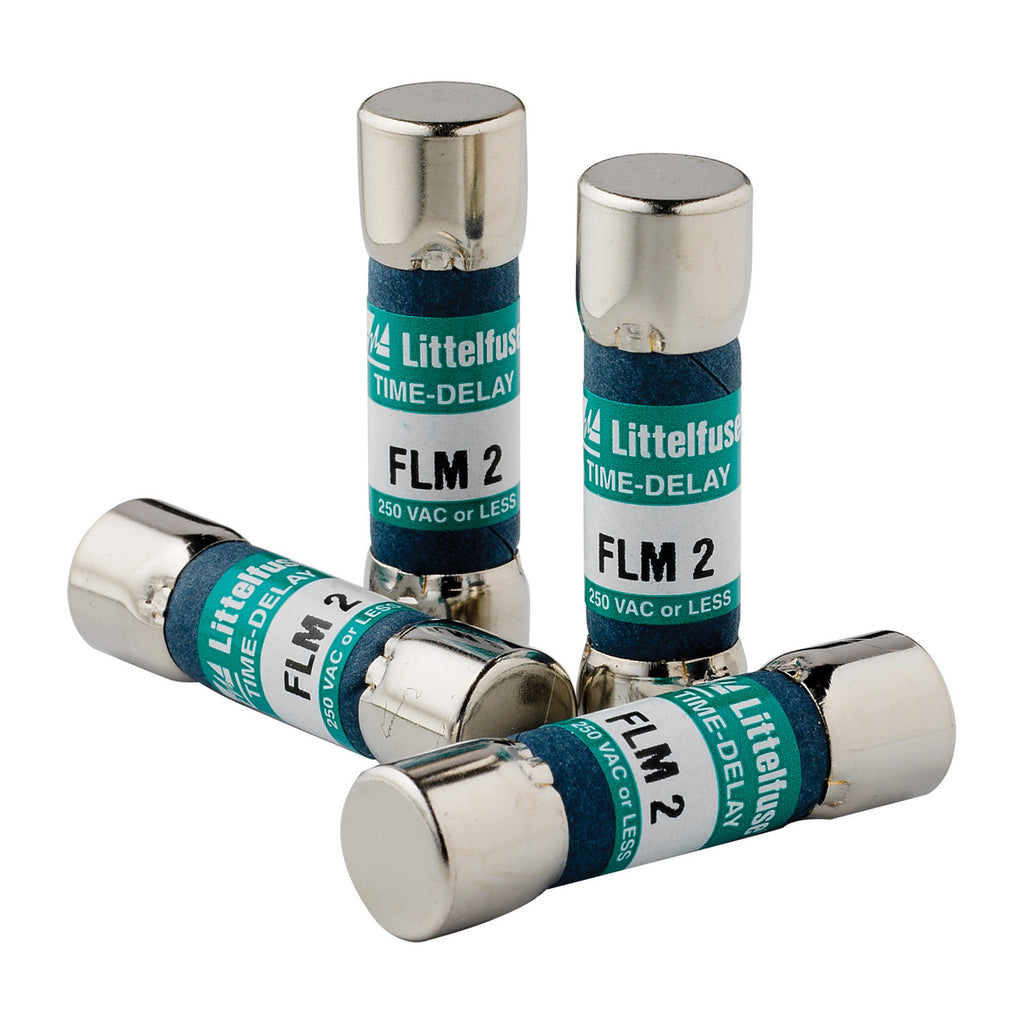

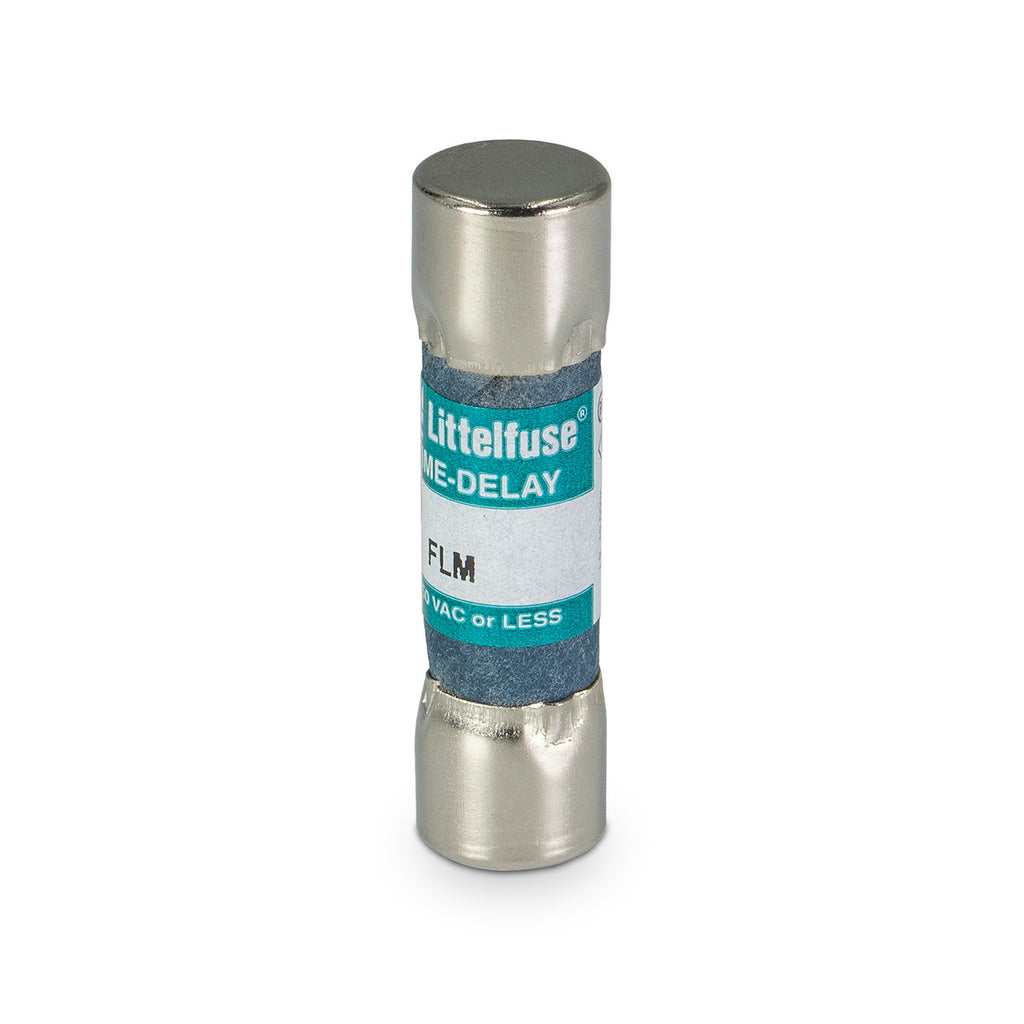

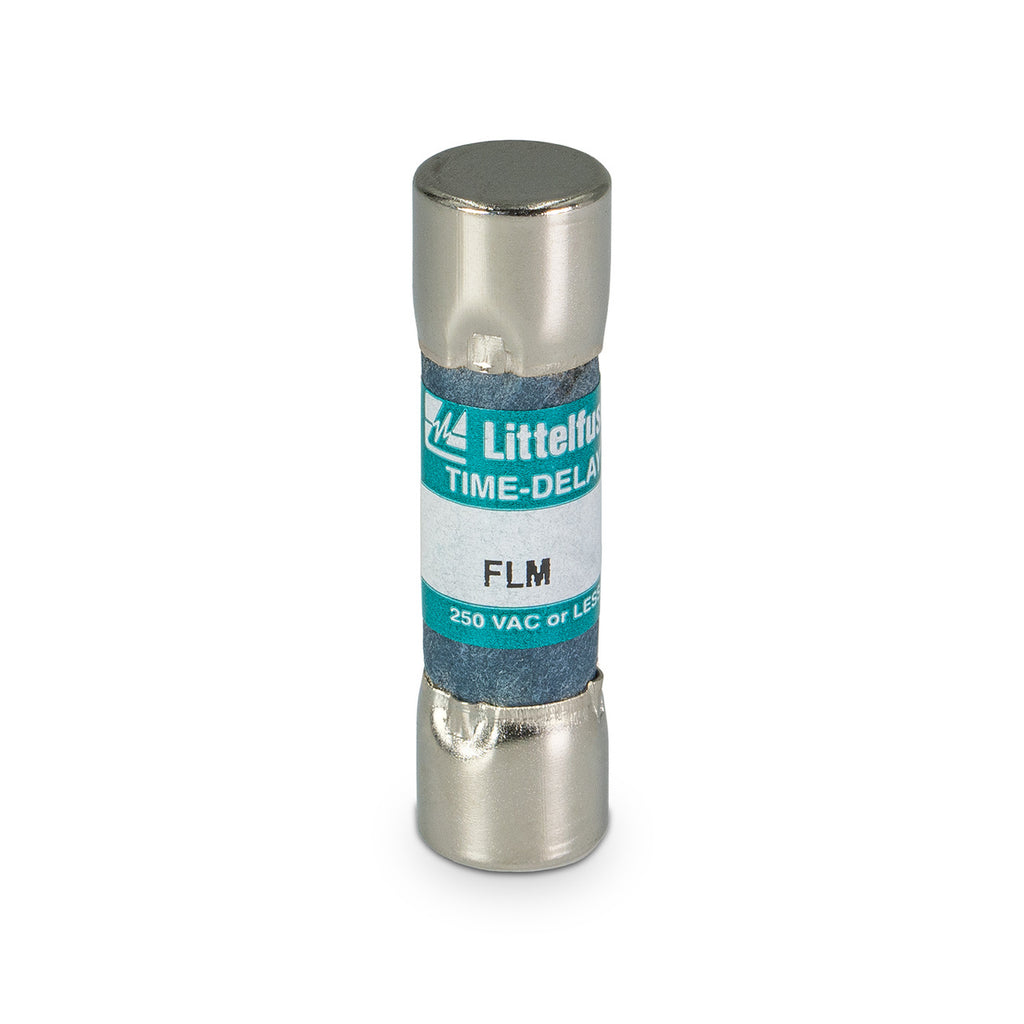

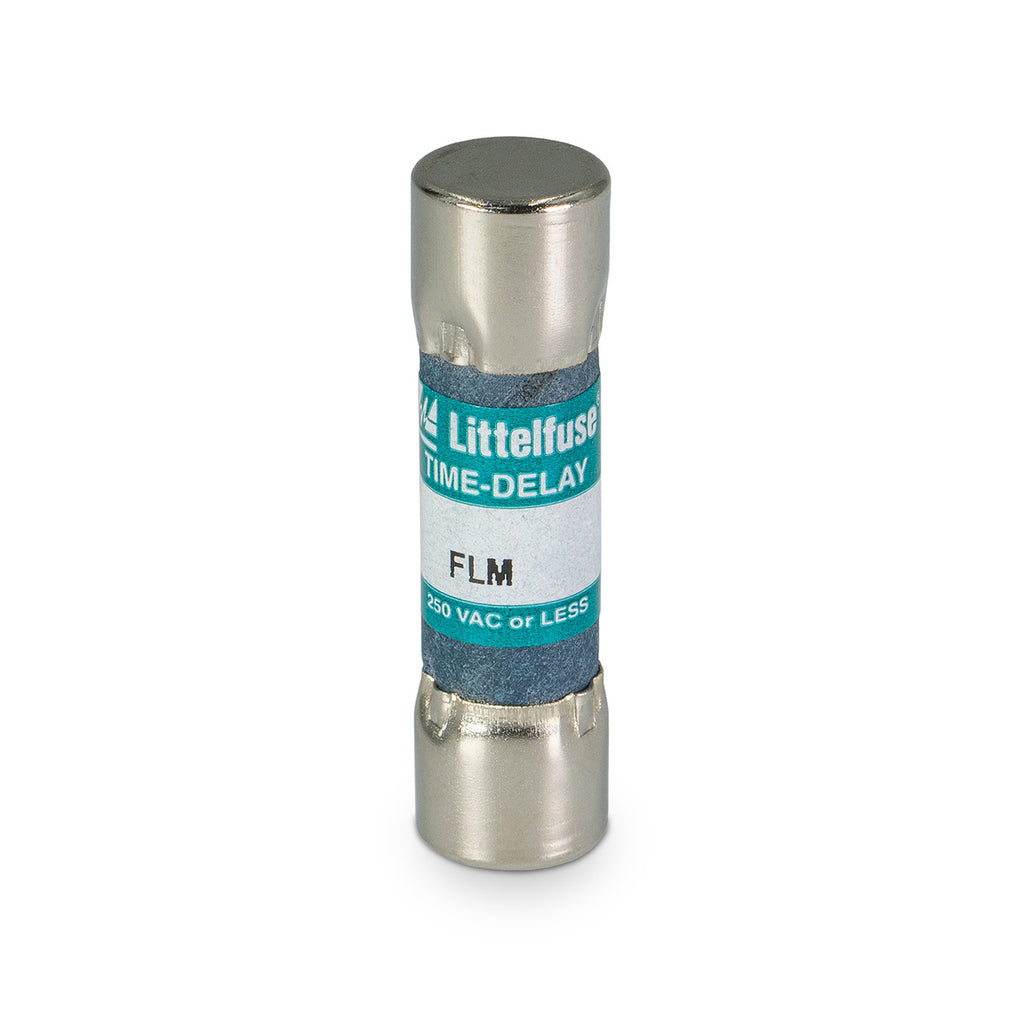

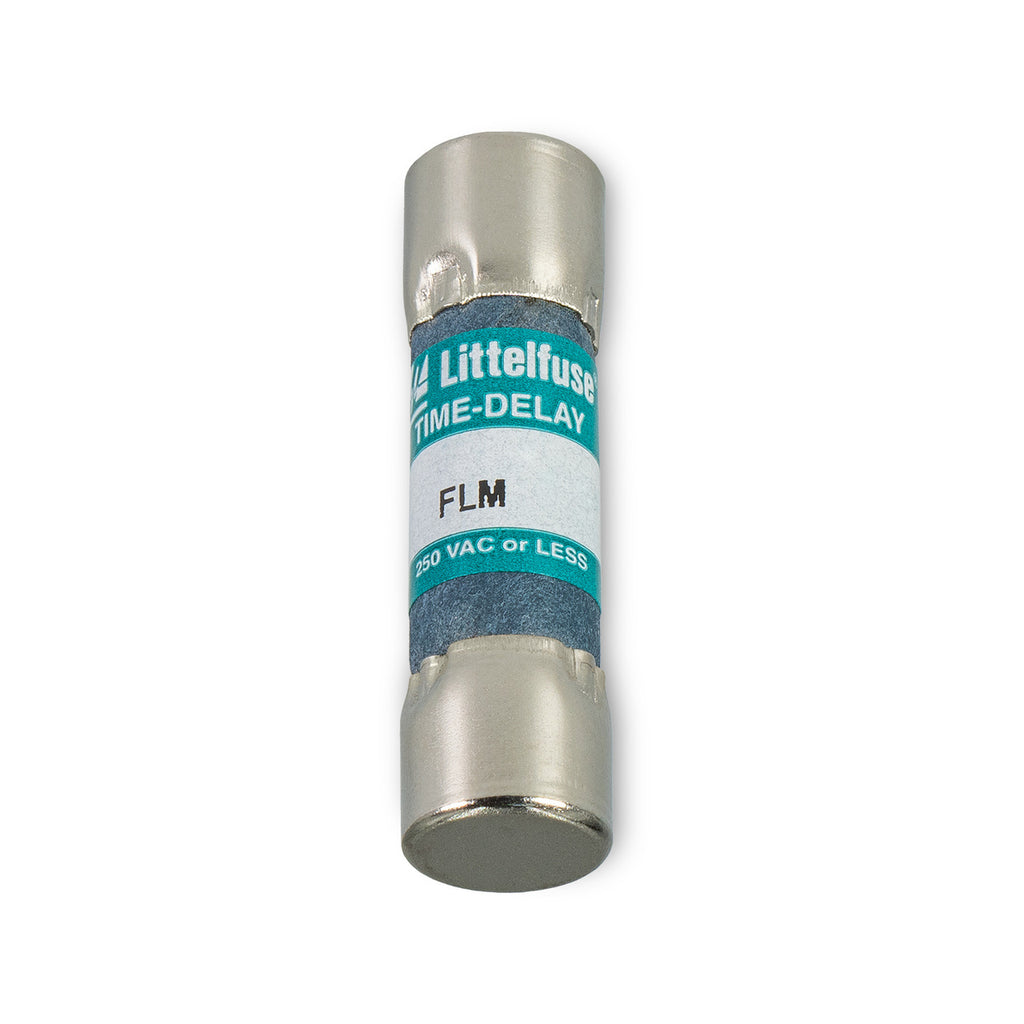

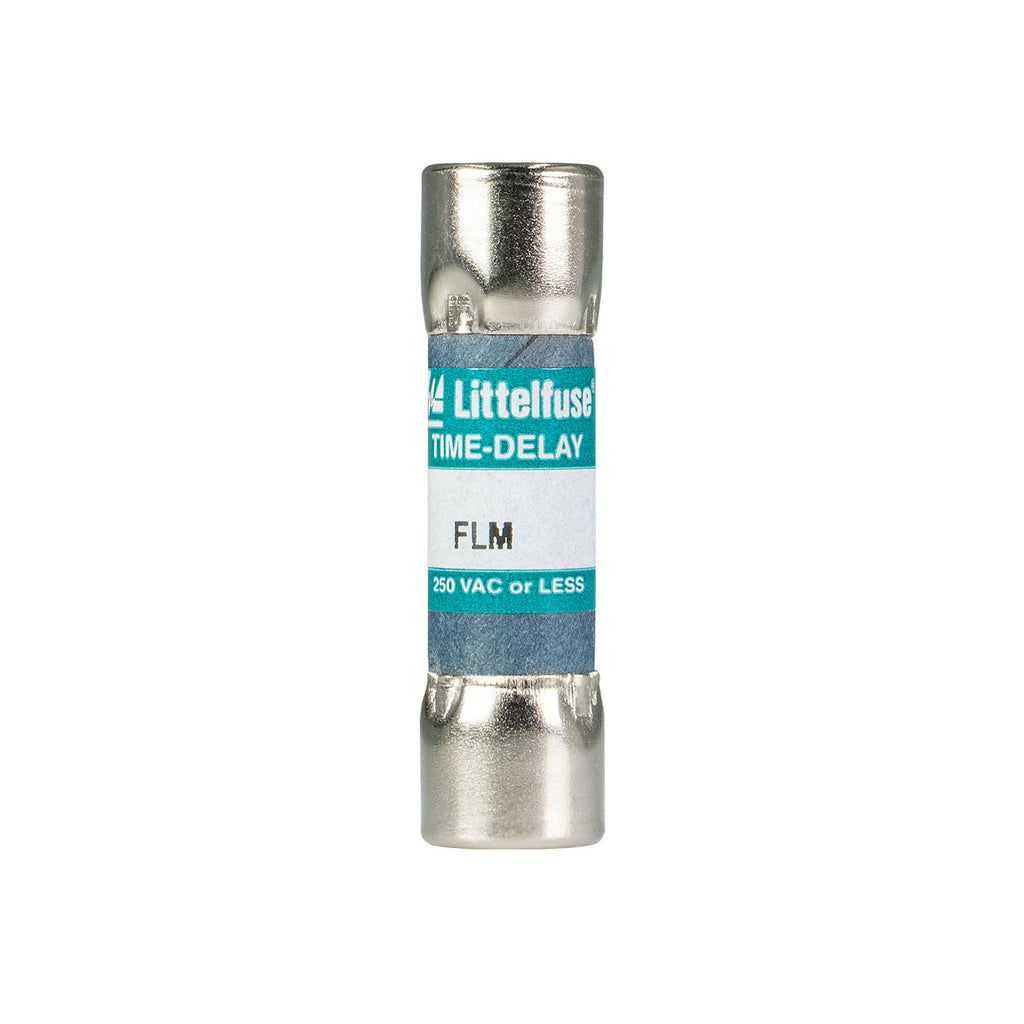

FLM005 is a Littelfuse POWR-GARD time delay midget fuse designed for circuit protection in applications requiring supplemental fusing with high in-rush current tolerance.

The FLM005 features a cylindrical body construction with dual-element, slow-blow characteristics that provide reliable protection while minimizing nuisance trips. This 5 ampere fuse is rated for 250 VAC and 125 VDC operation with a 10,000 ampere interrupting rating at 250 VAC. The fuse meets UL 248-14 standards and carries UL, CSA, and QPL certifications. Non-indicating design allows use with indicating fuse blocks to identify blown fuses.

• Amperage Rating: 5 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupting Rating: 10,000 A at 250 VAC
• Fuse Class: Midget (5AG)
• Response Time: Time Delay (Slo-Blo)
• Physical Size: 0.41 inch diameter x 1.50 inch length
• Opening Time at 135% Rating: 1 hour maximum
• Opening Time at 200% Rating: 12 seconds minimum
• Body Material: Paper with nickel-plated bronze caps
• Certifications: UL Listed, CSA Certified, QPL Approved
• Standards: UL 248-14, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLM005
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLM Series - Time-Delay 250 V Midget Fuses
• Type : FLM Series - Time-Delay 250 V Midget Fuses
• Voltage : 250
• Amperage : 5
• AIC rating : 10kA@250V
• Connection : Ferrule Non-Rejection
• Diameter : 0.41
• Class Rating : Midget
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 079458140552
• GTIN : 00079458140552
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 6.4
• Certification : UL Listed, CSA Certified, QPL, RoHS
