FLM001 - Littelfuse 1 Amp 250 Volt Midget Time Delay Fuse Class CC

FLM001

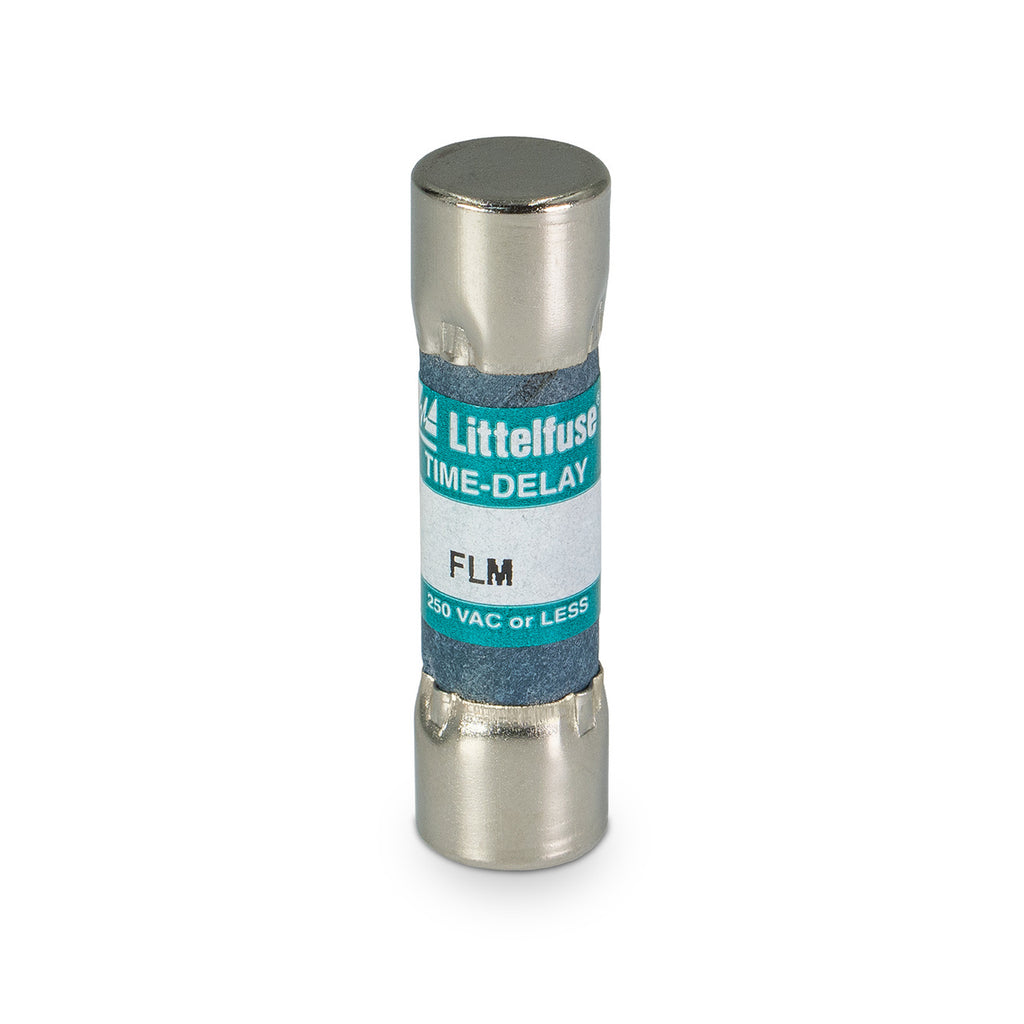

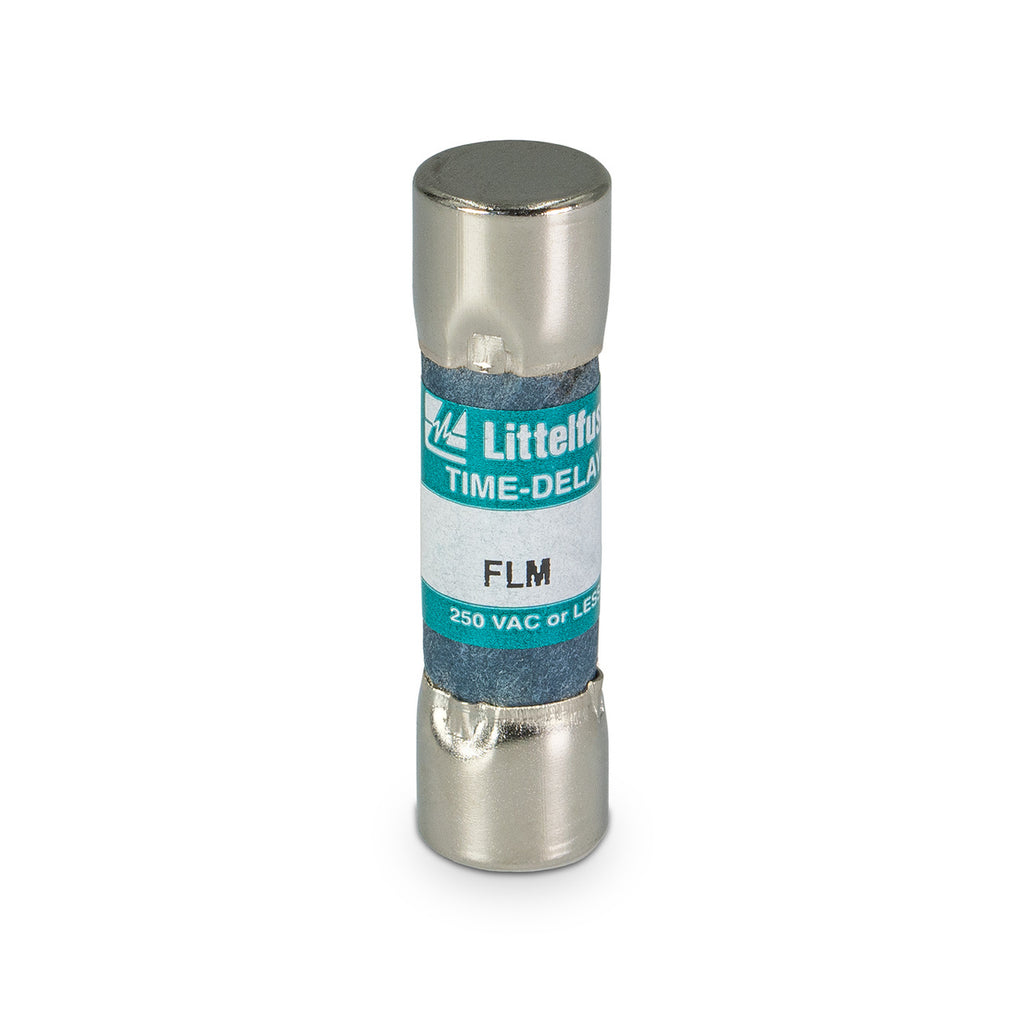

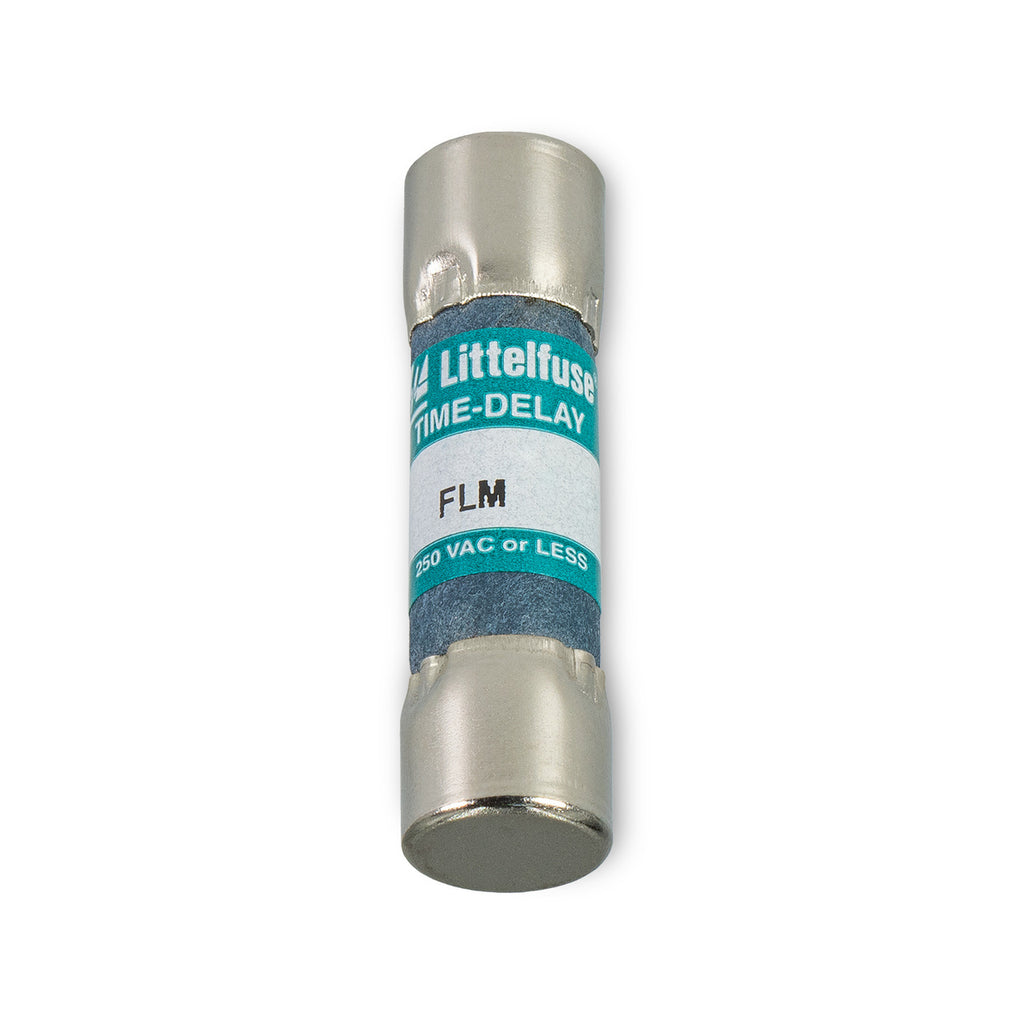

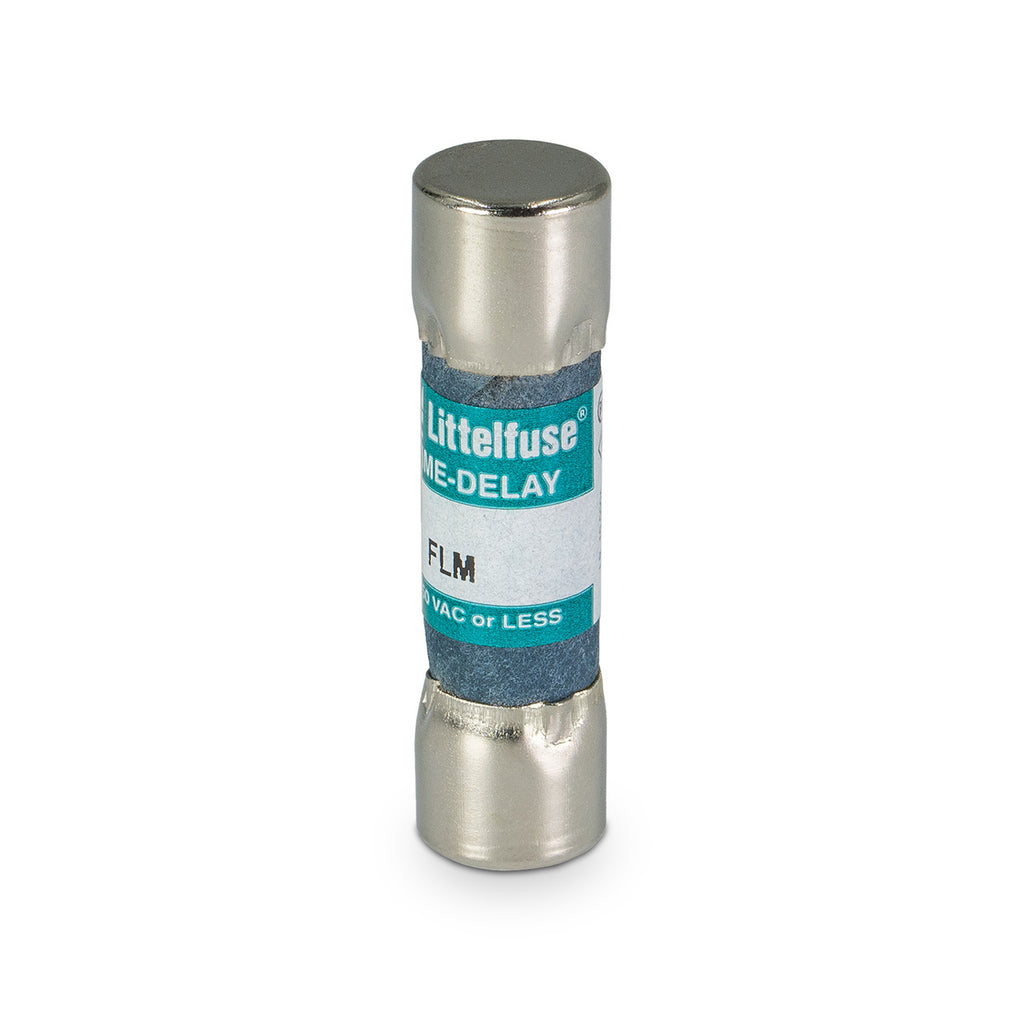

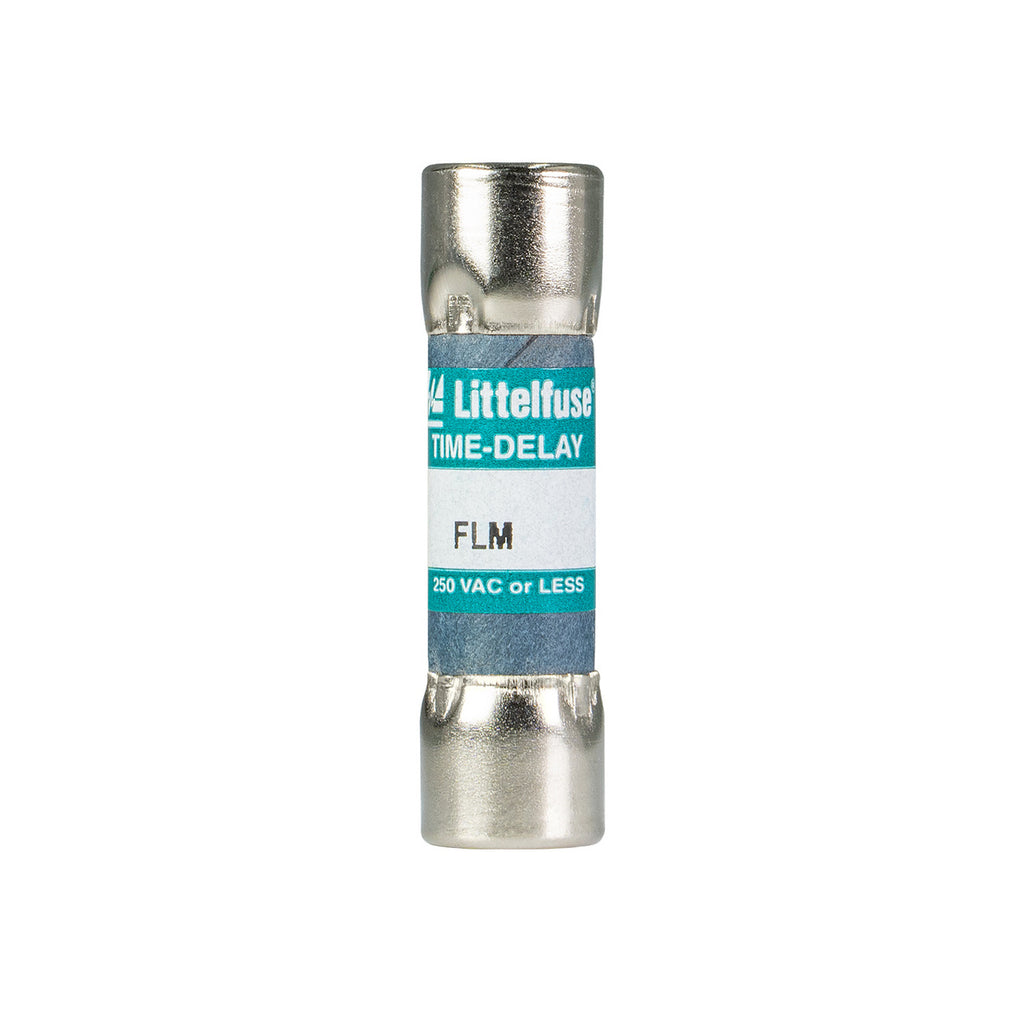

FLM001 is a Littelfuse 1 Amp, 250 Volt Midget Time Delay Fuse designed for supplemental overcurrent protection in control circuits.

This FLM series fuse features a slow-blow (time delay) dual element design suitable for circuits with high inrush currents such as control circuit transformers and solenoids. It has a 10,000 Amp interrupting rating at 250 VAC and 125 VDC, a ferrule terminal, and a cartridge body measuring 0.41 inch diameter by 1-1/2 inch length. The fuse is UL 248-14 and CSA certified, Class CC rated, and non-indicating, compatible with indicating fuse blocks for blown fuse identification.

• Amperage Rating: 1 Amp
• Voltage Rating: 250 VAC / 125 VDC
• Interrupting Rating: 10,000 Amps at 250 VAC
• Fuse Type: Midget (5AG), Class CC
• Opening Characteristic: Time Delay (Slow Blow)
• Terminal Type: Ferrule
• Body Dimensions: 0.41 inch diameter, 1-1/2 inch length
• Certifications: UL 248-14, CSA
• Dual Element Construction
• Non-Indicating Fuse
• Mounting Method: Fuse Block / Clip / Holder compatible

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLM001
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLM Series - Time-Delay 250 V Midget Fuses
• Type : FLM Series - Time-Delay 250 V Midget Fuses
• Voltage : 250
• Amperage : 1
• AIC rating : 10kA@250V
• Connection : Ferrule Non-Rejection
• Diameter : 0.1
• Class Rating : Midget
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 079458140316
• GTIN : 00079458140316
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 5.6
• Certification : UL Listed, CSA Certified, QPL, RoHS
