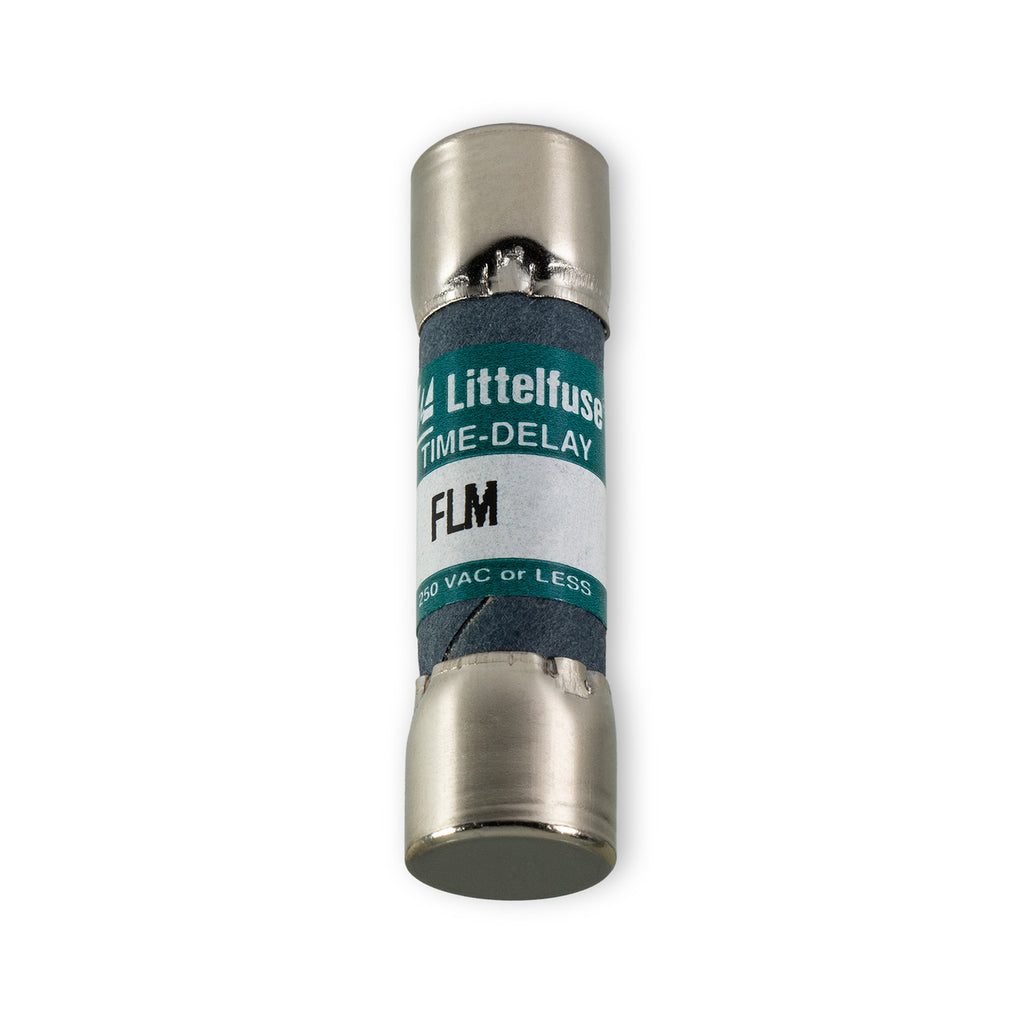

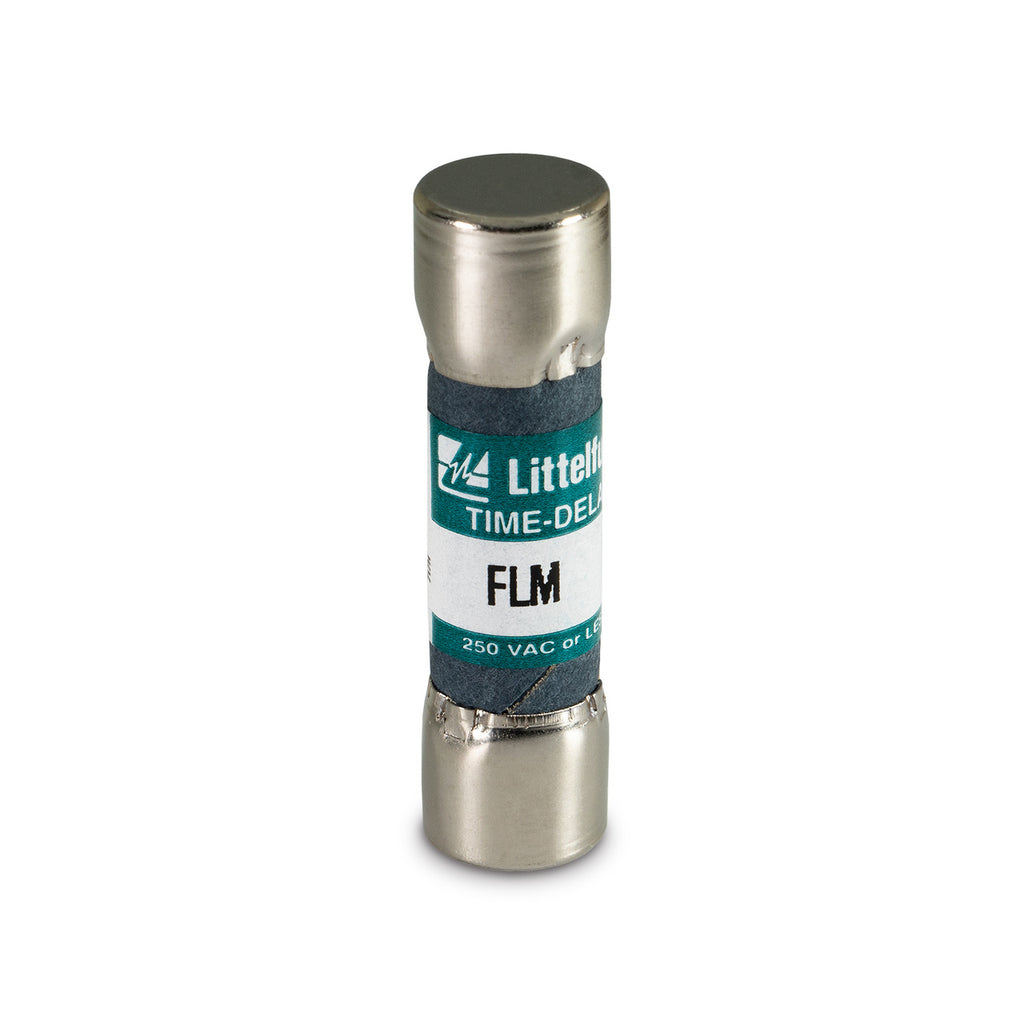

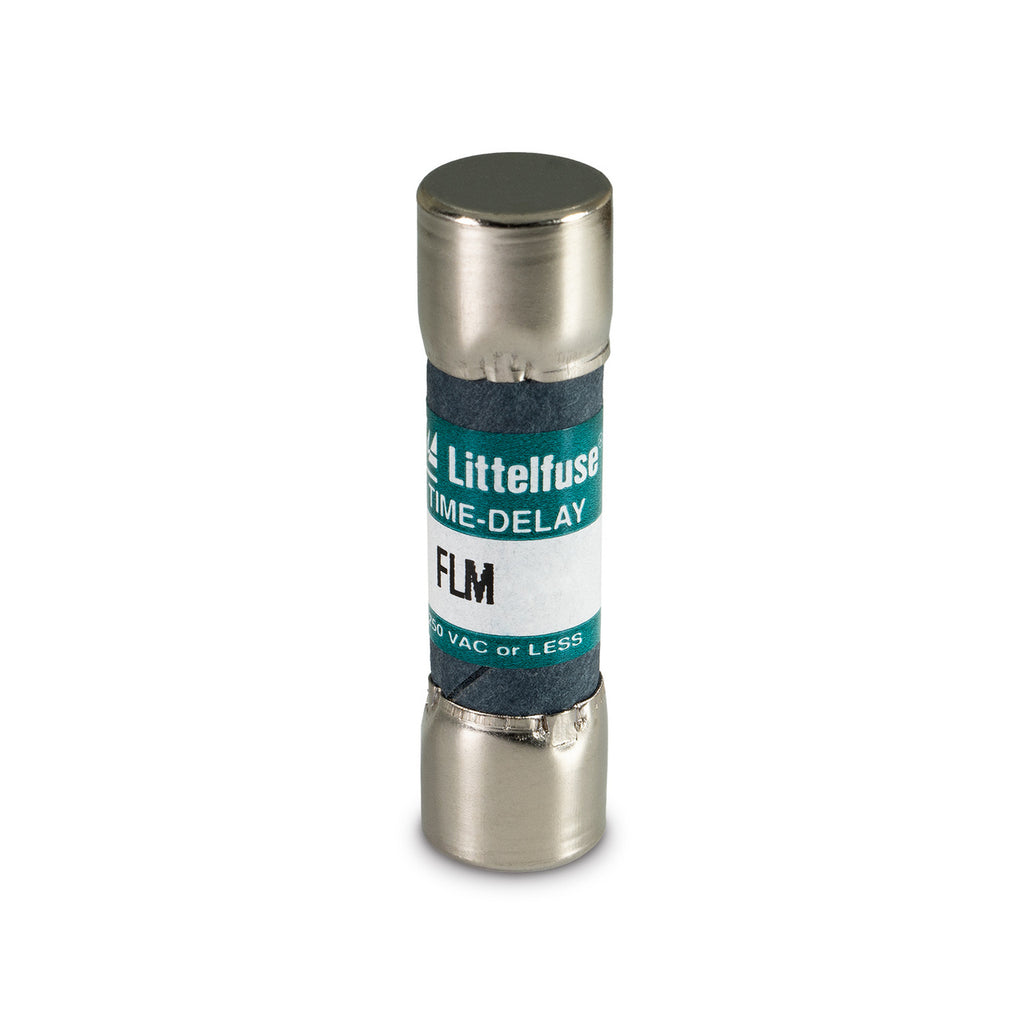

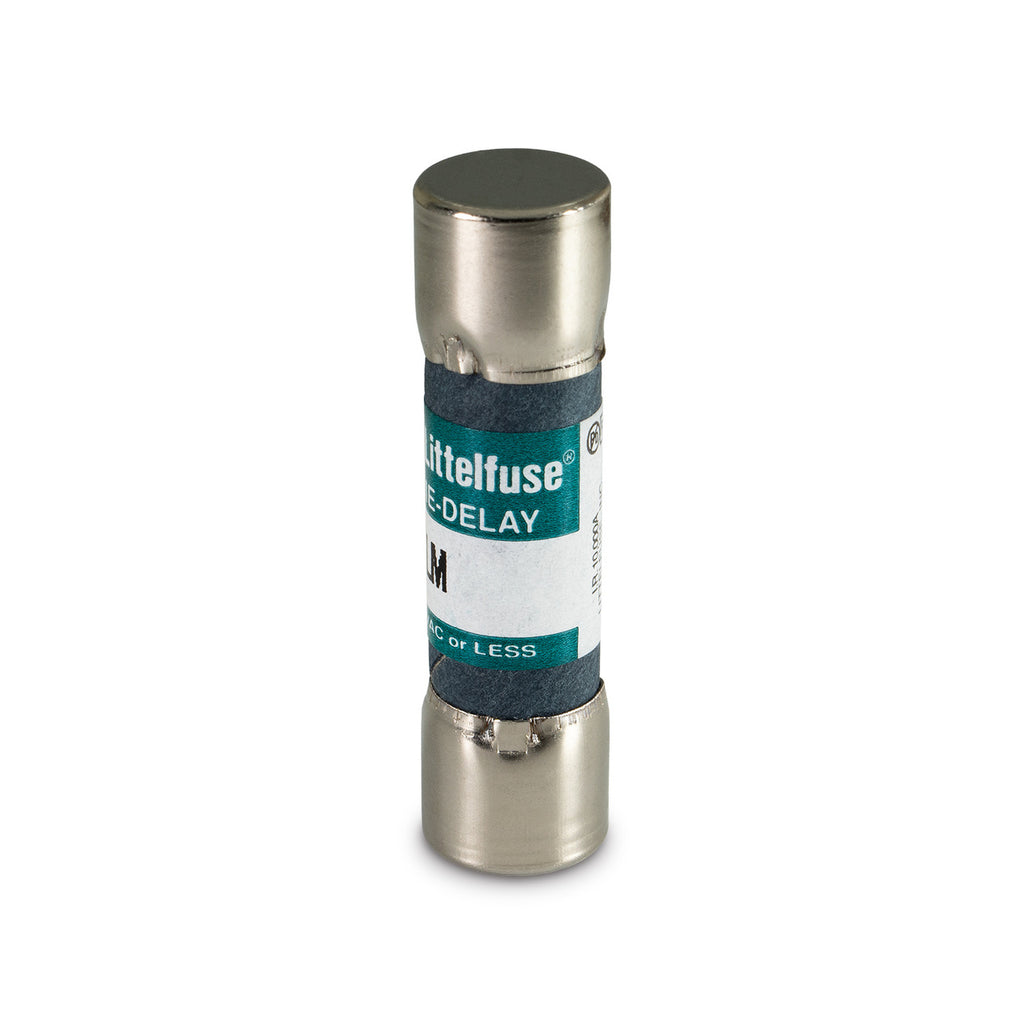

FLM.800 - Littelfuse 0.8 Amp 250 Volt Midget Time Delay Fuse 1.5 Inch 10,000 AIC UL CSA

FLM.800

FLM.800 is a Littelfuse 0.8 amp, 250 volt midget time delay fuse designed for low voltage circuit protection.

This fuse features a dual element Slo-Blo® design for time delay performance, allowing it to withstand temporary overloads without blowing. It has a physical size of approximately 0.41 by 1.5 inches, a 10,000 amp interrupting rating at 250 VAC, and meets UL 248-14, CSA, and QPL certifications. The fuse body is made of paper with nickel plated bronze end caps, suitable for use in supplemental fuse applications.

• Amperage: 0.8 Amp
• Voltage Rating: 250 VAC / 125 VDC
• Fuse Type: Midget, Time Delay, Dual Element (Slo-Blo®)
• Interrupting Rating: 10,000 Amps at 250 VAC
• Physical Size: 0.41" x 1.5" (10.31 mm x 38.1 mm)
• Standards: UL 248-14, CSA Certified, QPL Approved
• Material: Paper body, nickel plated bronze end caps
• Opening Time: Max 1 hour at 135% rated current, Min 5 seconds at 200% rated current

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLM.800
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLM Series - Time-Delay 250 V Midget Fuses
• Type : FLM Series - Time-Delay 250 V Midget Fuses
• Voltage : 250
• Amperage : 0.8
• AIC rating : 10kA
• Connection : Ferrule Non-Rejection
• Diameter : 0.41
• Class Rating : Midget
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 079458000856
• GTIN : 00079458000856
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 7.2
• Certification : UL Listed, CSA Certified, QPL, RoHS
