Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
FLM-6.25

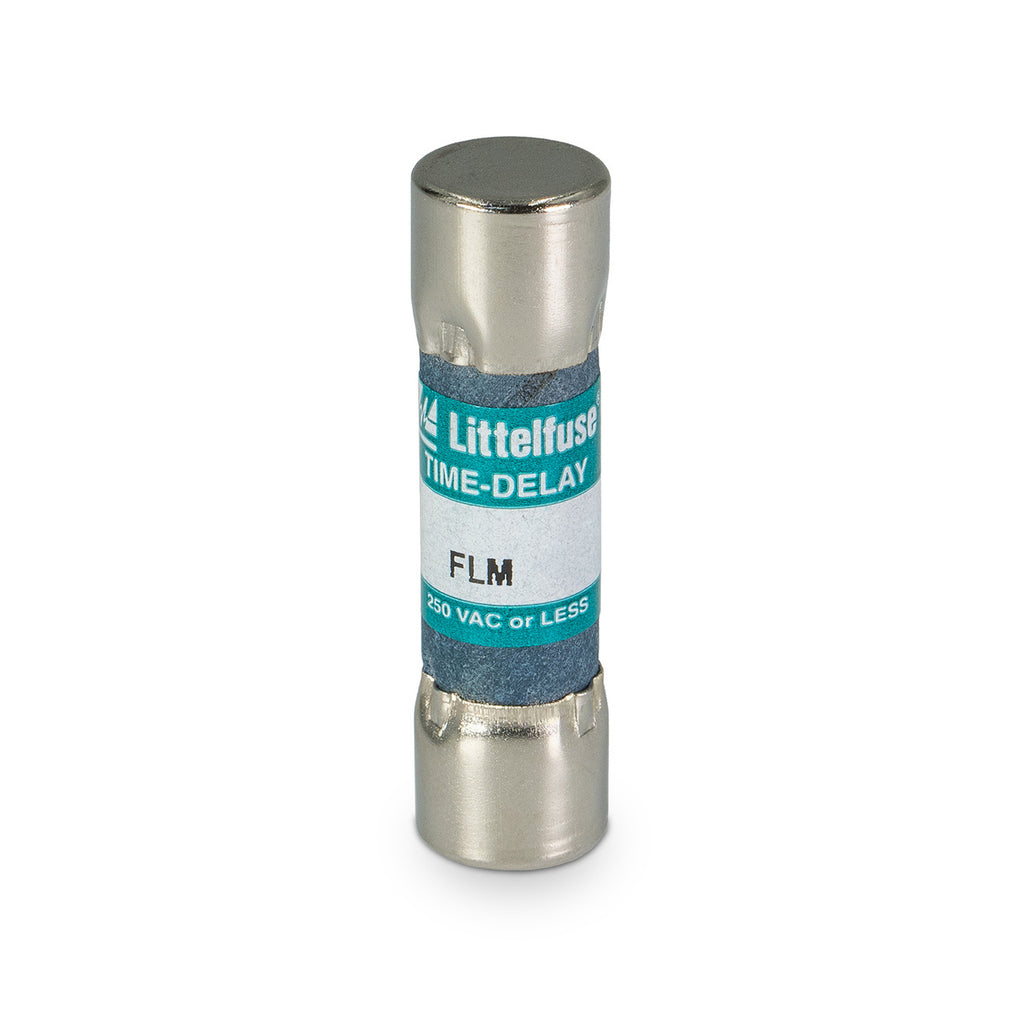

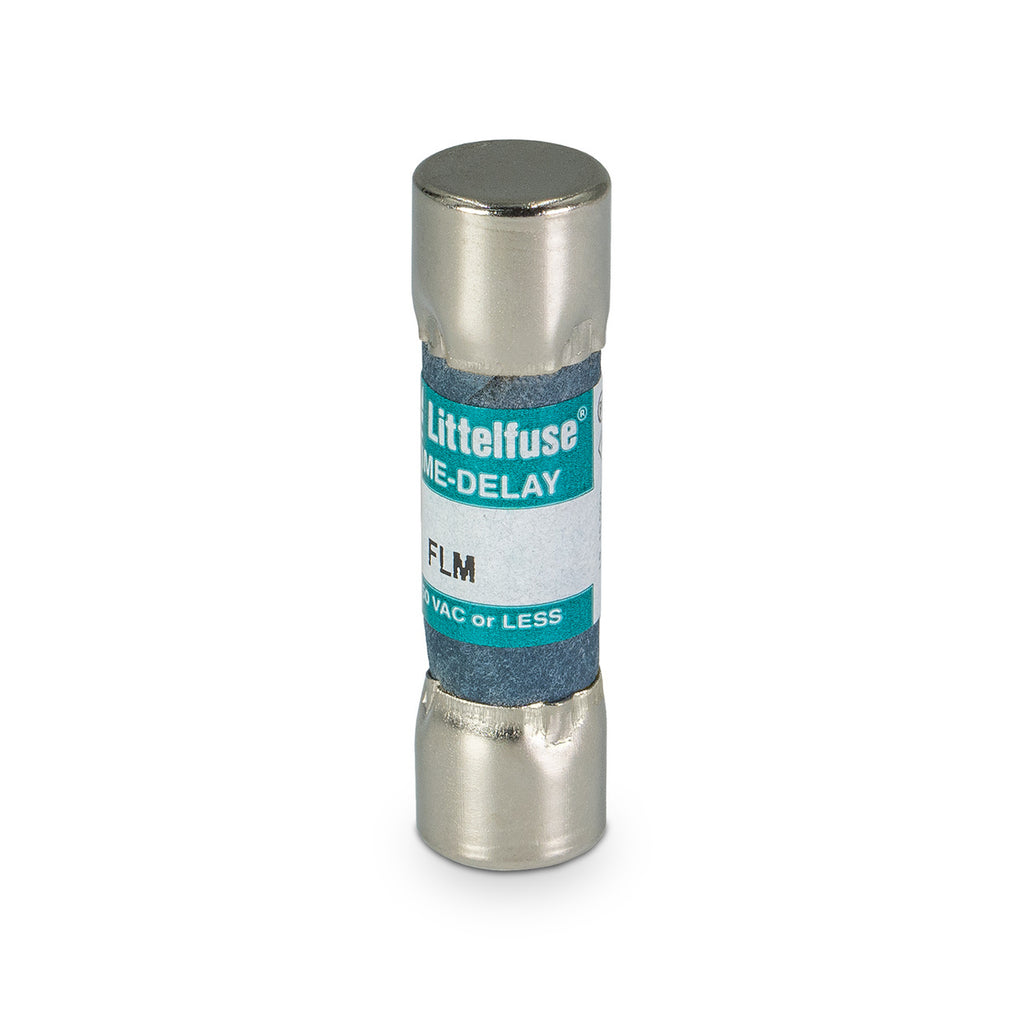

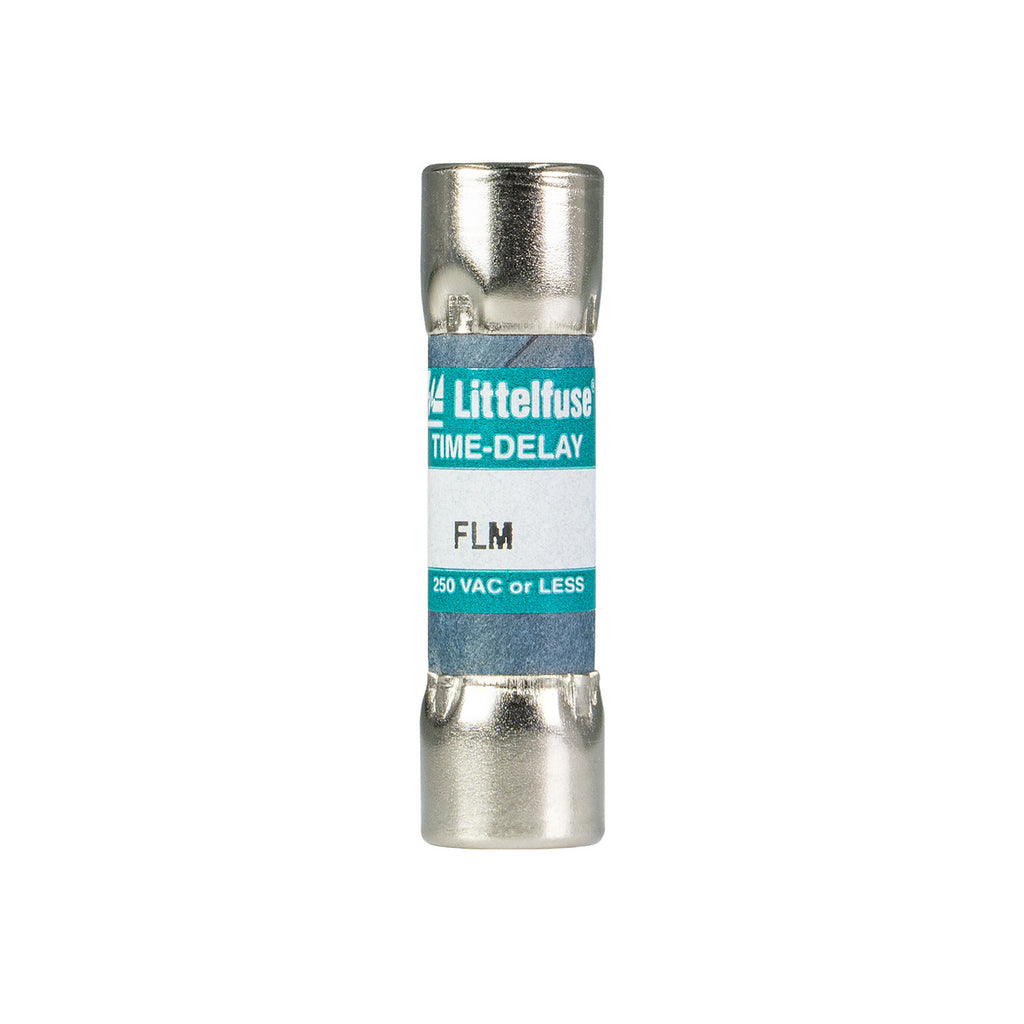

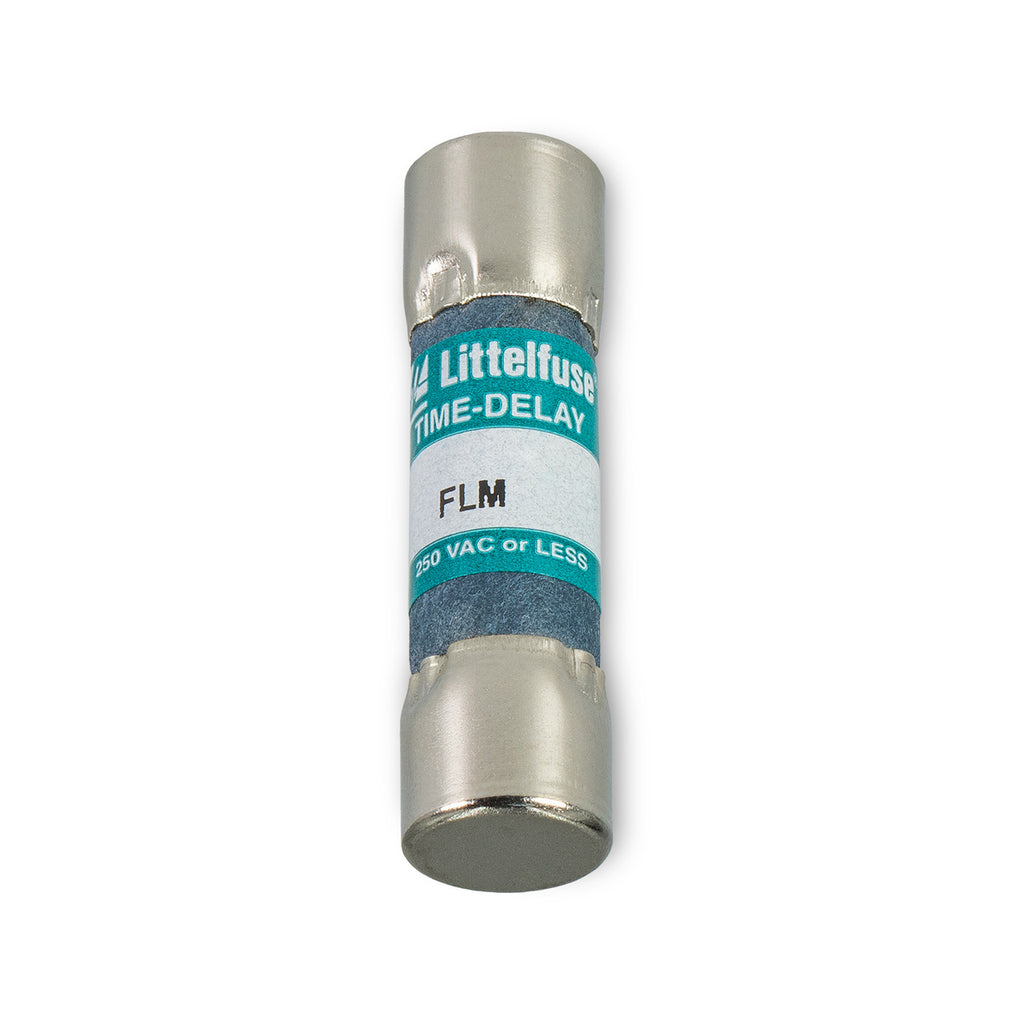

FLM-6.25 is a Littelfuse 6.25 amp, 250 volt AC time delay midget fuse designed for supplemental circuit protection.This FLM series fuse features a 5AG (Midget) size with a 10,000 amp interrupt rating at 250 VAC and 125 VDC. It is a time-delay (slow blow) fuse suitable for protecting control circuit transformers, solenoids, and circuits with high inrush currents. The fuse body is paper with a nickel-plated bronze cap, UL listed and CSA certified, and compliant with RoHS and REACH environmental standards.
- Key Specifications
- Amperage: 6.25 A
- Voltage Rating: 250 VAC / 125 VDC
- Interrupt Rating: 10,000 A at 250 VAC
- Fuse Size: 5AG (Midget)
- Speed: Time Delay (Slow Blow)
- Fuse Body Material: Paper
- Cap Material: Nickel Plated Bronze
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Mounting Type: Fuse Block or Inline Fuse Holder Compatible
- Series: FLM Supplemental Fuse
- Part Number: FLM-6.25
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- UPC : 007945814059
- GTIN : 00079458140590
- Weight : 5.19
