Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLM-030

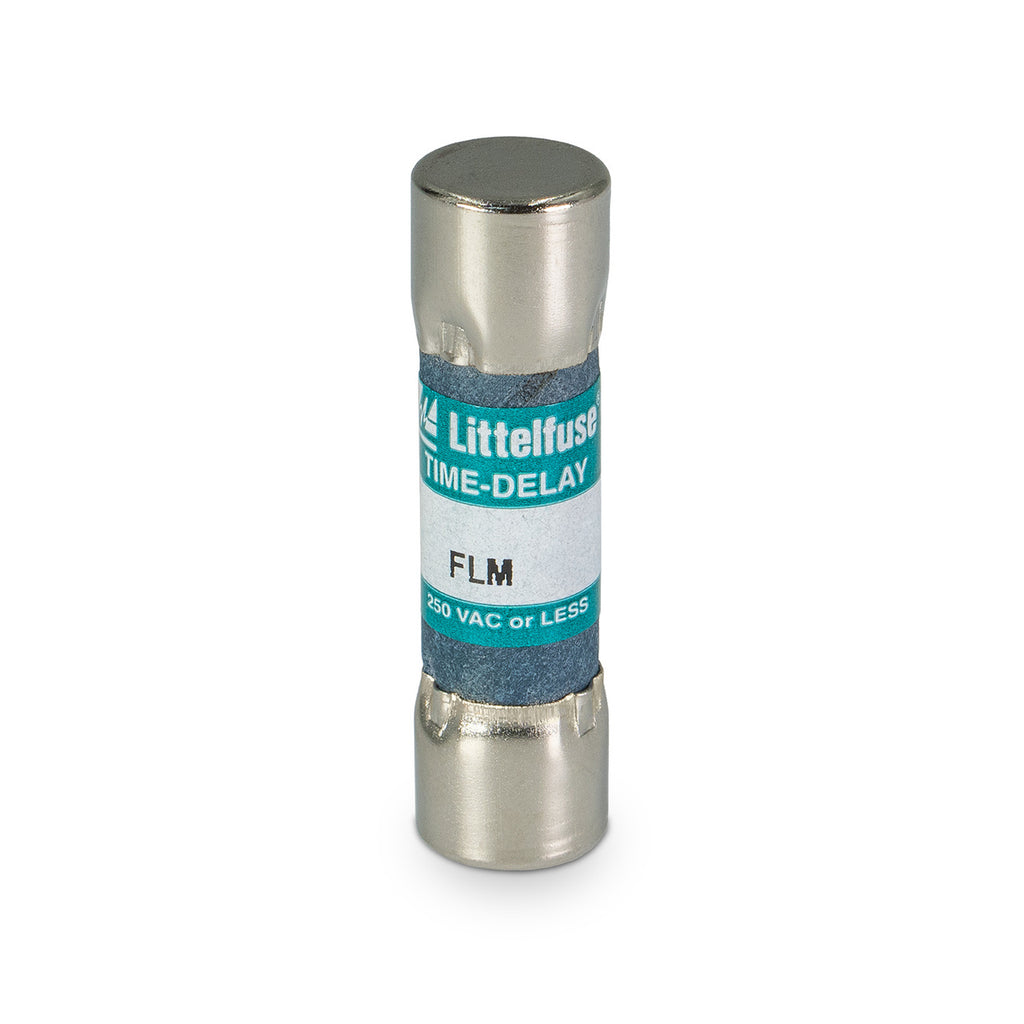

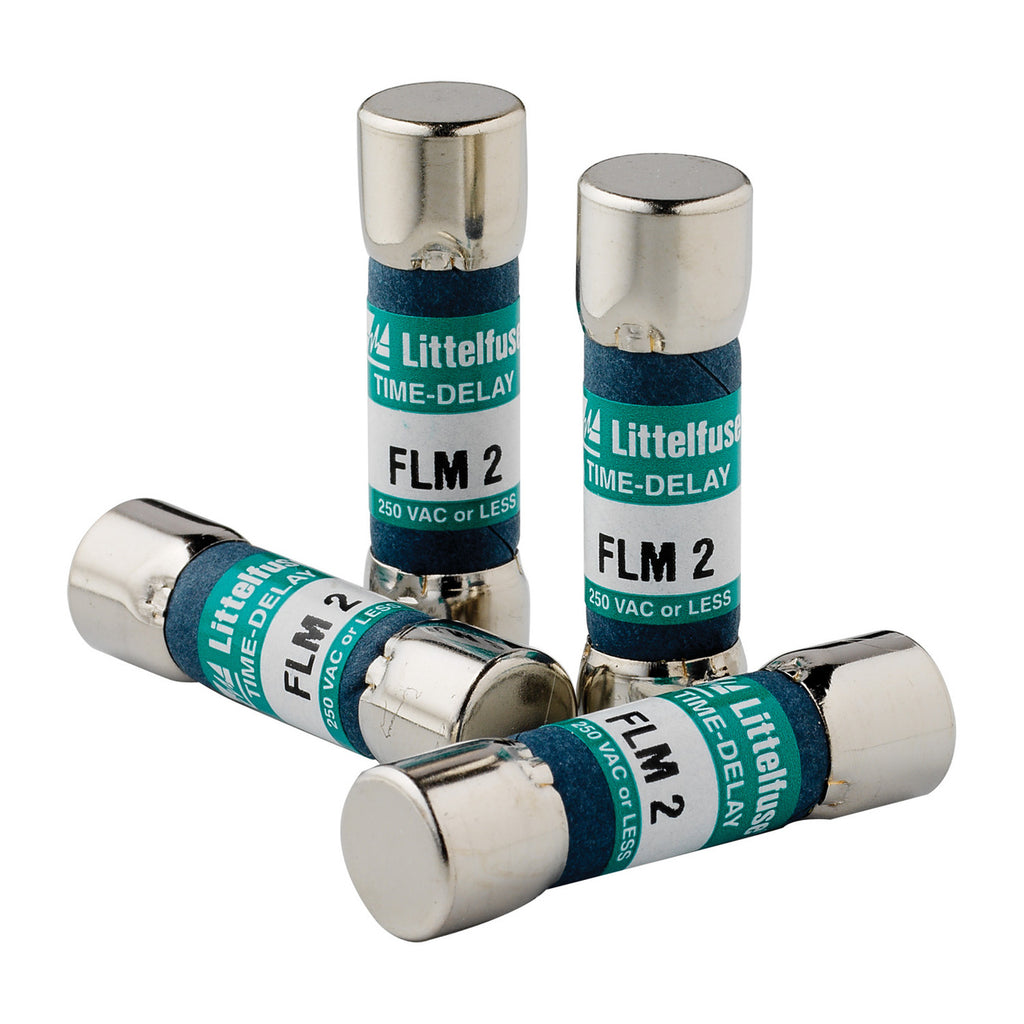

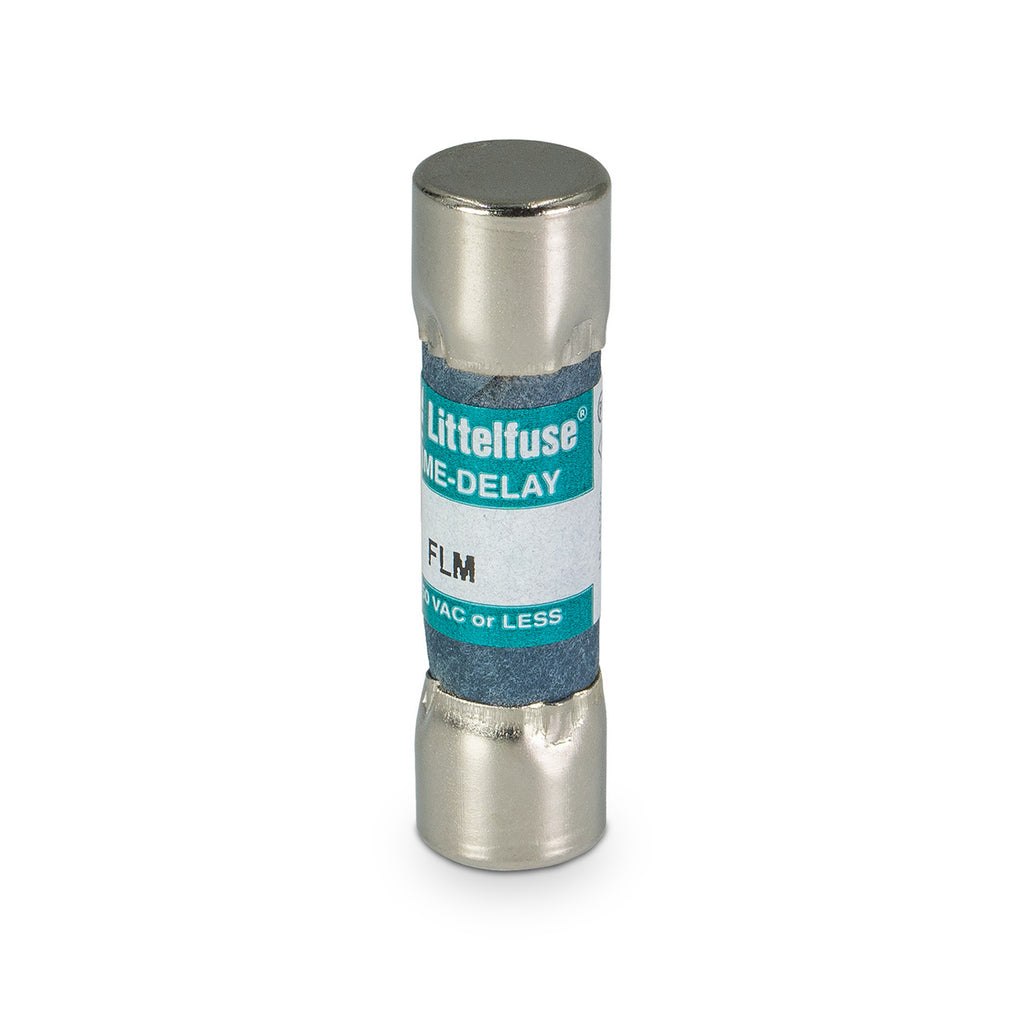

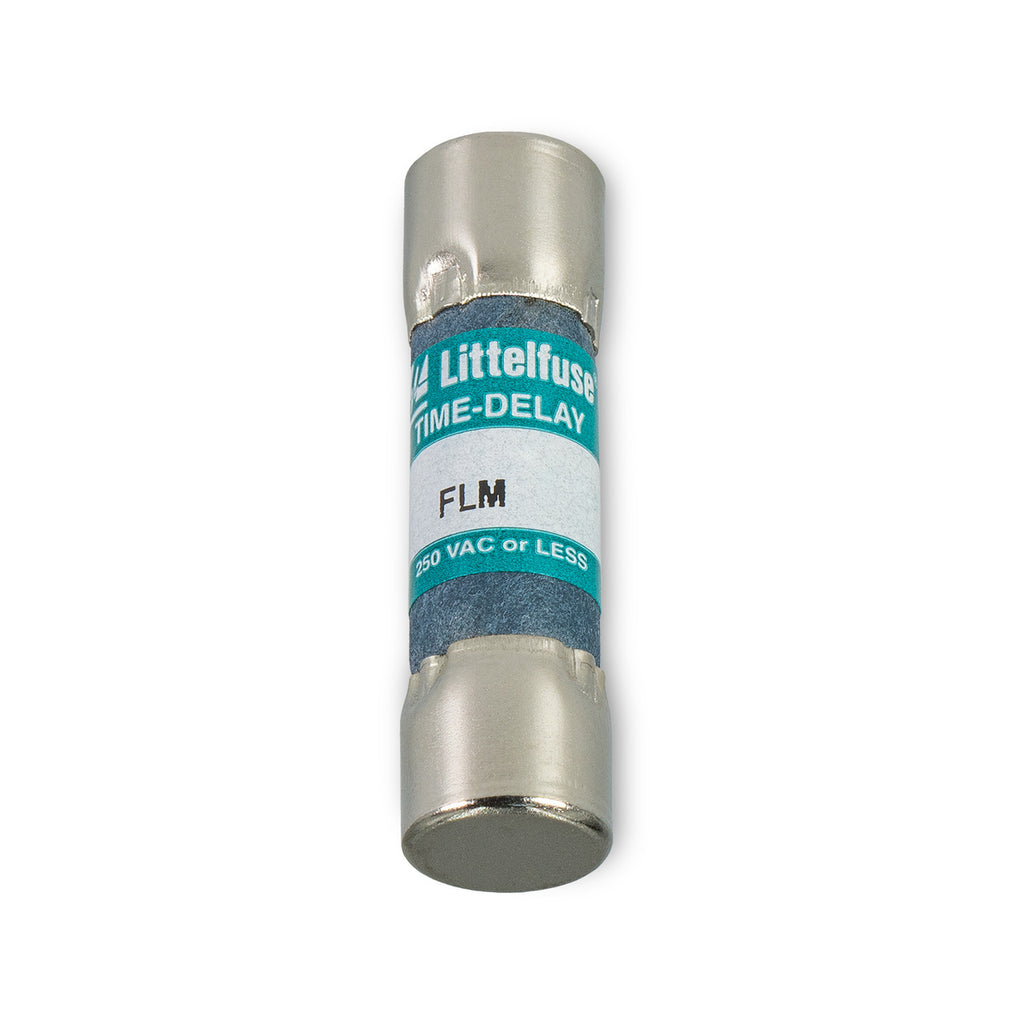

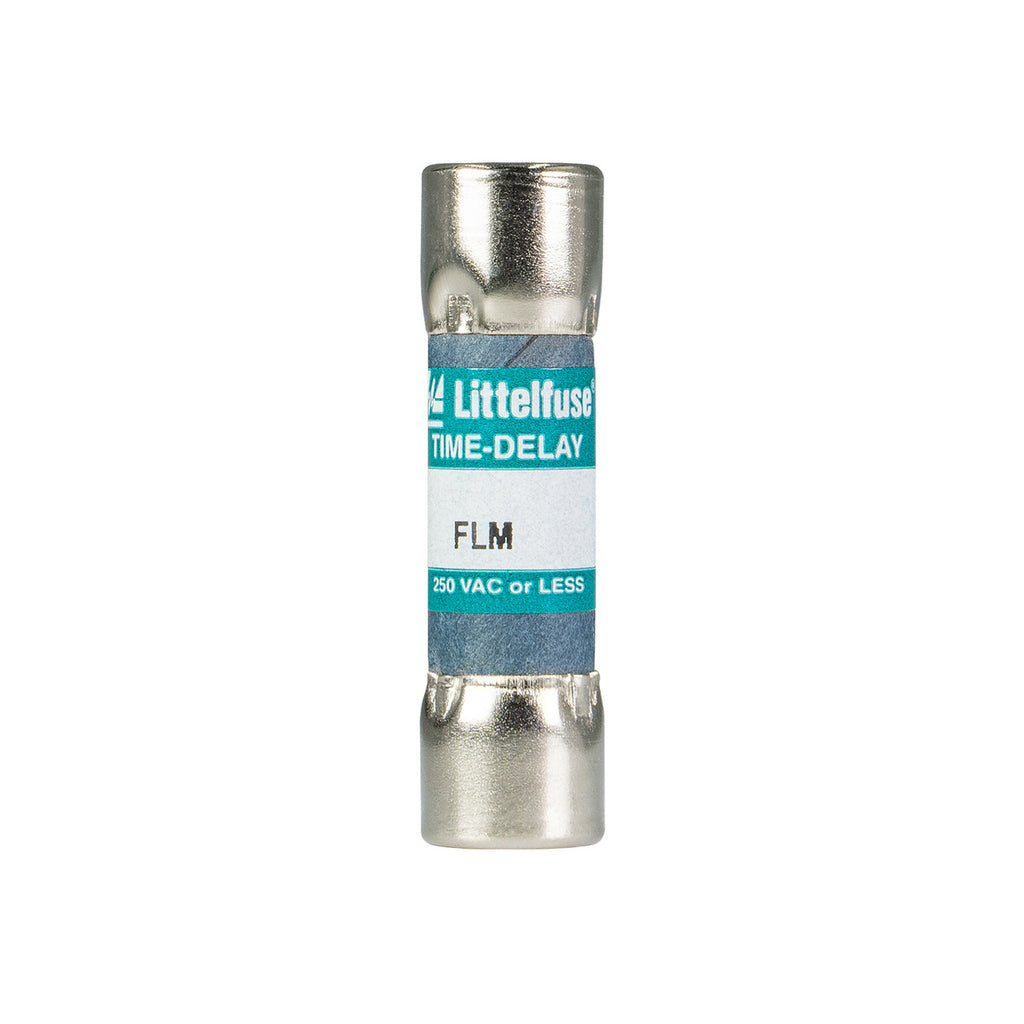

FLM-030 is a Littelfuse 30 Amp, 250 Volt midget time-delay fuse designed for supplemental overcurrent protection.This FLM series fuse features a cylindrical cartridge body with a time-delay characteristic, allowing it to carry temporary overloads without blowing. It is rated for 30 amps and 250 volts AC, with an interrupting rating of 10,000 amps RMS symmetrical. The fuse is non-indicating and mounts in fuse holders or clips compatible with the FLM series. It meets UL 248-14, CSA, and RoHS certifications and is ideal for protecting control circuit transformers, solenoids, and circuits with high inrush currents.
- Amperage: 30 A
- Voltage Rating: 250 V AC, 125 V DC
- Fuse Type: Midget, Cartridge
- Fuse Speed: Time-Delay (Dual Element)
- Interrupting Rating: 10,000 A RMS Symmetrical
- Mounting Type: Holder/Clip
- Body Style: Cylindrical, Paper Body
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Dimensions: 13/32 in Diameter x 1 1/2 in Length
- Non-Indicating
- Series: FLM
Specifications
- Part Number: FLM-030
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
Product Data
- UPC : 079458140736
- GTIN : 00079458140736
- Weight : 25
