Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

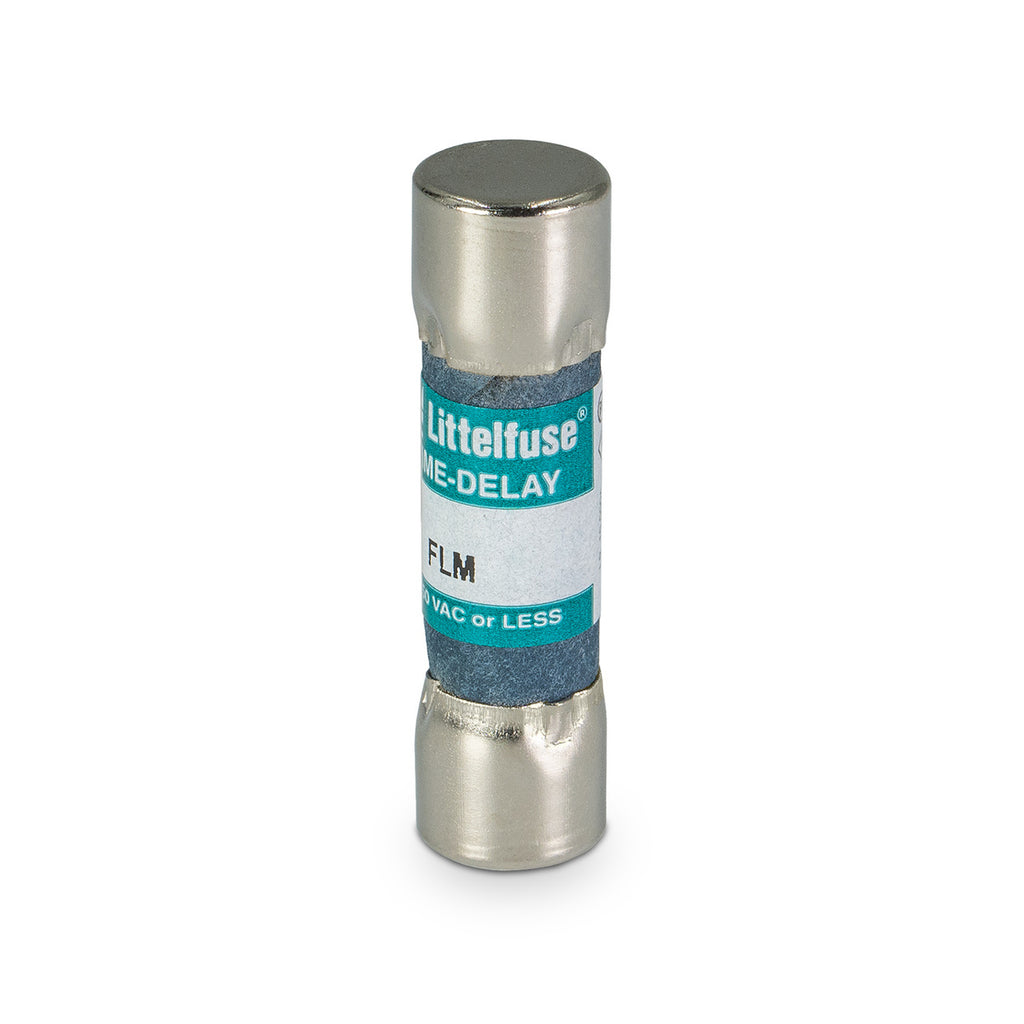

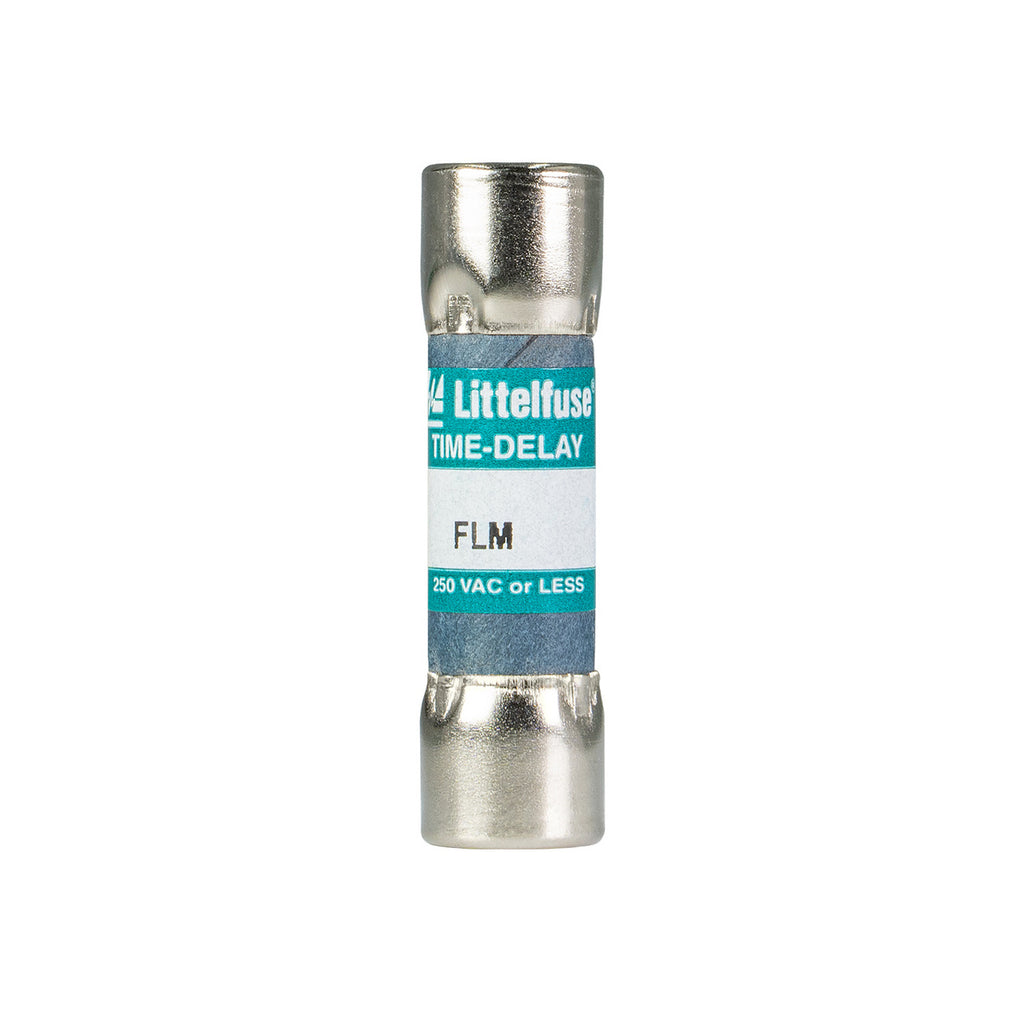

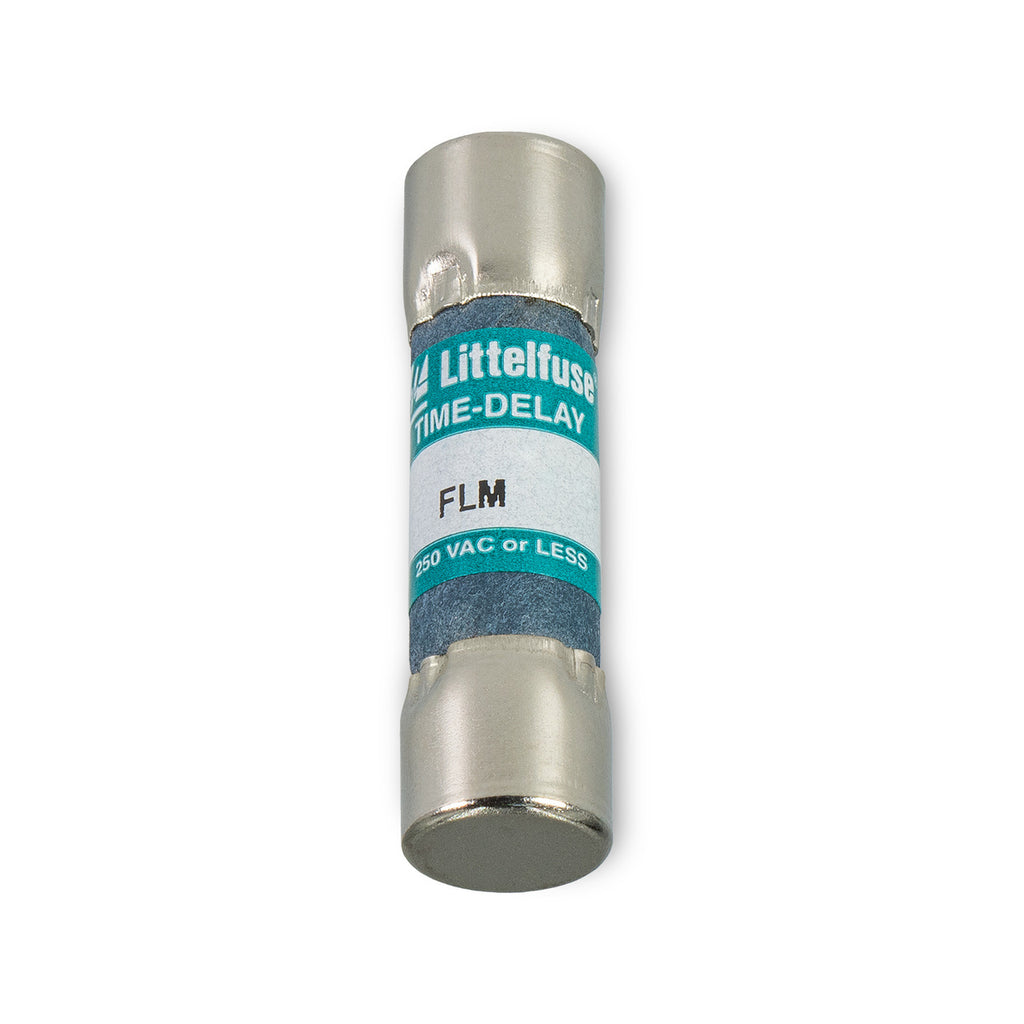

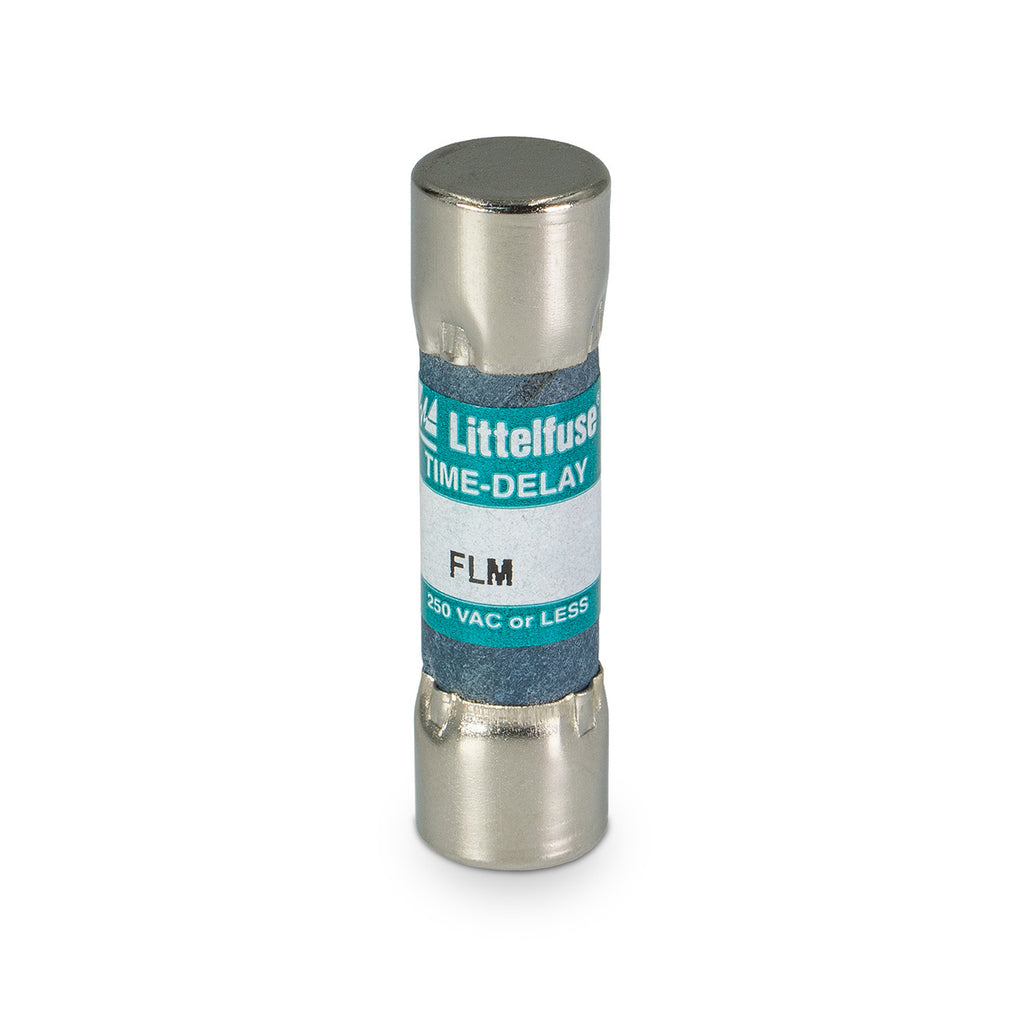

FLM-03.5
FLM-03.5 is a Littelfuse 3.5 amp, 250 volt AC time delay midget fuse designed for reliable circuit protection.This FLM Series fuse features a time delay (slow blow) characteristic suitable for supplemental circuit protection in tight spaces. It has a cylindrical body with dimensions approximately 0.41 inch diameter by 1.5 inch length, rated for 3.5 amps and 250 VAC (125 VDC). The fuse provides a minimum 5-second delay at 200% of rated current for fuses rated 3 A or less, ensuring protection against transient surges. It is a dual-element, 5AG size fuse with fiber material construction and non-indicating type.
- Key Specifications
- Amperage: 3.5 A
- Voltage Rating: 250 VAC, 125 VDC
- Fuse Type: Time Delay (Slow Blow)
- Size: 5AG (Midget)
- Dimensions: 0.41 inch diameter x 1.5 inch length
- Body Type: Cylindrical
- Material: Fiber
- Interrupt Rating: Typical for FLM Series (consult datasheet)
- Indicating: Non-indicating
- Series: FLM
- Certifications: UL Listed (implied for Littelfuse fuses)
Specifications
- Part Number: FLM-03.5
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 079458140514
- GTIN : 079458140514
- Weight : 5.19
