- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLM-025

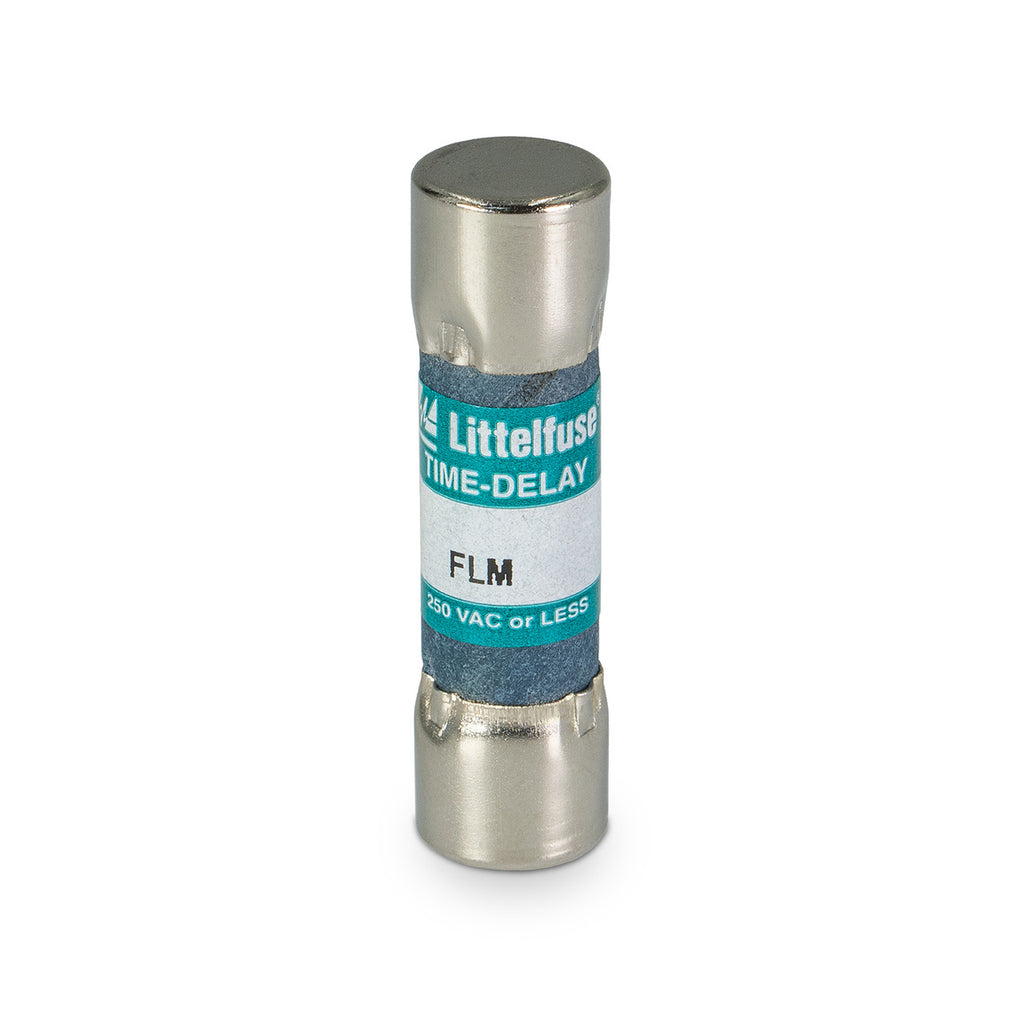

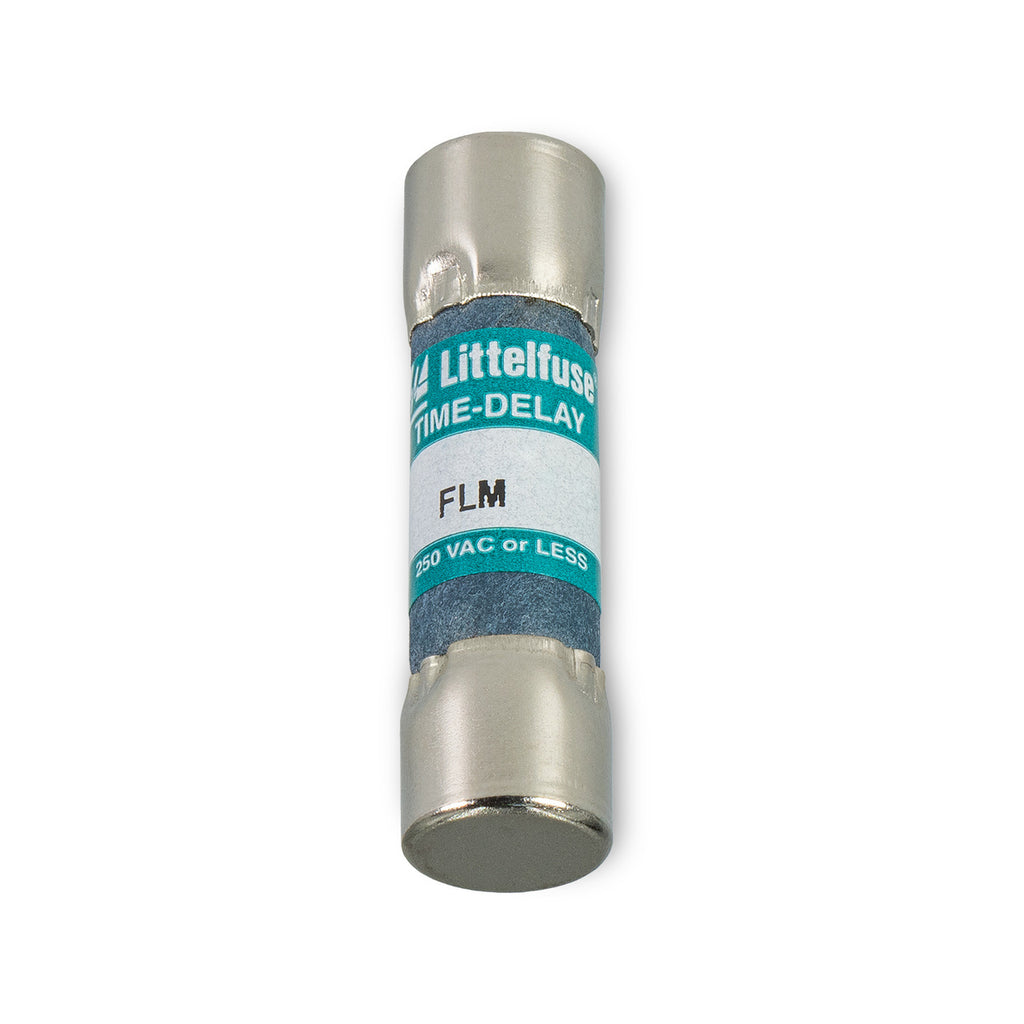

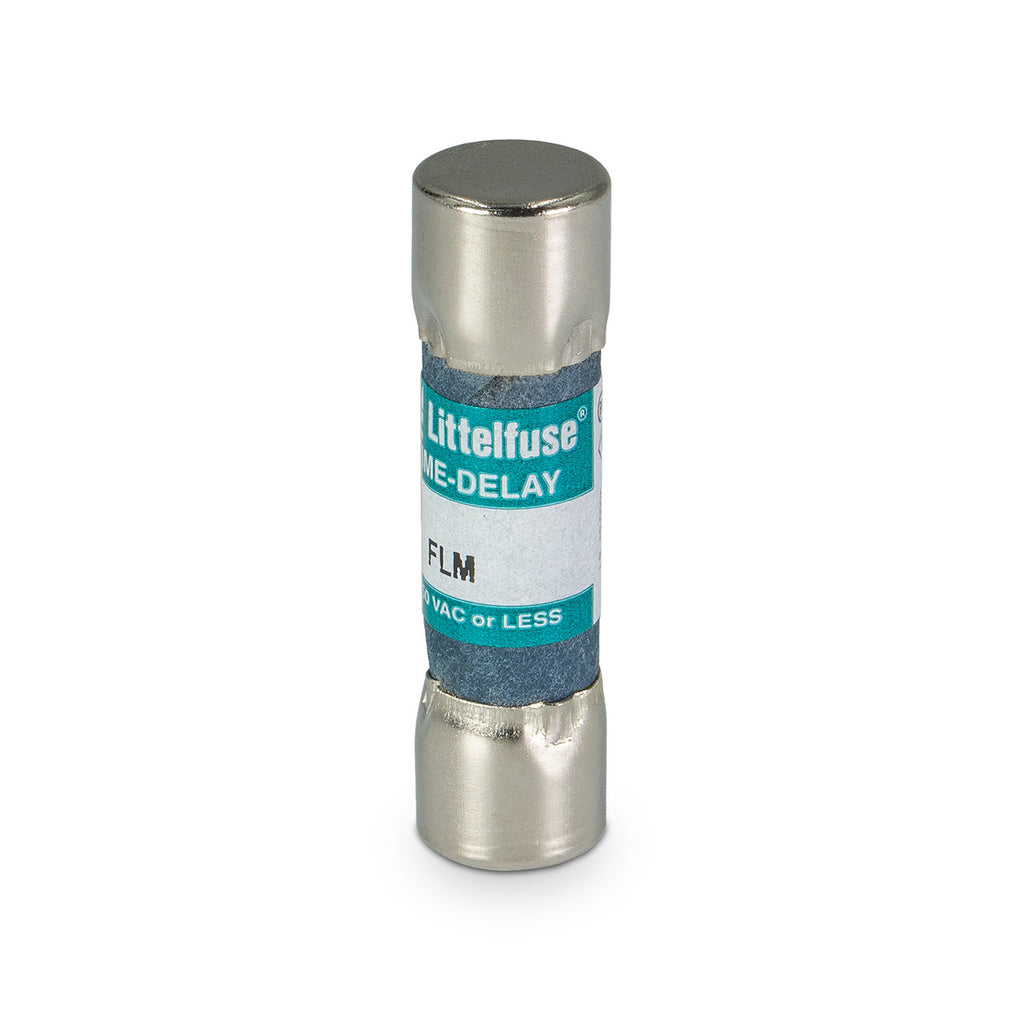

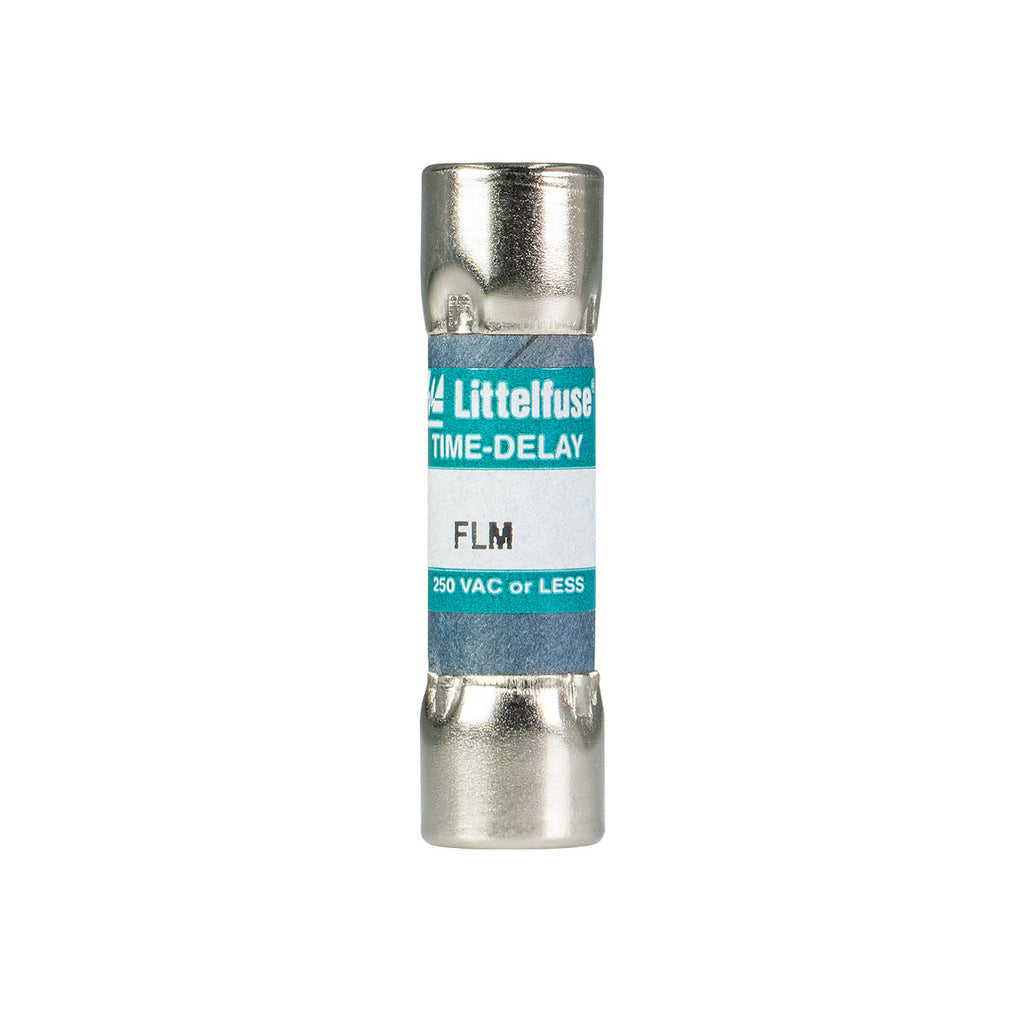

FLM-025 is a Littelfuse 25 amp, 250 volt AC time delay midget fuse designed for supplemental circuit protection.This FLM series fuse features a time delay characteristic suitable for control circuit transformers, solenoids, and other circuits with high inrush currents. It has a 10,000 amp interrupting rating at 250 VAC and 125 VDC, dual element construction, and meets UL 248-14 standards. The fuse body is paper with a nickel-plated bronze cap and is UL and CSA certified. It is compatible with various fuse holders and mounts.
- Key Specifications
- Current Rating: 25 Amps
- Voltage Rating: 250 VAC / 125 VDC
- Interrupting Rating: 10,000 Amps AC/DC
- Fuse Type: Time Delay (Dual Element)
- Physical Size: Midget (5AG size), approx. 13/32 in x 1 1/2 in
- Mounting Type: Supplemental fuse for fuse blocks or holders
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Body Material: Paper
- Cap Material: Nickel Plated Bronze
- Series: FLM
Specifications
- Part Number: FLM-025
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 079458140729
- Weight : 5.19
