Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLM-015

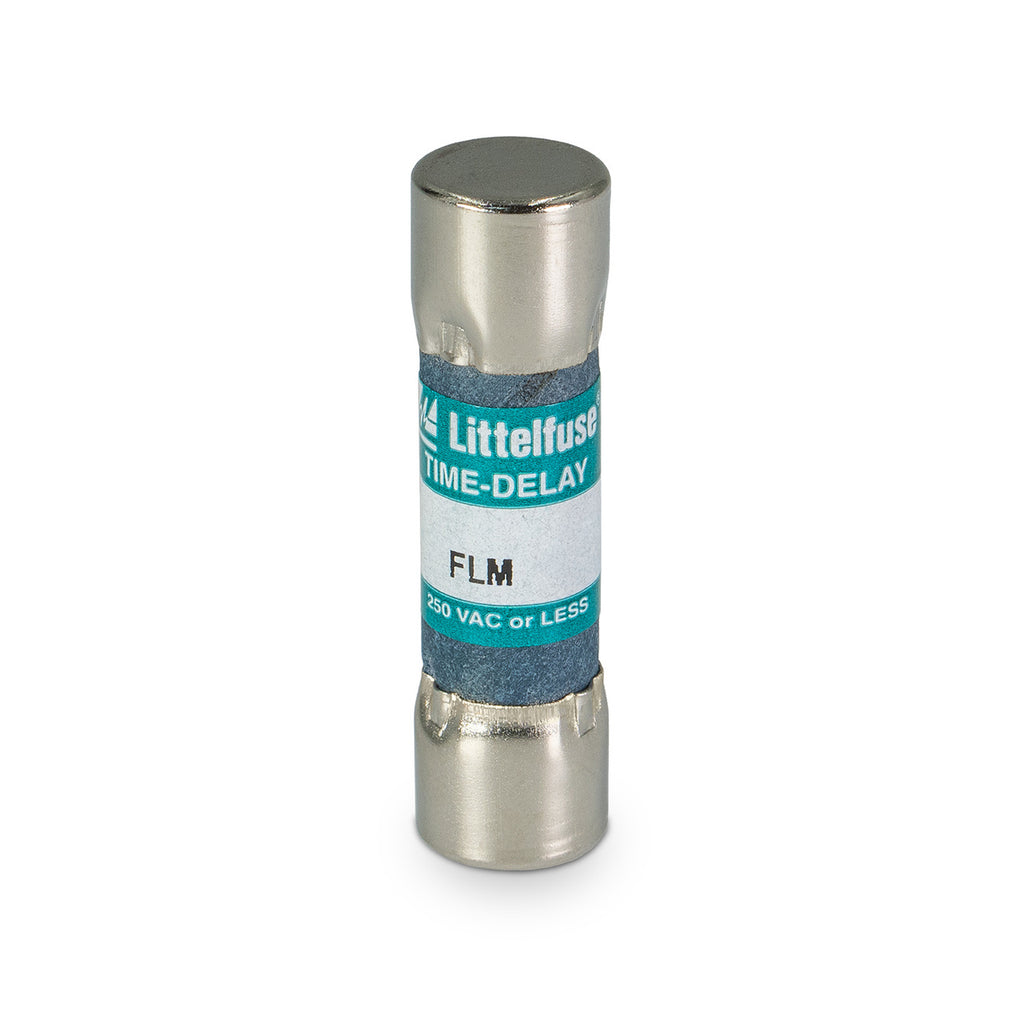

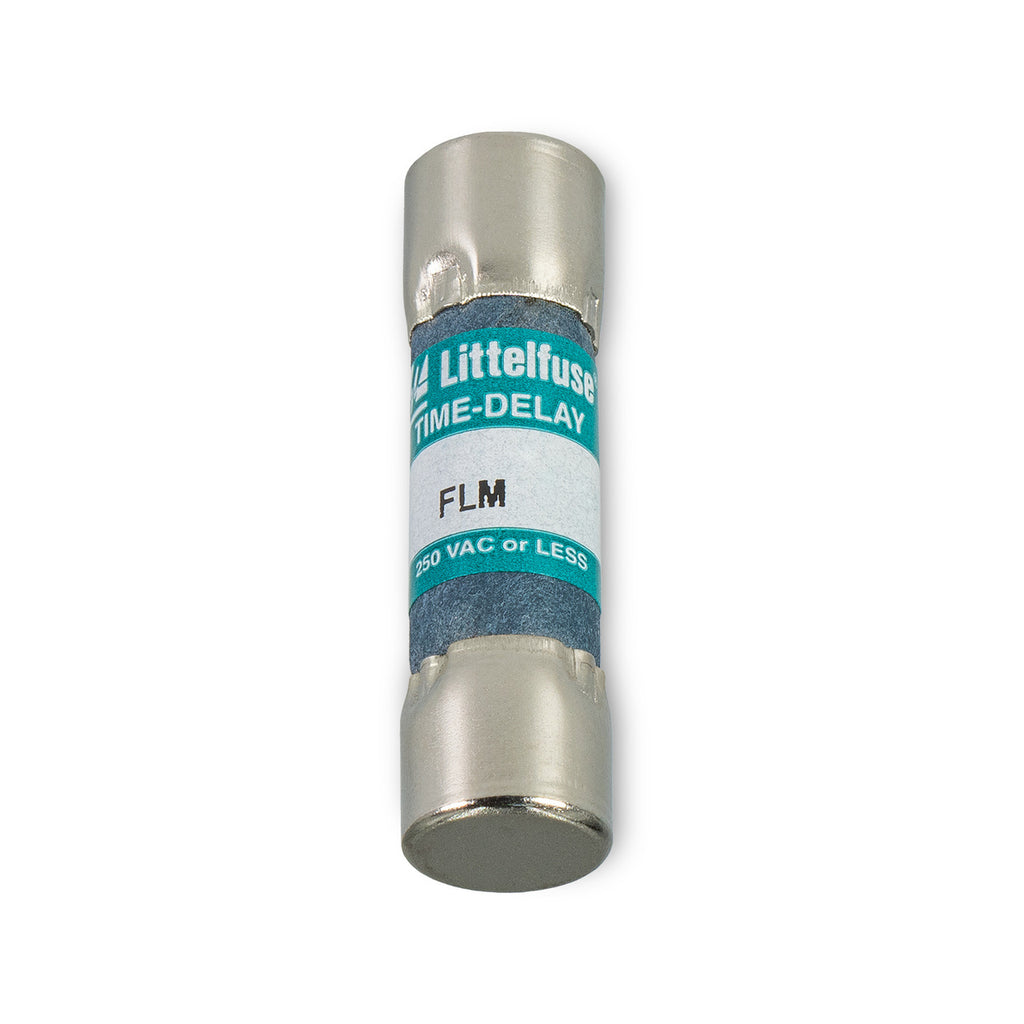

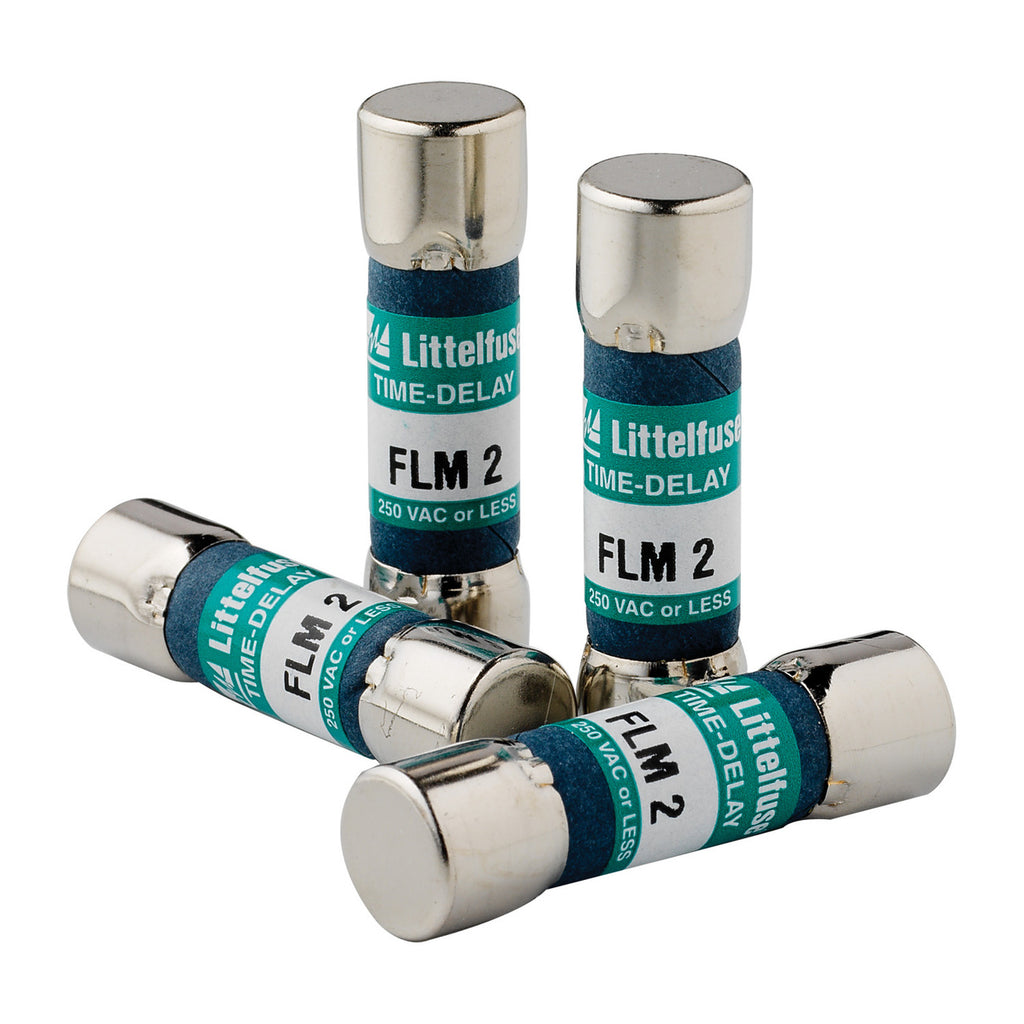

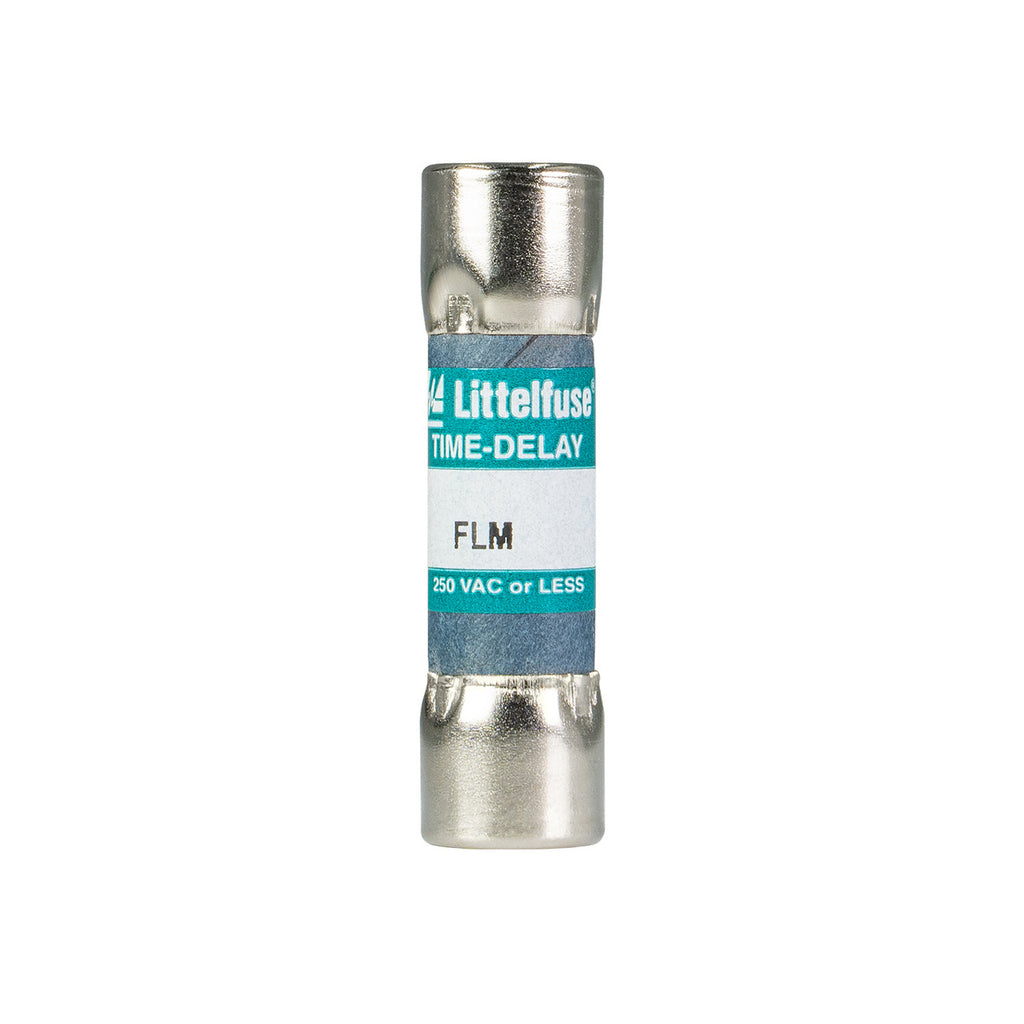

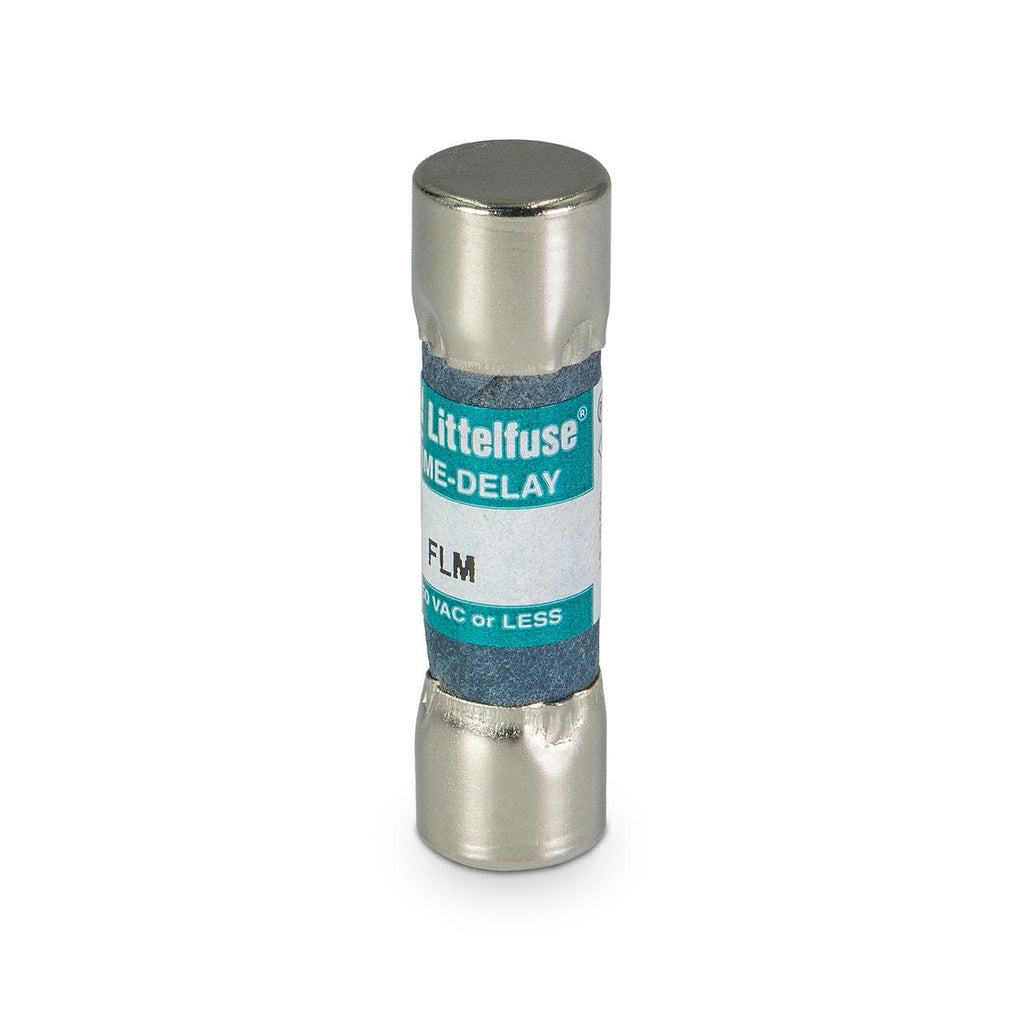

FLM-015 is a Littelfuse 15 Amp, 250 Volt time delay midget fuse designed for supplemental circuit protection.This FLM series fuse features a 1-pole configuration with a 10,000 Amp interrupting rating at 250 VAC. It is suitable for protecting control circuit transformers, solenoids, and other circuits with high inrush currents. The fuse complies with UL 248-14 and CSA certifications and is RoHS and REACH compliant. It has a 5AG (13/32 inch diameter by 1 1/2 inch length) size and is constructed with a paper body and nickel-plated bronze end caps.
- Key Specifications
- Amperage: 15 A
- Voltage Rating: 250 VAC / 125 VDC
- Poles: 1
- Interrupting Rating: 10,000 A at 250 VAC
- Fuse Type: Time Delay Midget (5AG)
- Series: FLM
- Certifications: UL Listed, CSA Certified, QPL Approved
- Mounting Type: Cartridge Fuse
- Dimensions: 13/32 in diameter x 1 1/2 in length
- Material: Paper body, nickel-plated bronze caps
Specifications
- Part Number: FLM-015
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 079458140682
- Weight : 5.19
