Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLM-012

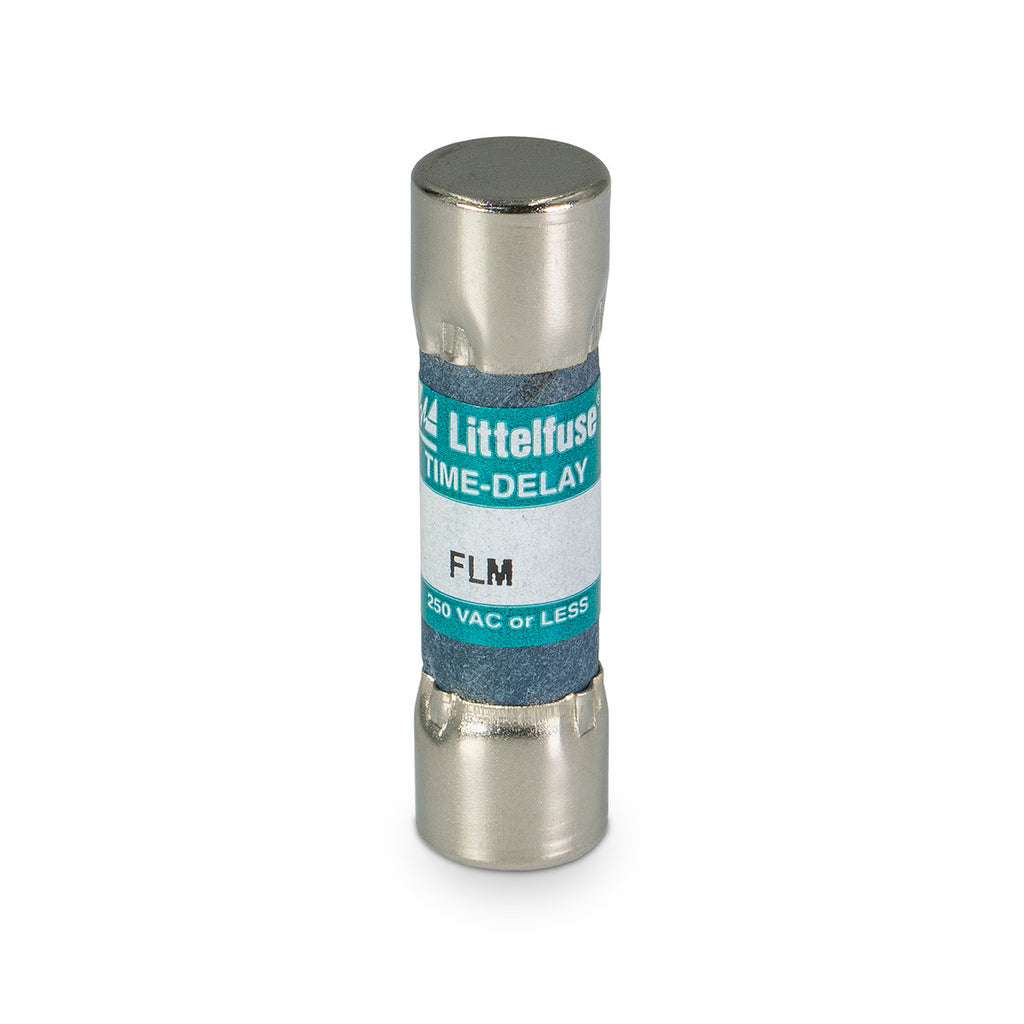

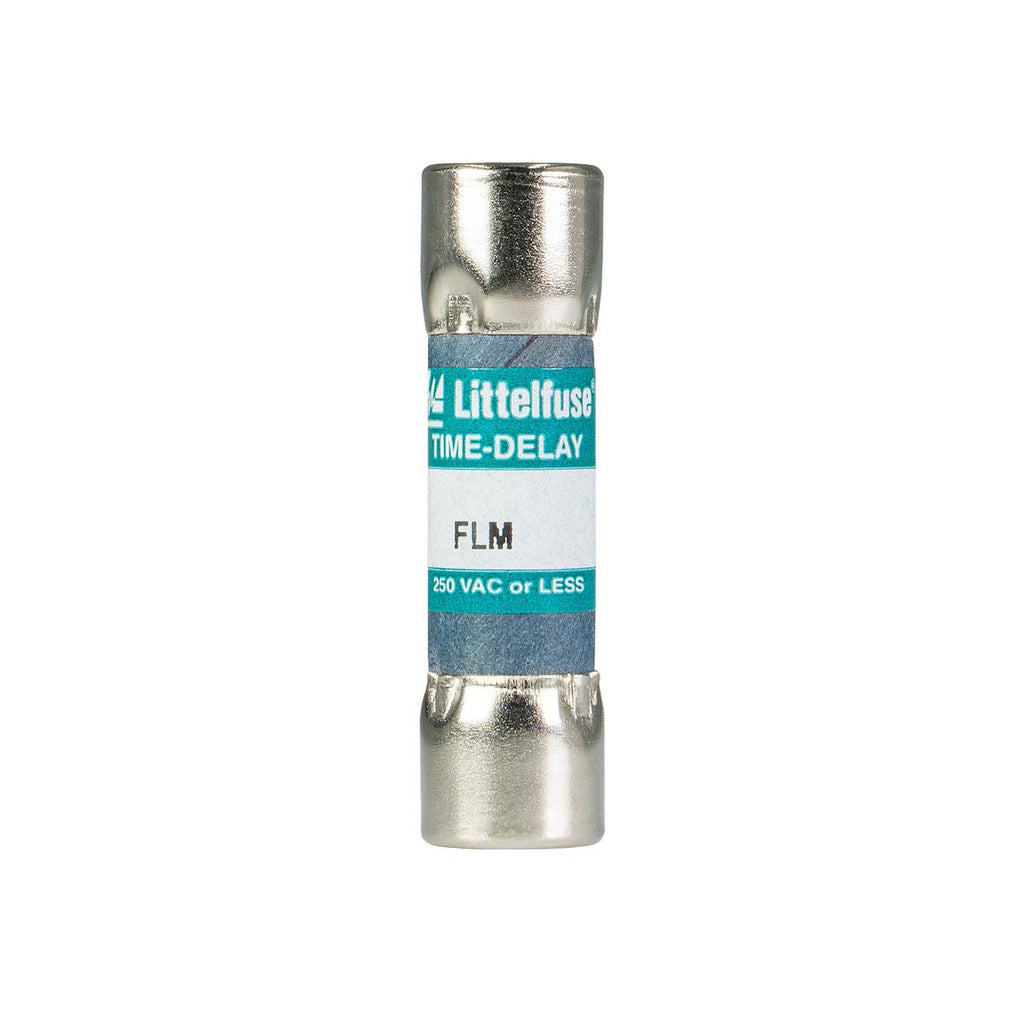

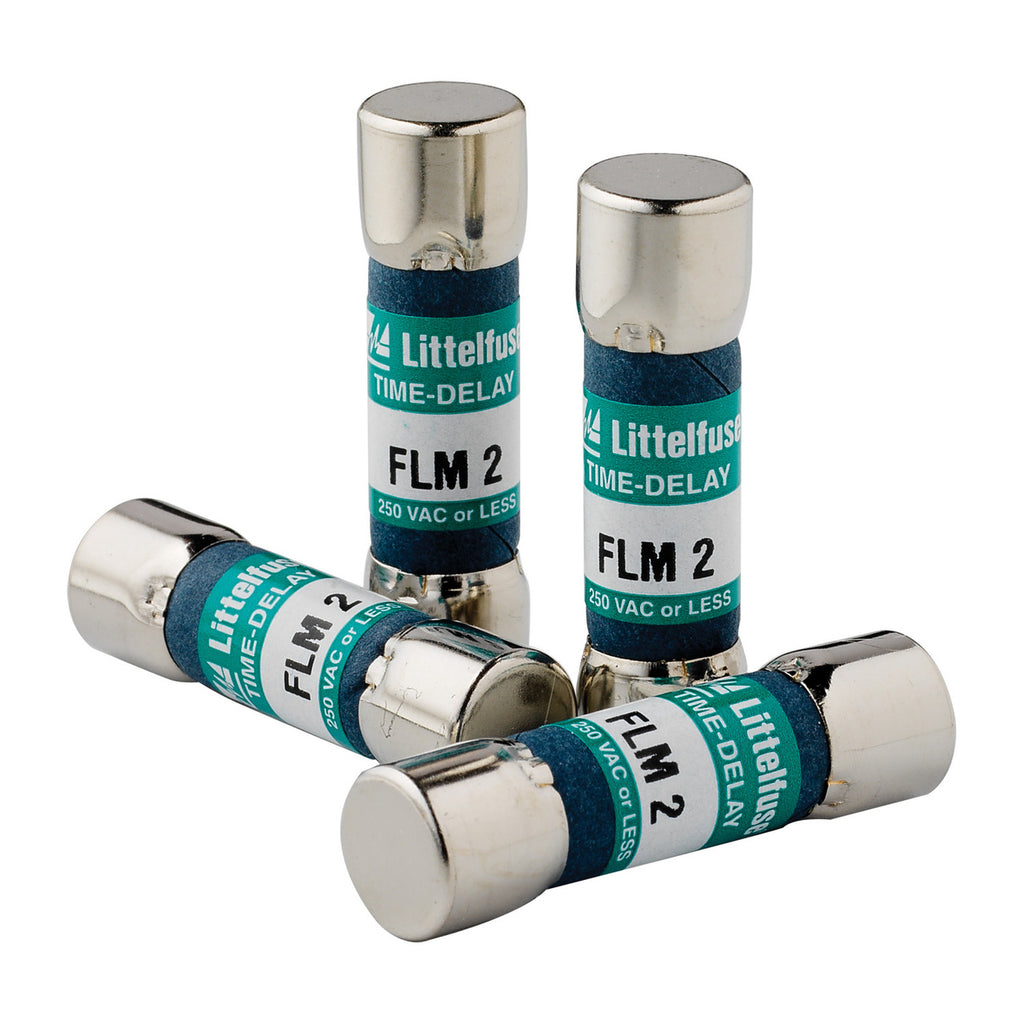

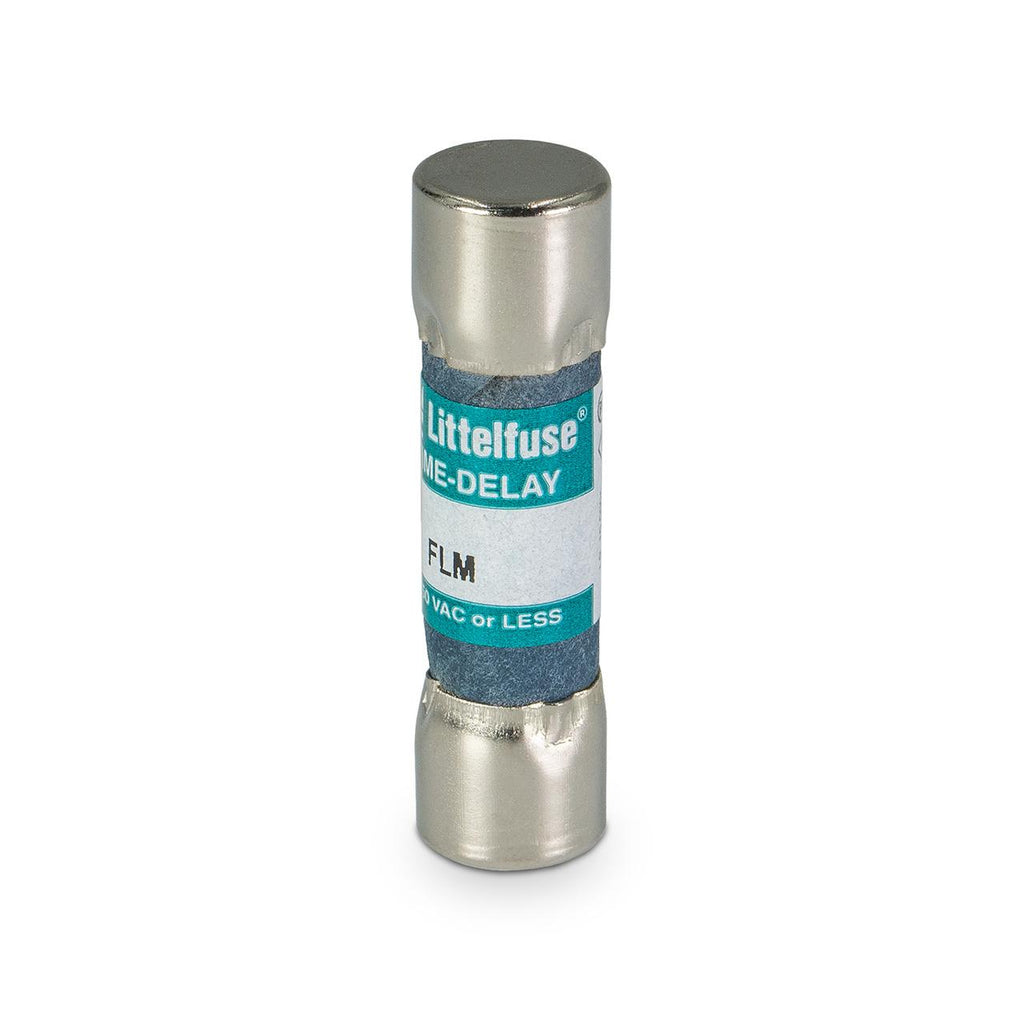

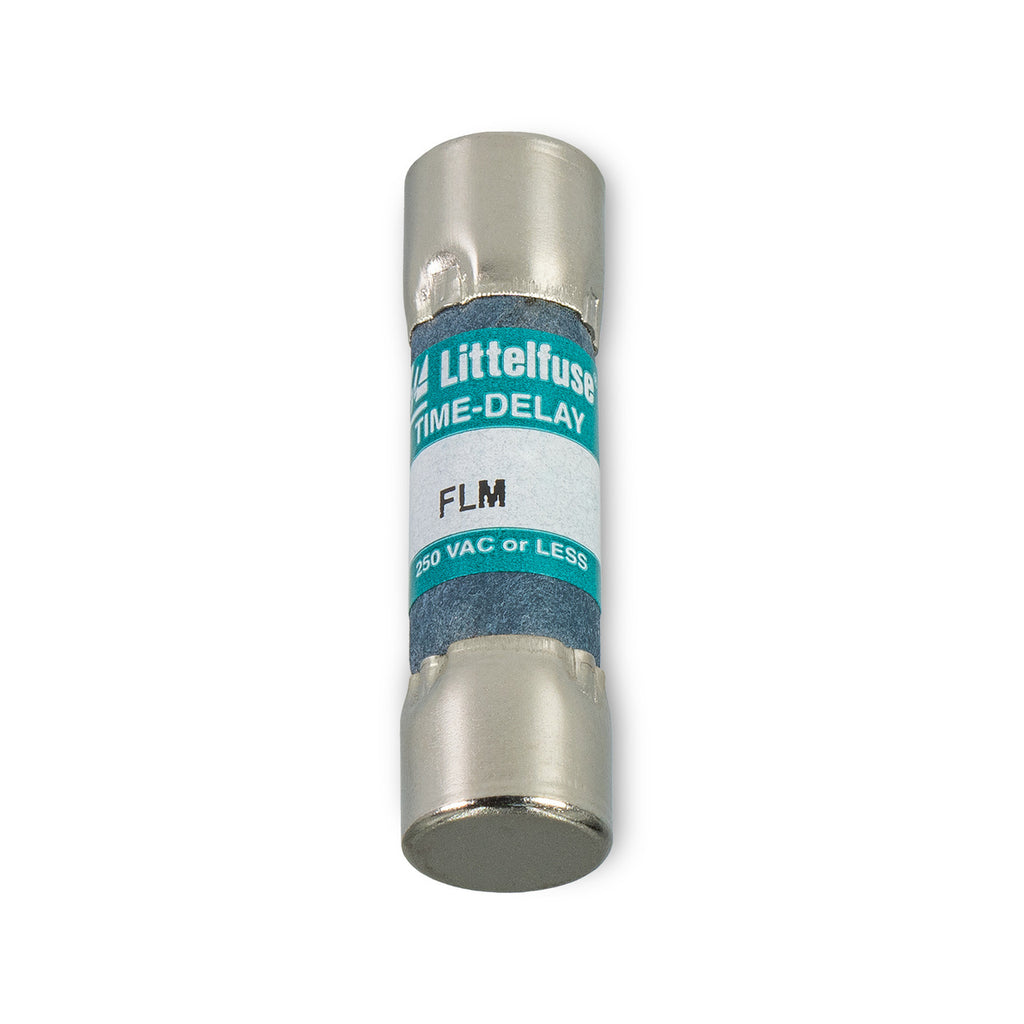

FLM-012 is a Littelfuse 12 Amp, 250 Volt midget time delay fuse designed for supplemental circuit protection.This fuse features a cylindrical body style with a 13/32 inch diameter and 1 1/2 inch length. It has a time-delay (Slo-Blo) characteristic suitable for applications requiring temporary overload tolerance. The FLM-012 has an interrupting rating of 10,000 Amps RMS symmetrical at 250 VAC and is UL 248-14 and CSA certified. It mounts in fuse holders or clips compatible with 5AG size fuses.
- Key Specifications
- Amperage: 12 Amps
- Voltage Rating: 250 VAC / 125 VDC
- Fuse Type: Midget (Class 5AG)
- Fuse Speed: Time Delay (Slo-Blo)
- Interrupting Rating: 10,000 Amps RMS Symmetrical
- Body Style: Cylindrical, 13/32 inch diameter x 1 1/2 inch length
- Mounting Type: Holder/Clip
- Certifications: UL Listed (UL 248-14), CSA Certified, QPL Approved
- Material: Paper body with nickel plated bronze caps
- Series: FLM
- Part Number: FLM-012
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- UPC : 079458140668
- GTIN : 079458140668
- Weight : 5.19
