Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLM-005

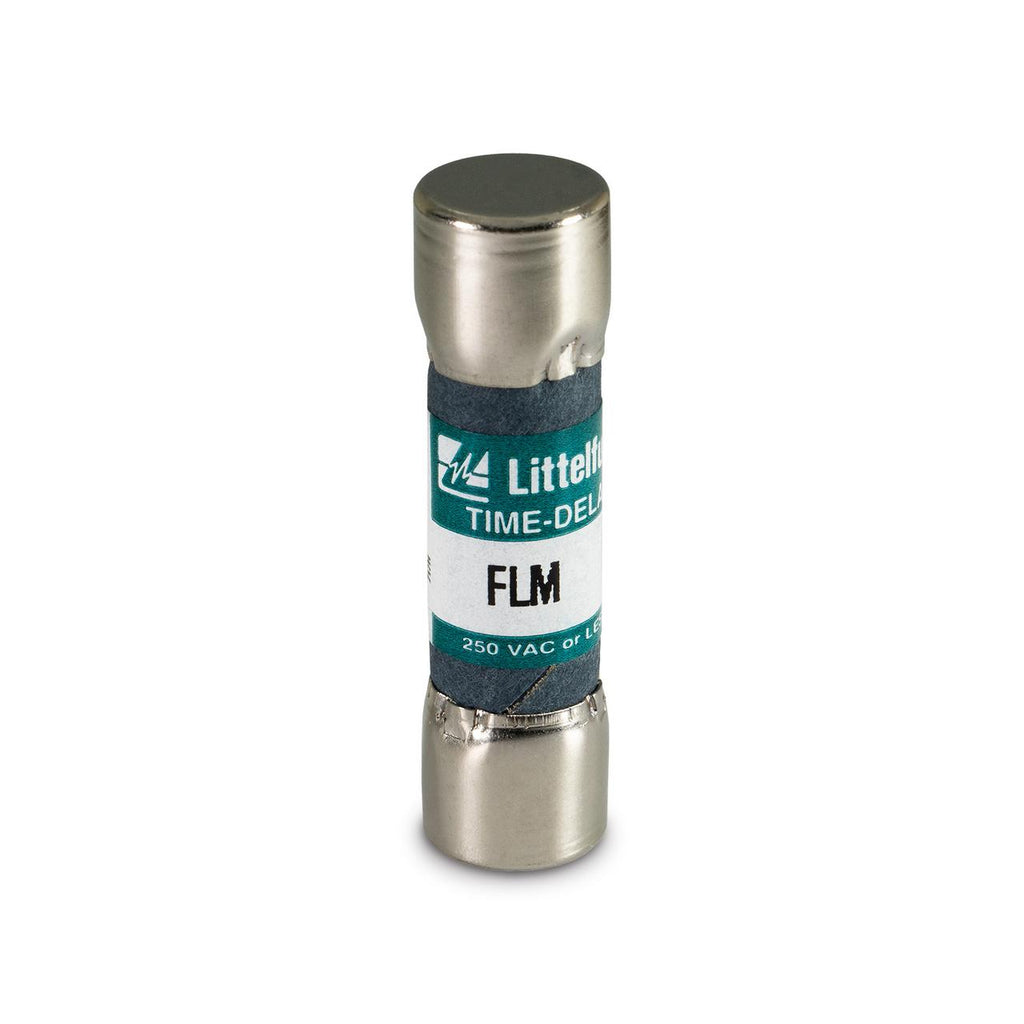

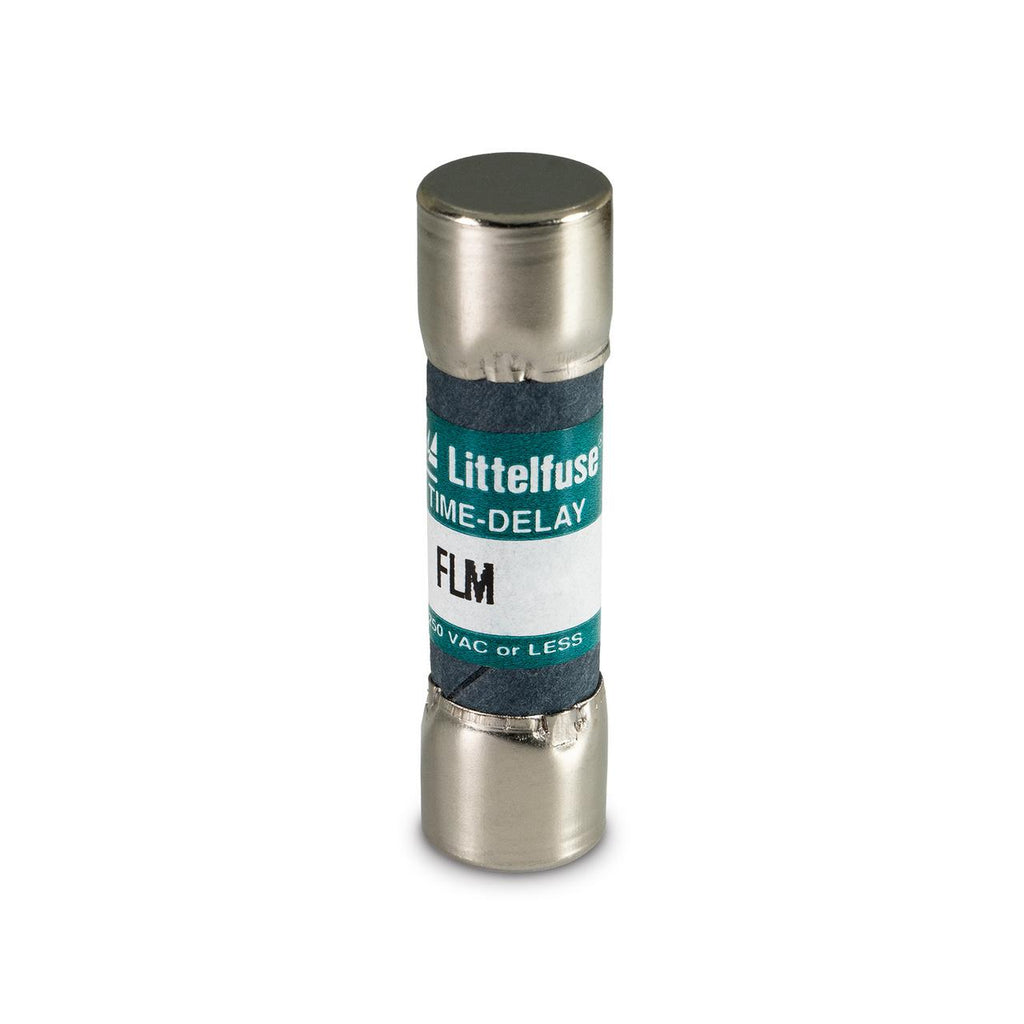

FLM-005 is a Littelfuse 5 Amp, 250 Volt time delay midget fuse designed for reliable circuit protection.This FLM series fuse features a cylindrical body style with a 1 1/2 inch length and 13/32 inch diameter. It is a single-pole, time-delay (slow-blow) fuse with a 10,000 Amp interrupting rating at 250 VAC. The fuse is non-indicating and mounts in fuse holders or clips compatible with 6SC30, 6SM30, 6M30, 6W30, and FB2X series. It meets UL 248-14, CSA, CE, and MIL-F-15160/9 certifications and complies with RoHS and REACH environmental standards.
- Key Specifications
- Amperage: 5 Amp
- Voltage Rating: 250 VAC, 125 VDC
- Poles: 1
- Fuse Type: Time Delay (Slow-Blow)
- Body Style: Cylindrical Midget
- Interrupt Rating: 10,000 Amp RMS Symmetrical
- Dimensions: 13/32 inch diameter x 1 1/2 inch length
- Mounting Type: Fuse Holder/Clip
- Certifications: UL Listed, CSA Certified, CE Compliant, MIL-QPL
- Environmental: RoHS 2, REACH Compliant
- Part Number: FLM-005
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- UPC : 007945814055
- GTIN : 00079458140552
- Weight : 0.08
