Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLM-001

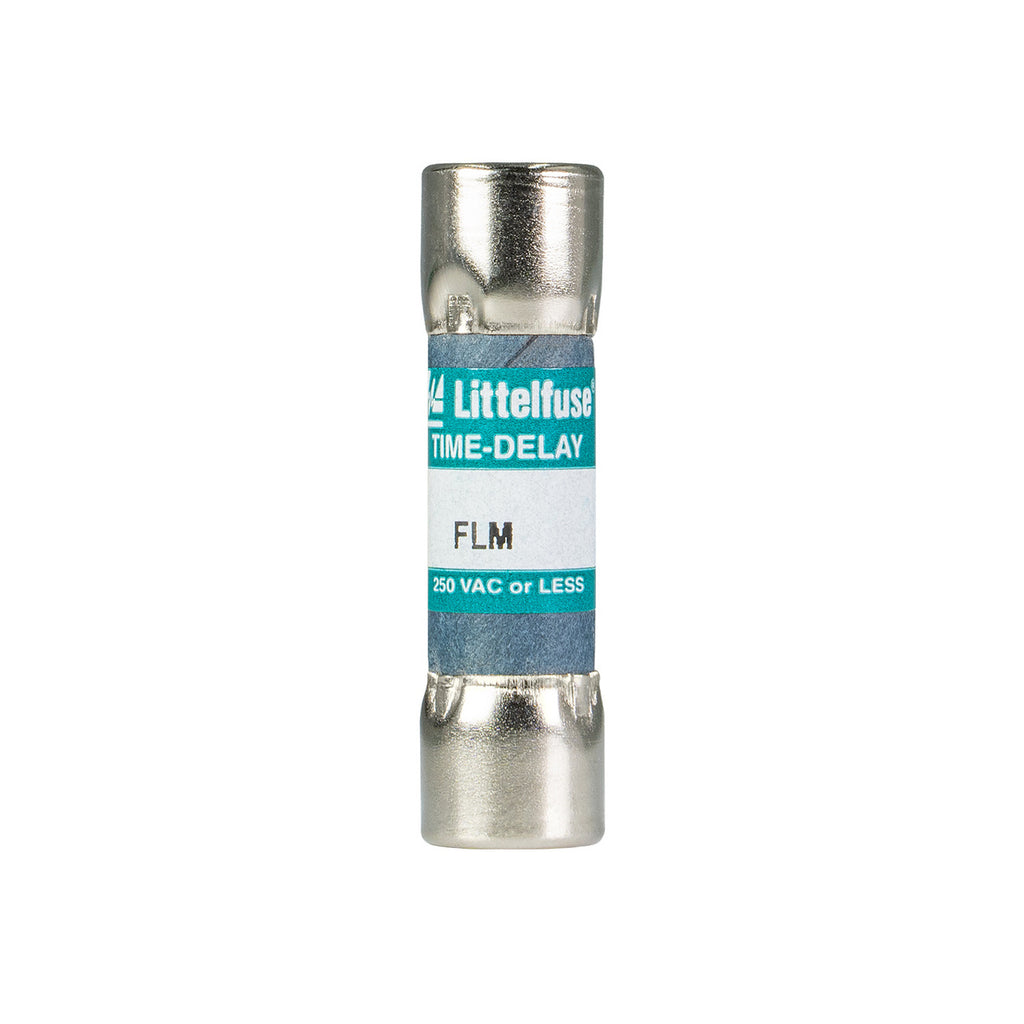

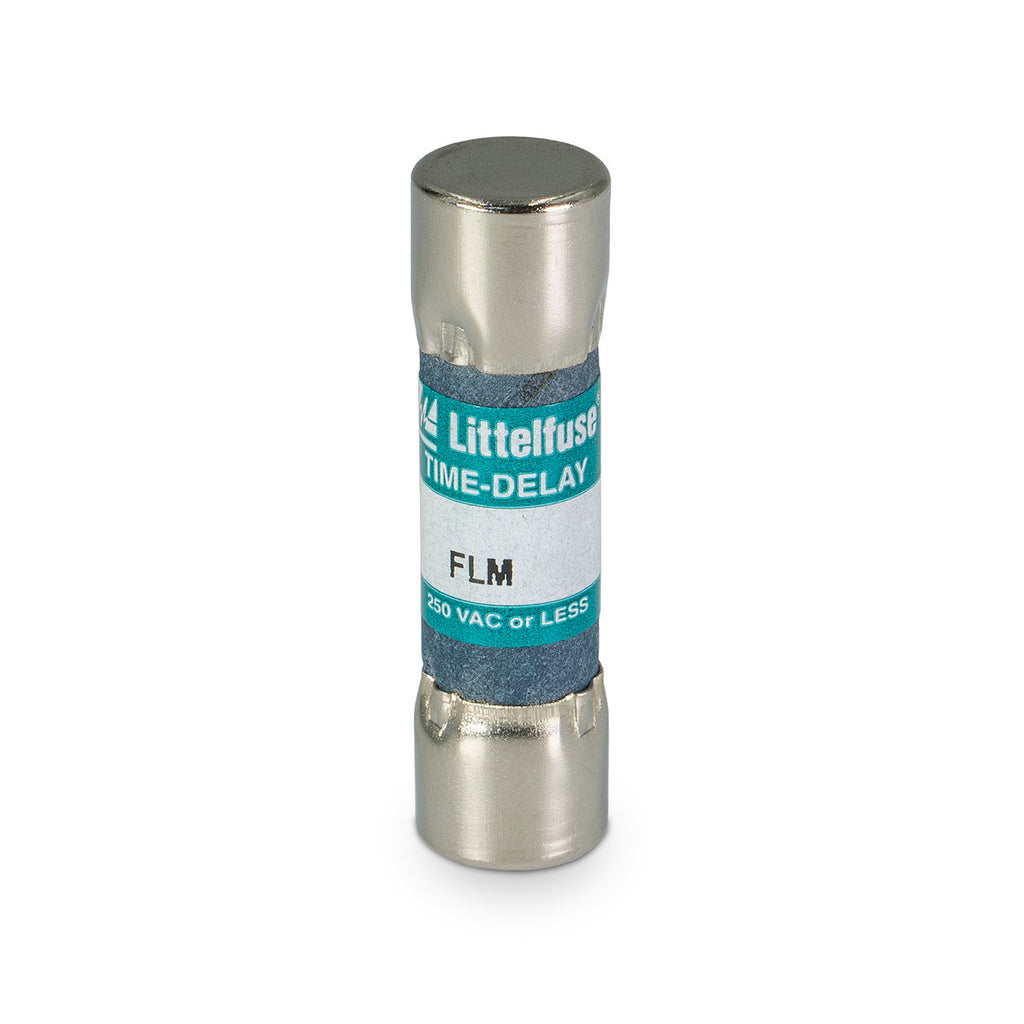

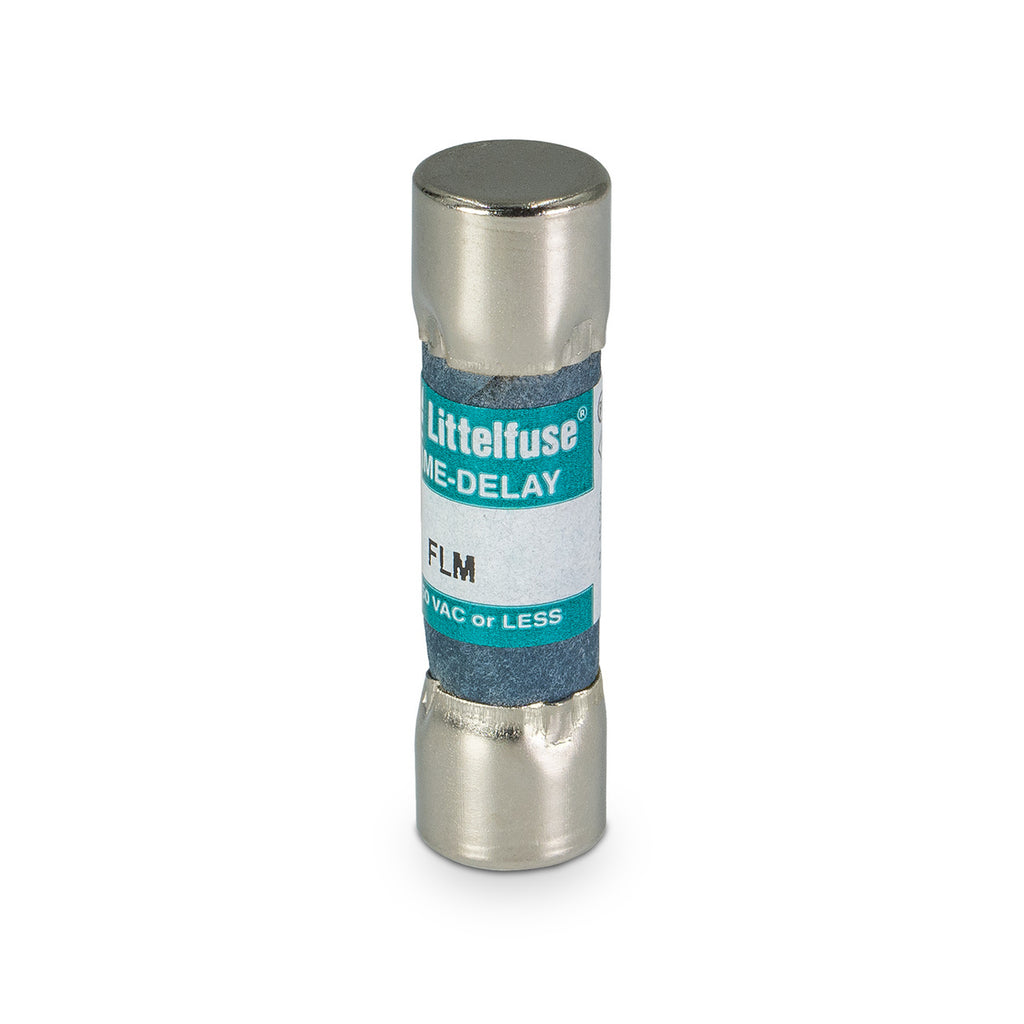

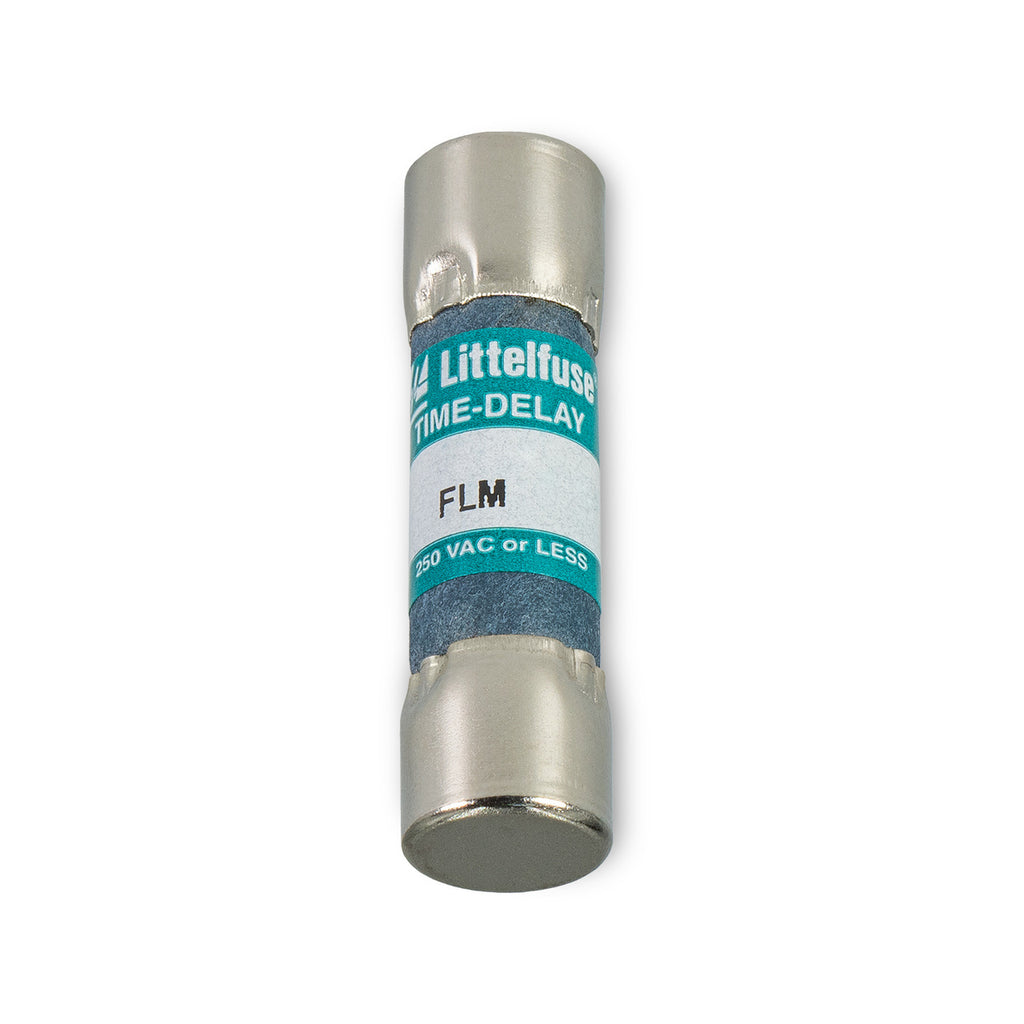

FLM-001 is a Littelfuse time delay midget fuse designed for supplementary protection of control circuits and other applications requiring high inrush current tolerance.This 1 amp, 250 volt AC fuse features a time delay (slow-blow) characteristic to prevent nuisance blowing during motor startups and transient surges. It has a 10,000 amp interrupting rating at 250 VAC and 125 VDC, UL 248-14 and CSA certified, with a nickel-plated bronze cap and paper body. The fuse measures 13/32 inch diameter by 1-1/2 inch length and is compatible with various Littelfuse fuse holders.
- Amperage: 1 A
- Voltage Rating: 250 VAC / 125 VDC
- Interrupting Rating: 10,000 A
- Fuse Type: Time Delay (Slow-Blow)
- Size: Midget (13/32 in x 1-1/2 in)
- Mounting: Ferrule Terminal
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Material: Paper body, nickel-plated bronze cap
- Series: FLM
- Application: Control circuits, solenoids, small motors
Specifications
- Part Number: FLM-001
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
Product Data
- UPC : 079458140316
- GTIN : 00079458140316
- Weight : 5.19
