Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
FLA5

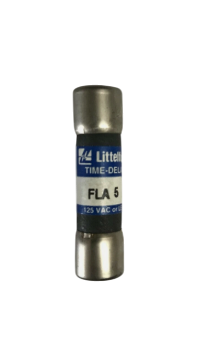

FLA5 is a Littelfuse 5 amp, 125 VAC time delay special class midget fuse designed for reliable circuit protection.This fuse features a 10,000 amp interrupt rating at 125 VAC, making it suitable for protecting sensitive electrical equipment with a slow blow characteristic to tolerate temporary surges. It is a cartridge-style fuse in the special class midget series, providing compact and effective overcurrent protection.
- Key Specifications
- Amperage: 5 Amps
- Voltage Rating: 125 VAC
- Interrupt Rating: 10 kA at 125 VAC
- Speed: Time Delay / Slow Blow
- Fuse Class: Special Class Midget
- Fuse Shape: Cartridge
- Mounting Type: Inline / Cartridge
- Dimensions: Approximately 0.41" x 1.5"
- Certifications: UL Listed (typical for Littelfuse fuses)
- Part Number: FLA5
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : FLA Series
- Type : FLA
- Voltage : 125
- Amperage : 5
- AIC rating : 10kA@125V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- Weight : 5.19
