2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FI36030

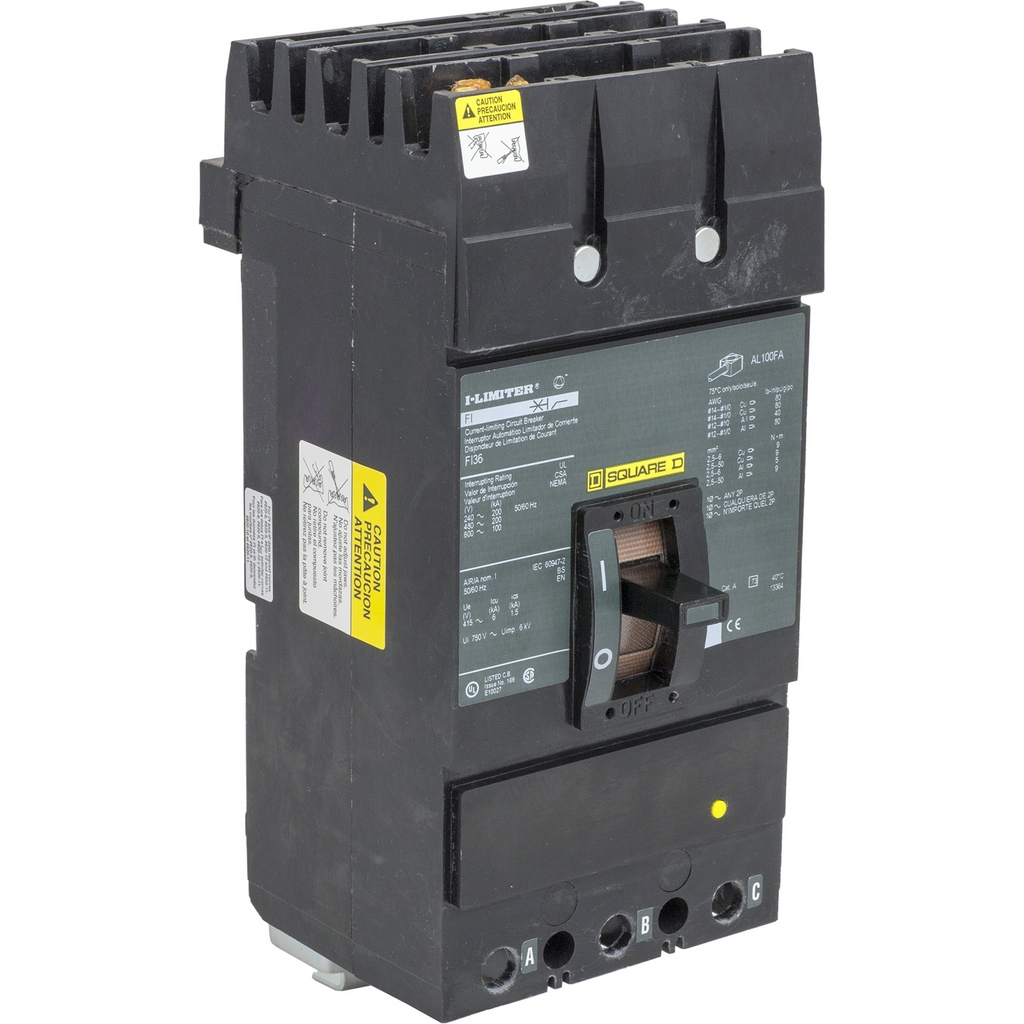

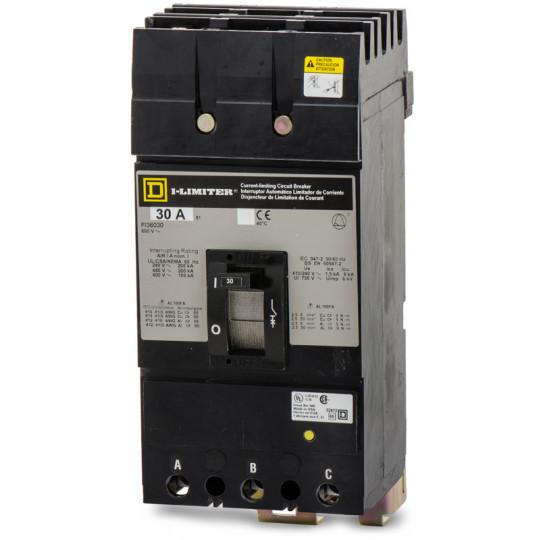

FI36030 is a Square D 3-pole molded case circuit breaker rated for 30 amperes and 600 volts, designed for I-Line FI frame applications.This thermal magnetic circuit breaker features a plug-on mounting type, current limiting capability, and a high interrupt rating of 200kA at 480V. It is engineered for industrial and commercial power distribution systems requiring reliable overcurrent protection.
- Amperage: 30A
- Voltage: 600V AC
- Poles: 3
- Frame Type: FI (I-Line)
- Mounting Type: Plug-On
- Interrupt Rating: 200kA @ 480V
- Trip Unit: Thermal Magnetic
- Current Limiting: Yes
- Application: Industrial/Commercial Power Distribution
- Standards/Certifications: UL Listed
Specifications
- Part Number: FI36030
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : I-Line
- Type : FI
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901210689
- GTIN : 00785901210689
- Country of Origin : Mexico
- Dimensions : Length 19.69 ft (6 m)
- Weight : 12
