Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FHP36035

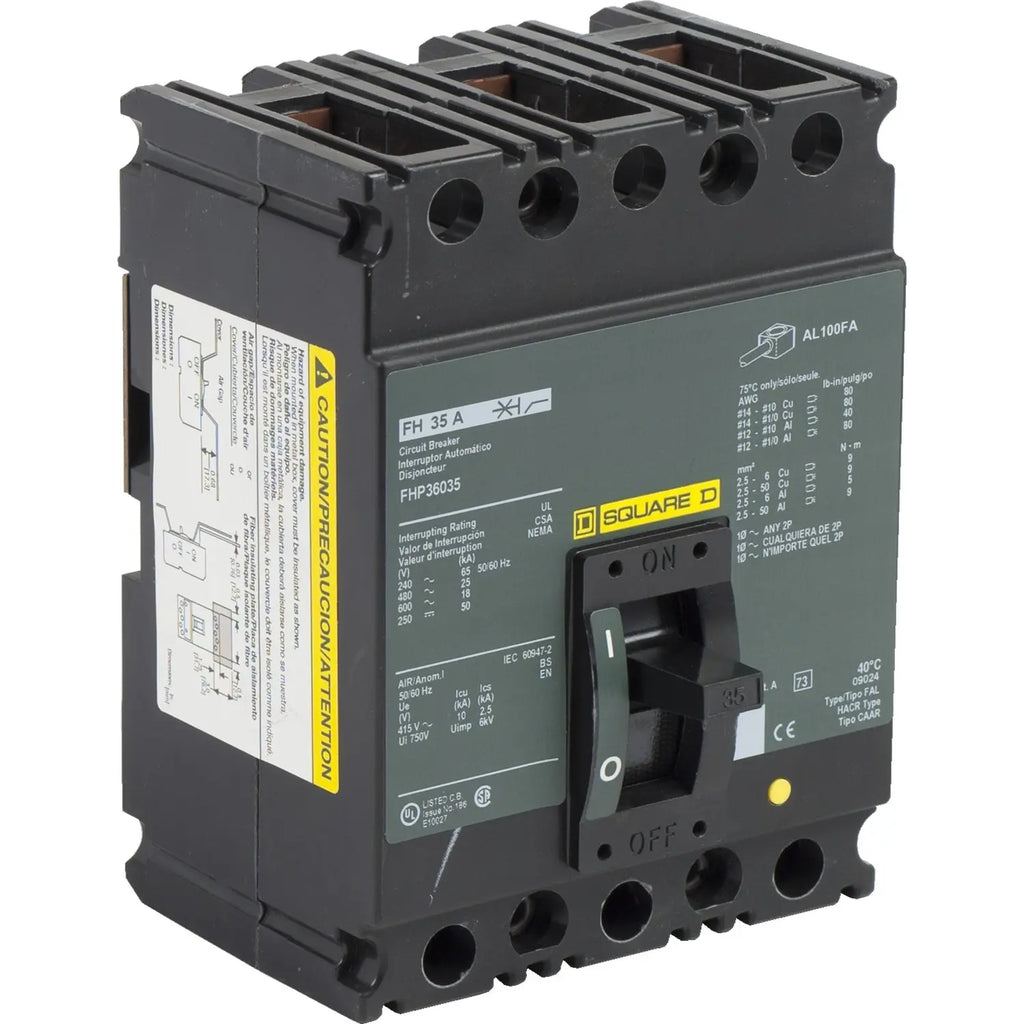

FHP36035 is a 35 amp, 3-pole molded case circuit breaker from Square D designed for 600 Volt applications with FHP frame type.This circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions, providing reliable protection for 3-phase electrical systems. It has a high interrupting capacity of 25kA at 480V and is designed for unit or bolt-on mounting with line and load side lug terminals.
- Amperage: 35A
- Voltage Rating: 600V AC
- Poles: 3
- Frame Type: FHP
- Interrupting Rating: 25kA at 480V
- Trip Unit: Thermal Magnetic
- Mounting Type: Unit/Bolt-On Mount
- Phase: 3-Phase
- Line & Load Side Lug Terminals
- Feed-Thru Capability
- Certifications: UL 489, NETA compliant
Specifications
- Part Number: FHP36035
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FHP Series
- Type : FHP
- Voltage : 600
- Amperage : 35
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901562641
- GTIN : 00785901562641
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 5
- Certification : UL, CSA
