Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
FHP3603015M

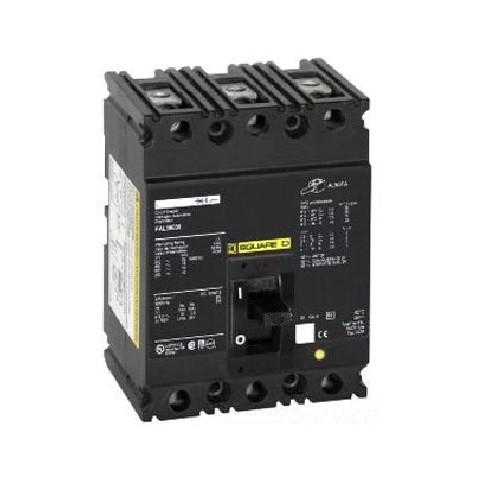

FHP3603015M is a 3 pole, 30 amp, 600 volt molded case circuit breaker from Square D's FHP series, designed for reliable motor circuit protection with bolt-on mounting and instantaneous magnetic-only trip function. This breaker features a high interrupting capacity of 25kA at 480V, making it suitable for demanding industrial and commercial applications. It includes load side lug terminals and Mag-Gard MCP with a magnetic range of 100-350A for effective short-circuit protection. The FHP3603015M is built for durability and performance in three-phase systems.
- Part Number: FHP3603015M
- Manufacturer: Square D
- Series: FHP
- Poles: 3
- Amperage: 30A
- Voltage: 600V
- Mounting Type: Bolt-On
- Interrupting Rating: 25kA@480V
- Protection Type: Magnetic Only
- Frame: Molded Case
- Terminal Type: Load Side Lug
- Application: Motor Circuit Protection
Specifications
- Part Number: FHP3603015M
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FHP Series
- Type : FHP
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : I - Instantaneous
- Frame Size : F Frame
- Protection : Magnetic Only
Product Data
- UPC : 785901031710
- GTIN : 00782451002009
- Weight : 5
- Certification : UL, CSA, CE
- Wire Size : 12 to 4 AWG Aluminum, 14 to 4 AWG Copper
