Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description

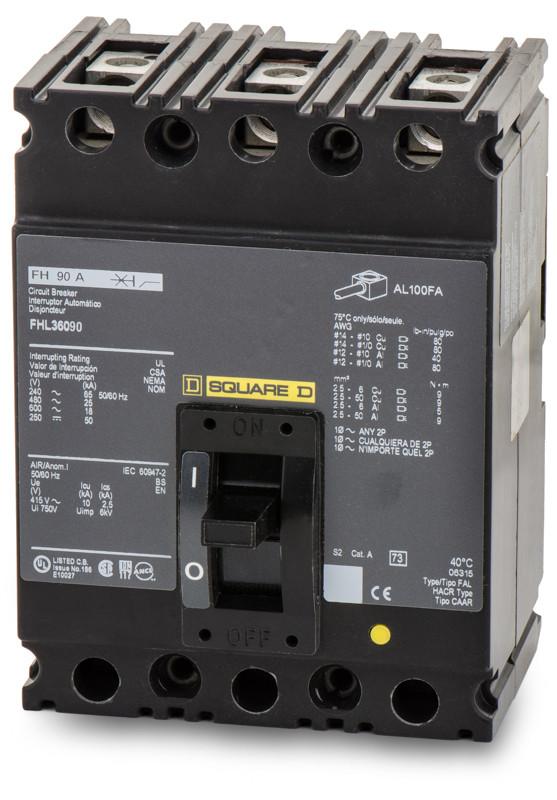

FHL36090
FHL36090 is a 3 pole, 90 amp, 600 volt molded case circuit breaker from Square D's FHL series designed for reliable thermal magnetic protection.This circuit breaker features a 25kA interrupting rating at 480V, feed-thru connection type, and includes long-time and instantaneous trip functions for enhanced protection. It is UL and CSA approved, suitable for unit mounting, and equipped with line and load side lug terminals.
- Manufacturer: Square D
- Series: FHL
- Amperage: 90A
- Voltage: 600VAC
- Poles: 3
- Interrupting Rating: 25kAIC at 480V
- Mounting Type: Unit Mount
- Connection Type: Feed-Thru
- Trip Functions: Long-Time and Instantaneous (LI)
- Protection Type: Thermal Magnetic
- Certifications: UL, CSA
- Terminal Connection: Line and Load Side Lug
Specifications
- Part Number: FHL36090
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FHL Series
- Type : FHL
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901241485
- GTIN : 00785901241485
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 4.669
- Certification : CSA-UL LISTED
