Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description

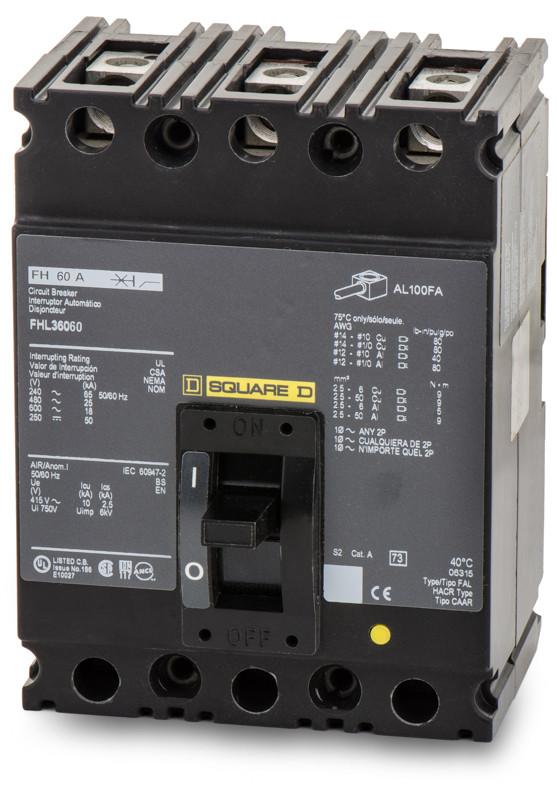

FHL36060
FHL36060 is a Square D 3 Pole thermal magnetic molded case circuit breaker rated for 60 Amps and 600 Volts AC. It features feed-thru connection and LI trip functions.FHL36060 provides reliable protection with a 25kA interrupting rating at 480V and is UL and CSA certified. Designed for unit mounting, it includes line and load side lug terminals and meets HACR standards.
- Key Specifications
- Amperage: 60 Amps
- Voltage: 600 VAC
- Poles: 3
- Series/Frame: FHL
- Mounting Type: Unit Mount
- Interrupt Rating: 25kAIC at 480V
- Trip Unit: LI - Long-Time and Instantaneous
- Connection Type: Feed-Thru
- Terminal Connection: Line and Load Side Lug
- Certifications: UL, CSA
- Standards: HACR
- Dimensions (HxWxD): 6.4 x 4.5 x 4.13 inches
Specifications
- Part Number: FHL36060
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FHL Series
- Type : FHL
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901241461
- GTIN : 00785901241461
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 4.817
- Certification : UL LISTED-CSA
