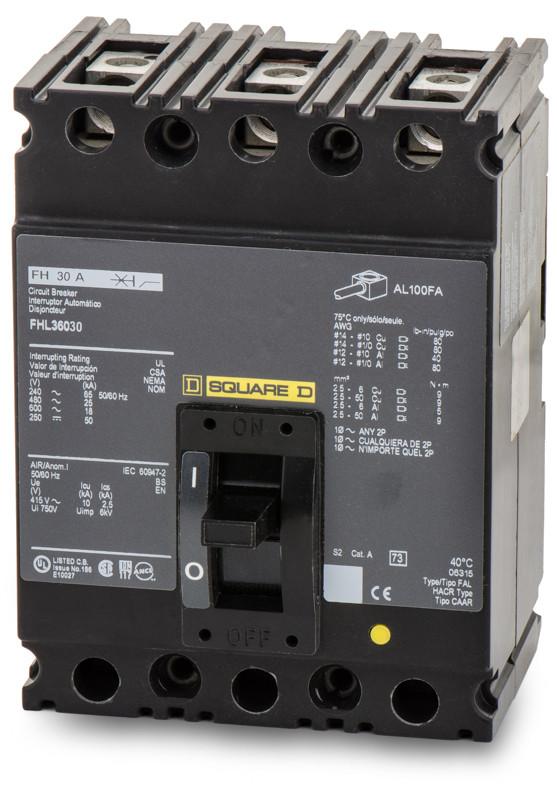

FHL36030 - Square D 30 Amp 3 Pole 600V Molded Case Circuit Breaker, FHL Series, Thermal-Magnetic Trip, Bolt-On Mounting, 25kA Interrupt Rating

FHL36030

FHL36030 is a Square D molded case circuit breaker designed for reliable protection in commercial and industrial power distribution applications.

This 3-pole, 30 Amp, 600V AC circuit breaker features a thermal-magnetic trip unit for both overload and short-circuit protection, with a high interrupting capacity of 25kA at 480V. It is part of the FHL series, offers bolt-on mounting for secure installation, and is suitable for demanding electrical environments.

Key Specifications
• Amperage: 30A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 25kA @ 480VAC, 18kA @ 600VAC, 65kA @ 240VAC
• Series/Frame: FHL
• Trip Unit: Thermal-Magnetic (Long-Time and Instantaneous)
• Certifications: UL Listed (assumed, not explicitly stated in sources)
• Line & Load Side Lug Terminals
• Feed-Thru Design
• Weight: 4.00 lbs
• Country of Origin: US

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FHL36030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FHL Series
• Type : FHL
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901241430
• GTIN : 00785901241430
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 4.791
• Certification : UL LISTED
