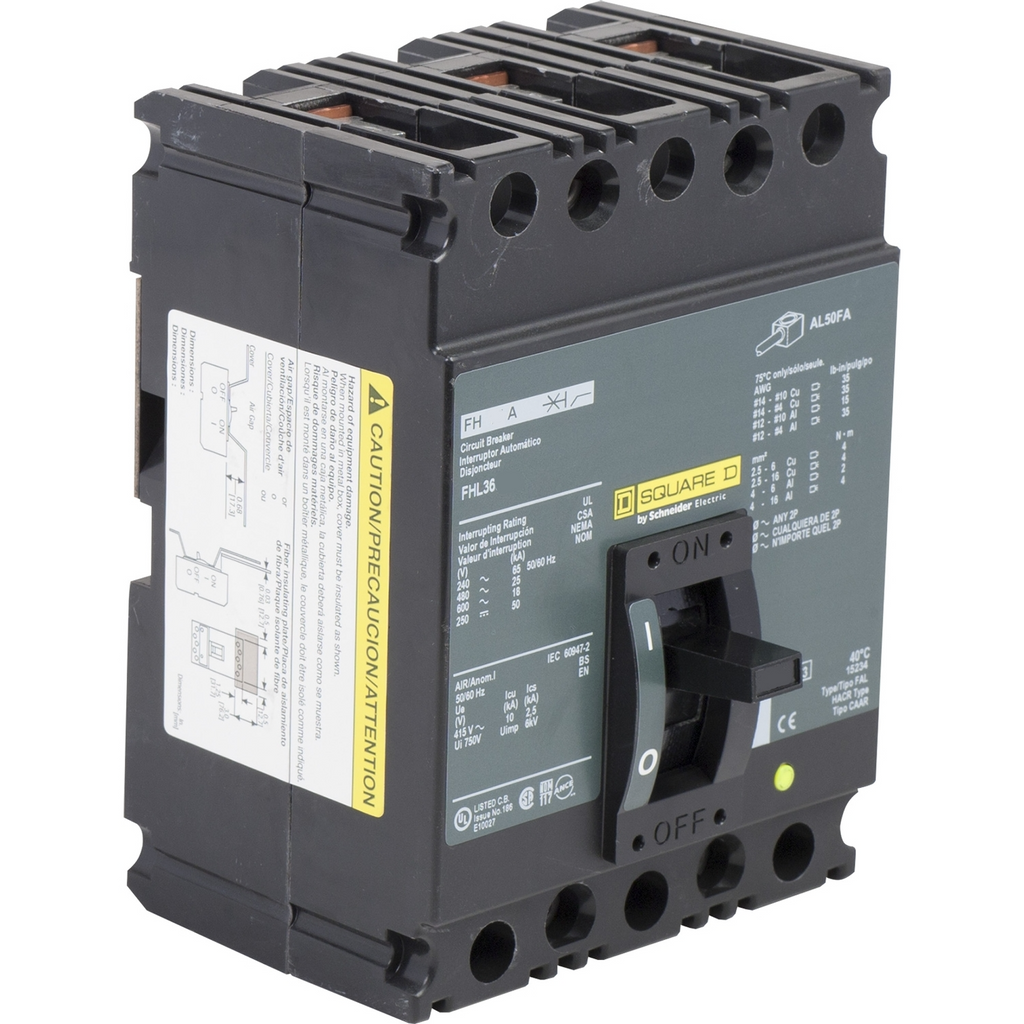

FHL360201212 - Square D 20A 3-Pole 600V Shunt Trip Molded Case Circuit Breaker

FHL360201212

FHL360201212 is a 3-pole, 600-volt, 20-ampere shunt trip molded case circuit breaker designed for feed-thru applications in industrial and commercial power distribution systems.

This thermal magnetic circuit breaker features an F-frame design with a maximum voltage rating of 600V AC and is rated for 50/60 Hz operation. The breaker delivers reliable overcurrent protection with multiple interrupt ratings across different voltage levels, making it suitable for high fault current conditions. The shunt trip mechanism enables remote tripping capability for enhanced control and safety in critical applications.

• Amperage Rating: 20A
• Voltage Rating: 600V AC
• Poles: 3-Pole
• Series: FHL (F-Frame)
• Trip Unit: Thermal Magnetic with Shunt Trip
• Interrupt Rating: 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC
• Mounting Type: Feed-Thru Molded Case
• Frequency: 50/60 Hz
• Manufacturer: Square D by Schneider Electric

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FHL360201212
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FHL Series
• Type : FHL
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901234685
• GTIN : 00785901234685
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 5
• Certification : Ul Listed
